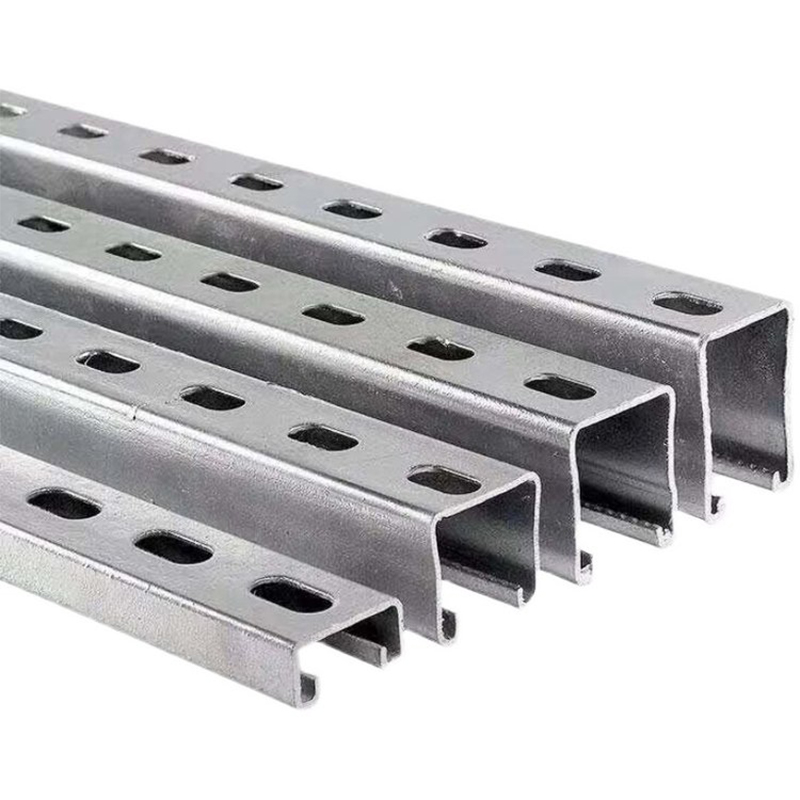

Cold Rolled U Channel

U/C/T Strut Channels: The Complete Guide to Channel Support Systems

U/C/T Strut Channels (U-shaped, C-shaped, and T-slot channels) are widely used support structures in industrial, construction, and electrical installations, commonly applied in cable trays, pipe supports, and mechanical framing. Due to their modular design and high strength, strut channel systems are the preferred choice for engineers and contractors. This article provides a detailed guide on installation methods, type comparisons, and selection criteria.

1. U-Shaped Strut Channel Installation Method: Step-by-Step Guide and Common Issues

Installation Steps
Measurement and Marking: Determine the support position based on design drawings and mark drilling points with a marker.
Drilling and Fixing: Use an impact drill to create holes in walls or ceilings, then install expansion bolts or chemical anchors.
Assembling Channels: Cut U-shaped channels to the required length and connect them using fittings (e.g., angle brackets, straight connectors).
Leveling Adjustment: Use a spirit level to ensure the support is perfectly horizontal.
Load Installation: Secure cables, pipes, or equipment to the channels using compatible clamps (e.g., U-bolts, pipe clamps).

Common Issues
Support Shaking: May be caused by loose fasteners or excessive load—check bolt torque and channel load capacity.
Channel Deformation: Avoid excessive cutting or welding, which can weaken structural integrity.
Corrosion Protection: In humid environments, opt for galvanized or stainless steel channels.

2. Difference Between T-Slot and U-Shaped Strut Channels: How to Choose the Right Type?

Selection Tips:
Need frequent adjustments? Choose T-slot channels (e.g., production line fixtures).
Need high load capacity and fixed installation? Opt for U-shaped channels (e.g., building pipe supports).

3. Strut Channel Selection Guide: Load, Material, and Application Analysis

Key Selection Factors
Load Requirements:
Light-duty (≤200kg): Use 1.5mm thick channels.
Heavy-duty (≥500kg): Use 3mm+ thick or reinforced designs.

Material Options:
Galvanized Steel: Rust-resistant, suitable for indoor/outdoor use.
Stainless Steel: Chemical-resistant, ideal for chemical or food industries.
Aluminum: Lightweight, perfect for cleanrooms or electronic equipment.

Application Scenarios:
Electrical Projects: Prefer C-shaped channels (easier cable routing).
Machinery Manufacturing: T-slot channels allow modular assembly.

With the rise of modular construction, demand for quick-assembly strut channel systems has surged, particularly for "seismic bracing channels" and "solar mounting channels," which are now trending search terms.
