Strut Slotted Struct Channel Manufacturers

Strut Slotted Struct Channel – Engineered for Versatile Support

As a Strut Slotted Struct Channel Manufacturers, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.

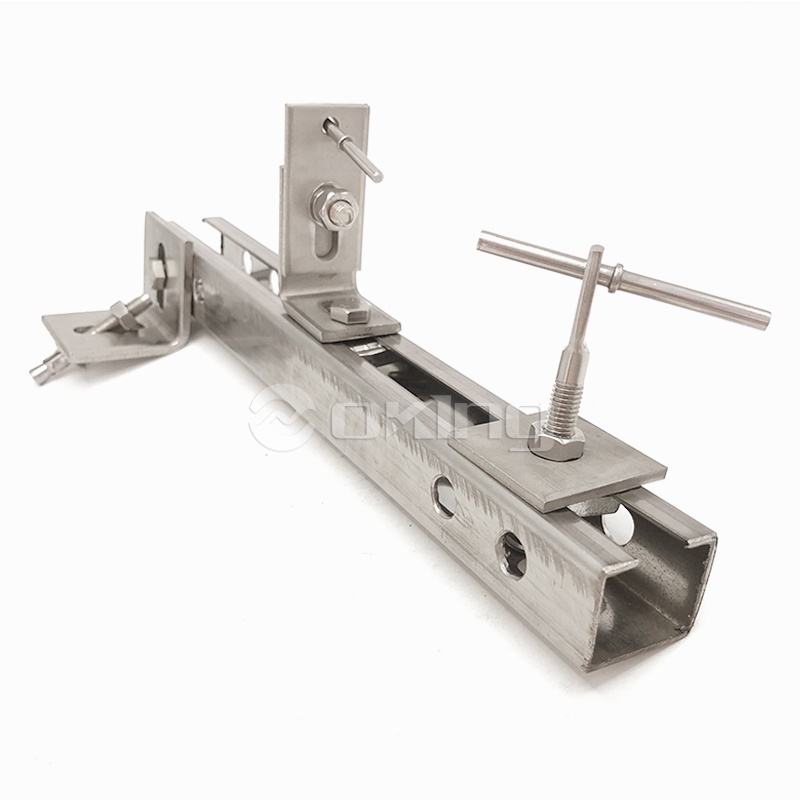

Our strut slotted struct channels are cold-formed from stainless steel or galvanized mild steel to provide a continuous, adjustable anchoring point for a wide range of construction and industrial applications. As a dedicated Strut Slotted Struct Channel Manufacturers factory, we combine in-house roll forming, punching, and surface treatment to deliver channels that meet your project’s structural and corrosion requirements.

Available in standard 3-meter and 6-meter lengths, with either drilled or slotted hole patterns, these channels serve as the backbone for facade cladding support, seismic bracing, pipe and cable trapeze systems, and equipment mounting. We supply both standard profiles and fully customized cross-sections, hole layouts, and material grades.

Product Range and Application Fit

We manufacture strut channels in several configurations to match the structural demands of your project:

Our Strut Channels range also includes C-strut channels and U-strut channels, each designed for specific load and installation requirements.

Materials and Finishes

We produce strut channels from materials selected for their strength and corrosion resistance:

• Stainless steel – grades such as 1.4301 (A2) and 1.4401 (A4) for coastal, chemical, and high-humidity environments.
• Hot-dip galvanized mild steel – for economical, durable protection in indoor and outdoor applications.
• Electro-galvanized mild steel – for lighter-duty, cost-sensitive projects.

We also offer pre-galvanized or powder-coated finishes on request. Our in-house processing includes automated cutting, stamping, and welding, ensuring consistent quality across large volumes.

Critical Specifications and Customization

Standard strut slotted struct channels are available with the following hole configurations:

• Drilled holes: Ø9, 11, or 13 mm, with 20 mm spacing at hole centers.
• Slotted holes: Ø9×30, 11×40, or 14×28 mm, with 50 mm spacing at hole centers.

Lengths are typically 3 m or 6 m, but we can cut to exact lengths for your project. We also produce custom cross-sections, hole patterns, and edge details based on your drawings or samples. Our engineering team works with you to confirm load capacities and provide allowable load data for submission.

Quality Assurance and Testing

As a manufacturer with a 32,000 m² production facility, we implement strict quality control at every stage. Our laboratory is equipped with a spectrometer, tensile tester, and surface testing instruments to verify chemical composition, mechanical properties, and dimensional accuracy. Each production batch is inspected after forming, punching, and finishing, and we perform final inspections on 99.99% of finished goods according to your requirements and international standards.

Project Support and Documentation

We provide technical documentation to support your project approvals, including material test certificates, dimensional inspection reports, and allowable load tables. Our team can assist with installation guidance and provide samples for pre-production validation. We also offer OEM/ODM services, developing custom tooling and profiles to meet your exact specifications.

Information We Use to Configure Your Solution

To prepare a precise quotation and engineering proposal, we typically need the following project information:

• Channel type (slotted, drilled, U-channel) and required dimensions.
• Material grade and finish (stainless steel grade, galvanizing type).
• Length and quantity, with hole pattern and spacing if standard options do not apply.
• Intended application and load requirements (for allowable load calculations).
• Drawings or samples for custom profiles.
• Packaging and delivery destination.

Frequently Asked Questions

What is the difference between drilled and slotted strut channels?

Drilled channels have round holes at fixed spacing, providing precise attachment points. Slotted channels have elongated holes that allow for horizontal adjustment during installation, which is useful when aligning brackets or accommodating thermal movement.

Can you provide load capacity data for your channels?

Yes, we can supply allowable load tables for standard profiles based on material grade and section dimensions. For custom profiles, we can perform calculations or arrange testing to confirm performance.

Do you offer custom lengths and hole patterns?

Absolutely. We can cut channels to any length and punch custom hole patterns according to your drawings. Our in-house tooling allows for flexible customization without long lead times.

What is the typical lead time for strut channel orders?

Lead time depends on quantity and customization level. For standard products, we typically ship within 2-3 weeks after order confirmation. Custom profiles may require additional time for tooling and sampling.

Do you provide samples before mass production?

Yes, we can provide samples for your evaluation. Sample costs are usually covered by the customer, but we may deduct them from the final order for large quantities.
