Omega Cladding System Bracket Manufacturers

Omega Cladding System Bracket Manufacturer

As a Omega Cladding System Bracket Manufacturers, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.

As a professional Omega Cladding System Bracket manufacturer, Jiangsu Aozheng Metal Products Co., Ltd. supplies stainless steel brackets engineered for natural stone, ceramic, and terracotta cladding systems. Our brackets provide load-bearing and restraint functions with three-dimensional adjustability, designed for both horizontal and vertical joints.

With a 32,000 m² production plant and an annual capacity of 8,000 tons, we combine automated cutting, stamping, welding, and CNC machining to deliver precise, durable brackets for global construction projects. We support OEM/ODM customization, structural calculation reports, and complete technical documentation.

Product Range and Positioning

Our Omega bracket range covers standard and adjustable configurations to suit different facade substrates and joint types. Each variant is manufactured from premium stainless steel (typically 304 or 316) to resist corrosion and ensure long-term structural integrity.

Application Fit and Engineering Value

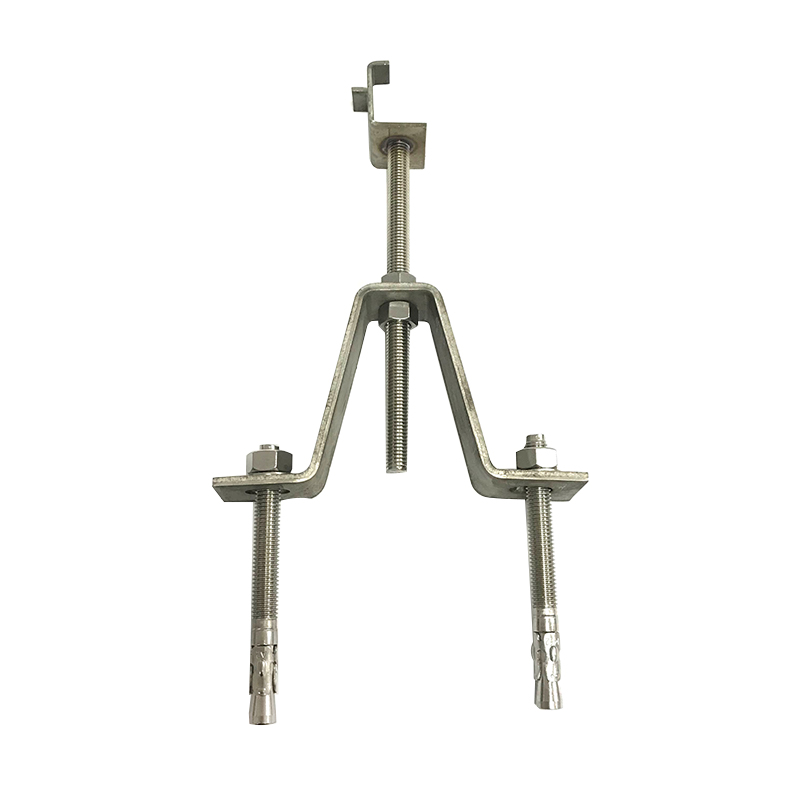

Omega brackets are used in ventilated facade systems to transfer panel weight and wind loads to the building structure. Their omega shape provides high stiffness while allowing thermal movement. We supply brackets for stone thicknesses from 20 to 50 mm, with projection sizes between 45 and 130 mm, covering most standard cavity depths.

Our engineering team provides structural calculation reports upon order, verifying working resistance loads for your specific project. We also offer load testing and material certifications to support approval processes.

Configuration and Customization

We understand that every facade is unique. Our customization options include:

• Material grade selection (304, 316, or other stainless steel)
• Projection length and hole patterns
• Surface treatment (brushed, passivated, or powder-coated)
• Integrated rivet nuts or threaded inserts
• Compatibility with specific anchor bolts or channel systems

Send us your drawings or samples, and our R&D team will develop tooling and production processes to meet your exact specifications.

Quality Assurance and Testing

Quality is embedded in every step. We perform incoming material spectrometric analysis, in-process dimensional checks, and final inspection on 99.99% of finished products. Our in-house laboratory is equipped with tensile testers, breakage testers, and surface testers to verify mechanical properties and coating adhesion.

We hold ISO9001 and other relevant certifications, and our products are exported to markets including the USA, Germany, Italy, and Australia, meeting international standards.

Information We Use to Configure Your Solution

To prepare an accurate proposal, we need the following project details:

• Panel material and thickness (e.g., 30 mm granite)
• Required projection and cavity dimension
• Wind load and structural load calculations
• Substrate type (concrete, steel, or masonry)
• Joint type (horizontal or vertical)
• Quantity and delivery schedule
• Any specific certifications or test reports required

With this information, we provide a detailed quotation, technical drawings, and structural calculation reports.

Installation and Maintenance

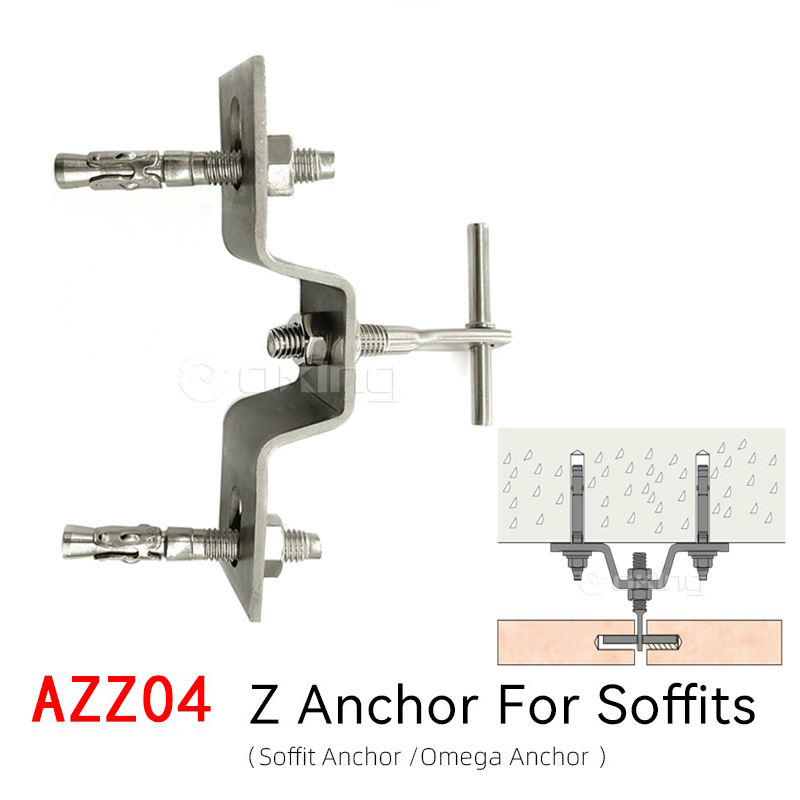

Our brackets are designed for simple installation: fasten to load-bearing walls with expansion bolts or to channels with set screws. The three-dimensional adjustability allows for on-site alignment, reducing installation time. Stainless steel construction ensures minimal maintenance and long service life, even in coastal or industrial environments.

Frequently Asked Questions

What is the maximum load capacity of your Omega brackets?

Our standard Omega brackets are rated for working resistance loads up to 400 N. For higher loads, we can design custom brackets with reinforced material or geometry, supported by structural calculation reports.

Can you provide brackets for stone thicknesses outside 20-50 mm?

Yes, we can customize the bracket design to accommodate other stone thicknesses. Please provide your panel specification, and we will adjust the bracket dimensions and load calculations accordingly.

Do you offer structural calculation reports?

Yes, structural calculation reports are available upon order. We perform detailed analysis based on your project’s load requirements and provide documentation to support your engineering approval.

What is your typical lead time for custom Omega brackets?

Lead time depends on order quantity and complexity. For standard sizes, we typically ship within 2-3 weeks after confirmation. Custom products may require additional time for tooling and sampling.

How do you ensure quality consistency for large orders?

We implement strict process control from raw material inspection to final testing. Our automated production lines and 99.99% final inspection ensure every batch meets the same high standards.
