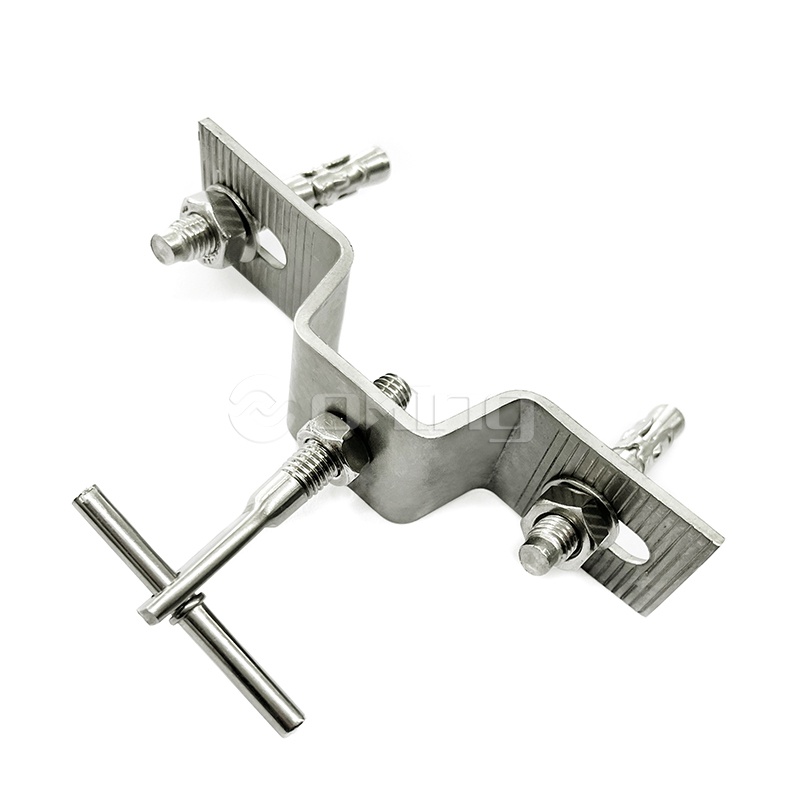

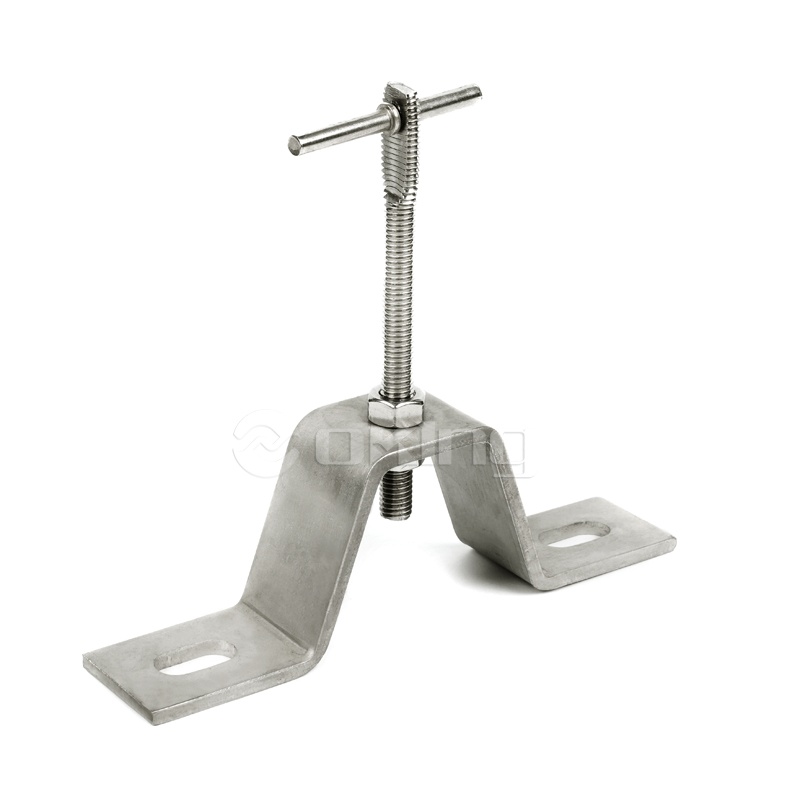

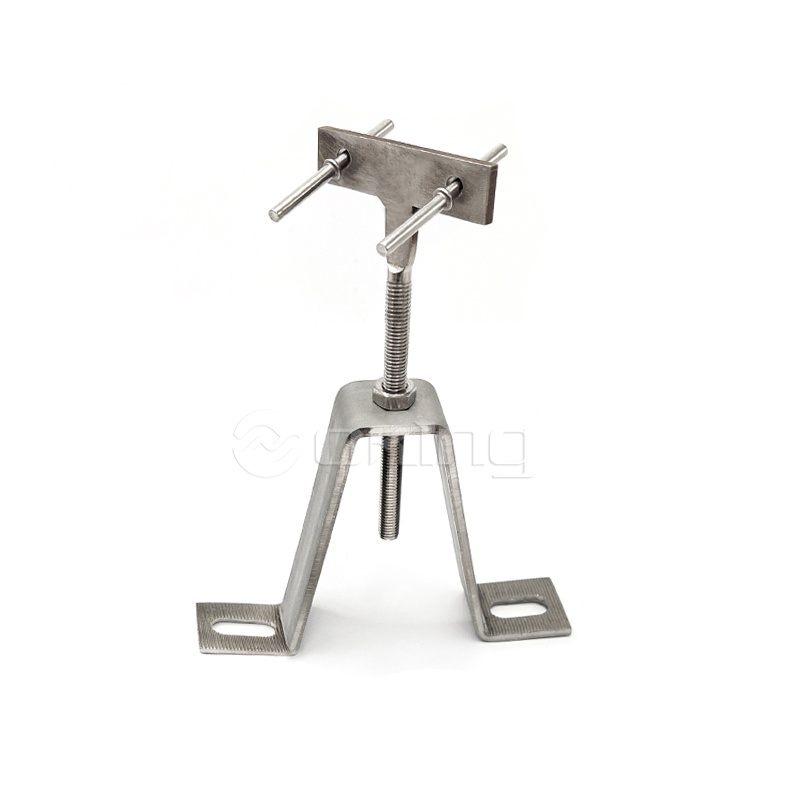

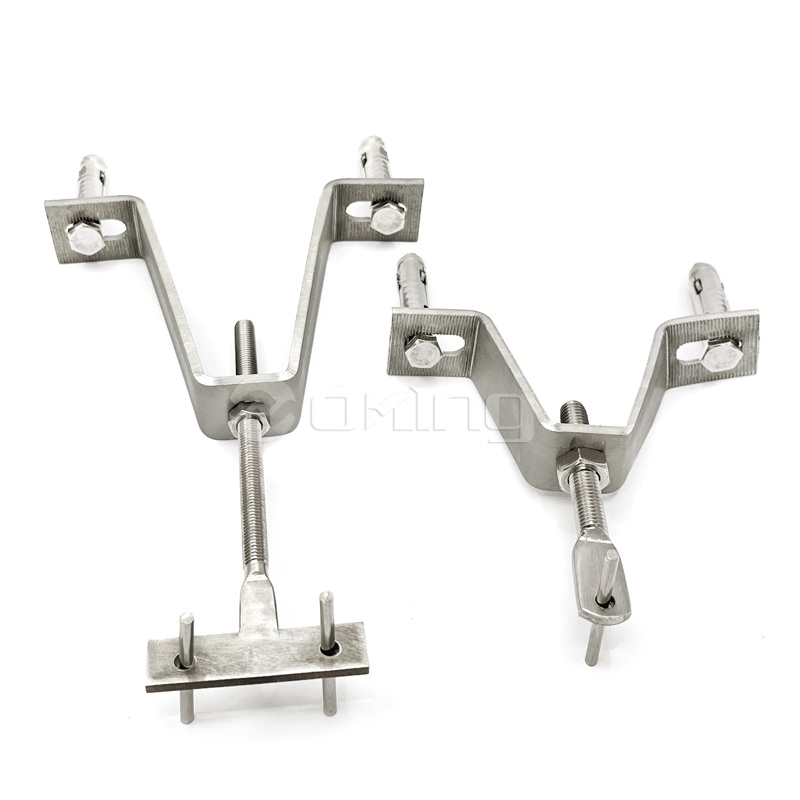

SS Omega Cladding Metal Bracket is a high-performance metal bracket designed specifically for exterior wall cladding. It is made of high-quality stainless steel material with corrosion resistance and durability. The metal bracket adopts a unique Omega shape design, which is not only beautiful and elegant, but also can effectively disperse the weight and pressure of the wall and enhance the stability of the overall structure. In addition, it has installation properties and can be easily and quickly connected to the external wall cladding material. SS Omega Cladding Metal Bracket is widely used in exterior wall decoration and insulation projects of various types of buildings such as commercial buildings, residential buildings, and public facilities.
Get A Quote
PREV：Wall Stone Cladding Fixing System Omega Anchor BracketNEXT：Stainless Steel Omega Bracket
  • Parameter
  • Contact Us

  • AZZ04 Omega Bracket Stone Fixing System/ Z Anchor For Soffits

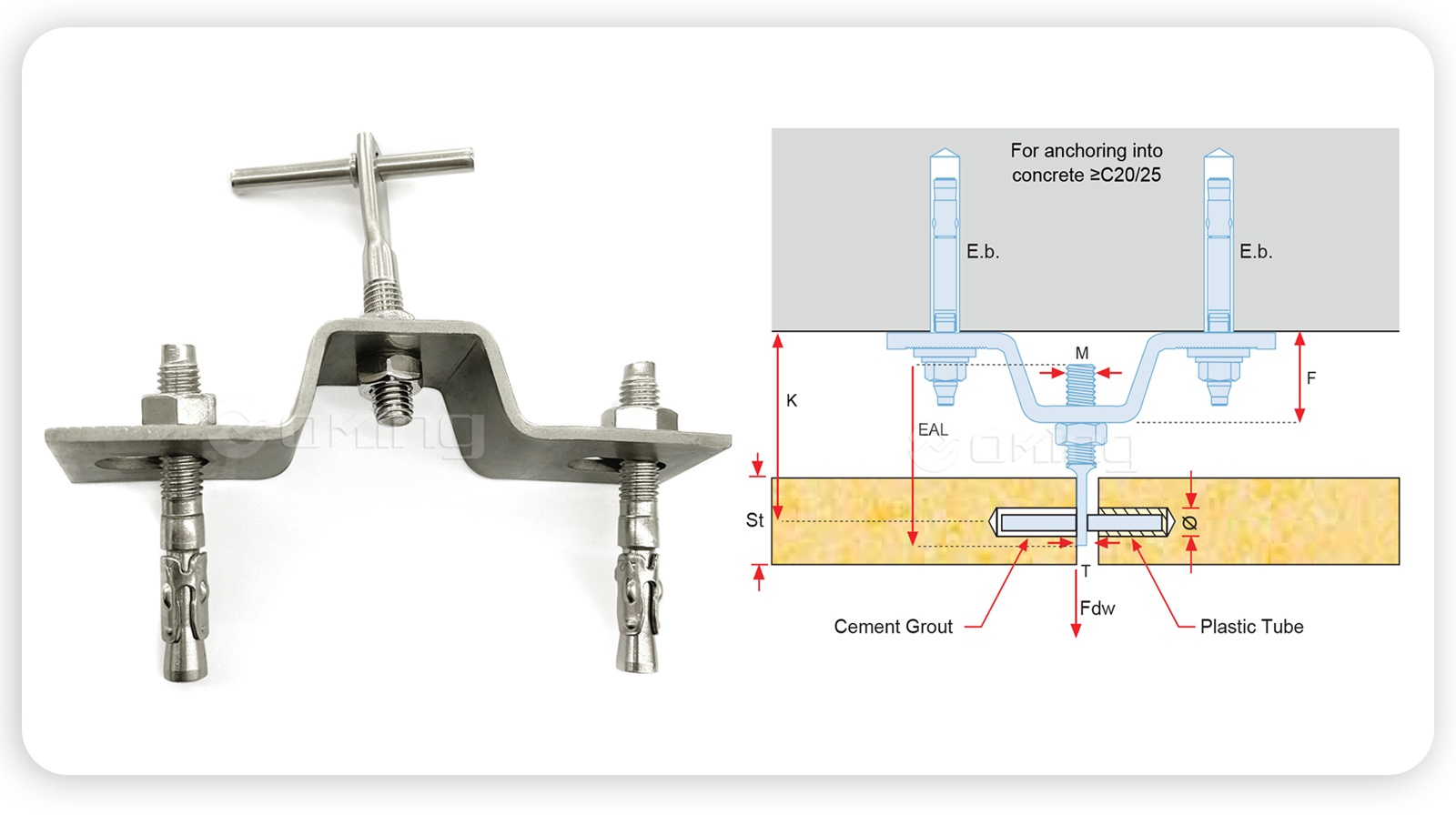

    ●Technical Details

    Product Code Projection

    Min.

    Projection

    Max.

    Projection

    Dead

    Load

    Foriming

    Size

    Expansion

    Bolt Size

    Pin

    Diameter

    Adj. Arm

    Metric Size

    Adj. Arm

    Flat Thickness

    Adj. Arm

    Length
    K (mm) K - (mm) K + (mm) Fdw (N) F (mm) E.b.(mm) ф (mm) M (mm) T (mm) EAL(mm)
    AZZ04-452 45 40 55 200 10 M8x80 5 M10 3.5 60
    AZZ04-552 55 50 70 20 60
    AZZ04-752 75 60 90 40 70
    AZZ04-952 95 80 110 60 70
    AZZ04-553 55 45 70 300 20 M8x80 5 M10 3.5 60
    AZZ04-753 75 60 90 40 60
    AZZ04-953 95 80 110 60 60
    AZZ04-1153 115 100 130 80 60
    AZZ04-554 55 45 65 400 10 M8x80 5 M12 4.5 70
    AZ0Z4-754 75 60 90 20 80
    AZZ04-954 95 80 110 40 80
    AZZ04-1154 115 100 130 60 80



    Stainless steel 201 304 316 angle for marble cladding fixing
    Projections between 45 and 135 mm
    Loads up to 800N

    Suitable for horizontal & vertical joints

    Stone thicknesses 20-50 mm

    Fastened on to load bearing walls with expansion bolts and on to channels with set screws
    Material: 1.4571/1.4404/1.4401 (A4/AISI 316) or 1.4301 (A2/AISI 304)



    ●Product code description
    AZZ04 - 45  2   A
            AZZ04:Type

            45:     Projection (mm)

            2:       Dead Load (x10 Kg)

            A:      Shape

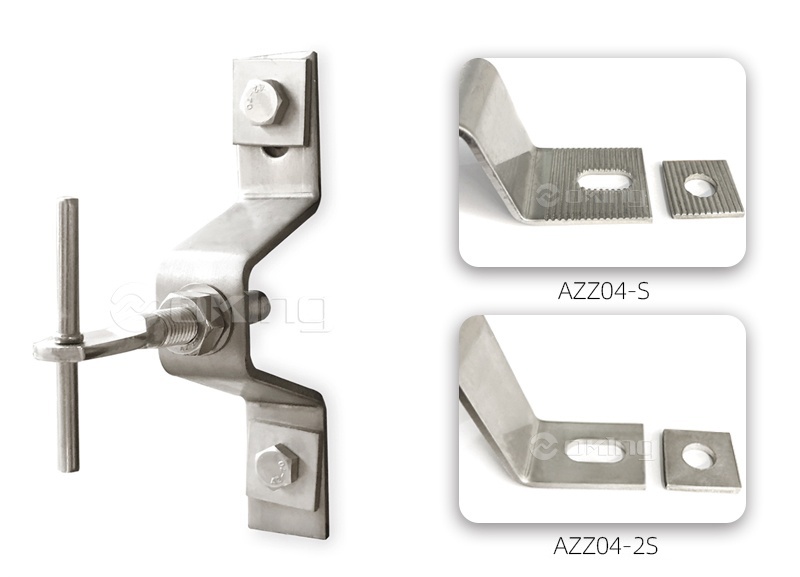

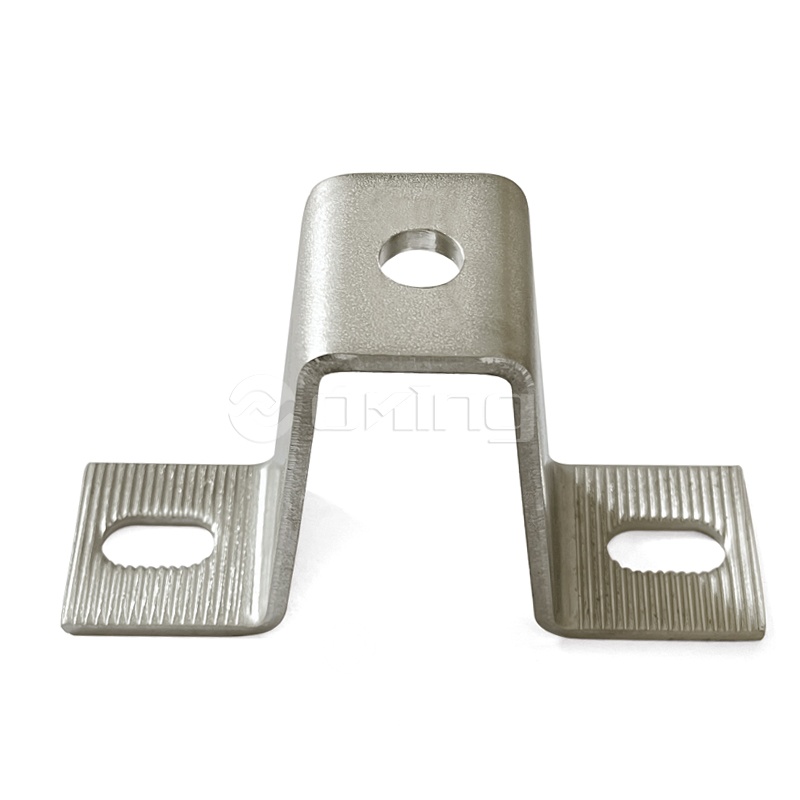

    AZZ04-S
    Type with Serrated and serrated washer.
    AZZ04-2S
    Type without serration and with plain washer.



    ●Application

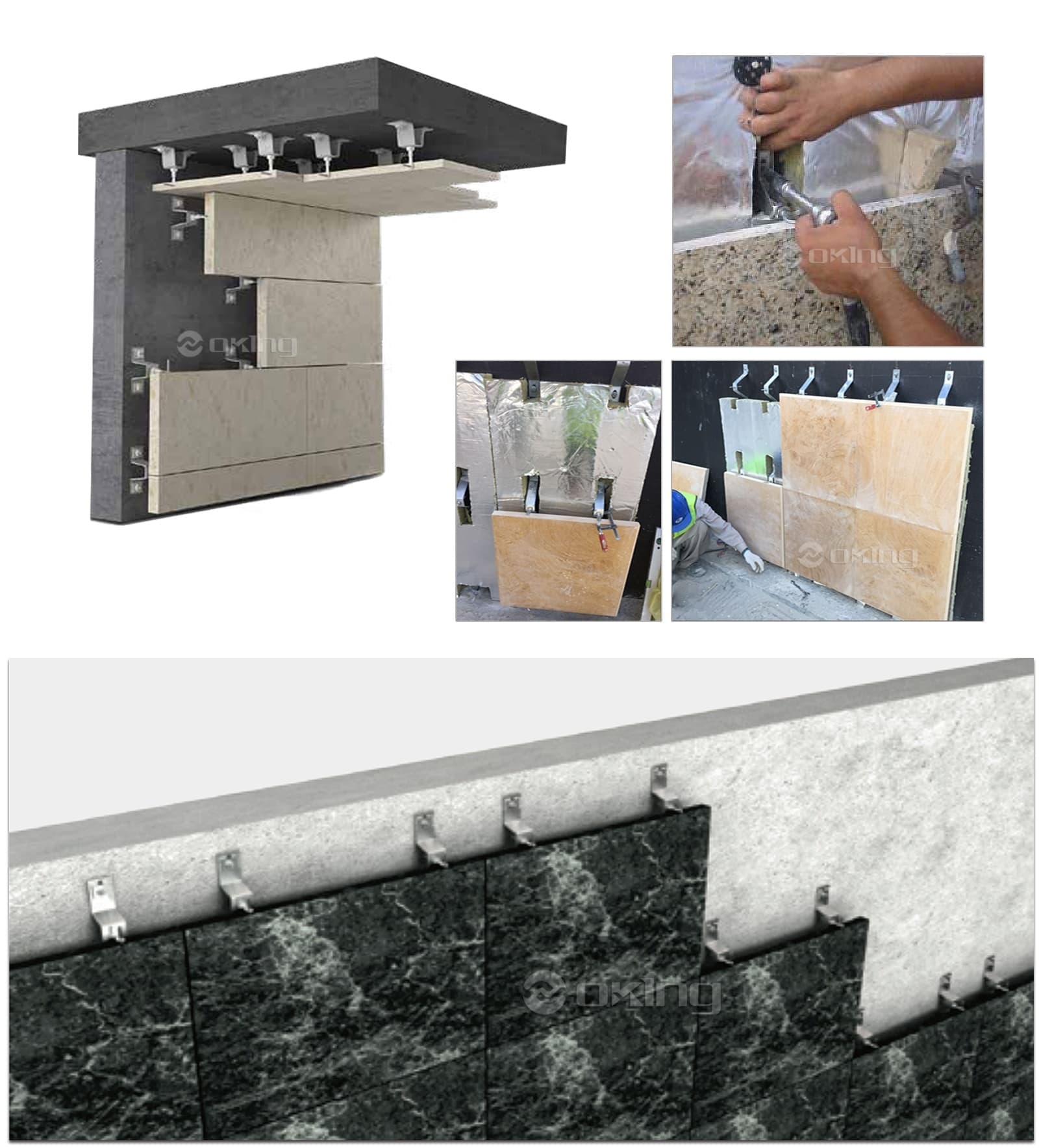

    Application examples for bolt anchorsAnchors are fixed on to load bearing wallswith expansion bolts.

    To fasten anchors on to isolated walls, theisolation must be cut first. After fastening, thecut out isolation piece must be inserted back,and the isolation parts must be sealed in orderto reduce cold bridging.
