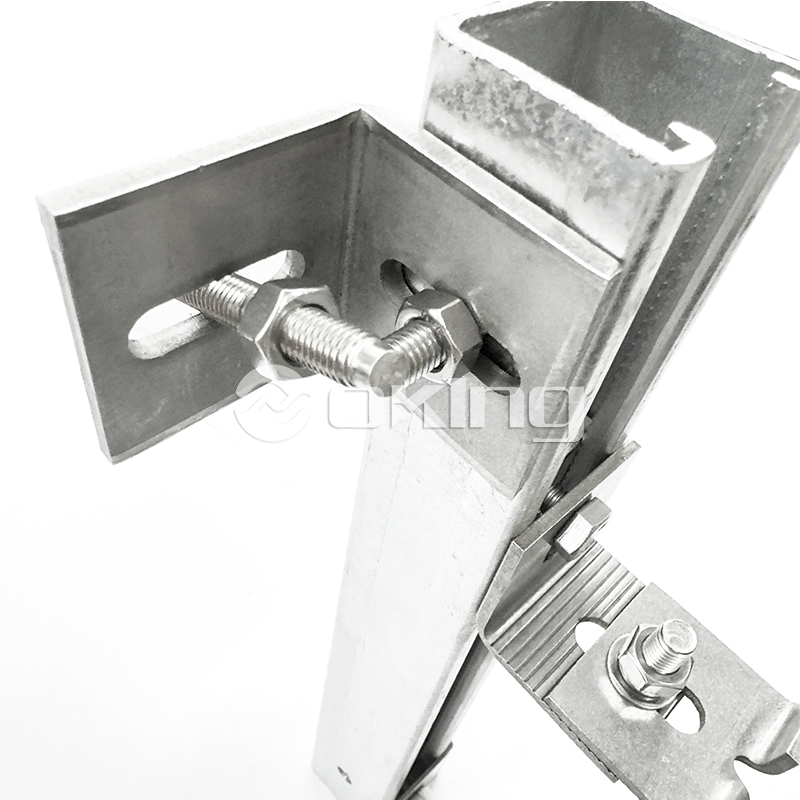

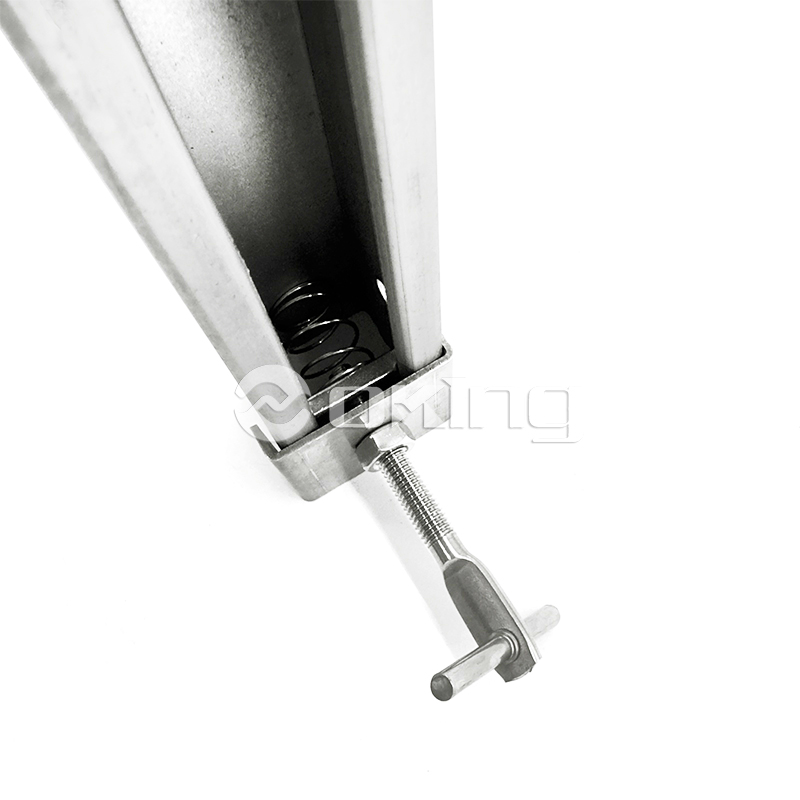

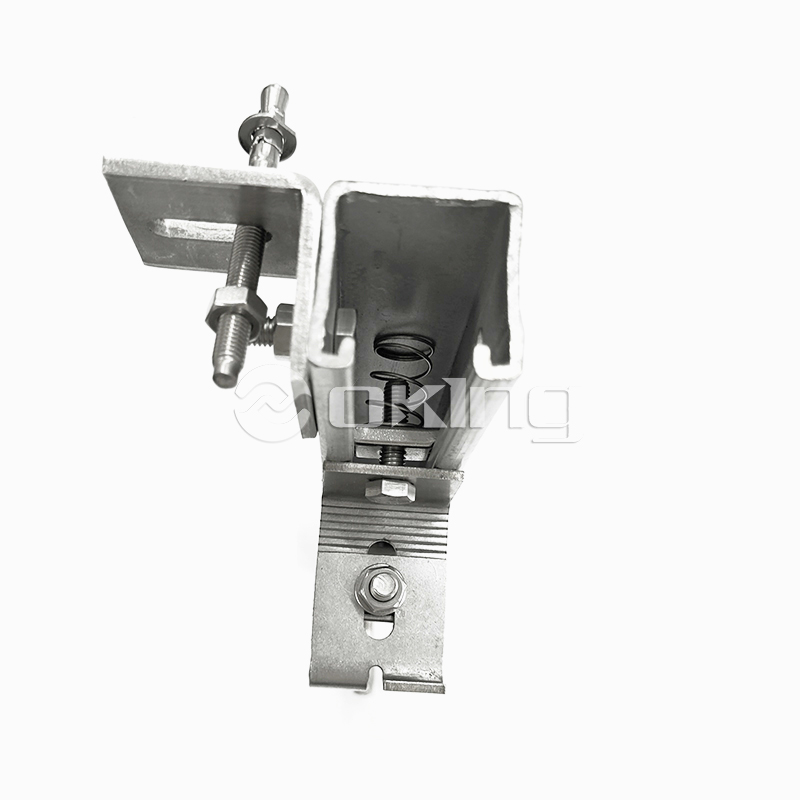

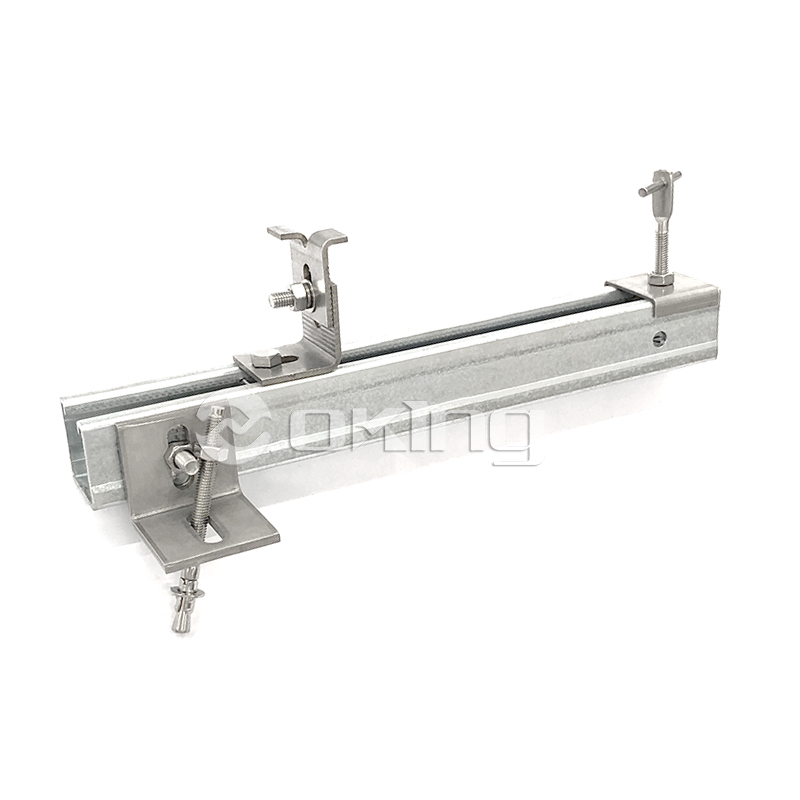

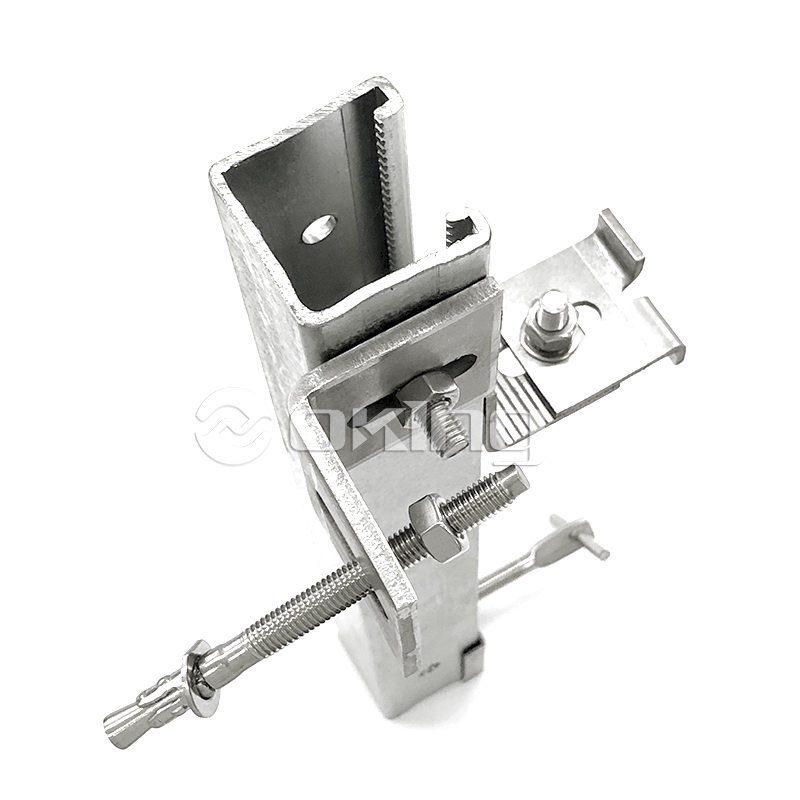

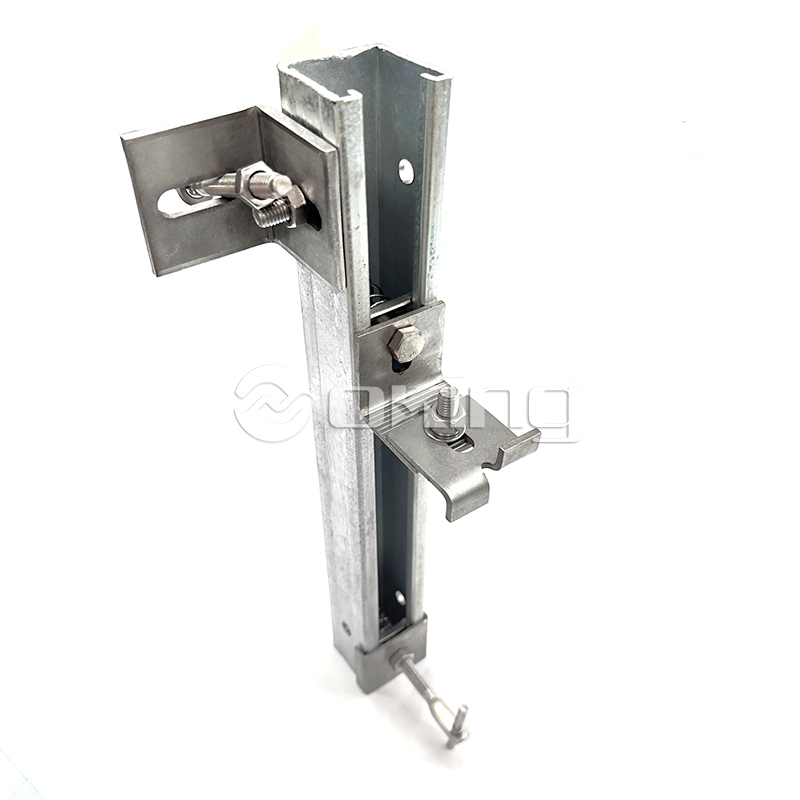

Dry Wall U strut Channel stone facade system
Dry Wall U strut Channel stone facade system
Dry Wall U strut Channel stone facade system
Dry Wall U strut Channel stone facade system
Dry Wall U strut Channel stone facade system
Dry Wall U strut Channel stone facade system
Dry Wall U strut Channel stone facade system
Dry Wall U strut Channel stone facade system
Dry Wall U strut Channel stone facade system
Dry Wall U strut Channel stone facade system
Dry Wall U strut Channel stone facade system
Dry Wall U strut Channel stone facade system

Dry Wall U strut Channel stone facade system

Drywall U channels feature a U-shaped cross-section, specifically tailored for use in drywall applications. These channels protect the exposed edges of drywall sheets, creating a sleek and professional finish.Here's a breakdown of how drywall U channels are integral to the installation process:Positioning the Sheets: The sheets are then positioned, leaving a small gap (around 1/4 inch) between the sheets and adjacent surfaces to allow for expansion and contraction.Installing the U Channels: Next, the U channels are placed along the edges of the drywall sheets and securely fastened to the underlying structure using screws.Finishing Touches: After the U channels are in place, a joint compound is applied to the seams and screw heads, smoothing out any irregularities. This process is known as taping and mudding, giving the wall a seamless appearance.Sanding & Painting: Once the joint compound dries, the surface is sanded for a smooth finish. The drywall is then ready for painting or other decorative treatments.The importance of securely installing drywall U channels cannot be overstated as they not only protect the edges from damage but also contribute to the overall structural integrity of the installation.Additionally, channel systems are vital for stone cladding applications on non-loadbearing walls or walls with high projections. These channels, supported by specially designed restraints, span between floor levels, creating a sub-frame. Installation is facilitated by using set screws and nuts, ensuring a secure and long-lasting attachment for the stone cladding.Channels are securely fastened to load-bearing beams through channel supports, bridging the gap between floor levels, and installed in front of the thermal insulation. Stone fixation is accomplished by anchors securely mounted onto the channels, either through set screws or lock nut sets. These channels exhibit a high load-bearing capacity, making them suitable for projection sizes reaching up to 360 mm. For even greater projection sizes, a special design is utilized. Fully adjustable, they facilitate quick and effortless installation. Additionally, a reduced number of drilling points enhances production efficiency and minimizes cold bridging effects.
Get A Quote
PREV：Dry Wall U strut Channel stone facade systemNEXT：Dry Wall U strut Channel stone facade system
  • Parameter
  • Contact Us
  • Cavity to Pin
    min - max mm    		 Dead load
    max DL kN    		 Wind load
    max WL士kN    		 FHB
    A2-70
    A4-70    		 фPin mm
    20-30 0.08 0.11 M6 4
    30-40 M6 4
    40-50 M8 4
    50-60 M8 4
    30-40 0.16 0.22 M8 4
    40-50 M8 4
    50-60 M10  4
    60-70 M10 4
    30-40 0.23 0.32 M10 5
    40-50 M10 5
    50-60 M10 5
    60-70 M10 5
    30-40 0.45 0.63 M12 6
    40-50 M12 6
    50-60 M12 6
    60-70 M12 6

    The drywall U channel is made from a sheet or plate. With different long holes and round holes. Bending from sheet. There are different materials such as stainless steel, HDG, and GI. It is similar to the U channel used in construction, but it is specifically intended for drywall applications. It is installed around the perimeter of the drywall sheets to protect the exposed edges and to create a clean and straight edge for a professional finish.

    Installing the U Channel U channels is then placed along the edges of the drywall sheets. They are typically fastened to the underlying structure using screws, anchor bolts, and other fasteners

    The use of drywall U channels can be vulnerable to damage and chipping. Additionally, they provide a straight edge for a more polished and professional look in the finished project. It's essential to ensure the drywall U channels are securely installed to create a sturdy and long-lasting drywall installation.
