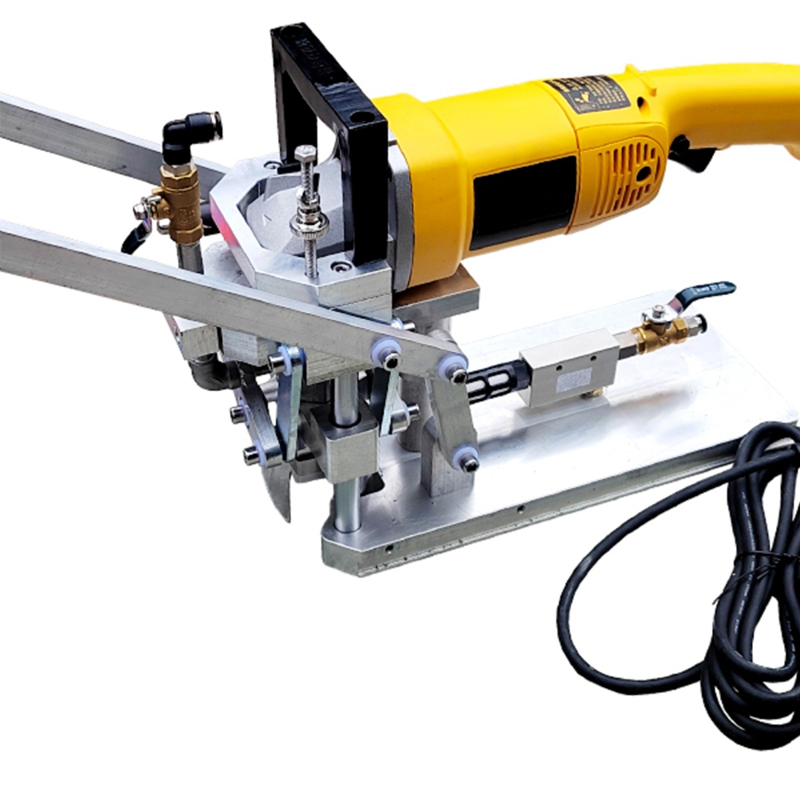

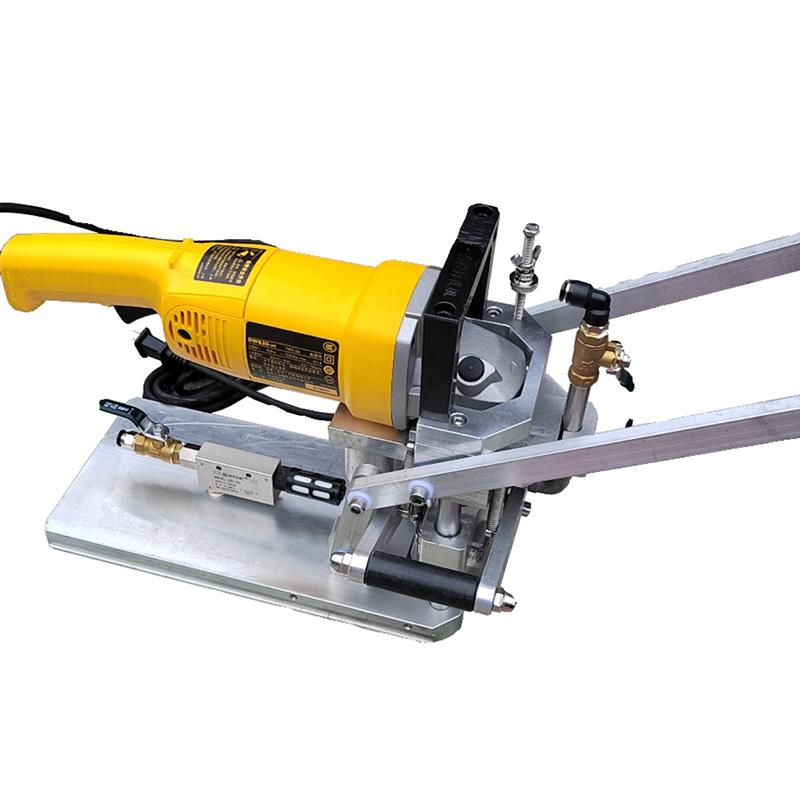

Portable Undercut Anchor Drilling Machine

Portable Undercut Anchor Drilling Machine - Precision Drilling for Façade Installation

Product Features

• High-Torque Motor: Equipped with a powerful motor to effortlessly drill through various materials, including concrete, natural stone, and ceramic panels, ensuring efficient undercut anchor installation.
• Compact and Lightweight Design: The machine's ergonomic and portable structure facilitates easy handling and operation in confined spaces, reducing operator fatigue during long-duration projects.
• Adjustable Drilling Depth: Features a precise depth stop mechanism, allowing for consistent and repeatable hole depths, which is critical for the secure fitting of undercut anchors for cladding.
• Integrated Dust Collection Port: A dedicated port for connection to a vacuum system helps manage drilling debris and fine dust, promoting a cleaner, safer work environment and prolonging tool life.

Product Description

The Portable Undercut Anchor Drilling Machine is engineered for the precise and efficient drilling of undercut holes required for mechanical façade systems. Its design principle focuses on delivering high-precision performance for applications involving stone cladding, glass façades, and ventilated curtain walls. The machine's core technology ensures a clean, non-destructive drilling process, which is essential for preserving the integrity of expensive façade materials.

This drilling equipment is manufactured to rigorous industry standards, providing a reliable and durable solution for professional contractors. Key technical advantages include its optimized power-to-weight ratio, minimal vibration during operation, and a robust build quality designed to withstand demanding job site conditions. It is a critical tool for projects requiring a high volume of precise undercut holes for secure and compliant panel fastening solutions.

Technical Specifications

Application Fields

This product is suitable for the following industrial applications:

• Installation of ventilated façades and stone cladding systems.
• Secure mounting of glass panels and curtain wall systems.
• Specialized fastening for architectural and interior design projects.
• Building and construction projects requiring mechanical undercut anchors.
• Repair and retrofitting of existing façade structures.

FAQ

1. How does this machine compare to standard rotary hammer drills for undercut applications?

Unlike standard rotary hammer drills that can cause micro-cracks and damage to brittle materials, this specialized machine uses a pure rotary drilling motion without impact. This ensures the integrity of the base material, creating a clean, precisely shaped undercut hole that is essential for the pull-out strength and long-term reliability of undercut anchor systems. The precise depth control is also far superior to standard tools. For a detailed comparison based on your specific material requirements, our technical team can provide a free consultation.

2. What is the expected lifespan of the drill bits, and what factors affect their durability in the field?

The lifespan of the carbide-tipped drill bits for undercut drilling depends primarily on the hardness and abrasiveness of the material being drilled. On average, a single bit can produce between 500 to 1,000 holes in common materials like natural stone or concrete. Factors such as drilling speed, proper dust extraction, and operator technique significantly impact bit life. Using the correct speed and ensuring a clean drilling environment will maximize performance. We recommend a supply of spare bits to minimize project downtime. Our customer support team can assist with selecting the optimal bit for your application.
