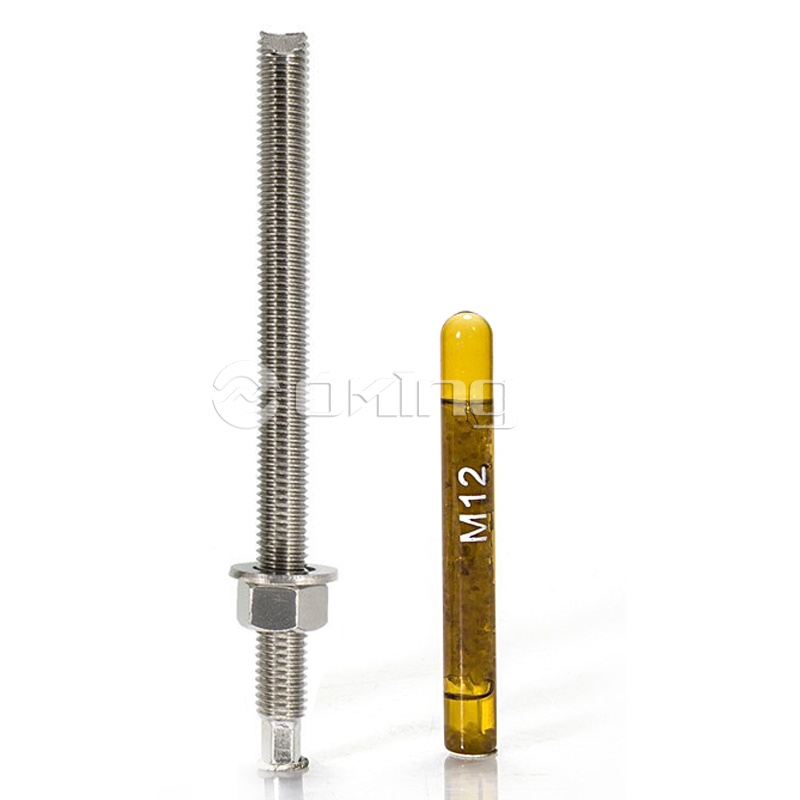

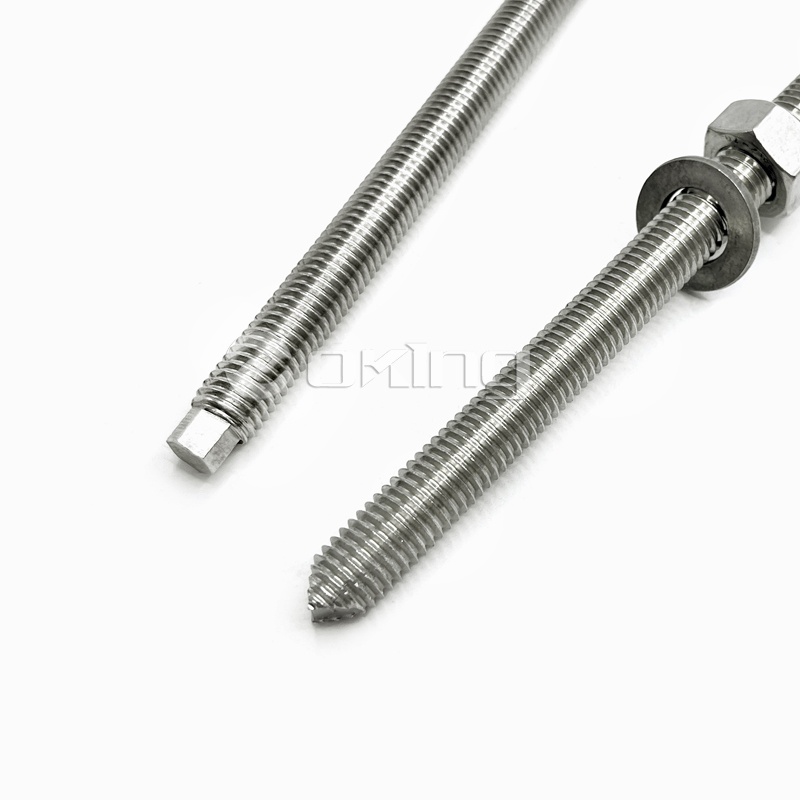

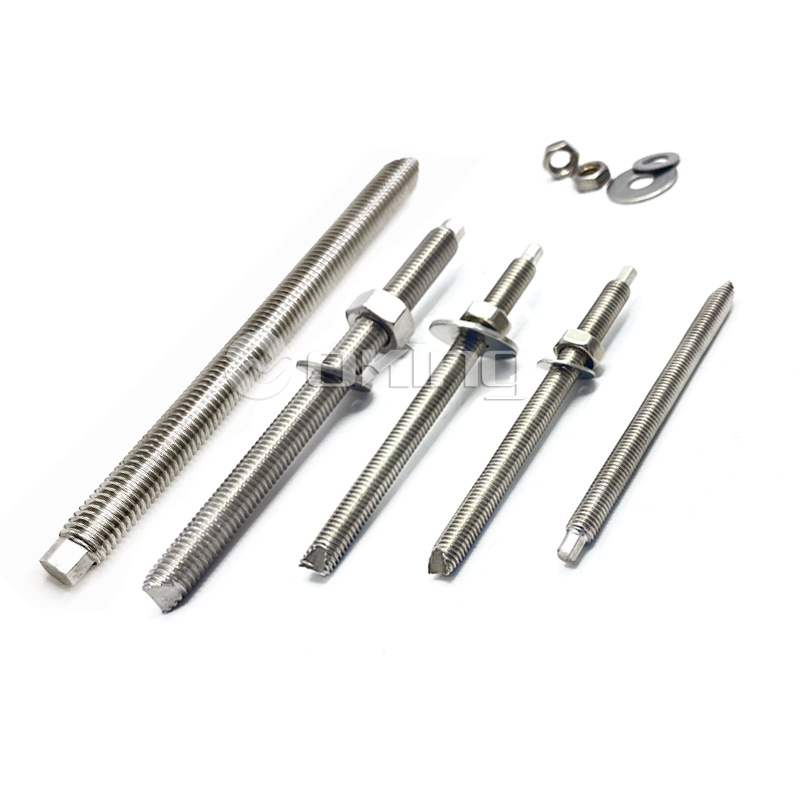

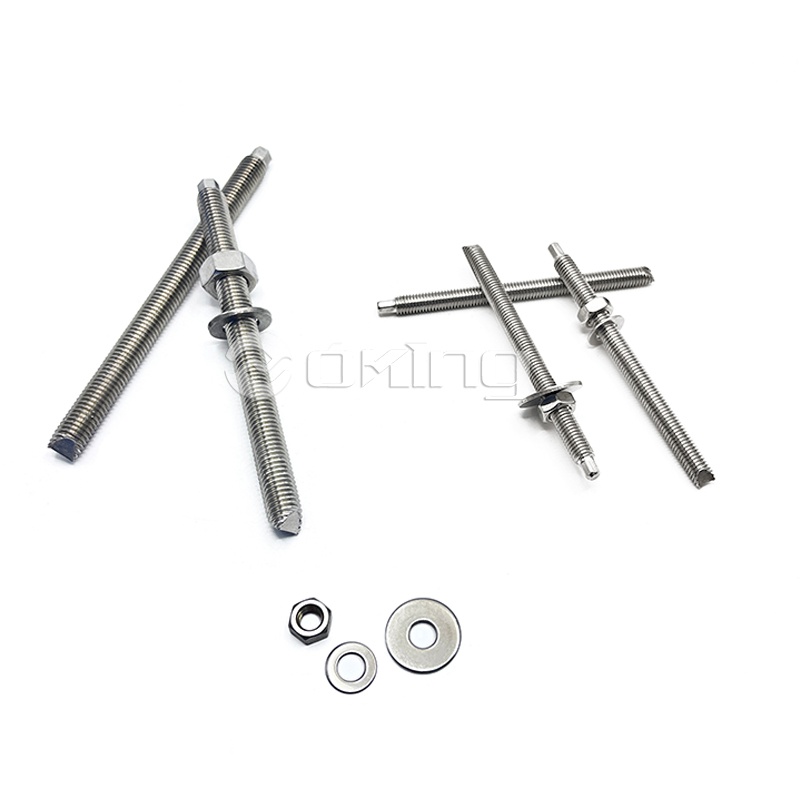

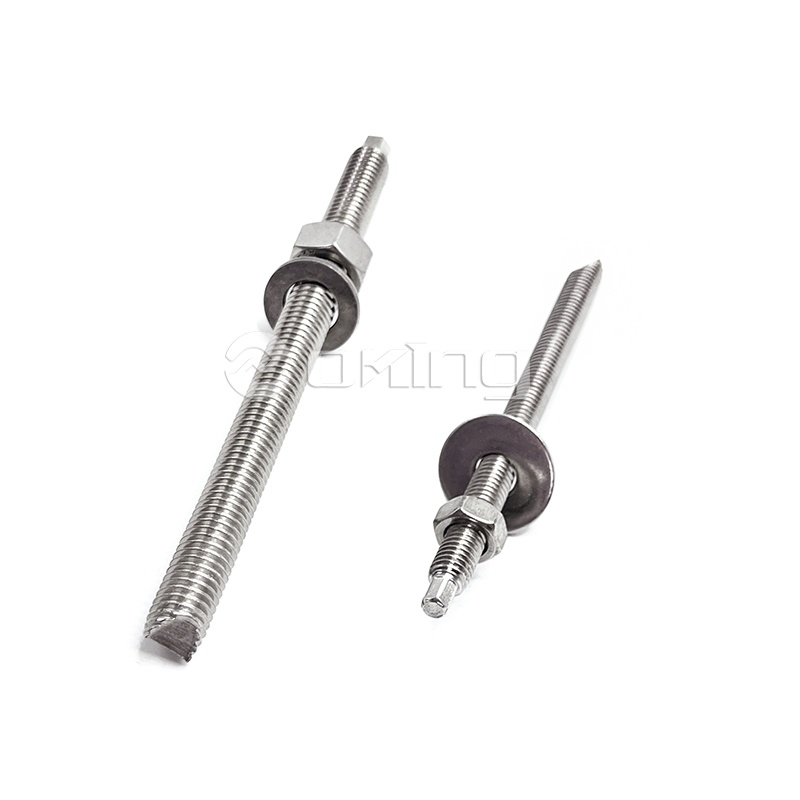

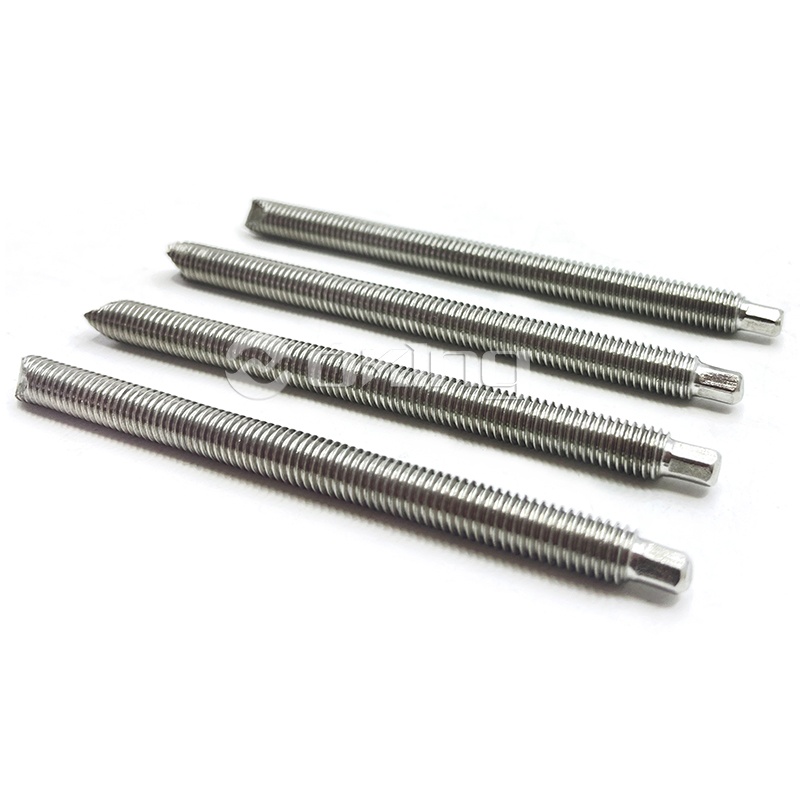

Our stainless steel chemical anchors are designed to provide excellent load-bearing capacity and long-lasting durability in harsh environments. Made of high-grade stainless steel (A2/A4-304/316), they are resistant to corrosion, chemicals and extreme temperatures, and are suitable for construction, infrastructure and industrial applications.
Excellent corrosion resistance – Made of 304/316 stainless steel, they are resistant to acids, alkalis, salt spray and humid environments, and are suitable for highly corrosive environments such as offshore engineering and chemical plants.
High load-bearing capacity – Chemical anchoring technology ensures high-strength bonding with substrates such as concrete and stone, and its tensile/shear resistance far exceeds that of mechanical anchors.
Permanent fixation – Chemical adhesives fill holes, have no expansion stress, avoid substrate cracking, and are suitable for edge and narrow spacing installations.
Wide applicability – Can be used on a variety of substrates such as concrete, masonry, hollow bricks, etc., especially for critical structures such as curtain walls, bridges, and pipe supports.
Fireproof and high temperature resistant - some chemical anchors have passed EN 1366 fireproof certification and remain stable at high temperatures.
Question 1: Why choose stainless steel chemical anchors?
Answer: Stainless steel chemical anchors have excellent corrosion resistance and high strength, and are suitable for highly corrosive environments such as ships, chemicals, and construction.
Question 2: Can the product be customized?
Answer: Yes, we support OEM/ODM customization services and can provide customized solutions according to customer needs.
Question 3: Does the product support multiple surface treatments?
Answer: Yes, we support multiple surface treatments, such as chrome plating, zinc plating, nickel plating, powder coating, electrophoresis, dip coating, mirror polishing, etc.
Question 4: Does the product meet international standards?
Answer: Yes, the product meets international standards such as DIN, ASME, JIS, BS, GOST, and provides complete test reports.
| Size | Hose type | Screw length | d(mm) | L(mm) | l(mm) | Ultimate tension (kgf) | Ultimate shear (kgf) |
| M8*110 | RIM-8 | 110 | 10 | 80 | 13 | 2417 | 1571 |
| M10*130 | RI[-10 | 130 | 12 | 90 | 20 | 3600 | 2489 |
| M12*160 | RI[-12 | 160 | 14 | 110 | 25 | 5905 | 3611 |
| M14*180 | RIM-14 | 180 | 16 | 115 | 30 | 6140 | 4896 |
| M16*190 | RI[-16 | 190 | 18 | 125 | 35 | 7232 | 6722 |
| M18*200 | RIM-18 | 200 | 22 | 150 | 40 | 9700 | 7109 |
| M20*260 | RIM-20 | 260 | 25 | 170 | 65 | 13372 | 10496 |
| M22*280 | RIM[-22 | 280 | 25 | 190 | 65 | 14800 | 10516 |
| M24*300 | RIM[-24 | 300 | 28 | 210 | 65 | 18952 | 10771 |
| M30*380 | RIM-30 | 380 | 35 | 280 | 65 | 25051 | 17850 |
| Model | Screw diameter (mm) | Screw total length L (mm) | Drilling diameter DB (mm) | Burial depth T(mm) | Fixture thickness Smax (mm) | Minimum substrate thickness D (mm) | Maximum tightening torque Mp (Nm) |
| M8 | M8 | 110 | 10 | 80 | 14 | 130 | 10 |
| M10 | M10 | 130 | 12 | 90 | 20 | 140 | 20 |
| M12 | M12 | 160 | 14 | 110 | 25 | 160 | 40 |
| M16 | M16 | 190 | 18 | 125 | 35 | 175 | 80 |
| M20 | M20 | 260 | 25 | 170 | 65 | 220 | 150 |
| M24 | M24 | 300 | 28 | 210 | 65 | 260 | 200 |
| M30 | M30 | 380 | 35 | 280 | 70 | 330 | 400 |
