Facade System Hidden Hanger With Anchor
Facade System Hidden Hanger With Anchor
Facade System Hidden Hanger With Anchor
Facade System Hidden Hanger With Anchor

Facade System Hidden Hanger With Anchor

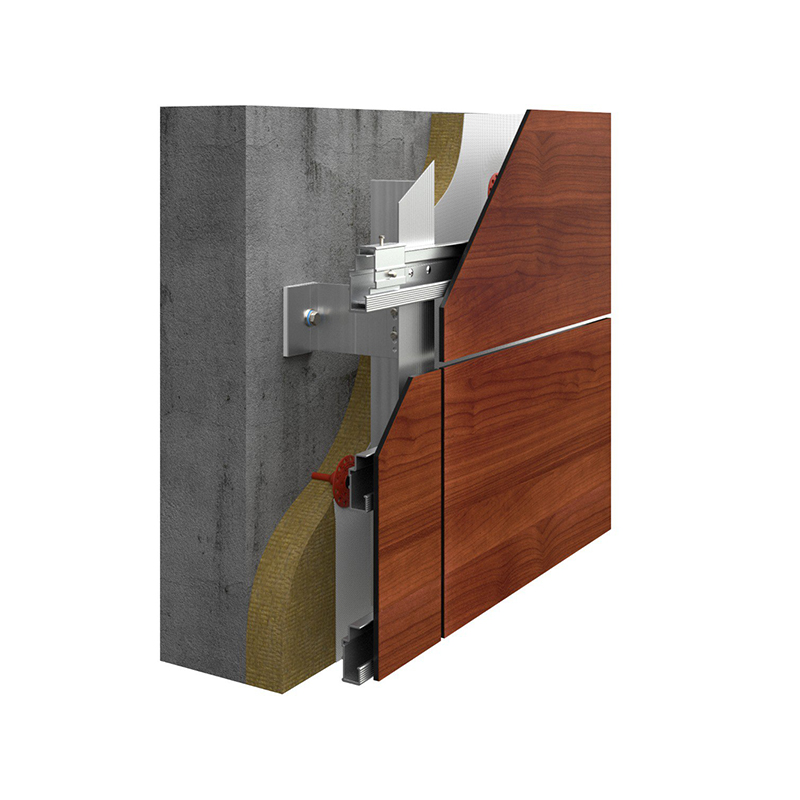

Facade System A0Z-v-20FACING MATERIAL:Fiber cement panels, RockPanels, HPL panelsFIXING:concealed with KEIL anchors, TRAG profile, and hangersMAX FACING SIZES:4100x1850mm (6- 12mm thick, horizontally and vertically
Get A Quote
PREV：No previous articleNEXT：Facade System Concealed Mounting Clamps Or Bars
  • Parameter
  • Contact Us

  • Facade System Hidden Hanger With Anchor – Invisible Anchor Curtain Wall Suspension System

    Facade System Hidden Hanger With Anchor is an invisible fixing system designed for modern curtain walls. It uses high-strength anchors and hidden suspension structures to achieve stable installation and seamless appearance of curtain walls. It is suitable for a variety of curtain wall materials such as glass, metal, stone, etc., meeting the stringent requirements of commercial buildings, high-rise residential buildings and landmark projects.

    1. Extreme beauty – hidden design
    The completely hidden suspension structure and anchor points eliminate exposed screws or brackets, keeping the curtain wall surface clean and high-end.
    Supports frameless glass and large-panel curtain walls to enhance the overall visual effect of the building.

    2. Super strong load-bearing and earthquake resistance
    Adopt high-strength stainless steel/aluminum alloy material, with a tensile strength of XX kN, in line with international standards (such as EN 1991, ASTM).
    The patented anchoring technology disperses stress, with an earthquake resistance level of 8, and adapts to harsh climate conditions.

    3. Quick installation & adjustability
    Modular design supports ±15mm three-dimensional adjustment, easily dealing with construction errors.
    Reduce on-site welding, increase installation efficiency by 30%, and reduce labor costs.

    4. Long-term durability
    The surface is treated with anti-corrosion coating (such as PVDF) or anodizing, with weather resistance of more than 50 years.
    Fire protection grade A1, meeting the safety standards for high-rise buildings.

    Arcade system of granite stone wall tiles

    FACING MATERIAL:

    tempered glass and stem elite 4 to 8 mm thick

    FIXING:

    concealed: adhesive binding with M-profile, TRAG-profile, and hangers

    (AOZ-G-4)

    MAX FACING SIZES:2000x2000mm

    FACING MATERIAL:

    Porcelain/granite stoneware tiles 8 to 20mm thick

    FIXING:

    visible with stainless steel clamps(AOZ-G-8)

    MAX FACING SIZES:

    2385x1195mm(horizontally and vertically).

    Holding tracks for ceramic granite wall panels

    (clip-on fixing)

    Aluminum / stainless steel holding tracks for visible clip-on fixing of small-size and large-size ceramic wall panels. The holding tracks consist of vertical T-profiles with dimensions as per statical requirements placed in each vertical panel joint. Protrusions of up to 480 mm.
