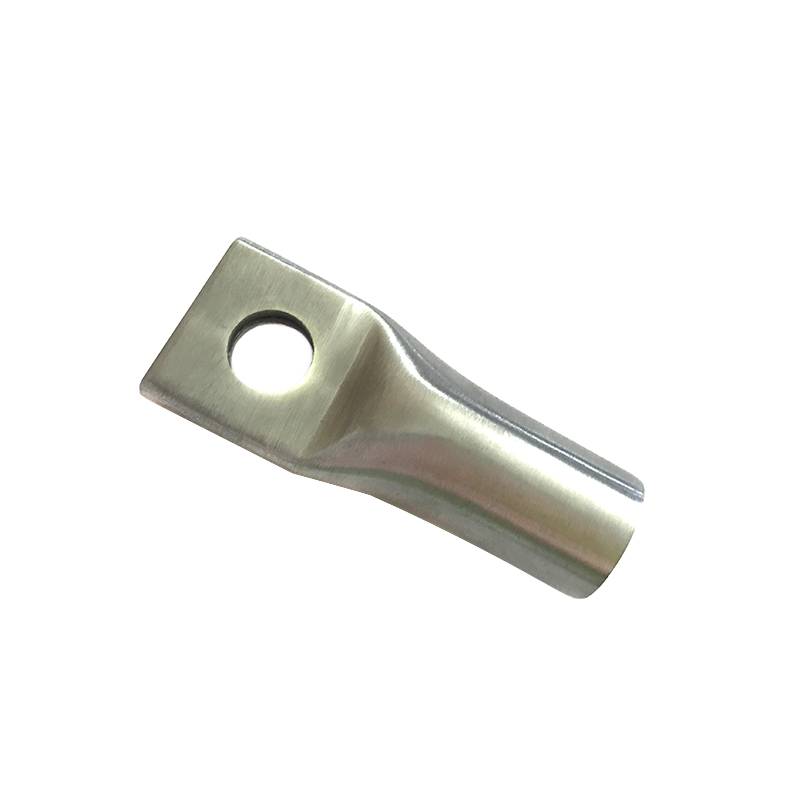

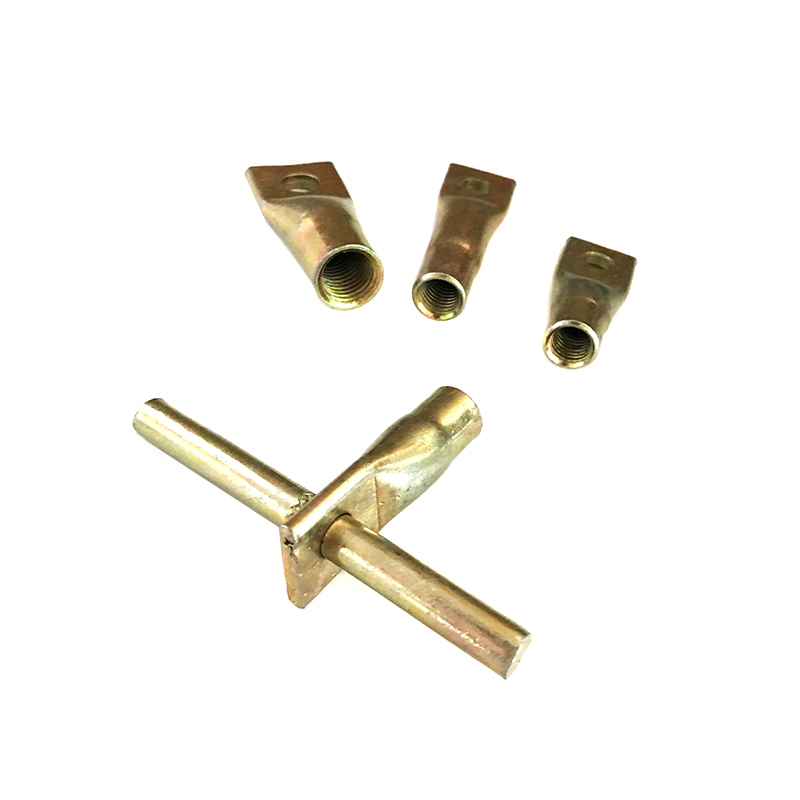

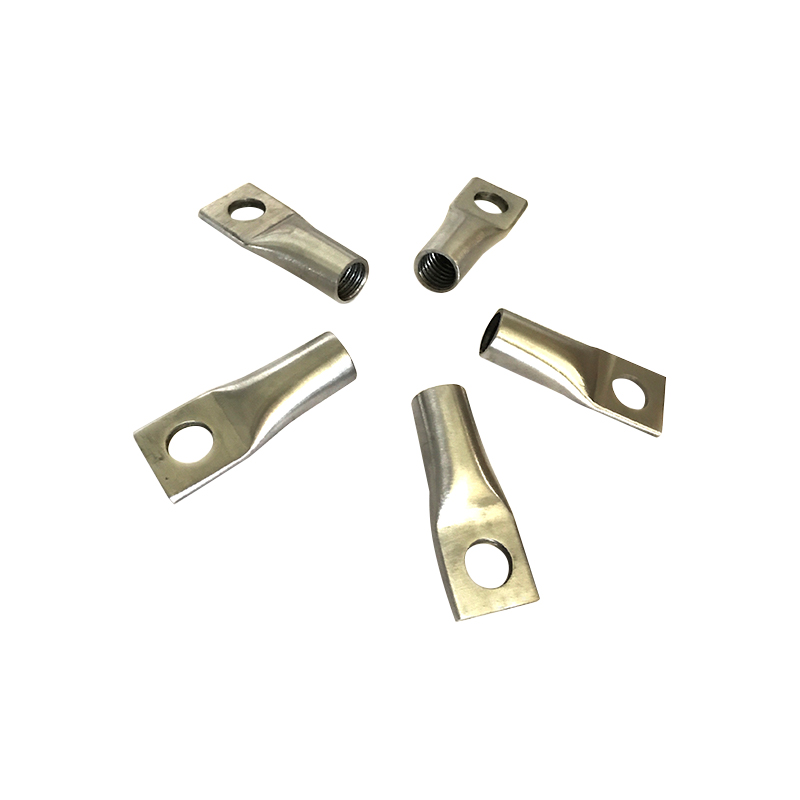

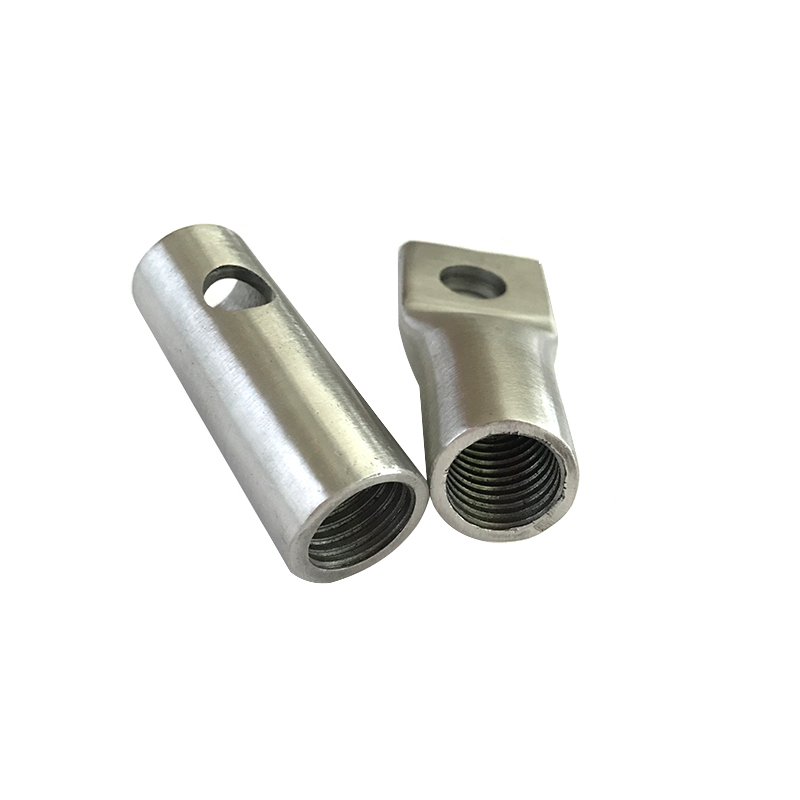

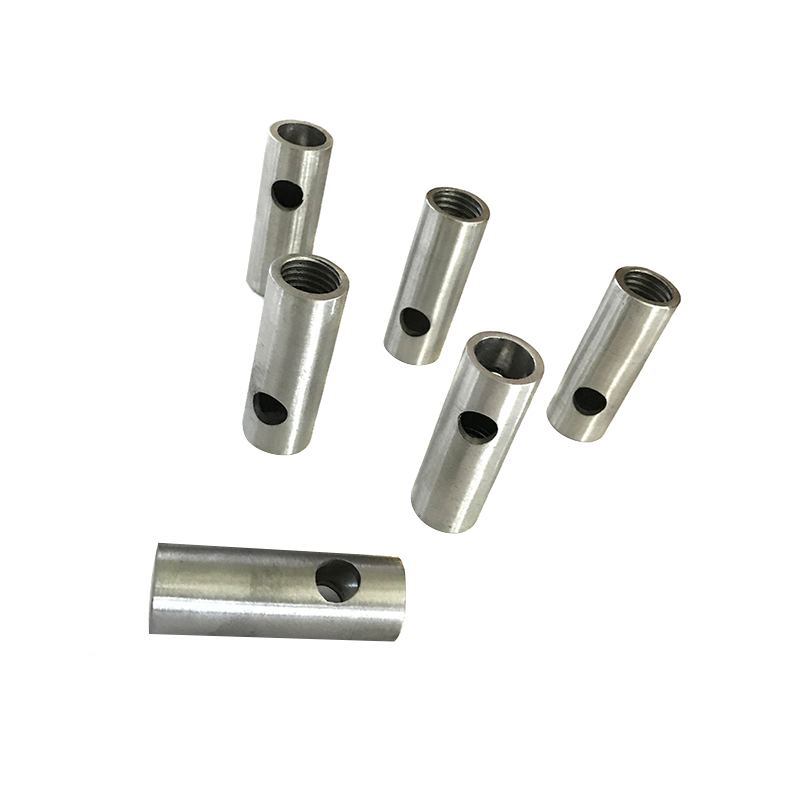

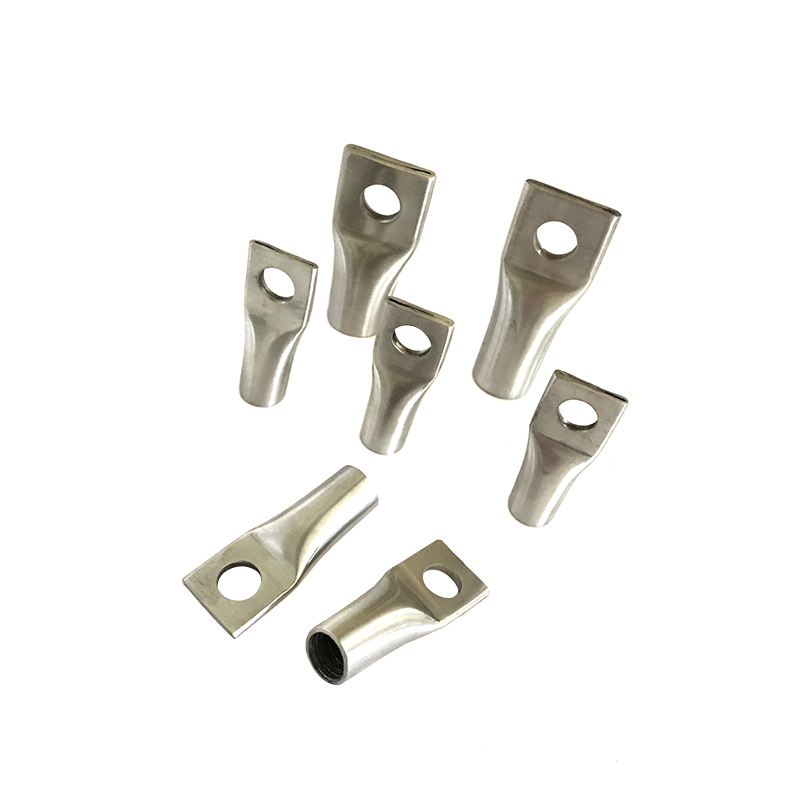

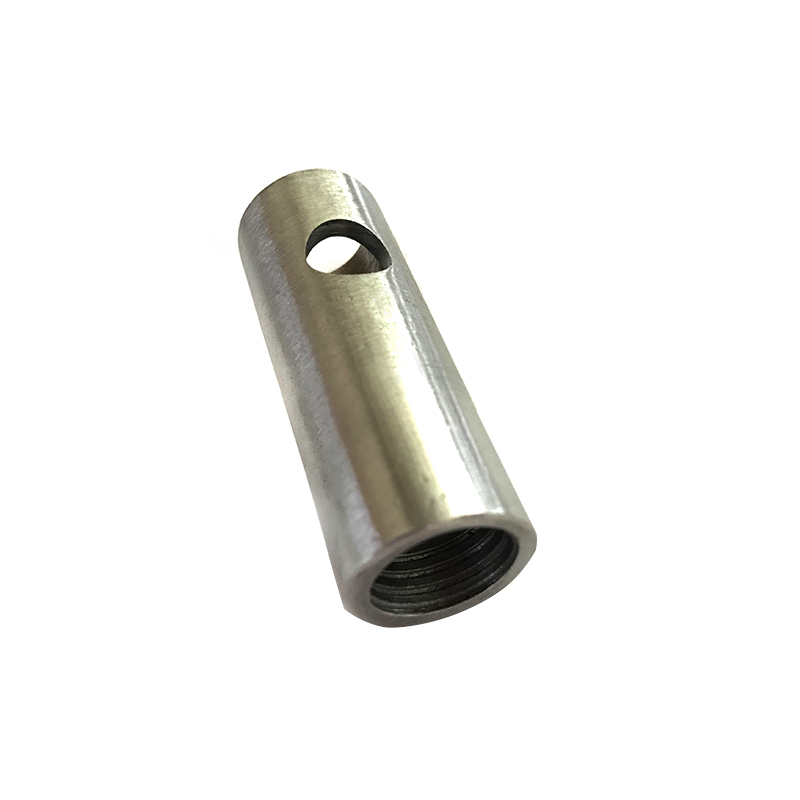

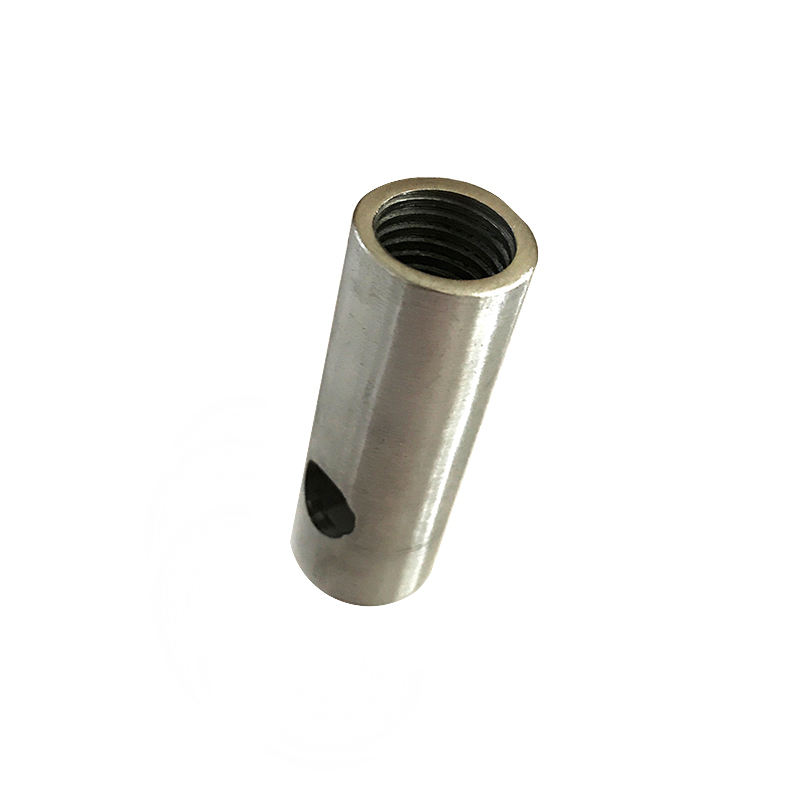

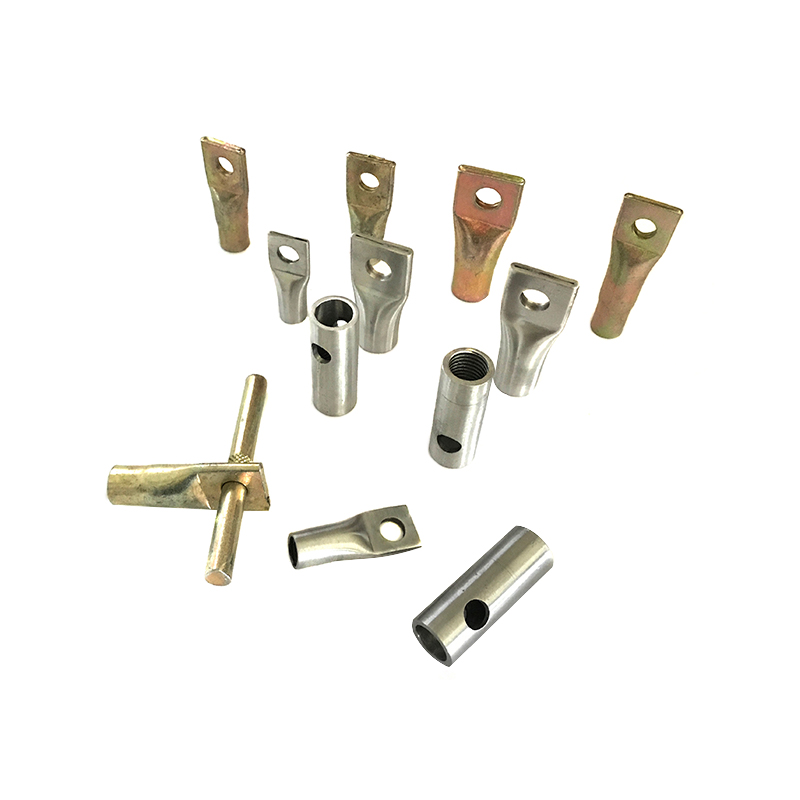

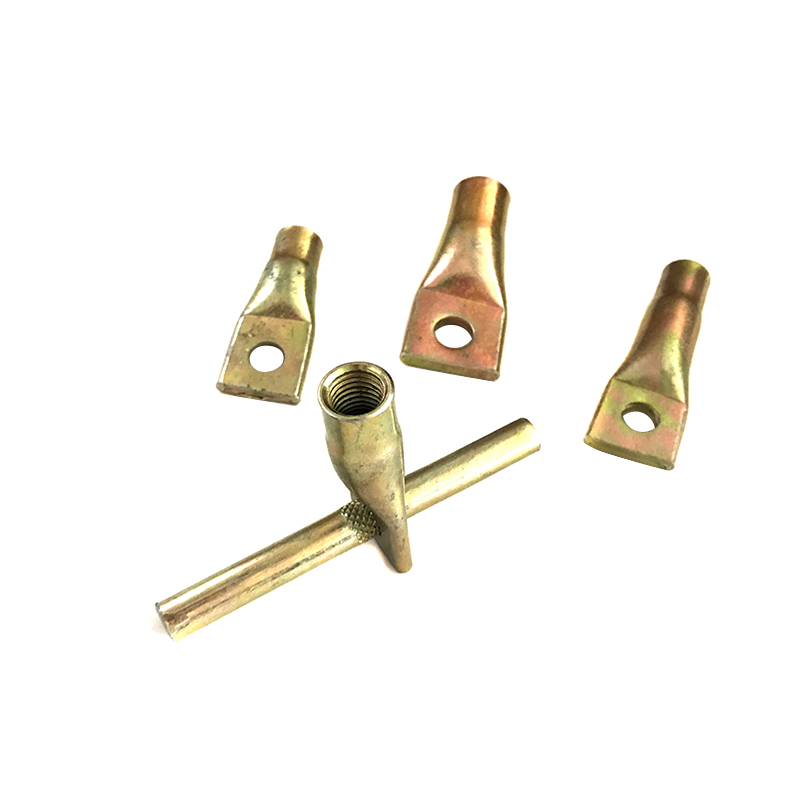

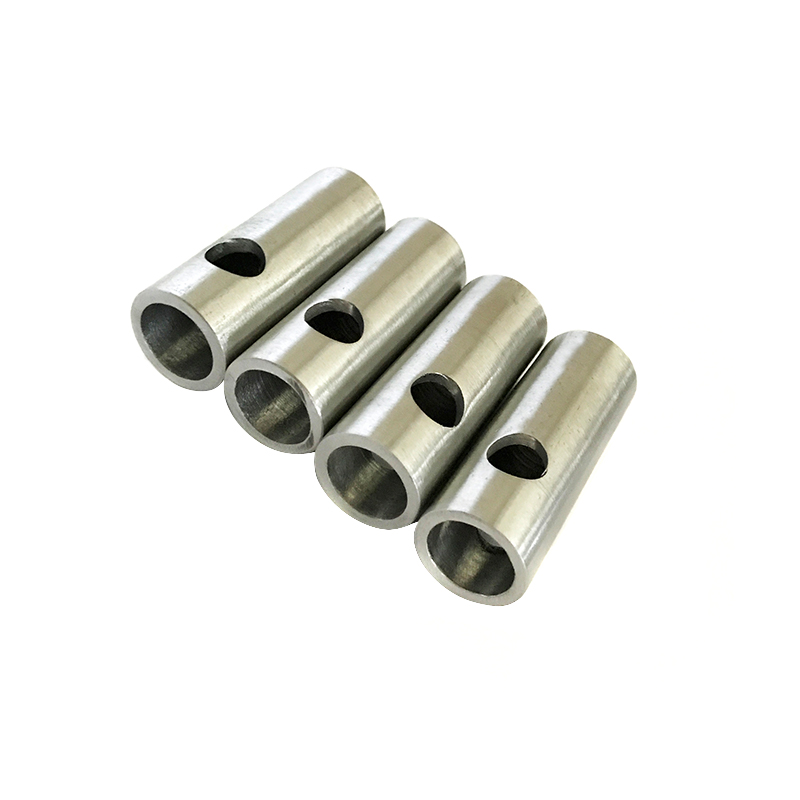

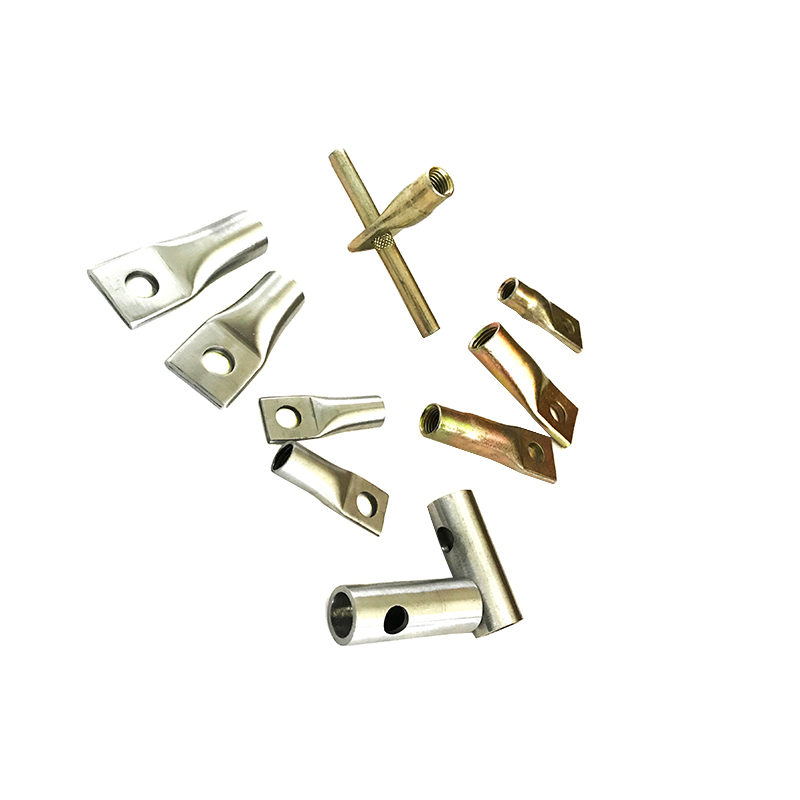

FLAT END LIFTING SOCKETSA cost-effective lifting socket with a crimped end and offering a metric thread. They are available in sizes up to M30 and are available in 303-grade stainless steel as well as the standard zinc plated. Always use it with additional reinforcement.TUBULAR LIFTING SOCKETSPopular Rd lifting socket available in sizes up to Rd52. Available in both zinc-plated and high-grade stainless steel. Always use it with additional reinforcement.SOLID ROD SOCKETS WITH CROSS-PINA heavy-duty fxing socket that can be used without additional reinforcement. They are also available in stainless steel.
Get A Quote
PREV：No previous articleNEXT：No next article
  • Parameter
  • Contact Us
  • FLAT END LIFTING SOCKETS
    Product Code  Thread (Rd) L(mm) H(mm) SWL(kg)  Pack Size
    SSLF1050 10 50 10.3 350 250
    SSLF1260 12 60 10.3 500 200
    SSLF1680 16 80 13.3 1200 100
    SSLF2095 20 95 15.3 2000 50
    SSLF24100 24 100 17.3 2500 50
    SSLF30135 30 135 19.5 4000 20

    TUBULAR LIFTING SOCKETS
    Product Code Thread (Rd) L(mm) H(mm) SWL(kg)  Pack Size
    SST1240 12 40 8 500 200
    SST1655 16 55 13 1200 100
    SST2067 20 67 15 2000 100
    SST2477 24 77 18 2500 50
    SST30105 30 105 22 4000 50
    SST36125 36 125 27 6300 20
    SST42125 42 145 32 8000 10
    SST52195 52 195 40 12500 5

    SOLID ROD SOCKETS WITH CROSS-PIN
    Product Code Thread (M) L(mm) SWL(kg)  Pack Size
    SSSCP1042 10 42 400 200
    SSSCP1250 12 50 560 100
    SSSCP1275 12 75 560 100
    SSSCP1675 16 75 1100 75
    SSSCP2075 20 75 1700 50
    SSSCP24100 24 100 2400 20
    SSSCP30125 30 125 3800 10
