Cladding System Stainless Steel L Bracket
Cladding System Stainless Steel L Bracket

Cladding System Stainless Steel L Bracket

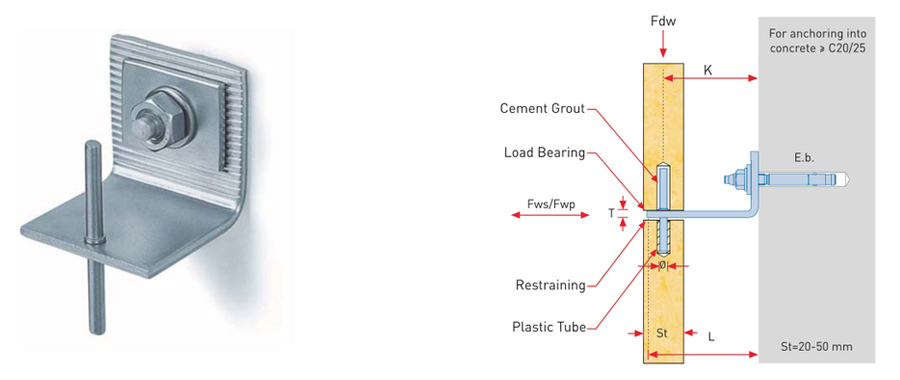

● Material: Stainless Steel 1.4301 IA2| & 1.4401 [A41]● The table above is prepared according to the DIN 18516 standard● Loads stated are working resistance loads● Other sizes are available for production upon request● Bolts are provided separately● Structural calculation reports are available upon order
Get A Quote
PREV：Cladding System L Bracket For Marble CornersNEXT：Cladding System L Angle Bracket
  • Parameter
  • Contact Us

  • Product Code Technical Details
    Projection Dead Load Wind Pressure Wind Suction Bolt Size Pin Diameter Anchor Length Anchor Thickness
    K (mm) Fdw (N) Fwp (N) Fws (N) E.b.(mm) ф (mm) L (mm) T (mm)
    A01-301 30 100 156 110 M8X80 4 36 2
    A01-351 35 41
    A01-401 40 46
    A01-451 45 51 2.5
    A01-501 50 56
    A01-551 55 61
    A01-302 30 200 312 219 M8X80 4 38 3
    A01-352 35 43
    A01-402 40 48
    A01-452 45 53
    A01-502 50 58 4
    A01-552 55 63
    A01-303 30 300 468 328 M8X80 5 38 3
    A01-353 35 43
    A01-403 40 48 4
    A01-453 45 53
    A01-503 50 58
    A01-553 55 63
    A01-304 30 400 624 437 M8X80 5 38 3
    A01-354 35 43 4
    A01-404 40 48
    A01-454 45 53
    A01-504 50 58
    A01-554 55 63

    L Anchor Fixing Systems is an advanced stone curtain wall fixing system specially used for installing heavy stone panels such as marble. The core advantage of the L cladding system is its sturdy and durable clamping mechanism, which can effectively fix the marble slabs and ensure the safety and stability of the curtain wall.

    The system is made from high-strength materials and undergoes precision machining and strict quality control. L cladding system Marble clamp is also easy to install and flexible.

    It can be customized according to architectural designs and stone specifications, adapting to various complex installation environments.
