AZRS1 Restraint Anchor For Stone Fixing System

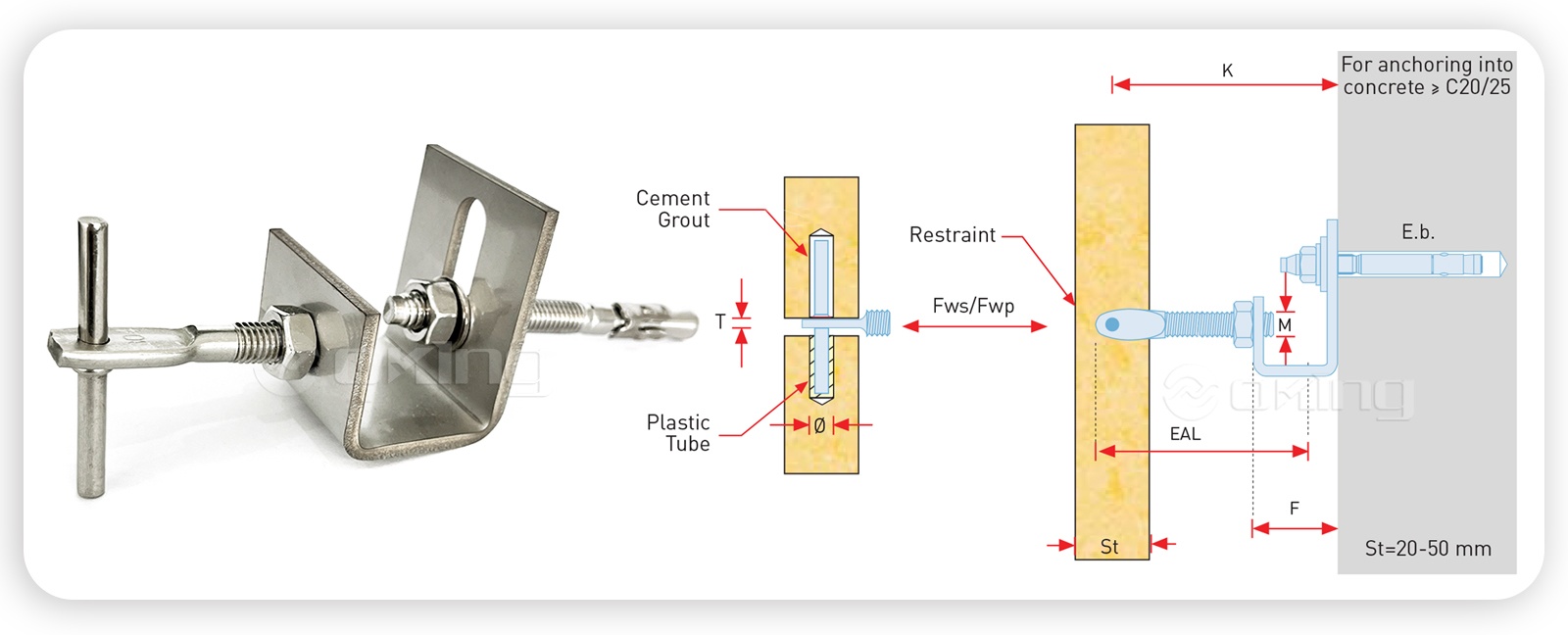

●Technical Details
| Product Code | Projection |
Min. Projection |
Max. Projection |
Foriming Size |
Wind- Pressure |
Wind- Suction |
Expansion Bolt Size |
Pin Diameter |
Adj. Arm Metric Size |
Adj. Arm Flat Thickness |
Adj. Arm Length |
| K (mm) | K - (mm) | K + (mm) | F (mm) | Fwp (N) | Fws (N) | E.b.(mm) | ф (mm) | M (mm) | T (mm) | EAL(mm) | |
| AZRS1-55 | 55 | 53 | 70 | 20 | 312 | 219 | M8x80 |
5 | M8 | 3 | 60 |
| AZRS1-75 | 75 | 63 | 90 | 40 | 70 | ||||||
| AZRS1-95 | 95 | 80 | 100 | 60 | 70 | ||||||
| AZRS1-115 | 115 | 100 | 100 | 60 | 90 | ||||||
| AZRS1-145 | 135 | 115 | 115 | 60 | 110 |
Stainless steel 201 304 316 angle for marble cladding fixing
Projections between 45 and 135 mm
Loads up to 312N
Suitable for horizontal & vertical joints
Stone thicknesses 20-50 mm
Fastened on to load bearing walls with expansion bolts and on to channels with set screws
Material: 1.4571/1.4404/1.4401 (A4/AISI 316) or 1.4301 (A2/AISI 304)
●Product code description
AZRS1 - 45 A
AZRS:Type
45: Projection (K mm)
A: Shape

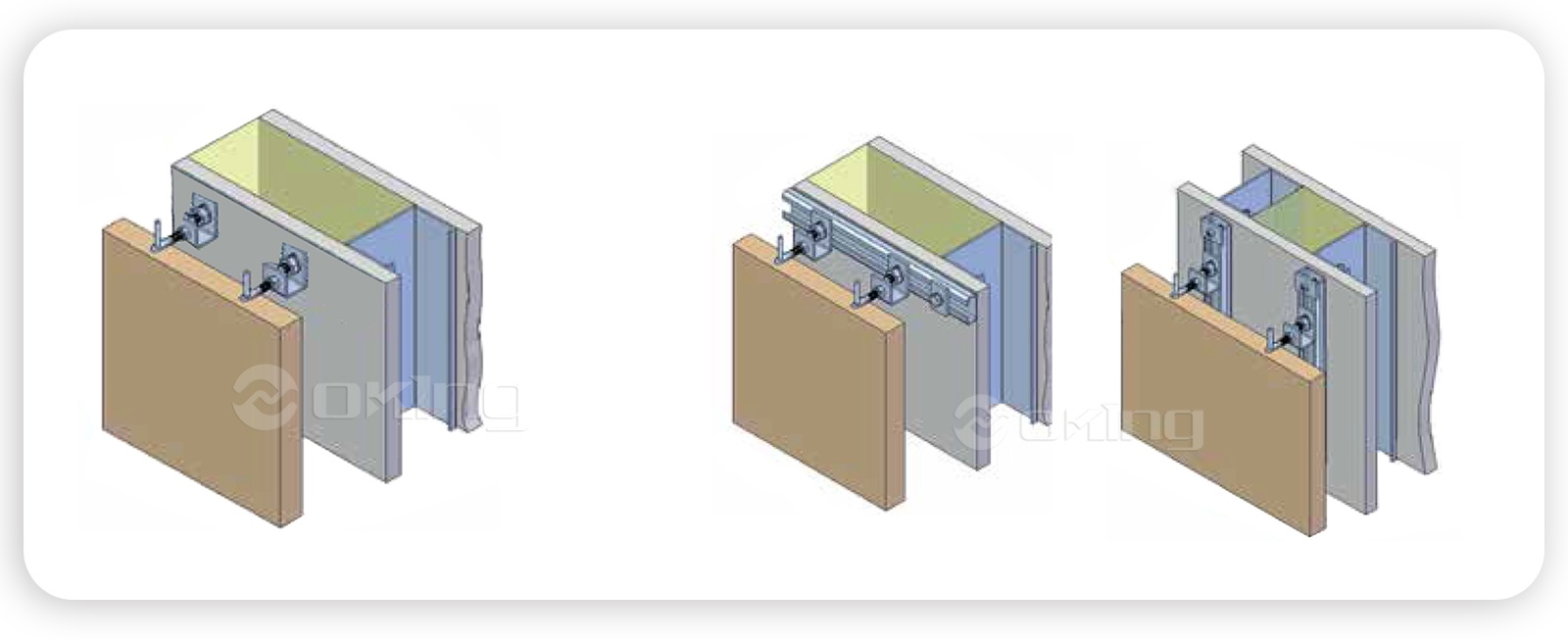

Direct fixing to concrete Indirect fixing to channels
Min. Projection size 45 mm Min. Projection size 90 mm
●Application

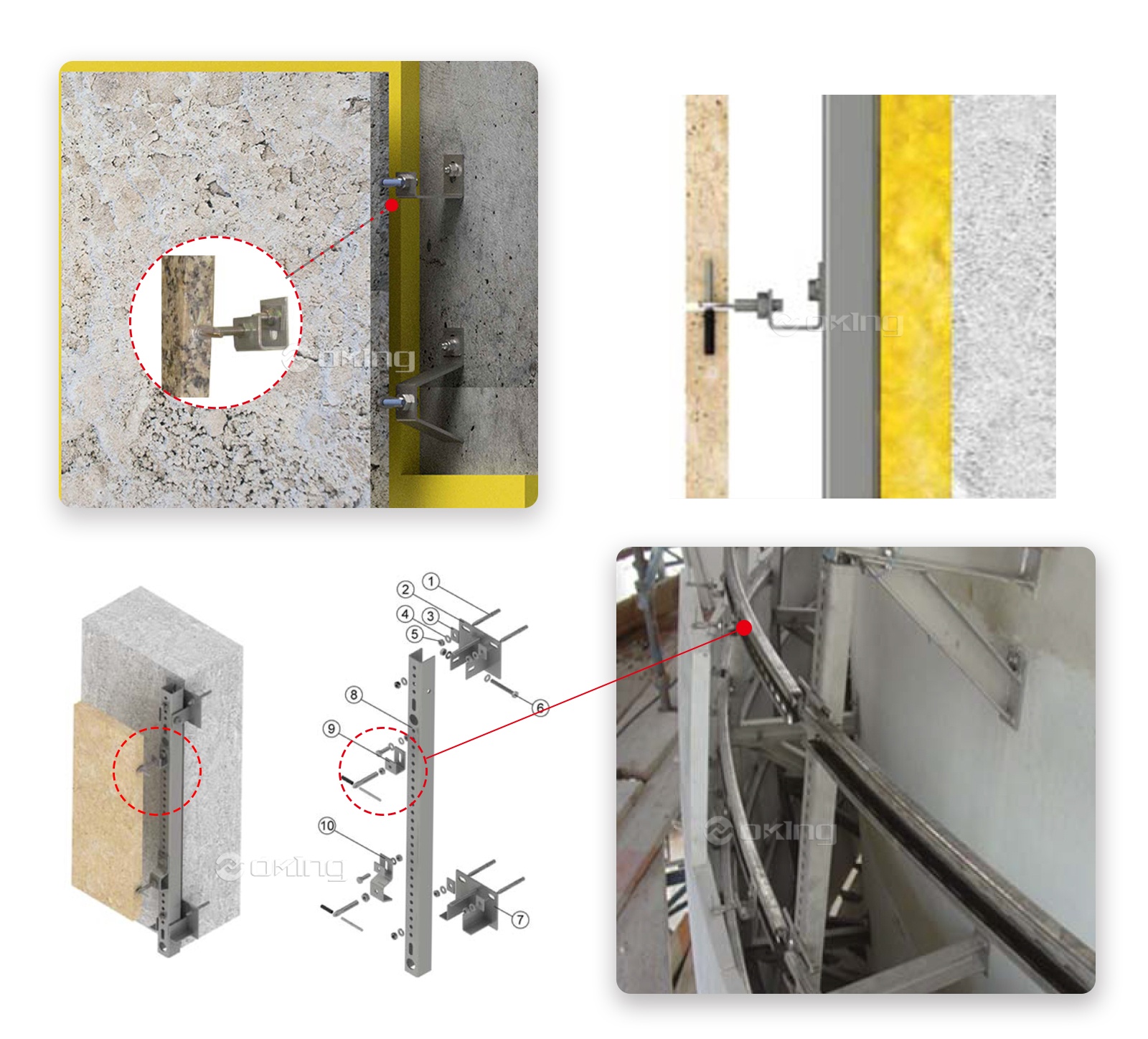

Application examples for bolt anchorsAnchors are fixed on to load bearing wallswith expansion bolts.
To fasten anchors on to isolated walls, theisolation must be cut first. After fastening, thecut out isolation piece must be inserted back,and the isolation parts must be sealed in orderto reduce cold bridging.
Z Anchor Fixing Systems, are a type of mechanical anchoring system used to secure objects to a wall or other structures. They are commonly used in construction, particularly in the installation of curtain walls, cladding systems, and other facade elements.
The Z Anchor Fixing System consists of a series of anchors, brackets, and connectors that work together to provide a secure attachment point for the object being installed. The system typically includes vertical and horizontal Z-shaped brackets that interlock with each other, creating a stable connection.
The installation process involves attaching the vertical brackets to the wall or structure using appropriate fasteners such as screws or bolts. The horizontal brackets, such as a panel or cladding system, are then attached to the object being installed. The horizontal brackets are designed to interlock with the vertical brackets, creating a secure and reliable connection.
Z Anchor Fixing Systems offer several advantages in construction applications. They provide a strong and durable attachment method that can withstand wind loads, seismic forces, and other external forces. The interlocking design of the brackets ensures stability and prevents the object from dislodging or detaching from the wall.
