Honeycomb Panel Fixing

Engineered fixing system for aluminum honeycomb panels | Concealed or visible mounting options

⬡

The Honeycomb Panel Fixing system comprises a comprehensive range of mechanical fasteners, clips, and brackets engineered specifically for attaching aluminum honeycomb panels to building substructures. The system addresses the unique requirements of honeycomb panel construction including low weight, high stiffness, thermal movement, and the need for concealed fixings that preserve the clean aesthetic of flat panel facades. Components include T-bolts, rivet nuts, blind rivets, Z-clips, and adjustable brackets with neoprene or EPDM isolators to accommodate differential thermal expansion. The fixing system is available in aluminum (anodized or powder-coated) and stainless steel (AISI 304/316L) to match panel materials and environmental exposure. Standard fixing spacing ranges from 300-600 mm based on panel thickness and wind load calculations, with custom engineered solutions for non-standard panel geometries or seismic applications.

Fixing components

◈

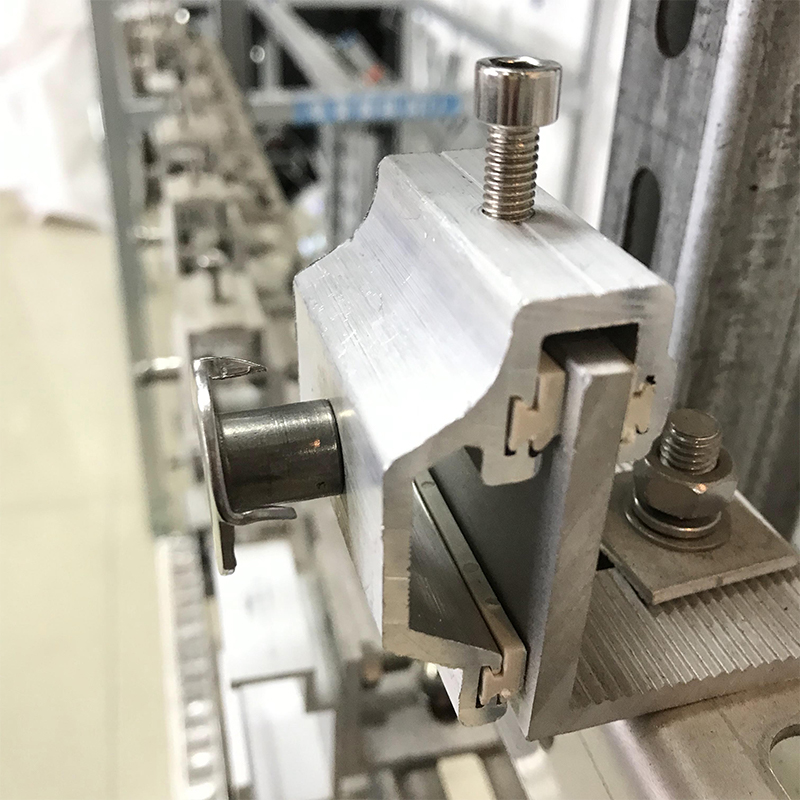

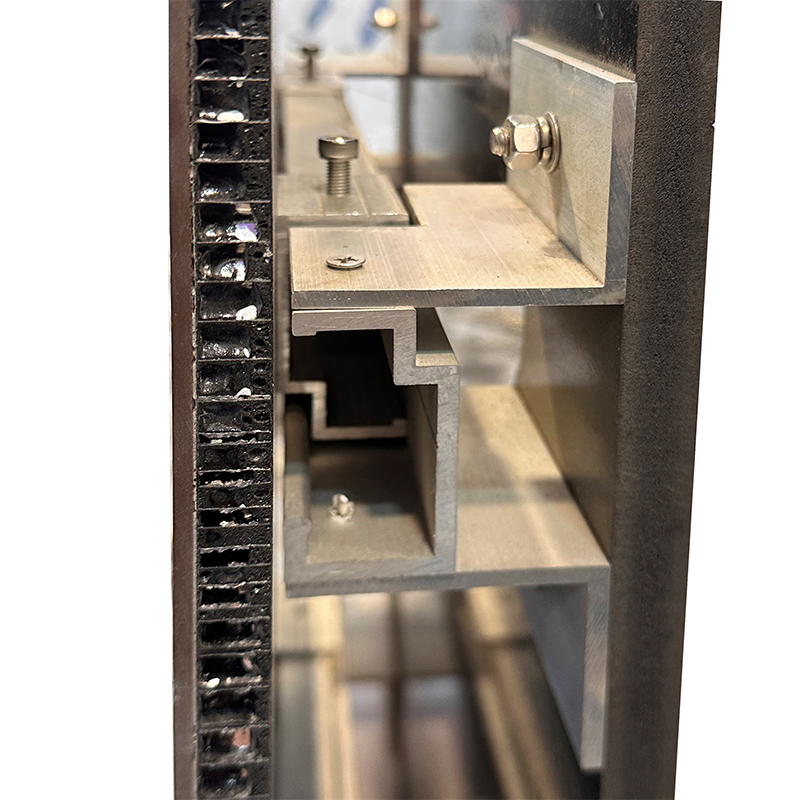

Z-clips

Concealed hanging clips with vertical adjustment. Engage panel edge slots for hidden fixing. Load range 2-8 kN per clip.

◈

T-bolts & rivet nuts

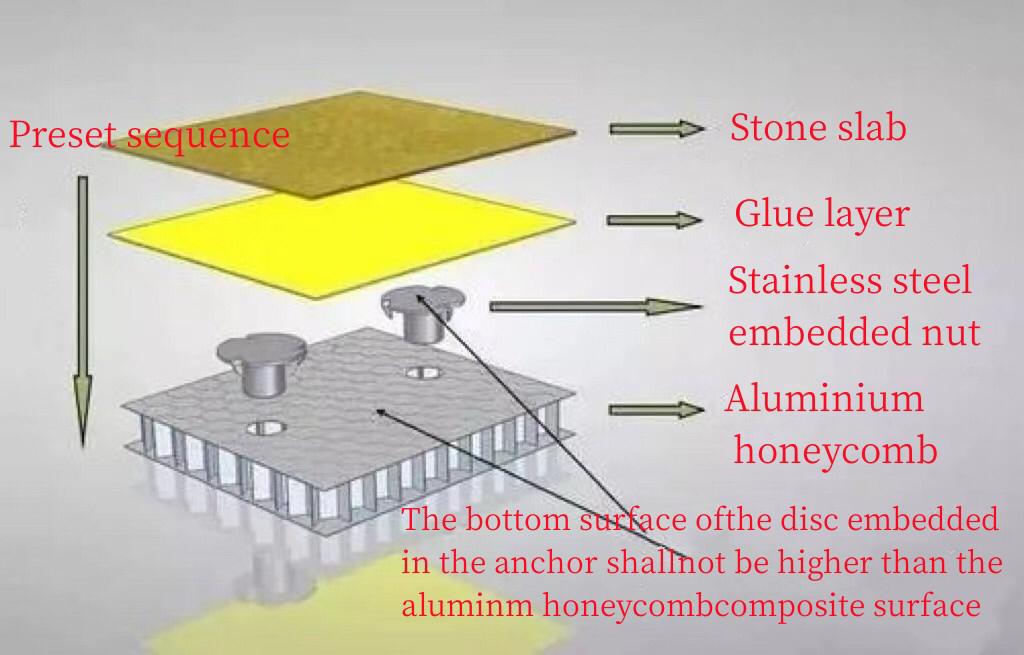

Threaded inserts for panel back surface. Provide blind fixing points for bolted connections to substructure rails.

◈

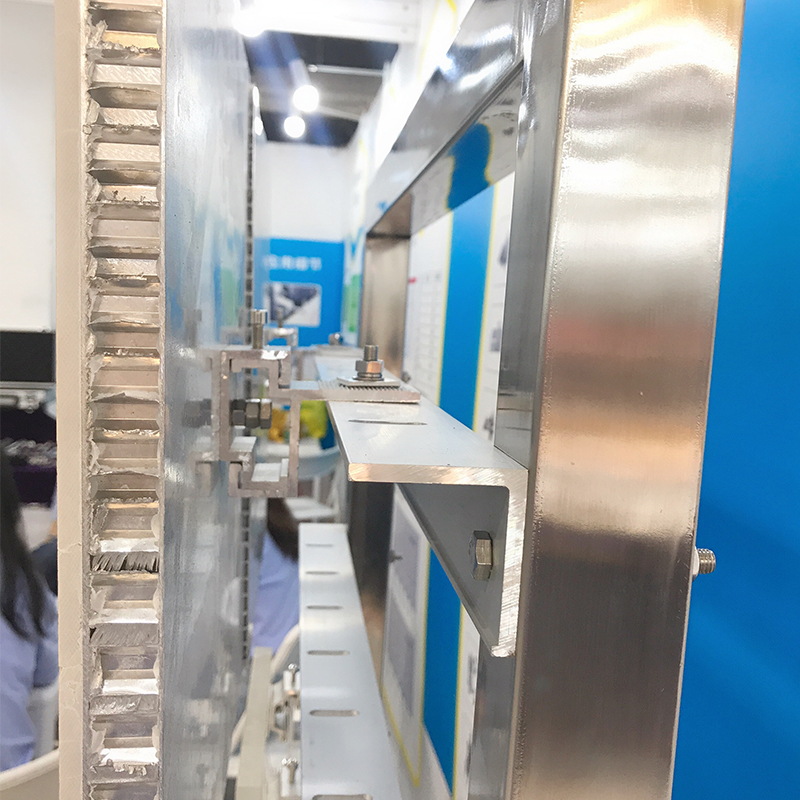

Adjustable brackets

3-axis adjustment for panel alignment. Incorporate thermal break washers to prevent condensation transfer.

◈

Blind rivets

Structural rivets for skin-to-core and panel-to-frame attachment. Available in aluminum, steel, and monel.

◈

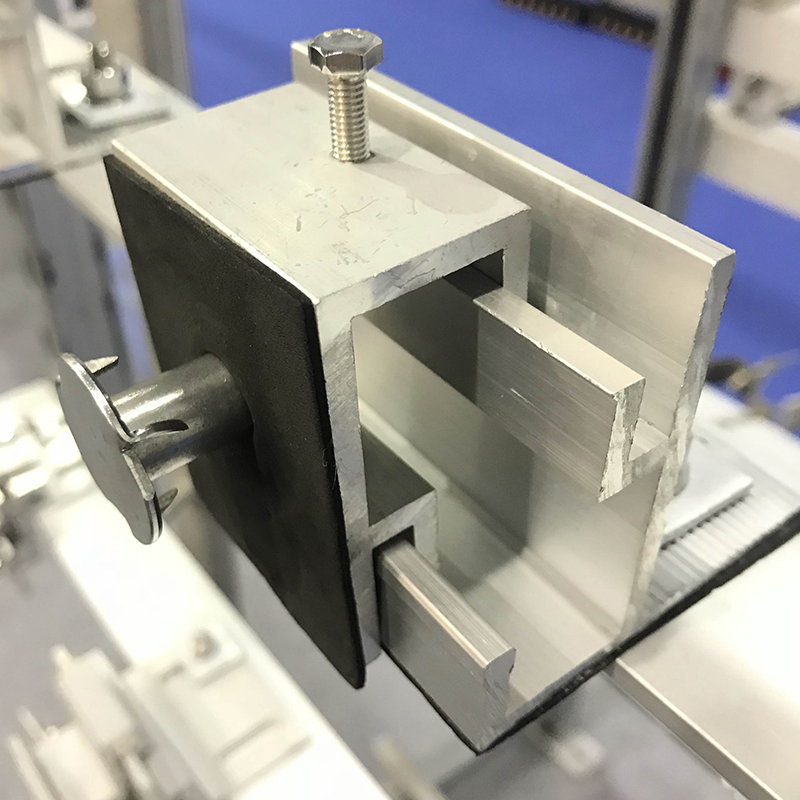

Compression gaskets

EPDM or silicone isolators between fixing and panel to accommodate thermal expansion and dampen vibration.

◈

Seismic anchors

Rated connections for earthquake zones with slotted holes allowing movement while maintaining panel retention.

Technical specifications

8-50

mm panel thickness

300-600

mm fixing spacing

M4-M10

fastener size range

304/316L

stainless steel grades

2-15

kN load per fixing

Fixing configuration matrix

Configuration Panel attachment Substructure Movement capacity

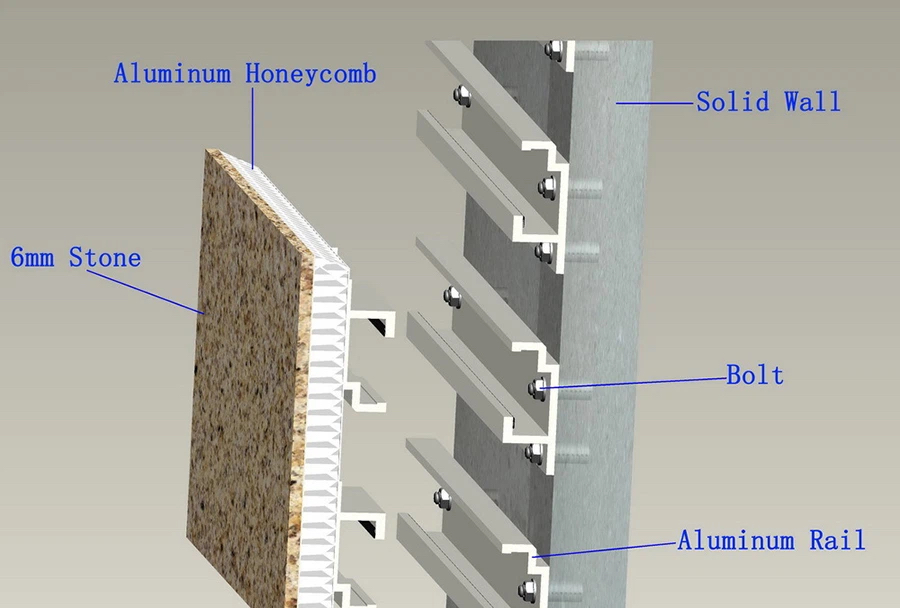

Concealed clip system Slotted edge engagement Vertical rails ±8 mm vertical, ±5 mm horizontal

Blind rivet connection Back frame to core Horizontal brackets Limited to material expansion

Threaded insert system Rivet nuts in panel back Adjustable brackets 3-axis adjustment ±10 mm

Perimeter frame fixing Through bolts at panel edges Subframe or structural steel Nominal; use slotted holes

Fixing load comparison (per anchor)

Z-clip (concealed)

5.0 kN

Blind rivet M6

3.2 kN

Rivet nut M8

8.0 kN

Adjustable bracket

12.0 kN

Seismic anchor

10.5 kN

Application sectors

Airport terminal facades Curtain wall systems Train station canopies Exhibition hall cladding Suspended ceilings Industrial building cladding Transport vehicle panels Architectural sunshading
