Name: Precast Nut For Honeycomb Panel
Rating: 5 (99 reviews)

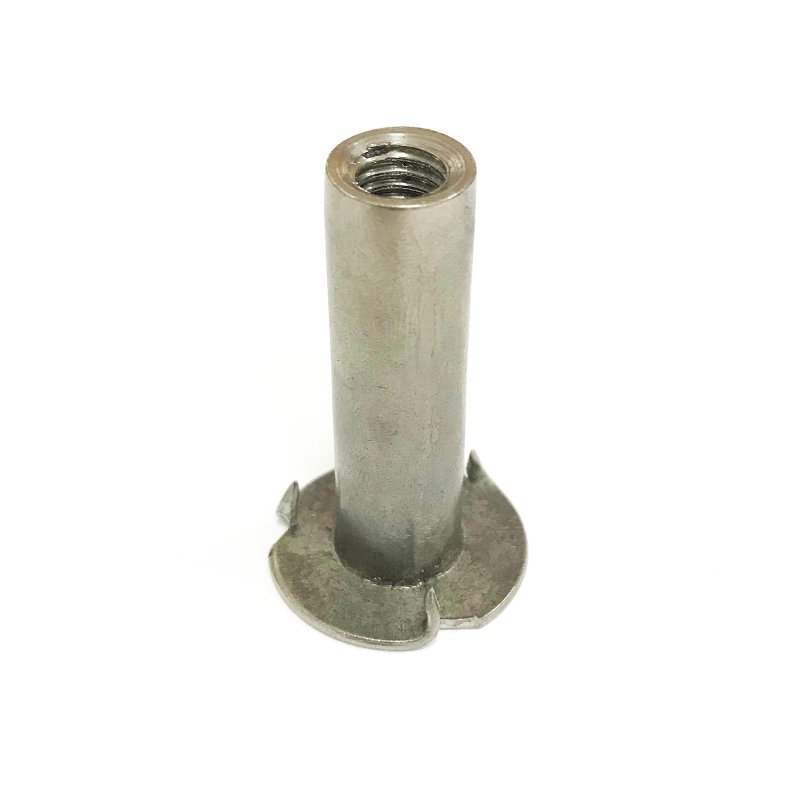

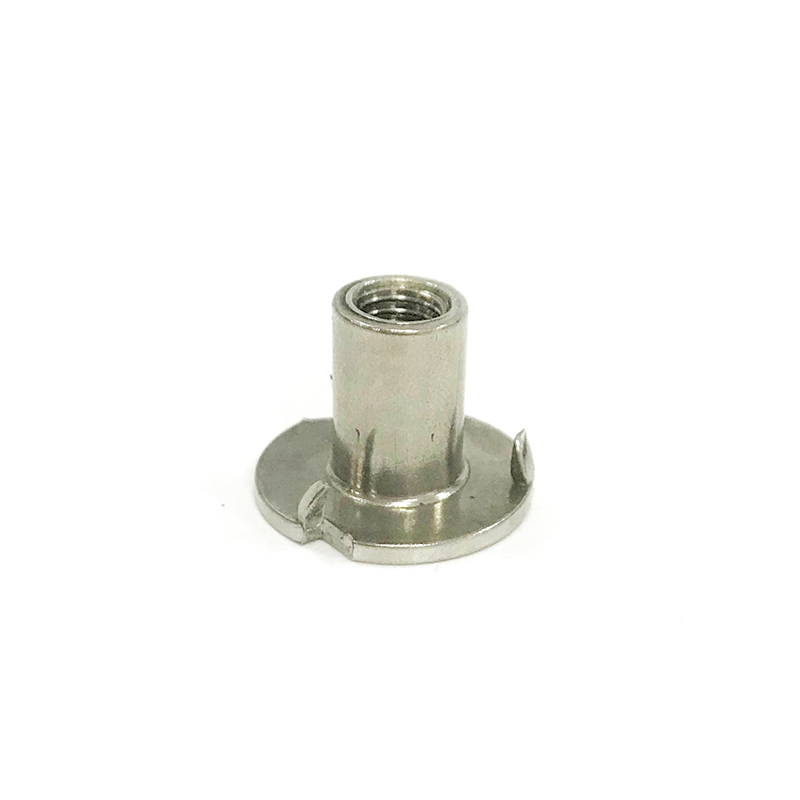

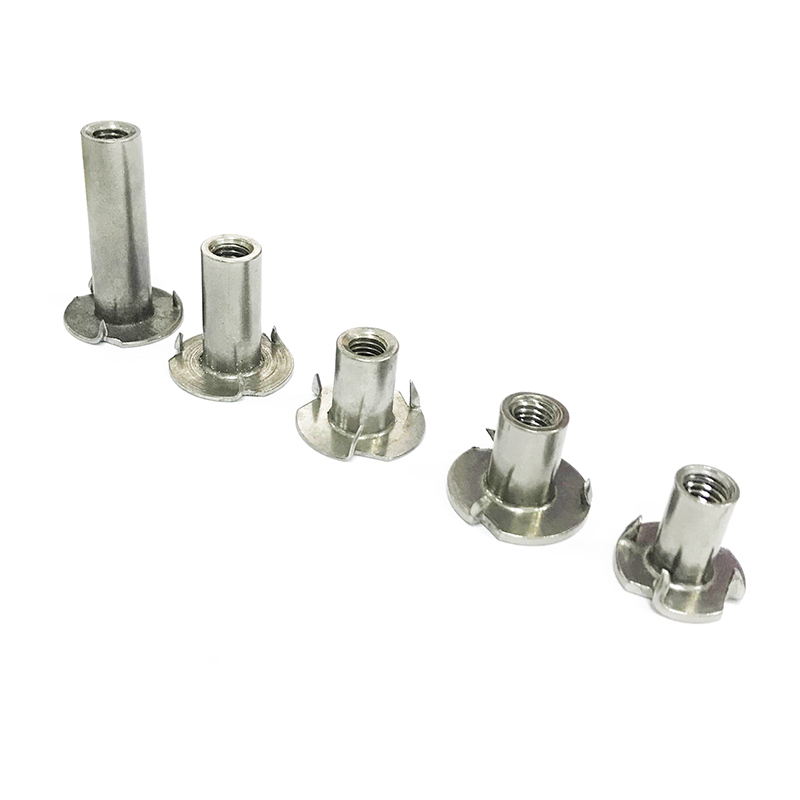

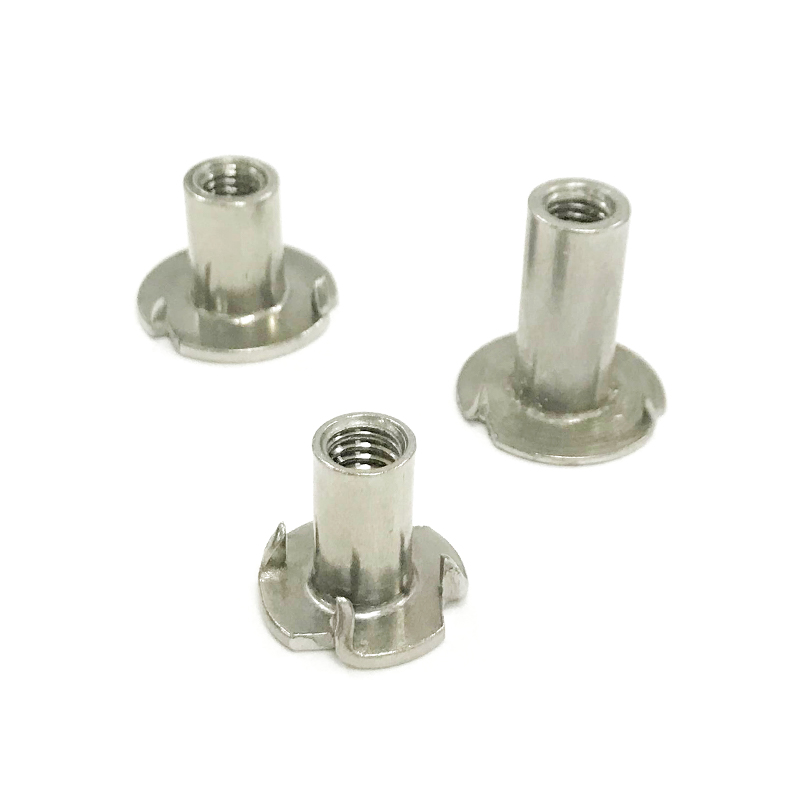

Precast Nut For Honeycomb Panel

Precast nuts are typically made of steel and have a threaded hole to accommodate a bolt or threaded rod. They are designed to be embedded within the precast concrete or other structural component, providing a secure and reliable attachment point. Installation: Precast nuts are installed during the manufacturing process of the precast concrete or structural component. They are placed in the desired location and secured using various methods, such as welding or mechanical means. The nut is aligned to ensure proper positioning and orientation for subsequent connections. Load Capacity: Precast nuts are designed to withstand significant loads, as they form a reliable connection point within the precast concrete or structural component. The load capacity depends on factors such as the size, material, and quality of the nut, as well as the strength of the surrounding concrete or structural material. Versatility: Precast nuts can be used in a wide range of applications, including precast concrete construction, infrastructure projects, and architectural elements. They provide a convenient and reliable way to attach components such as steel plates, brackets, or other structural elements to the precast concrete or structural component. Sizes and Variations: Precast nuts are available in various sizes and configurations to accommodate different bolt sizes and load requirements. They may have different thread types, such as standard coarse threads or fine threads, depending on the specific application and project requirements. Corrosion Protection: Since precast nuts are typically made of steel, they may be coated or treated with corrosion-resistant materials to enhance their longevity and protect against rust and corrosion. This helps to ensure the long-term performance and durability of the fastening system.

Get A Quote

Precast Nut For Honeycomb Panel - High-Strength Fastening Solution

The Precast Nut is an engineered fastening component designed specifically for secure and efficient installation on composite honeycomb panels. This product is developed to provide a reliable, high-load attachment point without compromising the structural integrity of the lightweight panel substrate. It facilitates the creation of a durable, threaded insert within the panel, enabling a wide range of secondary attachments and assemblies.

Our precast nuts are manufactured to stringent quality controls, ensuring consistent performance and dimensional accuracy. They are designed for compatibility with various honeycomb panel compositions, including aluminum, fiberglass, and aramid fiber cores. The unique design distributes stress evenly across the contact area, significantly reducing the risk of delamination or localized damage. This makes them a superior solution for applications requiring both high strength and minimal weight.

Product Features

Load Distribution & Delamination Prevention: The wide flange design of the nut disperses tensile and shear loads across a larger surface area, mitigating the risk of delamination in composite honeycomb panels.
Structural Integrity: The knurled body of the nut creates a robust mechanical interlock with the panel core, ensuring a secure and permanent threaded insert that resists pull-out forces.
Installation Efficiency: Designed for streamlined integration into manufacturing processes, this precast nut reduces assembly time and the need for complex, multi-step adhesive bonding or through-bolting.
Corrosion Resistance: Fabricated from high-grade materials such as 304 stainless steel, the product offers excellent resistance to corrosion, ensuring long-term durability in diverse environmental conditions.

Technical Specifications

Parameter	Value	Standard
Material	304 Stainless Steel	ASTM A240
Thread Size	M6, M8, M10	ISO Metric
Panel Thickness Range	15mm - 50mm	Variable
Tensile Strength	20 kN (M8 thread)	(Typical)
Shear Strength	15 kN (M8 thread)	(Typical)

Application Areas

This product is an ideal solution for engineers and manufacturers seeking a reliable fastening method for lightweight panel structures. It is widely used in:

Aerospace & Defense: For interior cabin components, non-structural bulkheads, and equipment mounting in aircraft.
Automotive & Marine: For paneling, flooring, and interior trim in high-performance vehicles and yachts where weight reduction is critical.
Architectural & Construction: For secure installation of facade panels, partition walls, and ceiling systems in modern buildings.
Industrial Equipment: For mounting enclosures, access panels, and modular components in machinery.

Frequently Asked Questions

1. How does the Precast Nut compare to traditional adhesive-bonded inserts for honeycomb panels?

Our Precast Nut offers superior mechanical locking and load-bearing capacity compared to simple adhesive-bonded inserts, which can be susceptible to failure under dynamic loads or temperature fluctuations. The mechanical interlock with the panel core provides a more robust and permanent connection, significantly reducing the risk of pull-out or delamination. For projects with high structural integrity requirements, the precast nut provides a more reliable and quantifiable fastening solution. For a detailed comparative analysis or to discuss your specific load requirements, please contact our technical support team.

2. Can this nut be used in thin-gauge honeycomb panels without causing structural damage?

Yes, the Precast Nut is specifically engineered for use in thin-gauge honeycomb panels. The unique design with its wide load-bearing flange and controlled compression during installation minimizes stress concentration points. The tool-free installation method ensures that the delicate panel core and skin are not damaged. We recommend testing on a sample panel to verify the compatibility and performance with your specific panel material and thickness. Our engineers can provide guidance and suggest the optimal nut size for your application to ensure maximum performance without compromising panel integrity.
