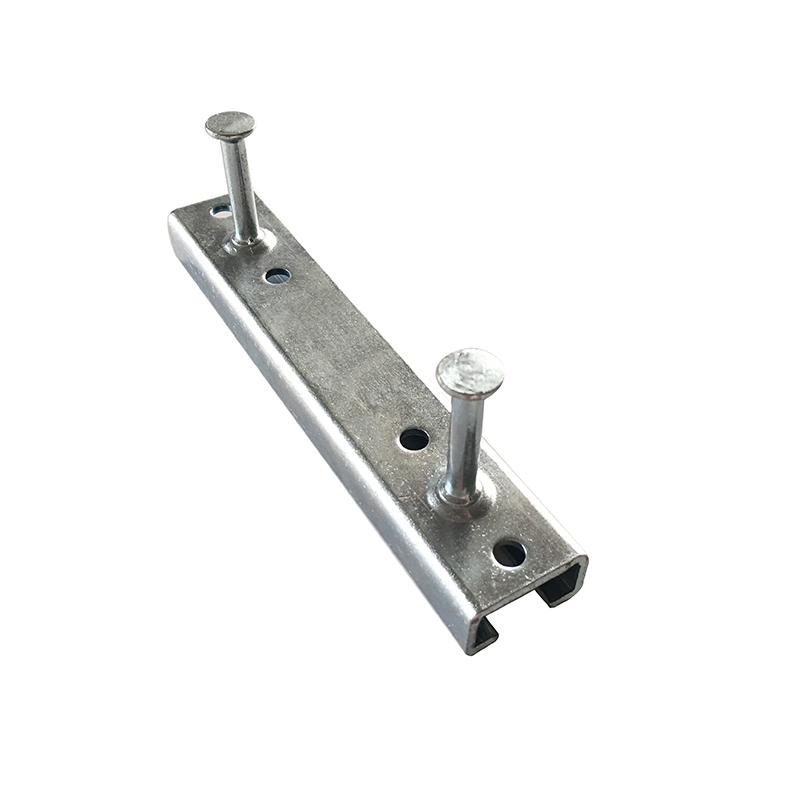

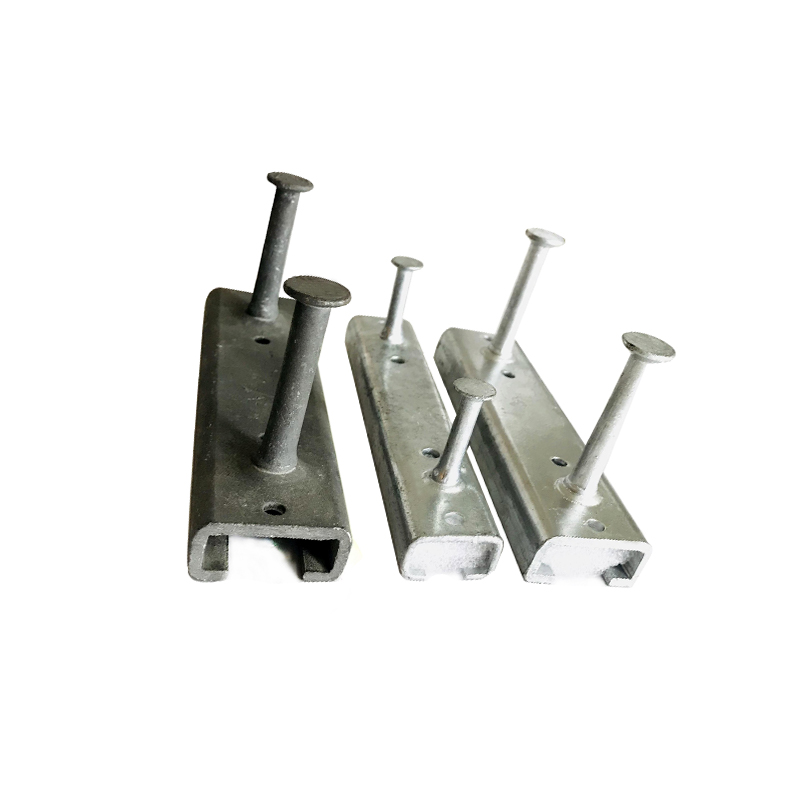

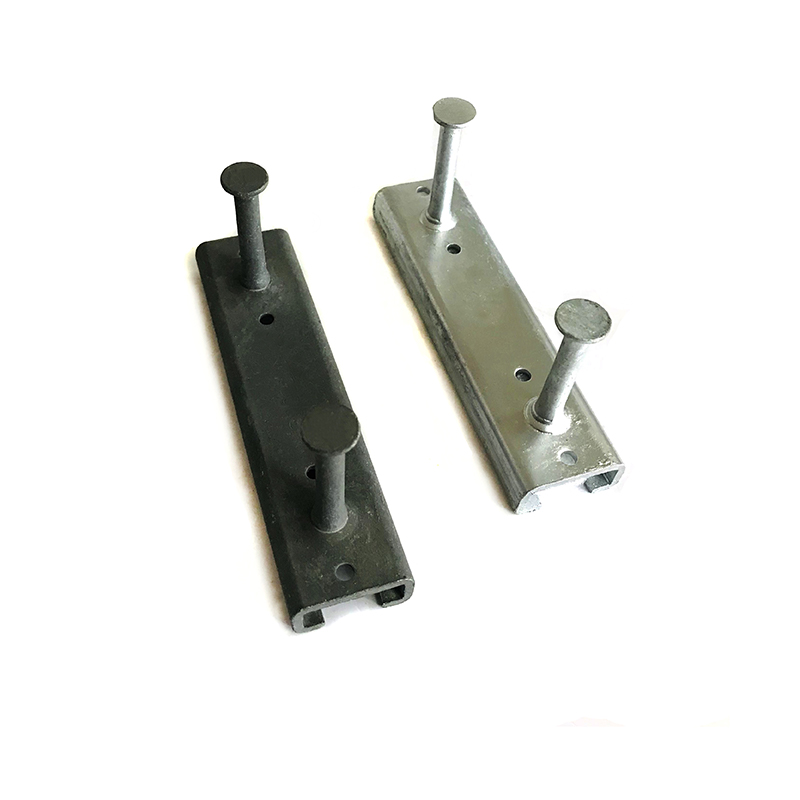

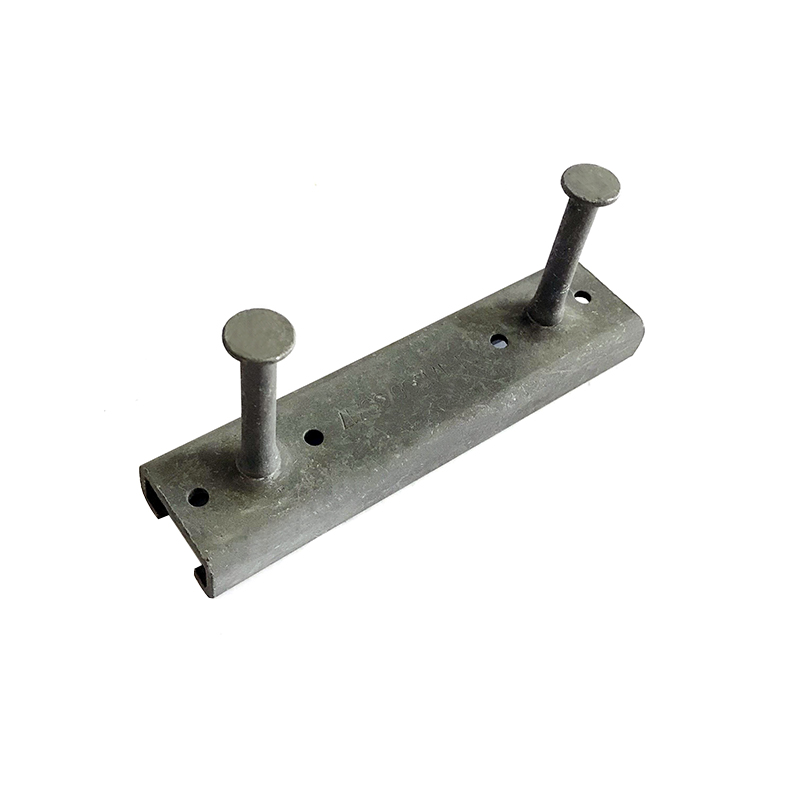

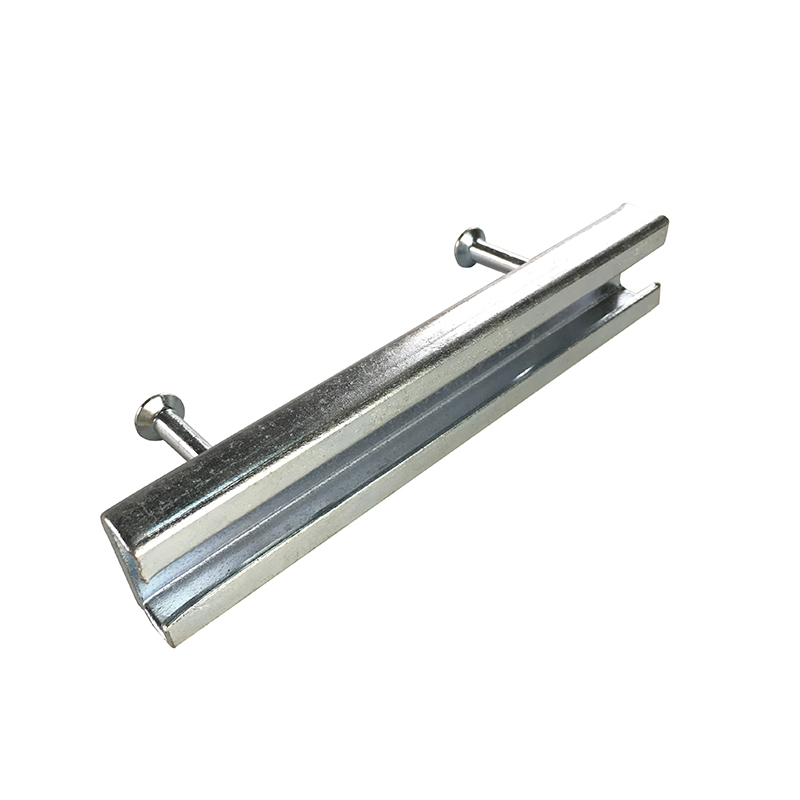

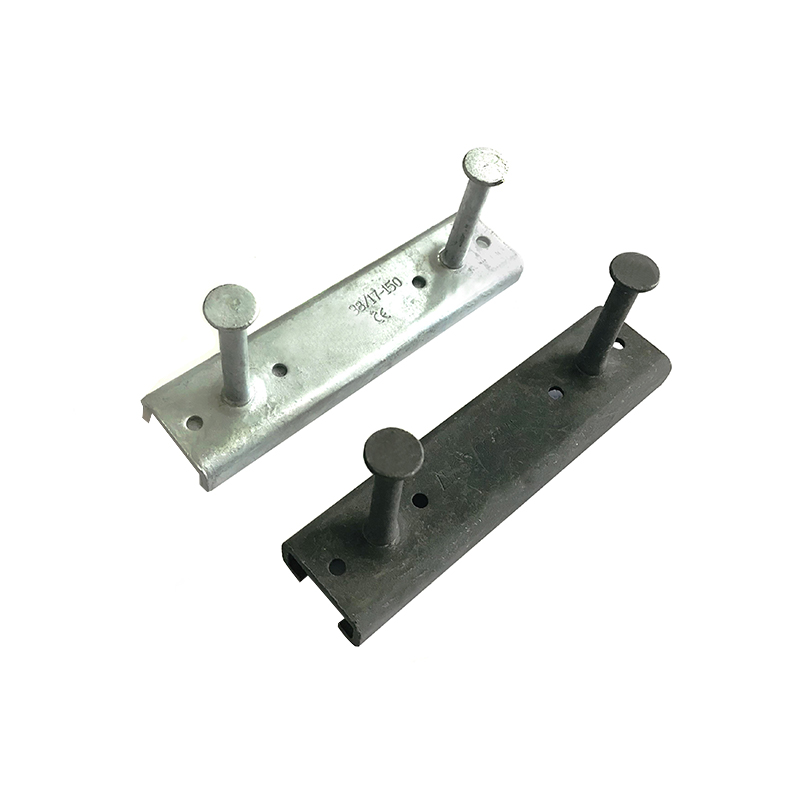

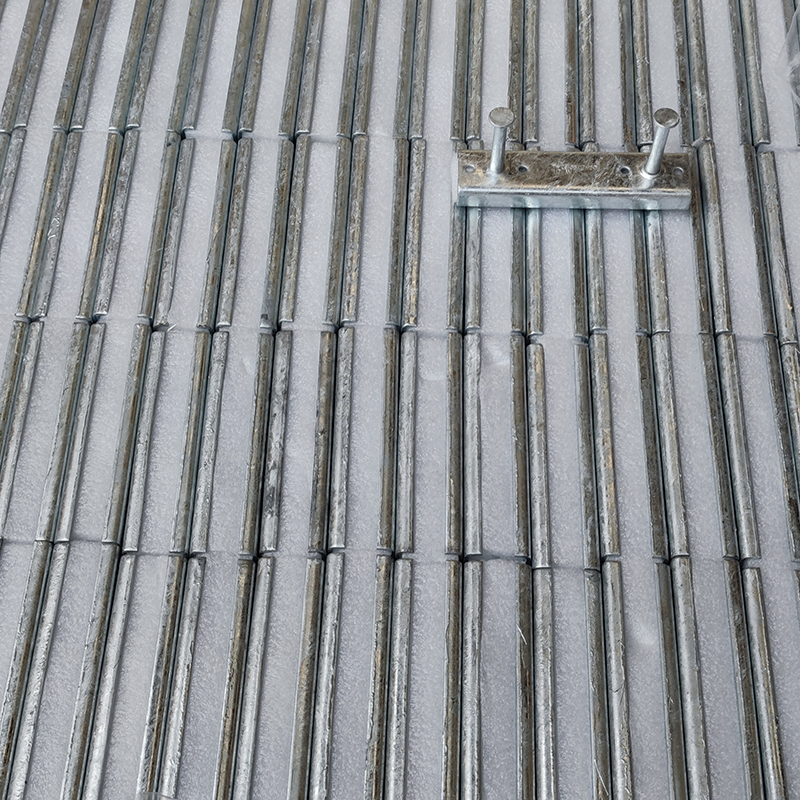

Cold Roll Cast In Anchor is a high-performance embedded anchor made of cold rolling process and precision casting technology, designed for permanent load fixation in concrete structures. It has the characteristics of ultra-high strength, corrosion resistance, and easy installation, and is widely used in construction, bridges, tunnels, power facilities and other fields.
1. Excellent mechanical properties
High-strength material: cold-rolled alloy steel is used, and the tensile strength reaches XXX MPa, far exceeding the industry standard.
Precision casting process: ensure that there are no bubbles or cracks inside the anchor, and the load capacity is increased by more than 30%.
2. Super corrosion resistance
Galvanized/stainless steel optional: adapt to harsh environments such as humidity and salt spray, with a service life of up to 50 years.
Passed ISO 9227 salt spray test, the corrosion resistance is better than ordinary anchor bolts.
3. Quick installation, saving time
Embedded design: completed simultaneously with concrete pouring, no need for later drilling, reducing construction steps.
Anti-rotation structure: unique thread/rib design prevents slipping during installation and improves efficiency.
4. Wide range of application scenarios
Construction industry: steel structure connection, curtain wall fixing, prefabricated component installation.
Infrastructure: bridge bearings, tunnel support, power tower base.
Industrial field: heavy equipment foundation, pipeline support, earthquake-resistant structure.
Q: Can Cold Roll Cast In Anchor be used for hardened concrete?
A: No, this product is a pre-embedded design and needs to be installed before concrete pouring.
Q: How to choose the appropriate surface treatment method?
A: Choose according to the environment:
Hot-dip galvanizing: economical and durable (general environment)
Stainless steel: extreme corrosive environment (coastal, chemical plant)
Identification values
|
||||||||||||
Profile
|
72/48
|
72/49
|
55/42
|
52/34
|
54/33
|
50/30P
|
49/30
|
40/22P
|
40/25
|
38/17
|
HTA-CE 28/15
|
|
Type
|
hot-rolled
|
cold-rolled
|
hot-rolled
|
hot-rolled
|
cold-rolled
|
hot-rolled
|
cold-rolled
|
hot-rolled
|
cold-rolled
|
cold-rolled
|
cold-rolled
|
|
Geometry
HALFEN Channels HTA-CE
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Note: observe the installation height hinst
|
||||||||||||
![]() |
||||||||||||
Material
|
Steel
|
|||||||||||
A4
|
||||||||||||
HCR
|
||||||||||||
Bolts
|
72/48
|
72/48
|
50/30
|
50/30
|
50/30
|
50/30
|
50/30
|
40/22
|
40/22
|
38/17
|
HS 28/15
|
|
Threads
|
M20 - M30
|
M20 - M30
|
M10 - M20
|
M10 - M20
|
M10 - M20
|
M10 - M20
|
M10 - M20
|
M10 - M16
|
M10 - M16
|
M10 - M16
|
M6 - M12
|
|
SSIb [mm]
|
129
|
129
|
109
|
88
|
88
|
98
|
81
|
79
|
65
|
52
|
42
|
|
Profile load capacity
|
||||||||||||
NRd,s,I [kN]
|
55.6
|
55.6
|
44.4
|
36.1 | 30.6 | 21.7 | 17.2 | 19.4 | 11.1 | 10.0 | 5.0 | |
VRd,s,I [kN] | 72.2 | 57.8 | 39.7 | 22.4 | ||||||||
MRd,s,flex [Nm] |
Steel | 7472 | - | 5606 | 2933 | 2595 | 2437 | 1455 | 1208 | 956 | 504 | 276 |
NR | 7630 | 7493 | - | 2996 | 2595 | 2743 | 1485 | 1358 | 931 | 516 | 282 | |
Geometry | ||||||||||||
hinst [mm]①② | (191) | (193) | 182 (185) | 162 (164) | 161 (164) | 112 (161) | 103 (101) | 97 (154) | 89 (89) | 81 (82) | 50 (79) | |
bch [mm] | 72 | 72 | 54.5 | 52.5 | 54 | 49 | 50 | 39.5 | 40 | 38 | 28.0 | |
hch [mm] | 48.5 | 49 | 42 | 33.5 | 33 | 30 | 30 | 23 | 25 | 17.5 | 15.25 | |
ly [mm4] |
Steel | 349721 | 293579 | 187464 | 93262 | 72079 | 52575 | 41827 | 19859 | 20570 | 8547 | 4060 |
NR | 19859 | 19097 | ||||||||||
hef [mm] | 179 | 179 | 175 | 155 | 155 | 106 | 94 | 91 | 79 | 76 | 45 | |
Cmin [mm] | 150 | 150 | 100 | 100 | 100 | 75 | 75 | 50 | 50 | 50 | 40 |
Anchor Channels
also known as a slot anchor or installation channel, is a component used in construction and structural applications to provide a secure and adjustable anchoring solution. It is commonly used to attach and support various building elements, such as facades, curtain walls, cladding panels, and suspended ceilings.
The anchor channel consists of a metal channel or track that is embedded or attached to a supporting structure, such as concrete or steel. It typically has a U-shaped or C-shaped cross-section, allowing for easy insertion and adjustment of anchor bolts, threaded rods, or other fasteners.
The anchor channel is installed during the construction phase, typically before the exterior finish or cladding is applied. It is securely fixed to the underlying structure using appropriate fasteners, such as concrete screws, adhesive, or welding, depending on the specific application and load requirements.
Once the anchor channel is in place, various building elements can be attached to it using compatible connectors or fasteners. This allows for flexibility in the installation, adjustment, and replacement of these elements if needed.
One of the main advantages of anchor channels is their adjustability. The fasteners or connectors can be easily positioned along the channel, allowing for precise alignment and leveling of the attached elements. This adjustability is particularly useful when dealing with variations in dimensions or alignment during construction.
Anchor channels also provide a high degree of load capacity and stability. The channel's design distributes the load over a larger area, reducing stress concentrations and improving the overall strength of the connection. This makes anchor channels suitable for applications where heavy loads or dynamic forces are involved.
It's important to note that the specific design and features of anchor channels can vary depending on the manufacturer and intended application. Consulting the manufacturer's specifications and guidelines is recommended to ensure proper installation and usage of anchor channels for your specific project requirements.
