Aluminum alloy guide rails are support structures specially designed for the installation of solar photovoltaic modules. It is made of high-quality aluminum alloy material and manufactured through precise processing technology. It has the characteristics of lightness, corrosion resistance, high strength, and good thermal conductivity. Aluminum alloy guide rails can not only effectively support photovoltaic modules, but also ensure the stability and safety of the modules during long-term use. Solar photovoltaic module mounting bracket is an important component for fixing photovoltaic modules on aluminum alloy guide rails. The bracket is reasonably designed and easy to install, and can adapt to various complex installation environments and conditions. By cooperating with aluminum alloy rails, photovoltaic modules can be more firmly installed on roofs, ground, or other installation sites, thereby effectively absorbing solar energy and converting it into electrical energy. If you need to mount one solar panel onto your tin roof flexibly and without too much bothering of so many long rails and accessories, here we bring you a convenient solar mounting bracket kit for mounting solar panels onto sloped pitched tin roofs or flat tin roofs. If you need to mount more solar panels, please add the kit quantities as you like. · 1)Rail*4pcs: 76cm/29.9 inch long, supporting one or two solar panels fixed vertically. · 2)L foot*4pcs: flexibly secure rails to the roof at the desired height of 33-68mm. · 3)Adjustable end clamps*4pcs: secure a solar panel 30-45mm/1.18 inch-1.77 inch thick · 4)Adjustable mid clamps*2 secure two solar panels 30-45mm/1.18 inch-1.77 inch thick in the middle · 5) Self-tapping screw*4pcs, wood screw*4pcs: please choose the self-tapping screw for steel beams or wood screw for wood beams. · 6)L spanner*1pc: a tool to tighten or loosen end clamps and mid clamps.· 7) rail splice*2pcs: to extend rail length.
Get A Quote
PREV：Distributed Home Solar Tripod, Aluminum Alloy Photovoltaic BracketNEXT：Aluminum Alloy Guide Rail, Solar Tile Roof Photovoltaic Bracket
  • Parameter
  • Contact Us

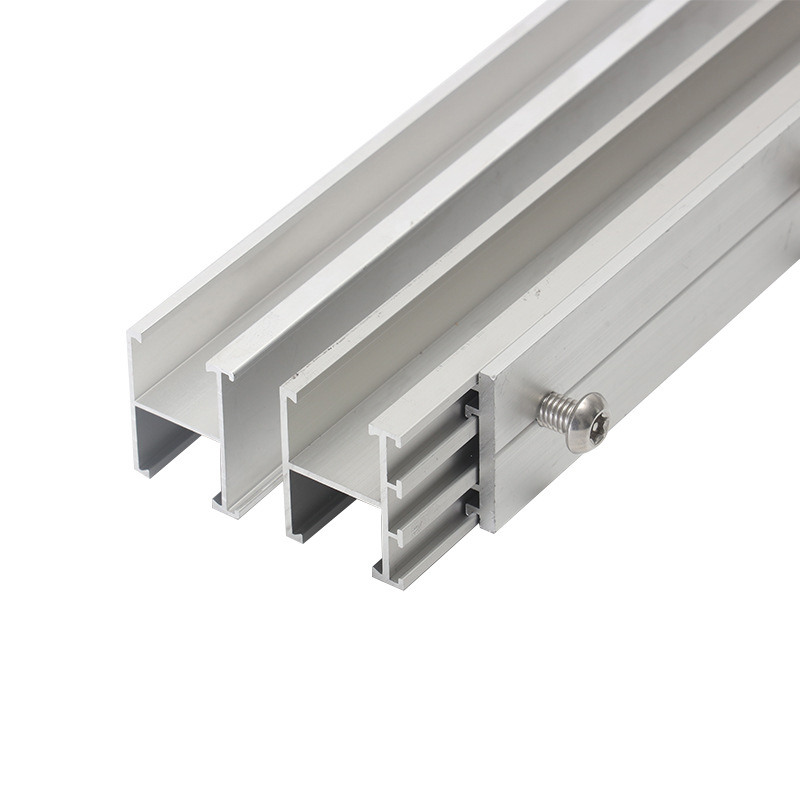

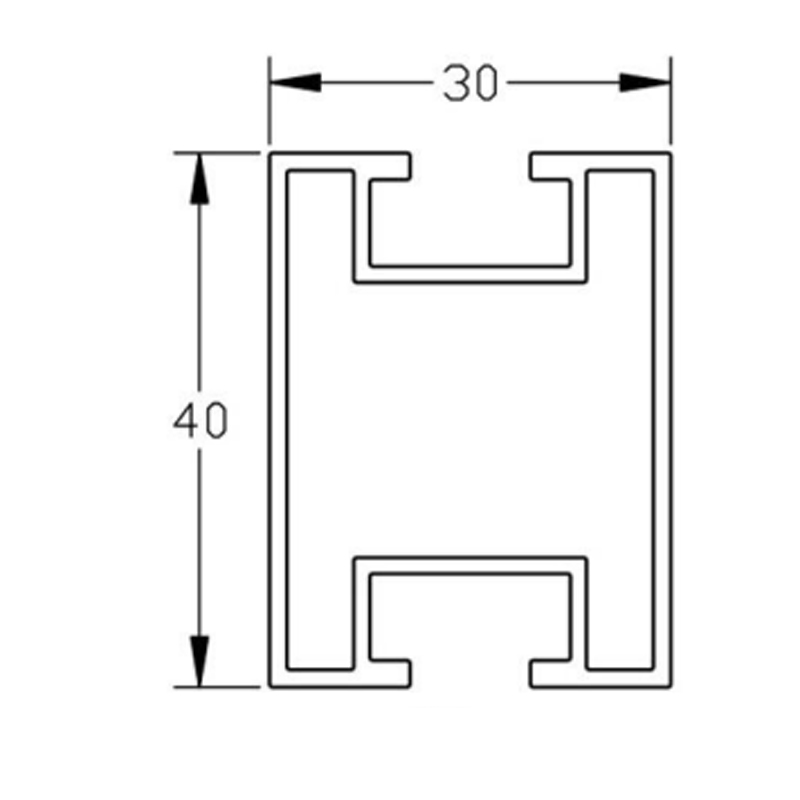

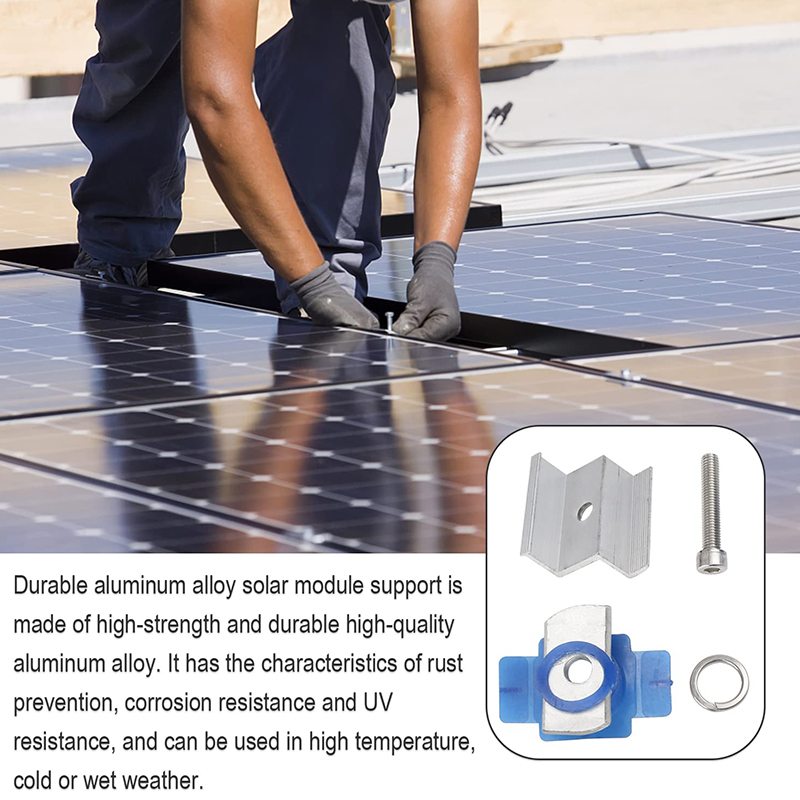

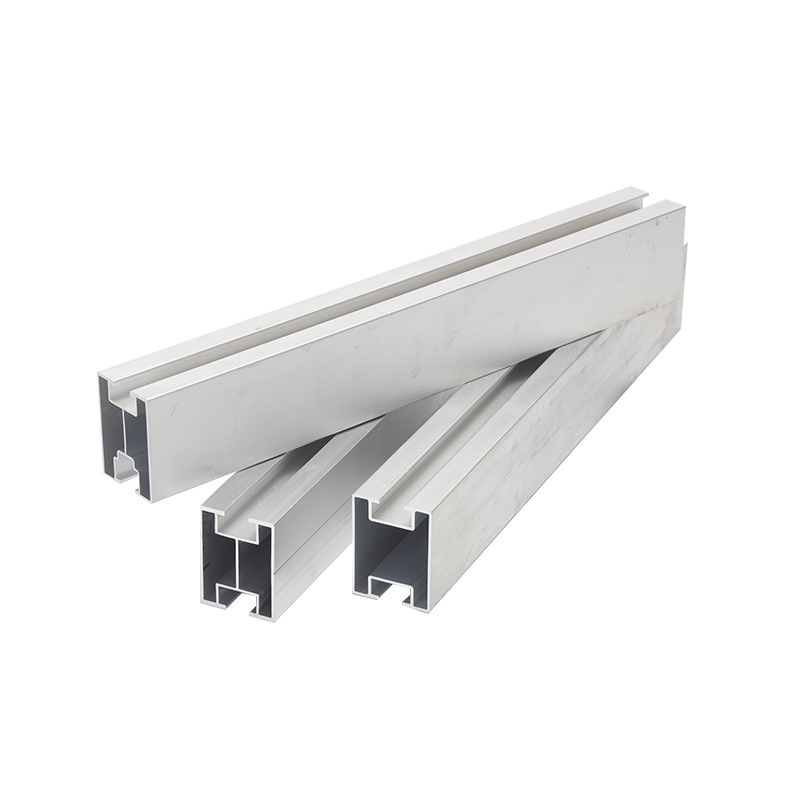

  • Model CMR2150-40 Material AL-6005T5
    Surface Treatment anodizing Weight 640g/m

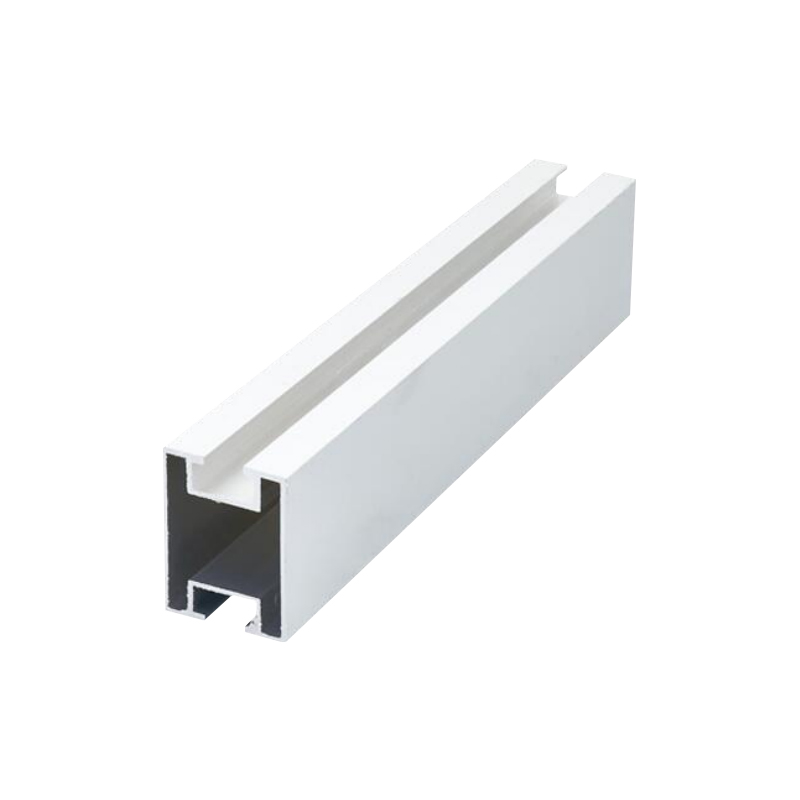

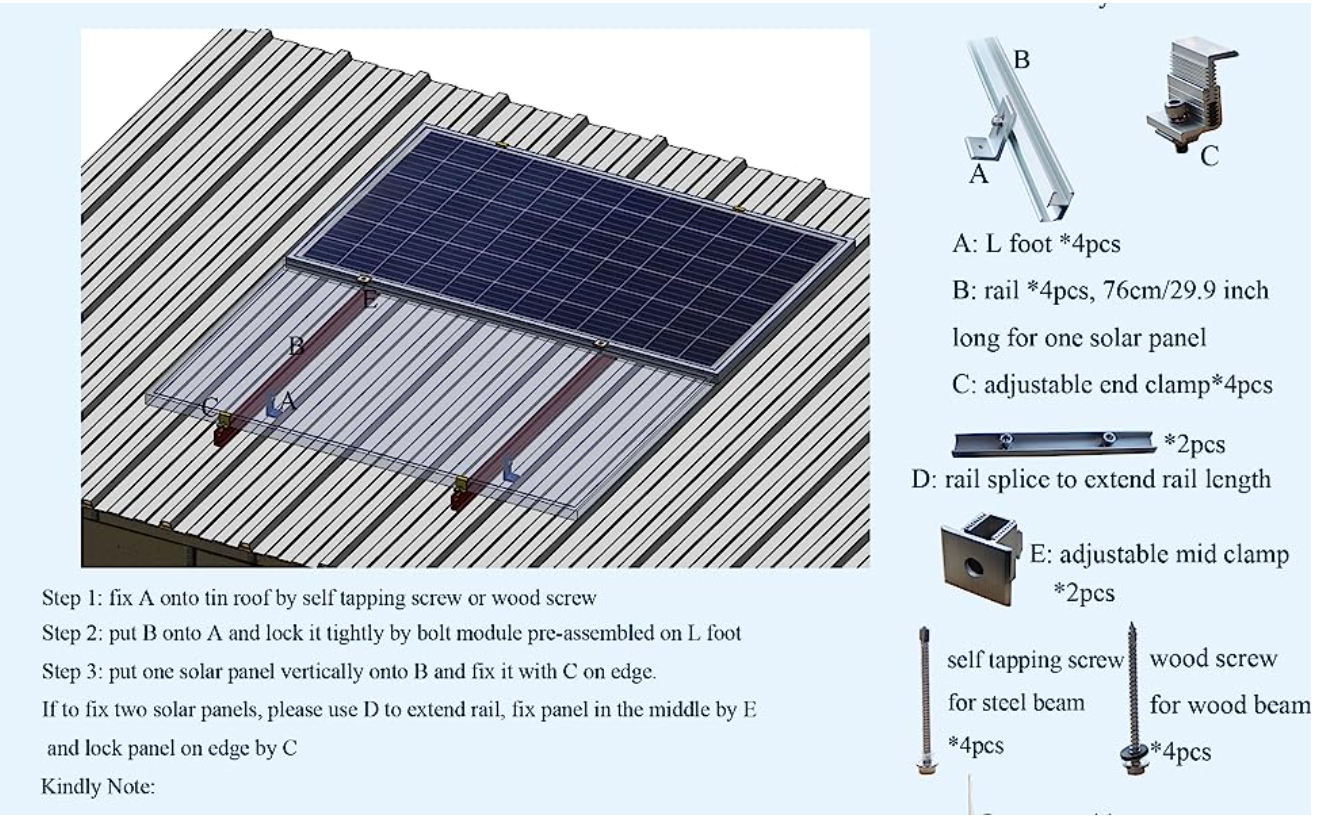

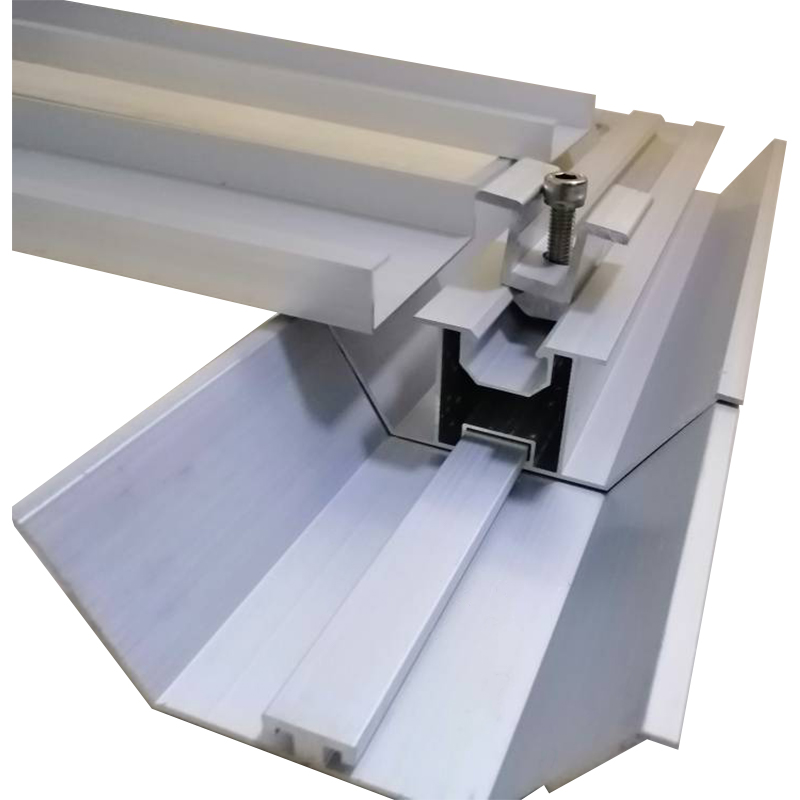

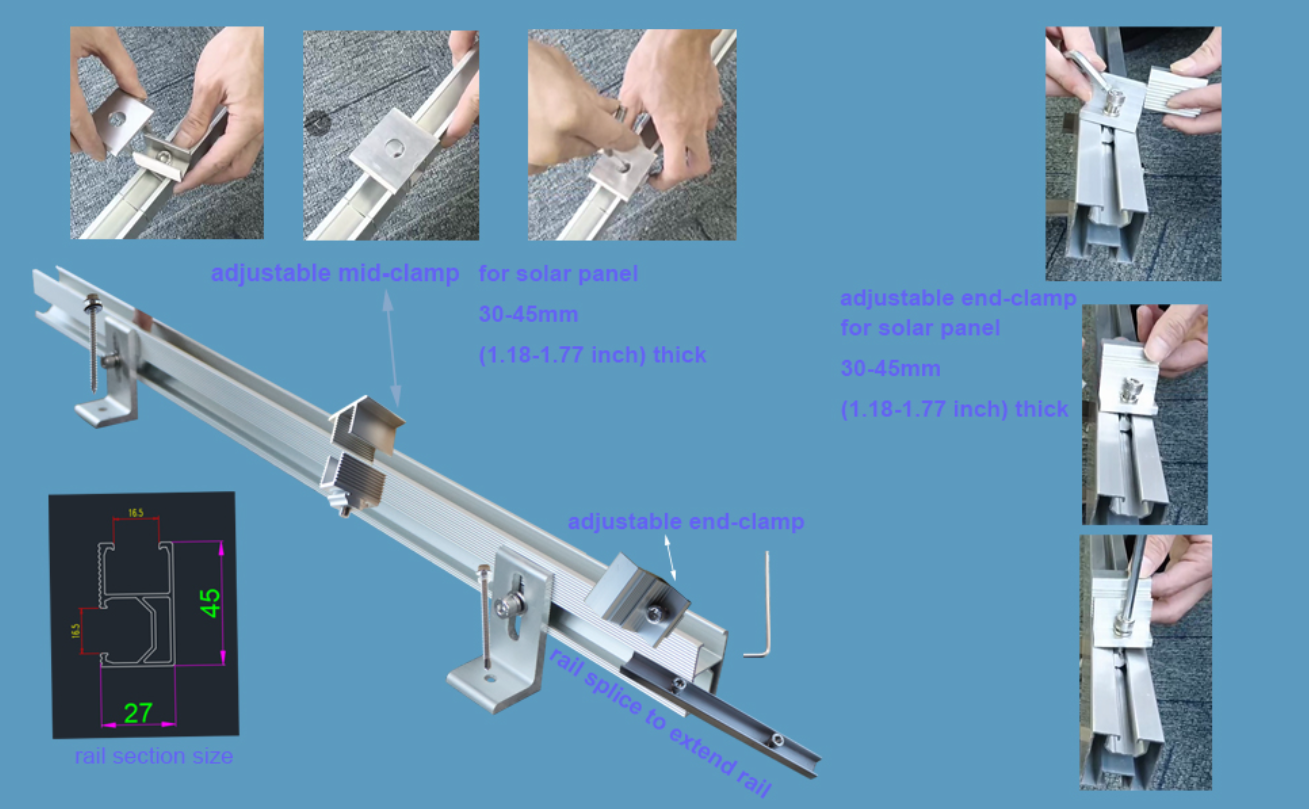

    Rail Installation: Install the mounting rails onto the roof brackets. These rails provide the framework for attaching the solar panels. Secure the rails to the brackets using the provided hardware.

    Panel Mounting: Once the rails are in place, mount the solar panels onto the rails. This may involve sliding the panels into the rail channels or using additional hardware provided by the manufacturer.

    Secure Connections: Double-check all connections, ensuring that the roof brackets, rails, and solar panels are securely fastened.

    System Testing: Conduct a thorough system test to verify the proper functioning of the solar panel installation. This includes checking electrical connections, monitoring power output, and ensuring all safety measures are in place.

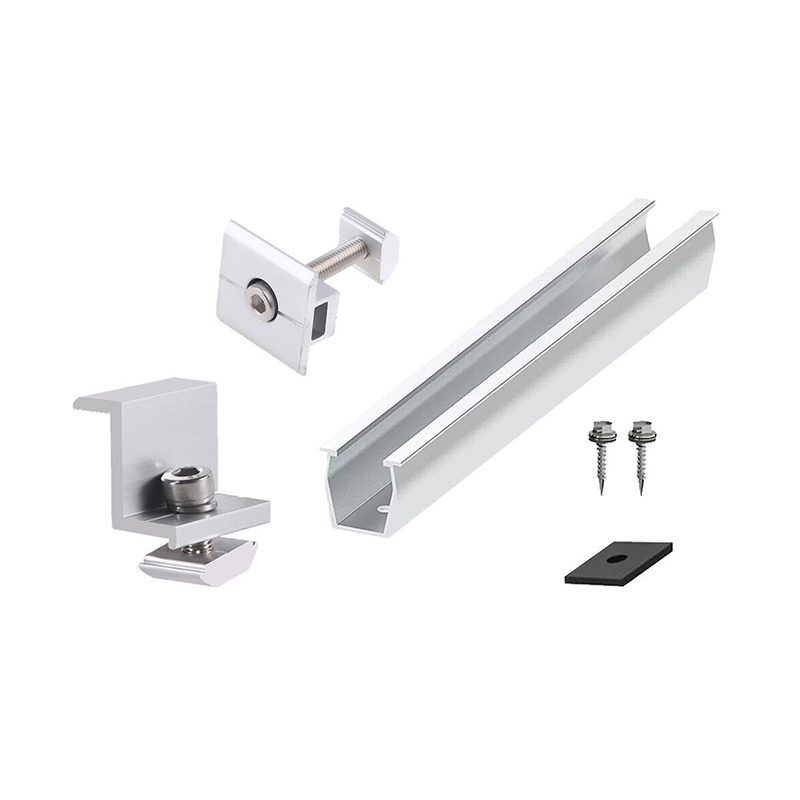

    It includes:

    1.Rail*4pcs

    2. L foot*4pcs

    3. Adjustable end clamps*4pcs

    4. Adjustable mid clamps*2

    5. Self-tapping screw*4pcs, wood screw*4pcs

    6. L spanner*1pc

    7. rail splice*2pcs

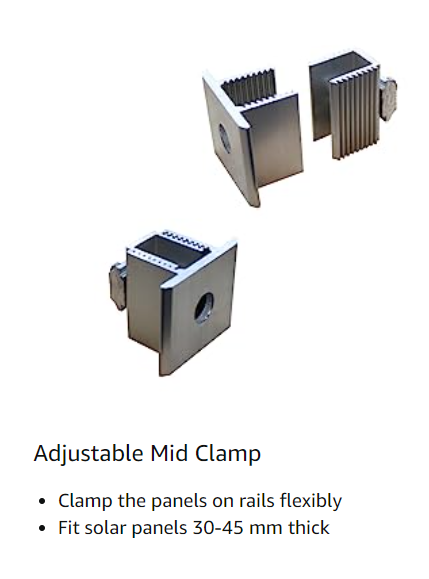

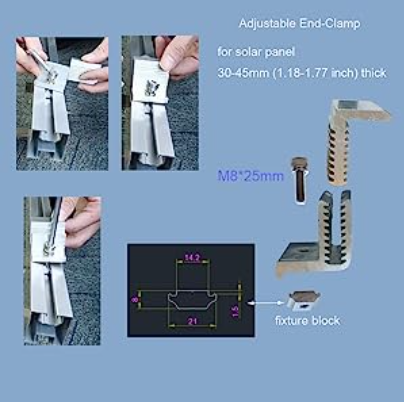

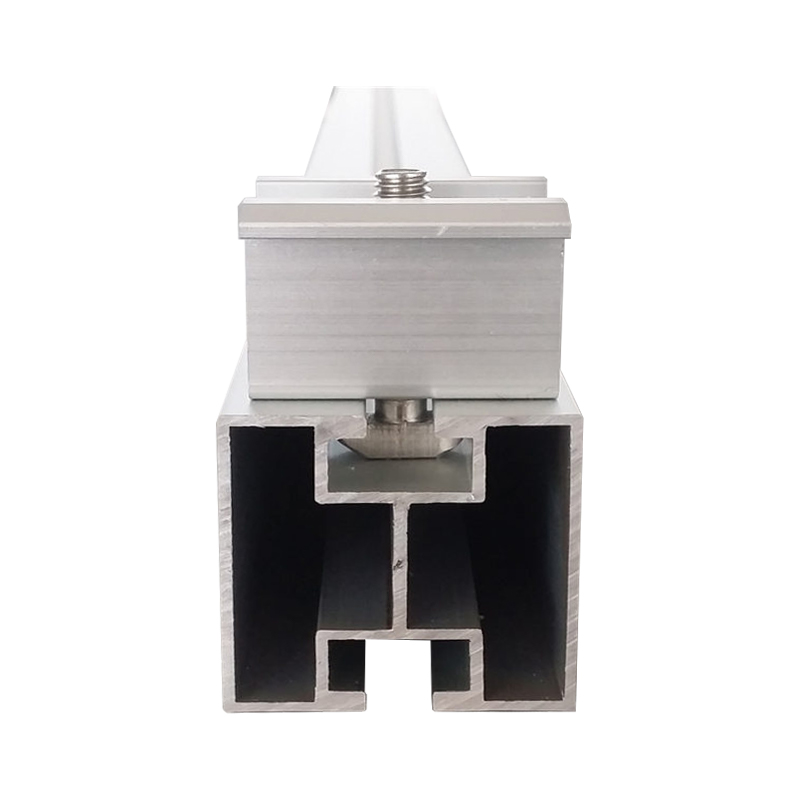

    Adjustable End Clamp

    · Hold the edge of the solar panel tight and flexibly, fit 30 mm - 45 mm thick solar panels

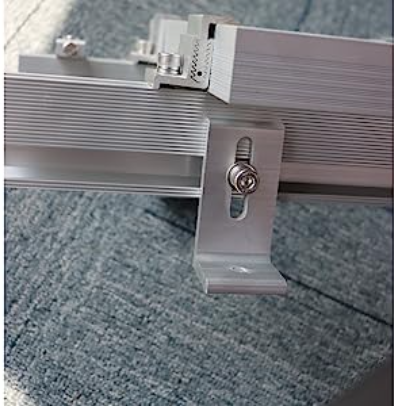

    Universal Use for Tin Roofs

    · Hold the rails on tin roofs flexibly, support rails at your desired height, ranging from 33-68 mm high, and provide a height to allow proper airflow between the panel and the roof surface, assuring your panel stays cool in high temperatures.

    · Universal use for tin roofs
