Aluminum Alloy Guide Rail, Solar Tile Roof Photovoltaic Bracket

Aluminum Alloy Guide Rail for Solar Tile Roof Photovoltaic Bracket

Product Structural Features

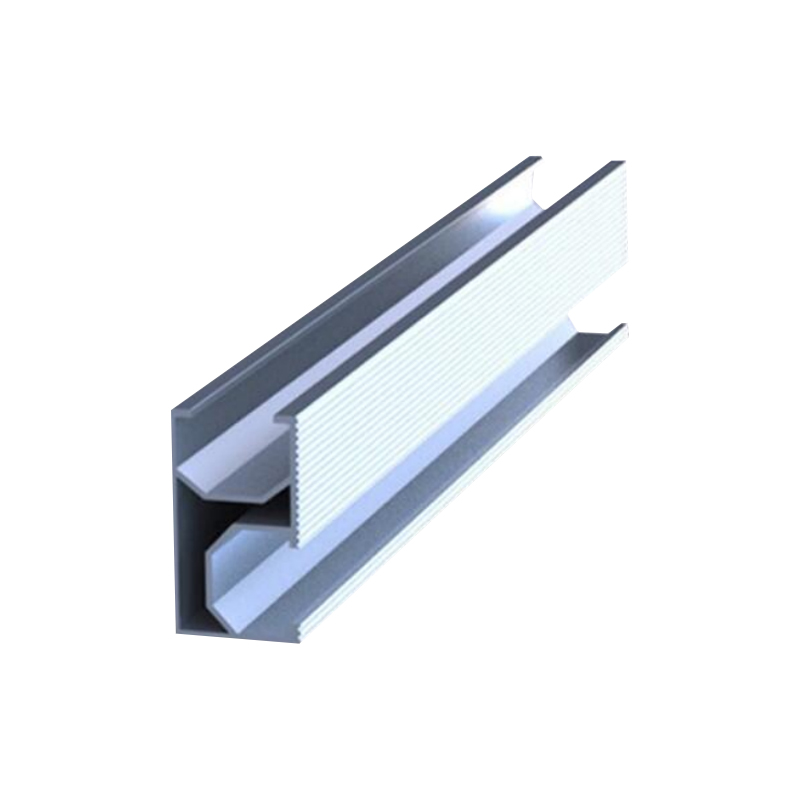

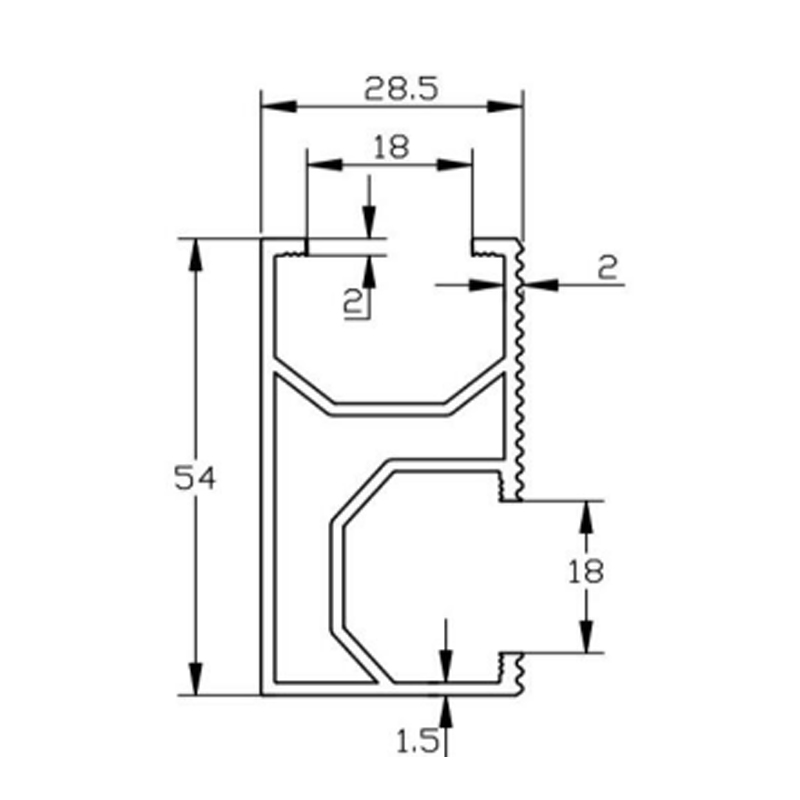

Aluminum Alloy Profile Design

The guide rail adopts an extruded aluminum alloy profile that balances structural rigidity with reduced material weight. This profile geometry supports solar panel guide rail load distribution while allowing integration with clamps, fasteners, and tile roof hooks commonly used in photovoltaic bracket assemblies.

Compatibility with Tile Roof Photovoltaic Systems

Designed for use in tile roof solar mounting structures, the rail interfaces with adjustable roof hooks and brackets without requiring modification to standard roofing layouts. This supports installation workflows where maintaining roof integrity and minimizing penetration points is required.

Surface Treatment and Environmental Resistance

The aluminum alloy surface can be processed through anodizing or equivalent treatments to improve resistance to oxidation and environmental exposure. This is relevant for outdoor photovoltaic guide rails used in regions with variable temperature, humidity, and ultraviolet exposure.

Typical Applications

• Residential solar tile roof photovoltaic installations
• Commercial building distributed PV systems
• Roof-mounted solar arrays requiring lightweight aluminum rails
• Photovoltaic bracket systems for sloped tile roofs

Technical Specifications

Manufacturing and Supply Capabilities

As part of a complete photovoltaic aluminum rail manufacturing process, this guide rail is produced using automated cutting and forming equipment to maintain dimensional consistency. Integration of raw material processing and machining allows control over production tolerances, supporting stable assembly performance in photovoltaic bracket systems.

FAQ

Is this aluminum alloy guide rail suitable for long-term outdoor photovoltaic use?

Yes. The guide rail is designed for outdoor solar mounting applications and can be supplied with surface treatments that enhance resistance to corrosion and environmental exposure. Jiangsu Aozheng Metal Products Co., Ltd. manufactures aluminum alloy building materials using standardized processing methods and supplies products to multiple regions including the United States, Europe, the Middle East, and Australia, where long-term outdoor performance is a key requirement.

Can this guide rail be customized for different tile roof photovoltaic systems?

Customization is feasible based on project requirements such as rail length, profile dimensions, and connection interfaces. Jiangsu Aozheng Metal Products Co., Ltd. operates integrated raw material molding and machining facilities, allowing adaptation of solar tile roof guide rails for different photovoltaic bracket configurations used by construction companies and engineering contractors.

What type of projects typically use this aluminum photovoltaic guide rail?

This product is commonly used in residential and commercial tile roof solar PV projects, including distributed rooftop systems. Jiangsu Aozheng Metal Products Co., Ltd. cooperates with large construction companies and professional architectural teams, supplying aluminum alloy photovoltaic components for building projects across dozens of countries with annual production capacity exceeding 2000 tons of building materials.

Rail Installation: Install the mounting rails onto the roof brackets. These rails provide the framework for attaching the solar panels. Secure the rails to the brackets using the provided hardware.

Panel Mounting: Once the rails are in place, mount the solar panels onto the rails. This may involve sliding the panels into the rail channels or using additional hardware provided by the manufacturer.

Secure Connections: Double-check all connections, ensuring that the roof brackets, rails, and solar panels are securely fastened.

System Testing: Conduct a thorough system test to verify the proper functioning of the solar panel installation. This includes checking electrical connections, monitoring power output, and ensuring all safety measures are in place.

It includes:

1.Rail*4pcs

2. L foot*4pcs

3. Adjustable end clamps*4pcs

4. Adjustable mid clamps*2

5. Self-tapping screw*4pcs, wood screw*4pcs

6. L spanner*1pc

7. rail splice*2pcs

Adjustable End Clamp

· Hold the edge of the solar panel tight and flexibly, fit 30 mm - 45 mm thick solar panels

Universal Use for Tin Roofs

· Hold the rails on tin roofs flexibly, support rails at your desired height, ranging from 33-68 mm high, and provide a height to allow proper airflow between the panel and the roof surface, assuring your panel stays cool in high temperatures.

· Universal use for tin roofs
