Stone Clips For Wall Fixing System
Stone Clips For Wall Fixing System
Stone Clips For Wall Fixing System
Stone Clips For Wall Fixing System
Stone Clips For Wall Fixing System
Stone Clips For Wall Fixing System

Stone Clips For Wall Fixing System

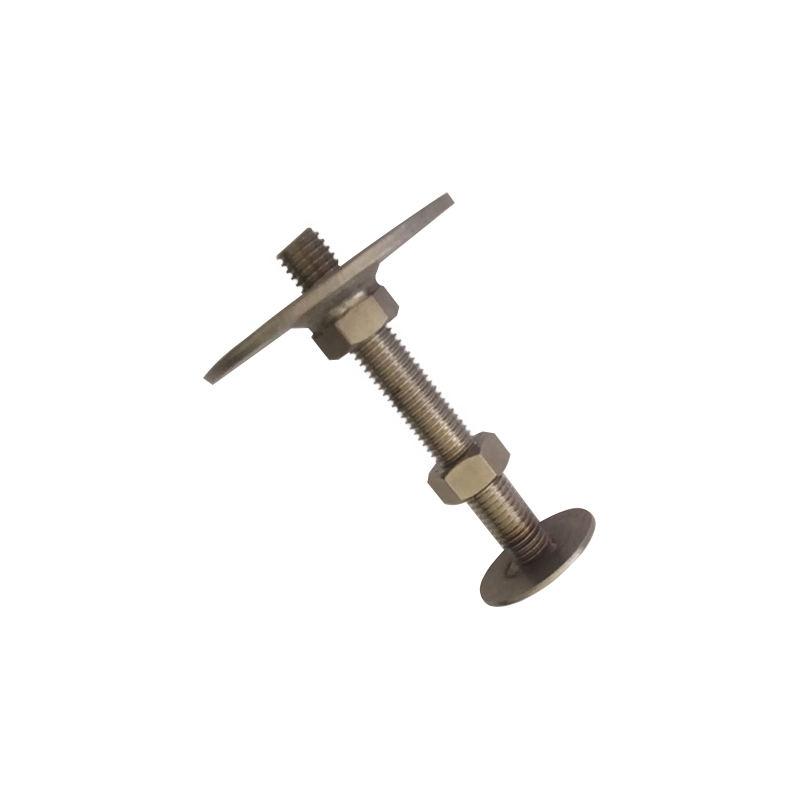

The Stone Clips For Wall Fixing System provides a structural solution for the secure attachment of natural stone, ceramic tiles, and heavy cladding panels to building facades. These specialized cladding support brackets are engineered to facilitate mechanical fixing, ensuring load distribution across the substrate while accommodating thermal expansion and seismic movement. Utilizing stainless steel grade 304 and 316, these components offer substantial corrosion resistance in diverse environmental conditions.
Get A Quote
PREV：Body Anchor Stone Support Body Fixings AnchorsNEXT：No next article
  • Parameter
  • Contact Us
  • Wall fixing system | Dry-hang technology

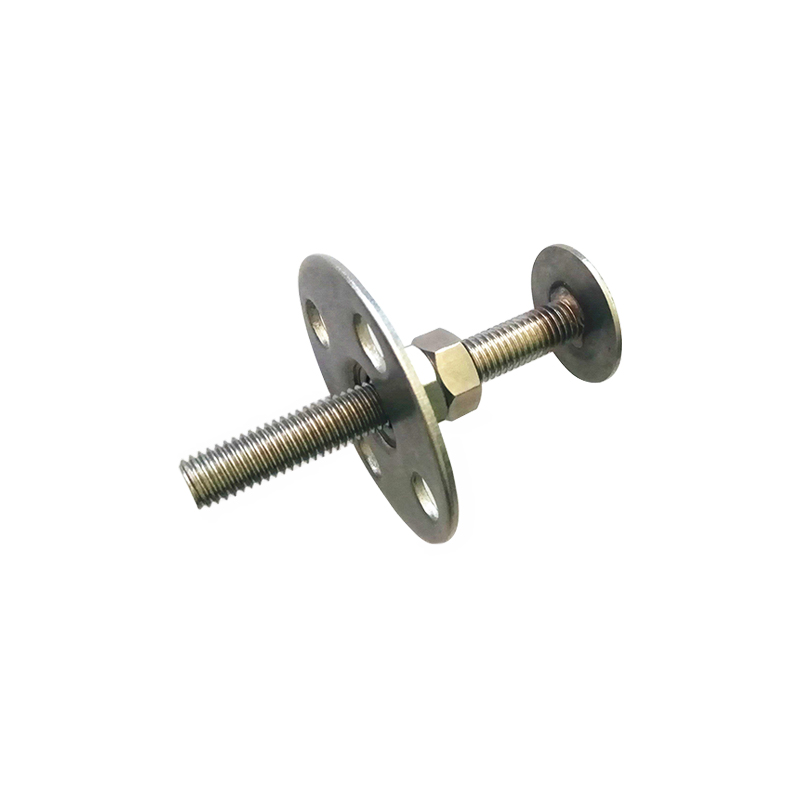

    Technical Overview of Stone Clips For Wall Fixing System
    SS304 / SS316 / SS201 Carbon steel 2.0-6.0mm thickness 3D adjustable
    Engineering Specifications and Material Composition

    These customized stone brackets are manufactured through precision automated stamping and CNC bending processes to maintain tight dimensional tolerances. The system typically consists of an up-and-down anchor, an expansion bolt, and a pin, forming a comprehensive dry-hang wall fixing assembly. This mechanical approach eliminates the need for wet mortars, thereby reducing the structural dead load and preventing efflorescence on the stone surface.

    SS304 316
    Material grades
    ASTM / DIN / JIS
    2.0-6.0 mm
    Thickness range
    Customized available
    3D axis
    Adjustability
    X, Y, Z mechanical slot
    Pickling HDG
    Surface treatment
    Anti-corrosion layering
    Verified load
    Load bearing
    Per stone weight + wind load
    ...
    Primary Applications in Modern Construction
    Large-scale commercial infrastructures
    Residential high-rises

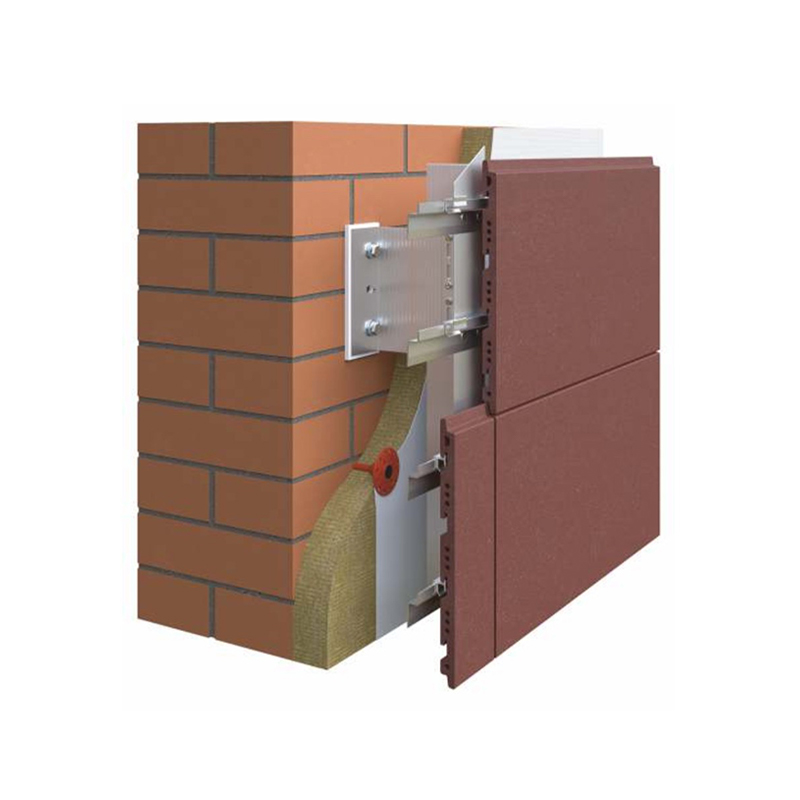

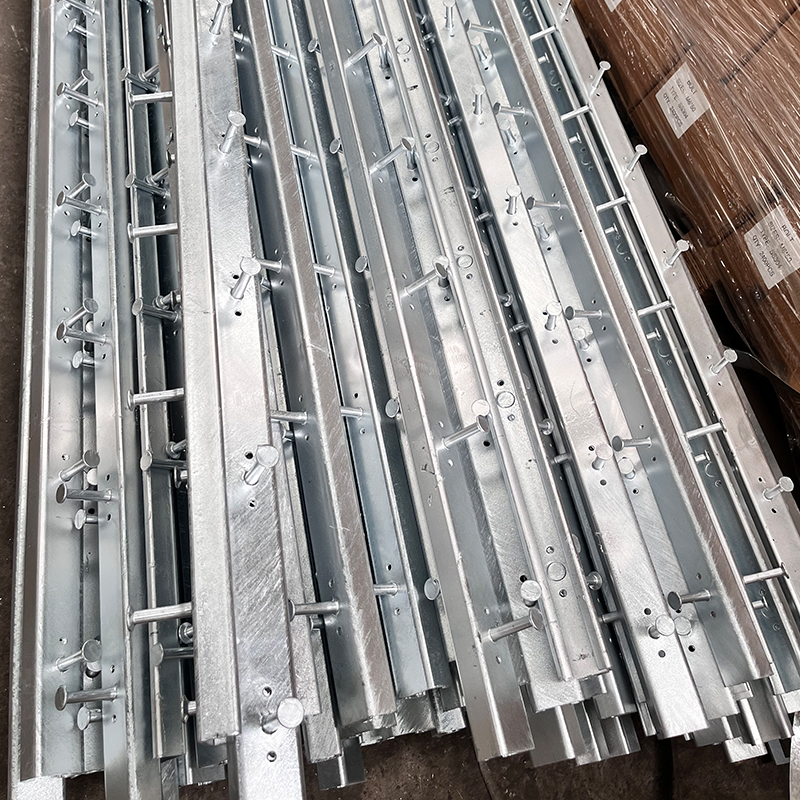

    Ventilated facade projects
    Energy-efficient building envelopes

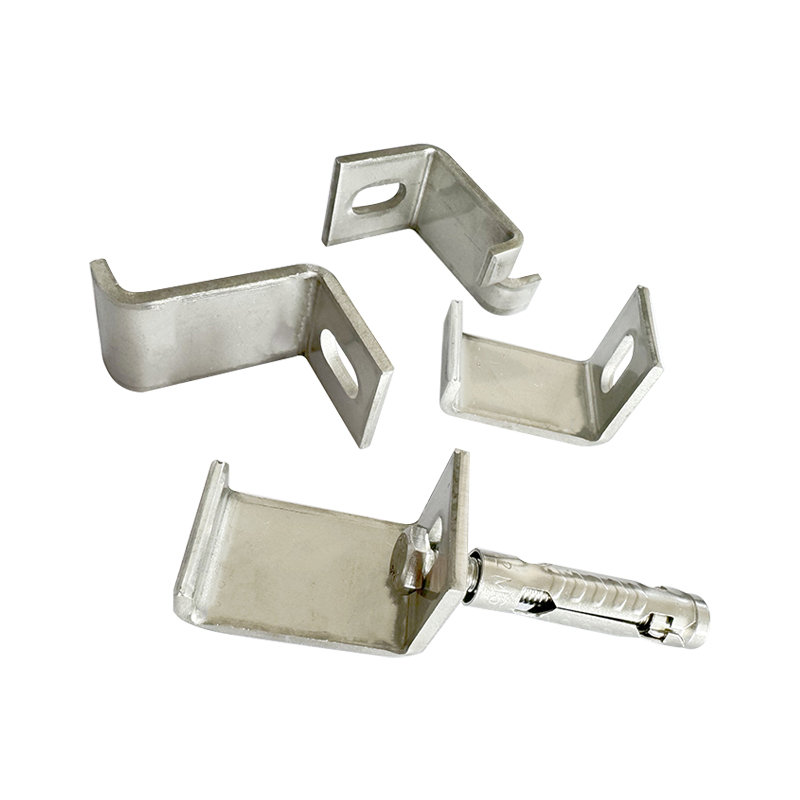

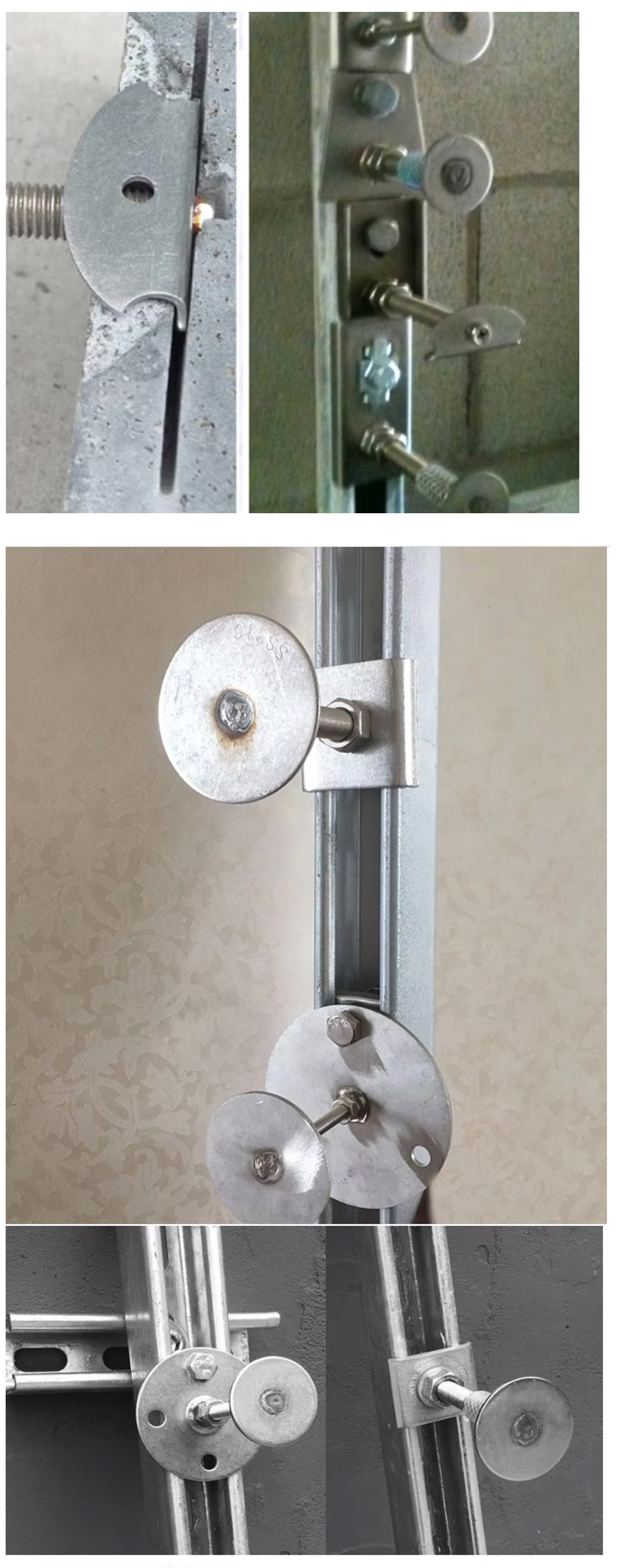

    By implementing undercut anchors and Z-brackets, installers can achieve precise alignment even on uneven concrete or steel substructures. The versatility of the L-shaped stone clip allows for integration with various insulation thicknesses, supporting energy-efficient building envelope designs.

    Technical Advantages for Facade Engineering
    Thermal Movement Accommodation
    The slotted design of the stone cladding brackets allows for horizontal and vertical movement, preventing stress cracks in the cladding material.
    Corrosion Resistance
    Selection of marine-grade stainless steel anchors ensures long-term integrity in coastal or high-pollution urban environments.
    Installation Efficiency
    Pre-fabricated components reduce on-site labor time compared to traditional wet-fix methods.
    Frequently Asked Questions
    How do I determine the correct thickness and material grade for stone cladding anchors?
    Selecting the appropriate cladding anchor thickness depends on the dead load of the stone panels, wind pressure requirements, and the projection distance from the structural wall. For standard exterior environments, SS304 is typically utilized, while SS316 is recommended for high-salinity coastal areas. As a specialized manufacturer, Jiangsu Aozheng Metal Products Co., Ltd. supports diverse requirements by processing stainless steel, aluminum alloy, and carbon steel. Operating as a large-scale production base with an annual output of 2,000 tons, the company utilizes advanced automated cutting and welding to ensure all architectural hardware meets the rigorous load-bearing standards required by international construction teams in the United States, Germany, and the Middle East.
    What are the advantages of using a dry-hang system over traditional adhesive methods?
    A dry-hang stone fixing system provides superior safety by establishing a mechanical connection that is not susceptible to adhesive fatigue or temperature-induced debonding. This method also creates a ventilation cavity that improves the building's thermal performance and prevents moisture accumulation. Jiangsu Aozheng Metal Products Co., Ltd., an industry and trade enterprise, integrates raw material molding and machining to provide customized bracket solutions that facilitate these technical advantages. With a focus on the high-end market, the company has become a primary supplier for global construction firms, delivering precision-engineered components that adhere to strict international building codes.
    Can these stone clips be customized for specific project tolerances and cavity depths?
    Yes, adjustable stone fixing systems are frequently customized to account for specific cavity depths and insulation requirements. Modification of the bracket arm length and slot dimensions allows for precise three-dimensional adjustment on-site. Jiangsu Aozheng Metal Products Co., Ltd. leverages comprehensive manufacturing capabilities, including stamping and CNC processes, to produce bespoke wall fixing systems. Having exported to dozens of countries including Britain, South Korea, Canada, and Australia, the company possesses the technical expertise to manufacture building materials that align with the specific architectural drawings and structural calculations provided by global engineering partners.
    Annual output 2,000 tons
    |
    USA | Germany | Middle East | UK | South Korea | Canada | Australia
    |
    Automated stamping + CNC bending

    STONECLIP DESIGN CAPACITY TABLES

    1.0 Vertical loading only

    The following tables are for StoneClips carrying vertical loading only (no allowance for wind loading). Each Clip is fixed with one fixing only through the top hole in the back plate.

    Fixings are to be selected by the fixing manufacturer's documentation.

    Table 1.1- Vertical Load Capacity-M12 pin with 3.0 mm thick backplate

    Cavity #)[mm] Max Vertical Load per Clip [kg] Fixing loading
    Shear *)[kN] Tension *)[kN]
    50 52.5 0.63 0.76
    40 64.5 0.77 0.77
    30 81 0.97 0.78

    Table 1.2 - Vertical Load Capacity: MI0 pin with 3.0 mm thick backplate

    Cavity #)[mm] Max Vertical Load per Clip [kg] Fixing loading
    Shear *)[kN] Tension *)[kN]
    50

    29.7

    		 0.36 0.43
    40 38 0.46 0.46
    30 53 0.64 0.51
    20 89 1.07 0.64

    Table 1.3 - Vertical Load Capacity - M8 pin with 2.0 mm thick backplate

    Cavity #)[mm] Max Vertical Load per Clip [kg] Fixing loading
    Shear *)[kN] Tension *)[kN]
    50

    14.9

    		 0.18 0.21
    40 19 0.23 0.23
    30 26.5 0.32 0.25
    20 44.5 0.53 0.32

    Table 1.4 - Vertical Load Capacity - M6 pin with 1.5 mm thick backplate

    Cavity #)[mm] Max Vertical Load per Clip [kg] Fixing loading
    Shear *)[kN] Tension *)[kN]
    40 7.8 0.09 0.09
    30 11 0.13 0.11
    20 18 0.22 0.13

    *) Limit State Load
    #) "Cavity" is the distance between the substrate and the inside face of the panel.
