Body Anchor Stone Support Body Fixings Anchors
Body Anchor Stone Support Body Fixings Anchors
Body Anchor Stone Support Body Fixings Anchors
Body Anchor Stone Support Body Fixings Anchors

Body Anchor Stone Support Body Fixings Anchors

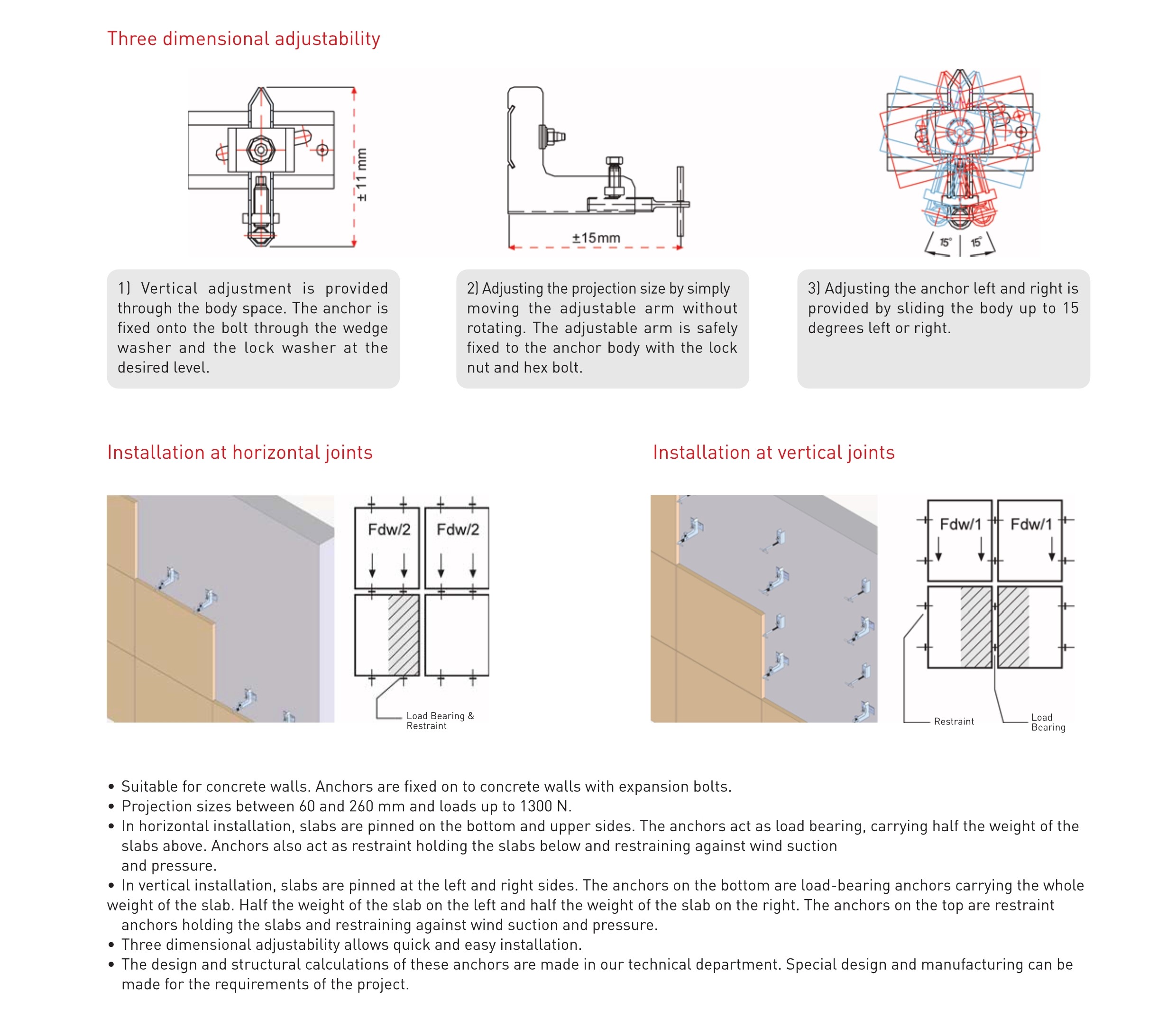

The Body Anchor Stone Support is a structural component engineered for the mechanical fixation of natural stone slabs, including granite, marble, and limestone, to the primary building structure. These stainless steel stone anchors facilitate a secure connection between the cladding material and the concrete or steel substrate, ensuring load distribution and resistance against wind pressure and suction. By utilizing adjustable body fixings, installers can achieve precise alignment in three dimensions, compensating for structural tolerances in the building facade.
Get A Quote
PREV：No previous articleNEXT：Stone Clips For Wall Fixing System
  • Parameter
  • Contact Us
  • AISI 304 AISI 316 Carbon Steel HDG

    Structural Specifications and Material Composition

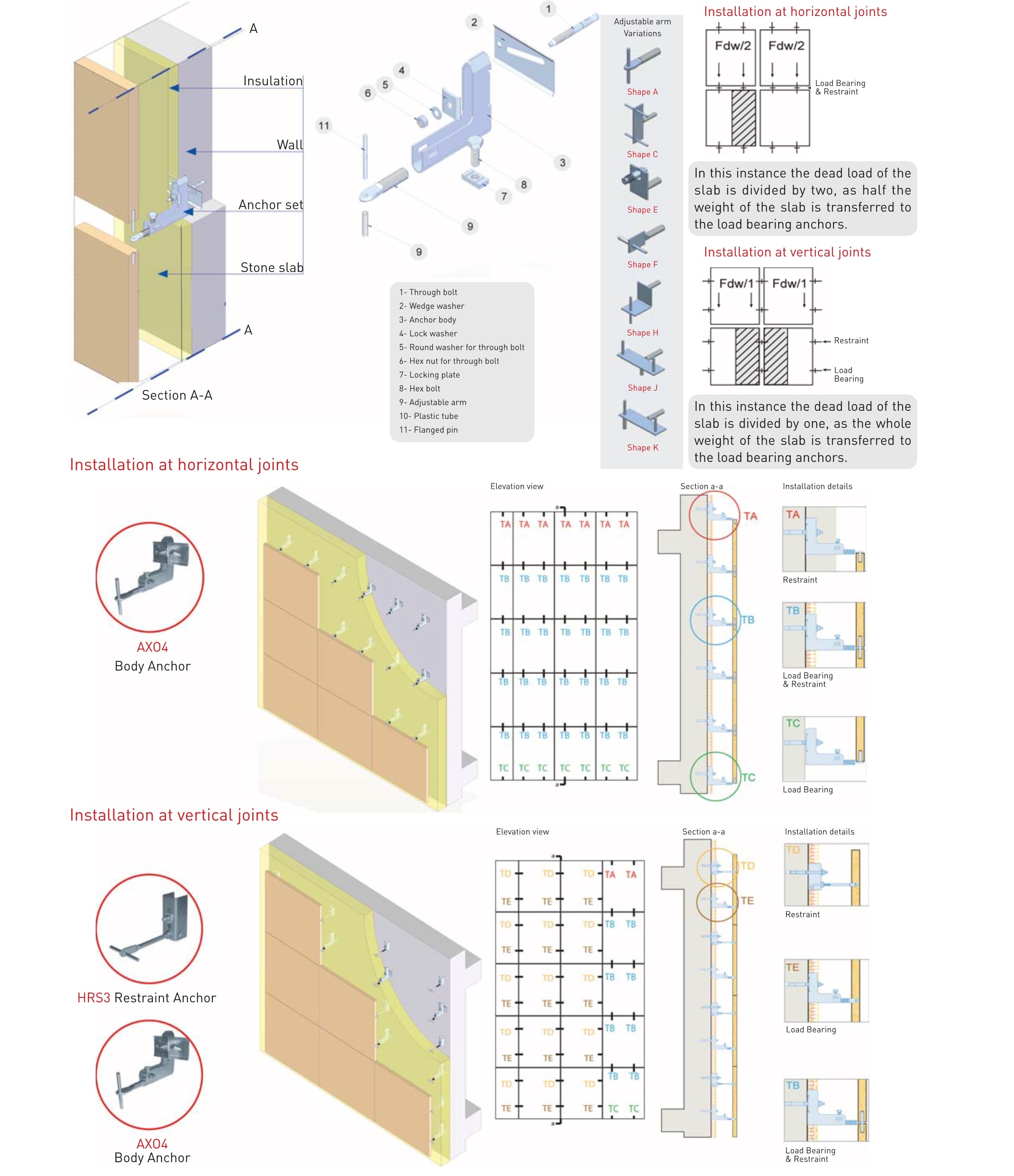

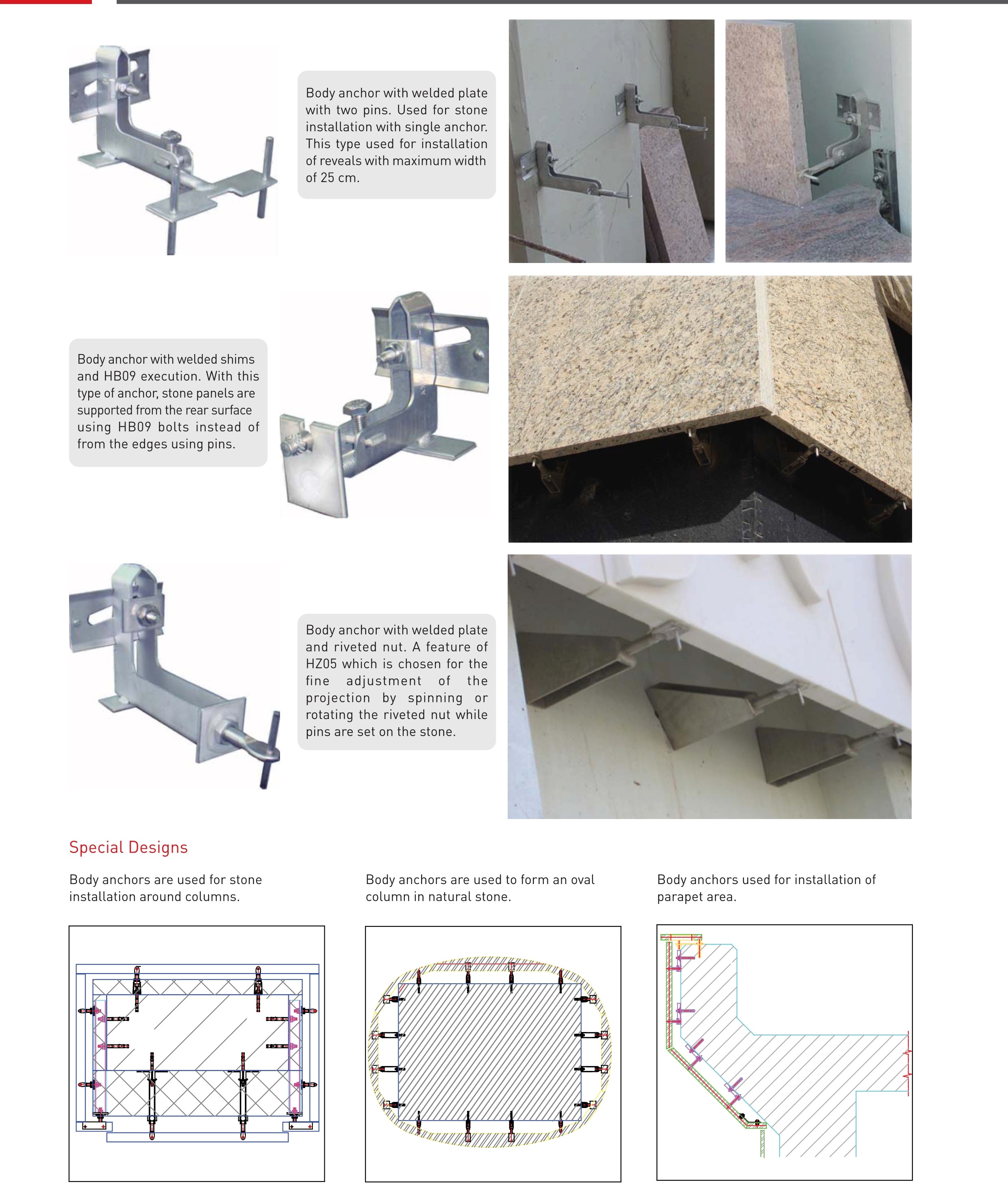

    Fabricated through automated stamping and precision welding, these anchors are designed to meet rigorous architectural safety standards. The choice of material, typically Grade 304 or 316 stainless steel, provides necessary corrosion resistance in diverse environmental conditions, preventing chemical reactions with the stone or oxidation that could lead to facade failure. The stone cladding restraint system incorporates a body anchor, a serrated plate for slip resistance, and a pin or bolt mechanism to interface with the stone groove.

    Technical Parameters
    Material Grade
    AISI 304, AISI 316, Carbon Steel (HDG)
    ASTM A240 / EN 10088
    Adjustment Range
    Up to 40mm (Horizontal/Vertical)
    Serrated Plate Mechanism
    Load Capacity
    Calculated per Project Requirement
    Structural Safety Factor 2.0+
    Surface Treatment
    Pickling, Passivation, or Hot Dip Galvanizing
    ISO 1461 Compliant
    Applicable Substrate
    Concrete Walls, Steel Frameworks
    N/A
    Key Engineering Advantages
    Structural Integrity
    Designed to manage dead loads and seismic stresses effectively across various building heights.
    Dimensional Precision
    The serrated anchor design prevents vertical displacement once the final torque is applied.
    Thermal Expansion Accommodation
    The system allows for thermal movement within the stone panels, preventing cracking and joint fatigue.
    Installation Efficiency
    Compatible with undercut anchors and traditional pin-hole methods for versatile site application.
    Frequently Asked Questions
    How do I select the correct grade of stainless steel for stone body anchors in coastal environments?
    For projects located within 5km of a coastline, AISI 316 stainless steel is recommended due to its molybdenum content, which offers protection against chloride-induced pitting. Jiangsu Aozheng Metal Products Co., Ltd. specializes in processing these high-grade alloys using advanced automated cutting and welding processes. As an integrated industry and trade enterprise, the company ensures material traceability and compliance with international standards, supporting a production capacity of 2000 tons annually to meet global demand from the United States to the Middle East.
    What are the primary factors influencing the load-bearing capacity of a stone support bracket?
    The load-bearing capacity is determined by the material thickness, the projection distance from the wall, and the tensile strength of the fixing bolts. Jiangsu Aozheng Metal Products Co., Ltd. operates a dedicated raw material molding and machining plant, allowing for the customization of anchor dimensions to satisfy specific architectural calculations. By serving as a diversified professional production base for large-scale construction teams in Canada, Germany, and South Korea, the company provides technical components that maintain structural stability under varying wind loads and slab weights.
    Technical data sheets and structural calculation reports are available upon request for specific project requirements.
    2000+ tons annual capacity | USA | Germany | Canada | South Korea | Middle East

    Product Code

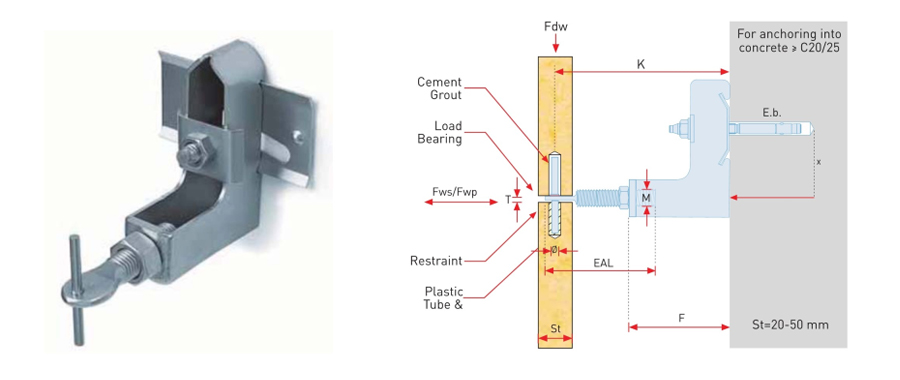

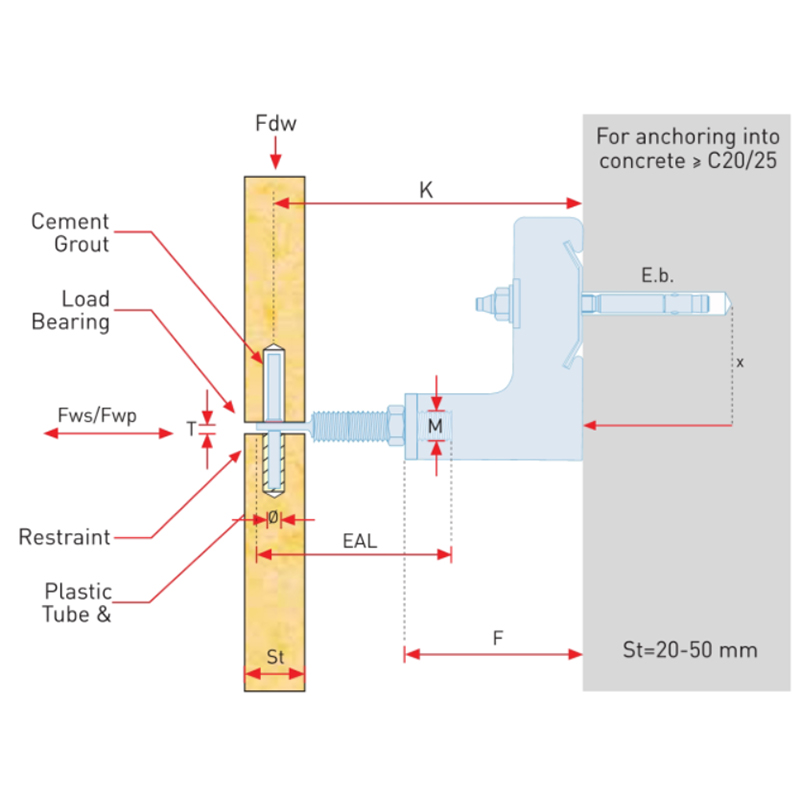

    Technical Details
    Projection
    Min. Projection
    Max. Projection
    Dead Load
    Forming Size
    Wind- Pressure
    Wind- Suction
    Expansion Bolt Size
    Pin Size
    Adj. Arm Metric Size
    Adj. Arm Flat Thickness
    Adj. Arm Length
    X Size
    K (mm)
    K - (mm)
    K + (mm)
    Fdw (N)
    F (mm)
    Fwp (N)
    Fws (N)
    E.b.(mm)
    ф (mm)
    M (mm)
    T (mm)
    EAL(mm)
    X(mm)
    AX03-2005
    200
    180
    220
    500
    155
    780
    546
    M8X120
    5
    M12
    4.5
    80
    75
    AX03-2205
    220
    200
    240
    175
    AX03-2405
    240
    220
    260
    195
    AX03-2605
    260
    240
    280
    215
    AX03-2009
    200
    180
    220
    900
    155
    1430
    1000
    M8X120
    6
    M12
    5.5
    80
    75
    AX03-2209
    220
    200
    240
    175
    AX03-2409
    240
    220
    260
    195
    AX03-2609
    260
    240
    280
    215
    AX03-20013
    200
    180
    220
    500
    155
    2028
    1419
    M8X120
    6
    M12
    6
    80
    80
    AX03-22013
    220
    200
    240
    175
    AX03-24013
    240
    220
    260
    195
    AX03-26013
    260
    240
    280
    215
