    Cold Roll Anchor Channel
    Cold Roll Anchor Channel
    Cold Roll Anchor Channel
    Cold Roll Anchor Channel
    Cold Roll Anchor Channel
    Cold Roll Anchor Channel
    Cold Roll Anchor Channel

    Cold Roll Anchor Channel

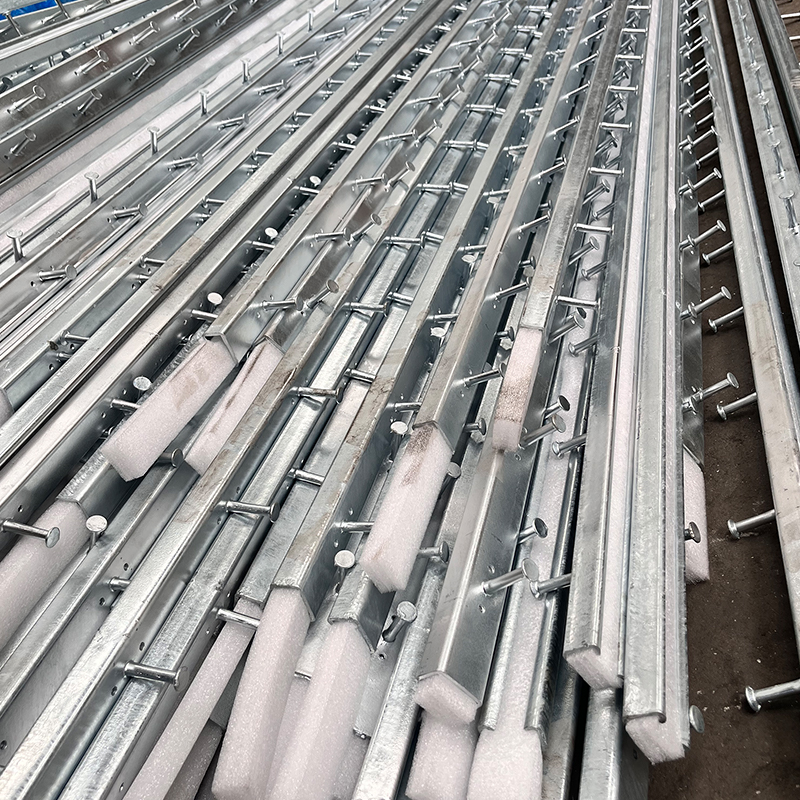

    Cold Roll Anchor Channel is a steel product processed by cold bending process, with a unique shape and performance. Use high-quality carbon structural steel as raw material. Cold-formed anchor channel steel is mainly used for structural support and anchoring in buildings, bridges, tunnels, and other projects. It is characterized by its ability to effectively disperse and transfer loads. The cold bending process makes the product surface smooth, precise in size, and easy to install and connect. Cold-formed anchor channel steel also has good corrosion resistance and durability. It is widely used in various large-scale engineering projects.
    Get A Quote
    PREV：Cold Roll Cast In AnchorNEXT：No next article
    • Parameter
    • Contact Us
    • Identification values
      Profile
      72/48
      72/49
      55/42
      52/34
      54/33
      50/30P
      49/30
      40/22P
      40/25
      38/17
      HTA-CE 28/15
      Type
      hot-rolled
      cold-rolled
      hot-rolled
      hot-rolled
      cold-rolled
      hot-rolled
      cold-rolled
      hot-rolled
      cold-rolled
      cold-rolled
      cold-rolled
      Geometry
      HALFEN Channels HTA-CE
      Note: observe the installation height hinst
      Material
      Steel
      A4
      HCR
      Bolts
      72/48
      72/48
      50/30
      50/30
      50/30
      50/30
      50/30
      40/22
      40/22
      38/17
      HS 28/15
      Threads
      M20 - M30
      M20 - M30
      M10 - M20
      M10 - M20
      M10 - M20
      M10 - M20
      M10 - M20
      M10 - M16
      M10 - M16
      M10 - M16
      M6 - M12
      SSIb [mm]
      129
      129
      109
      88
      88
      98
      81
      79
      65
      52
      42
      Profile load capacity
      NRd,s,I [kN]
      55.6
      55.6
      44.4
      		 36.1 30.6 21.7 17.2 19.4 11.1 10.0  5.0
      VRd,s,I [kN] 72.2 57.8 39.7 22.4
      MRd,s,flex
       [Nm]      		 Steel 7472 - 5606 2933 2595 2437 1455 1208 956 504 276
      NR 7630 7493 - 2996 2595 2743 1485 1358 931 516 282
      Geometry
      hinst [mm]①② (191) (193) 182 (185) 162 (164) 161 (164) 112 (161) 103 (101) 97 (154) 89 (89) 81 (82) 50 (79)
      bch [mm] 72 72 54.5 52.5 54 49 50 39.5 40 38 28.0
      hch [mm] 48.5 49 42 33.5 33 30 30 23 25 17.5 15.25
      ly
      [mm4]      		 Steel 349721 293579 187464 93262 72079 52575 41827 19859 20570 8547 4060
      NR 19859 19097
      hef [mm] 179 179 175 155 155 106 94 91 79 76 45
      Cmin [mm] 150 150 100 100 100 75 75 50 50 50 40

      Cold roll anchor channel is a cold-formed structural C-channel designed to provide a reliable, adjustable connection point in cast-in-place concrete structures. Manufactured from structural carbon steel or stainless steel through a precision cold-rolling process, these channels are embedded into concrete elements during the pouring stage. The internal geometry allows for the insertion of specialized T-bolts, enabling longitudinal adjustability and secure fastening of MEP (Mechanical, Electrical, Plumbing) systems, curtain walls, and industrial equipment without the need for drilling or welding into the concrete substrate.

      Core Advantages

      • Structural Integrity: The cold-rolling process increases the yield strength of the steel, providing consistent load-bearing capacities for static and dynamic tension.
      • Adjustable Positioning: The continuous slot design allows for sliding adjustment of T-bolts, accommodating construction tolerances and simplifying site-level alignment.
      • Non-Destructive Installation: By eliminating the need for post-installed expansion anchors, the channel prevents damage to reinforcement bars (rebar) and maintains the structural design of the concrete.
      • Time Efficiency: Pre-installed channels reduce on-site labor requirements by providing ready-to-use fastening points immediately after the concrete reaches specified strength.

      Technical Features and Specifications

      The manufacturing follows strict dimensional tolerances to ensure compatibility with standard T-bolt systems. The physical properties are summarized in the following table:

      Property Specification Detail
      Material Grade Q235B Carbon Steel, SS304, or SS316 Stainless Steel
      Coating Options Hot-Dip Galvanizing (HDG) or Zinc Flake Coating
      Manufacturing Process Precision Cold Rolling and Automated Anchor Welding
      Minimum Coating Thickness 50-80 microns (for HDG variants)
      Internal Profile Serrated or Smooth C-Channel geometry

      Application Scenarios

      • Curtain Wall Systems: Securing aluminum or glass facade brackets to the edge of concrete slabs.
      • Infrastructure Projects: Fastening utility pipes, cable trays, and drainage systems in tunnels and bridges.
      • Elevator Installation: Fixing guide rail brackets within concrete elevator shafts.
      • Industrial Facilities: Supporting overhead conveyor tracks and heavy machinery in manufacturing plants.

      Installation and Safety Guidelines

      • Placement: Ensure the channel is flush with the formwork surface to prevent concrete seepage into the channel slot.

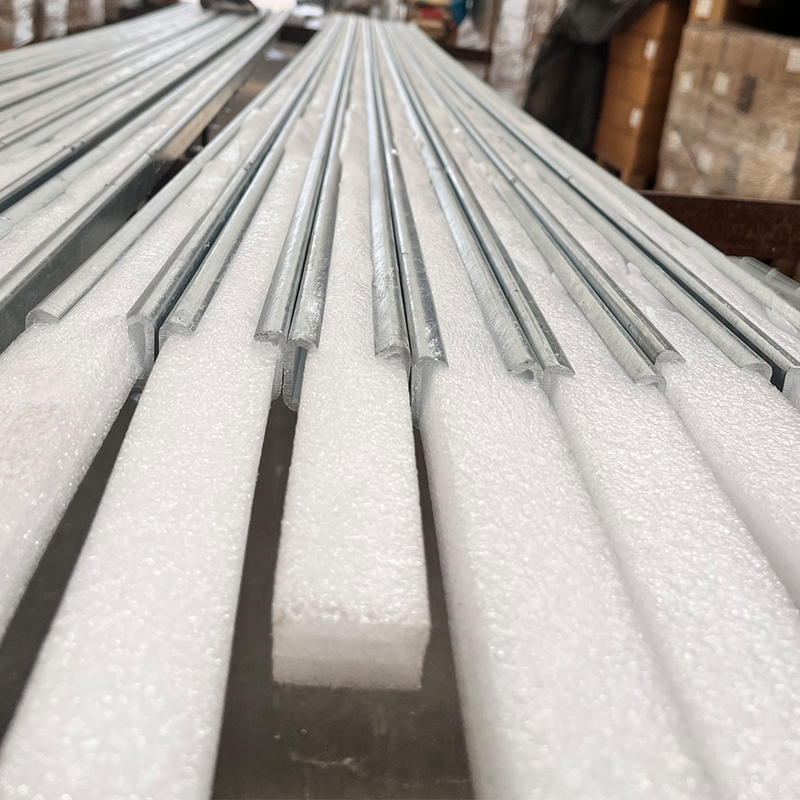

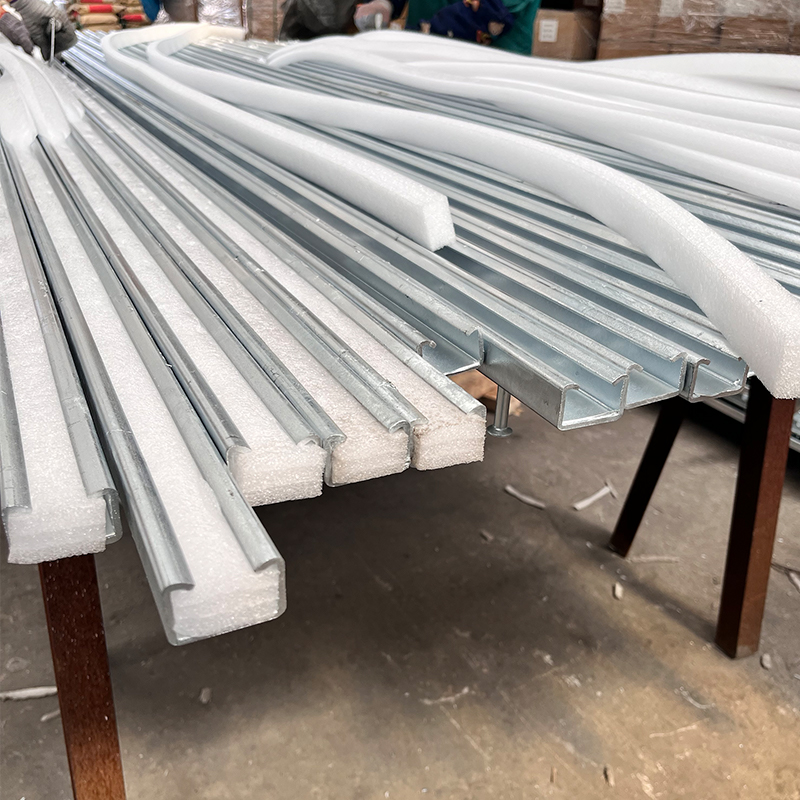

      • Foam Filler Removal: After concrete curing and formwork removal, clear the internal polyethylene foam filler before inserting T-bolts.
      • Torque Compliance: Tighten T-bolts according to the specified torque values for the specific bolt diameter (e.g., M10, M12, M16) to prevent thread stripping.
      • Edge Distance: Adhere to the minimum edge distance requirements specified in the structural engineering drawings to prevent concrete breakout.

      Storage and Handling

      Store cold roll anchor channels in a dry, ventilated environment to prevent surface oxidation. For carbon steel products with hot-dip galvanizing, avoid direct contact with acidic or corrosive chemicals during storage. Bundles should be kept off the ground using timber dunnage to maintain straightness and prevent deformation of the channel lips.
