| Model | Drill diameter expanded (mm) | Hole diameter (mm) | Anchorage depth (mm) | Suitable substrate thickness (mm) |
| AZXB-M6*5 | 7 | 9.5 | 5 | 10 |
| AZXB-M6*7 | 7 | 9.5 | 7 | 15 |
| AZXB-M6*9 | 7 | 9.5 | 9 | 20 |
| AZXB-M6*12 | 7 | 9.5 | 12 | 25 |
| AZXB-M6*15 | 7 | 9.5 | 15 | 30 |
| AZXB-M6*18 | 7 | 9.5 | 18 | 35 |
| AZXB-M8*15 | 10 | 11.5 | 15 | 30 |
| AZXB-M8*18 | 10 | 11.5 | 18 | 40 |
| AZXB-M8*21 | 10 | 11.5 | 21 | 45 |

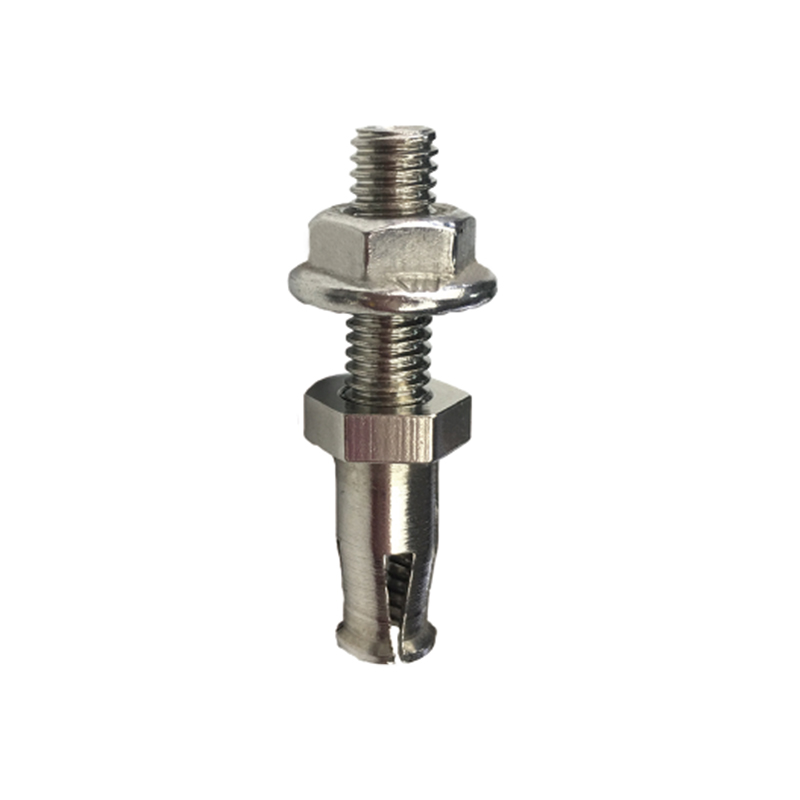

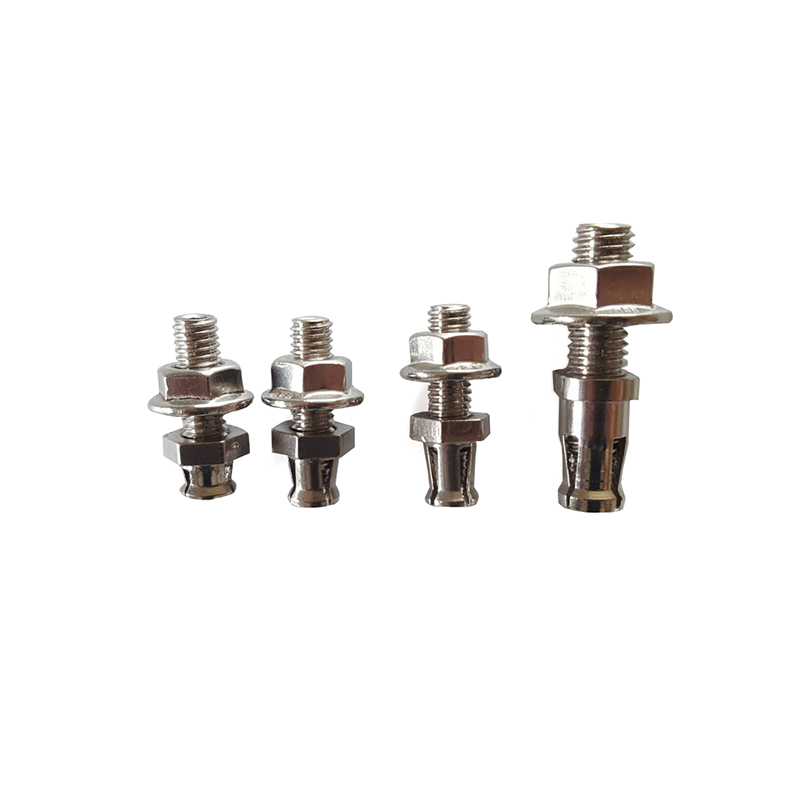

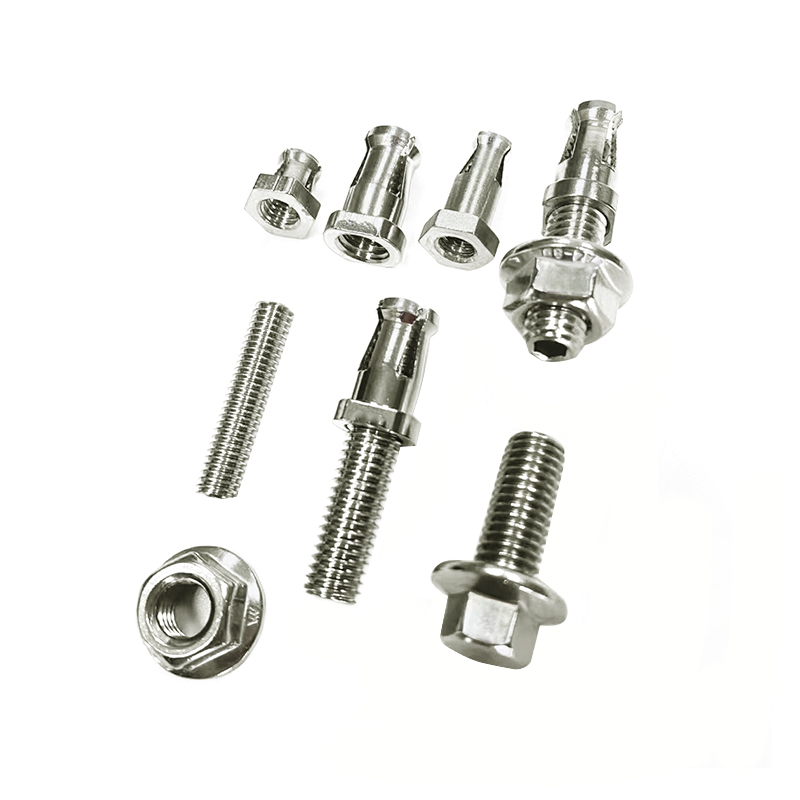

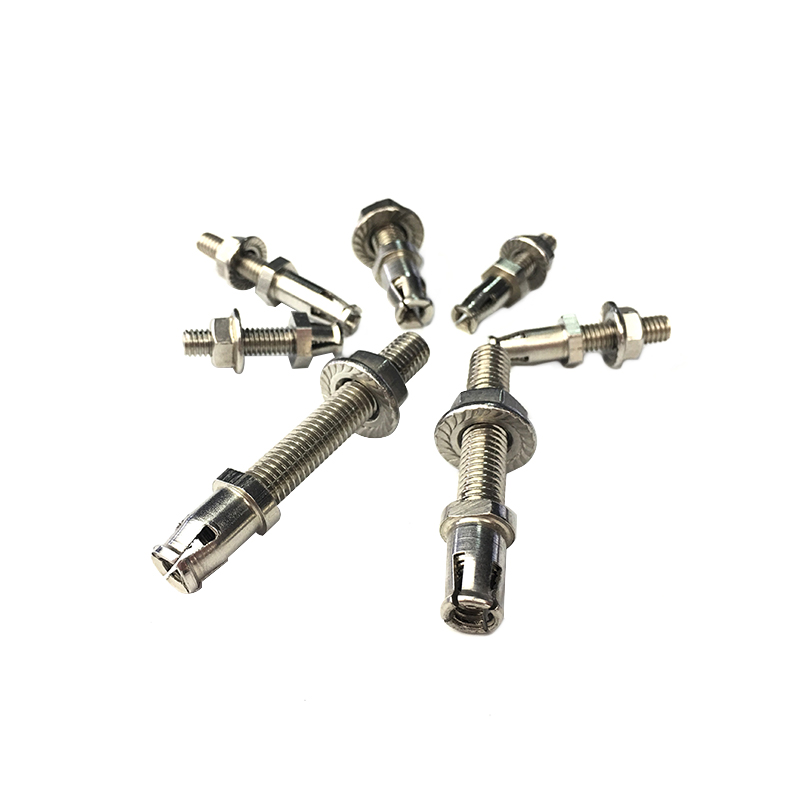

The screw in the undercut anchor

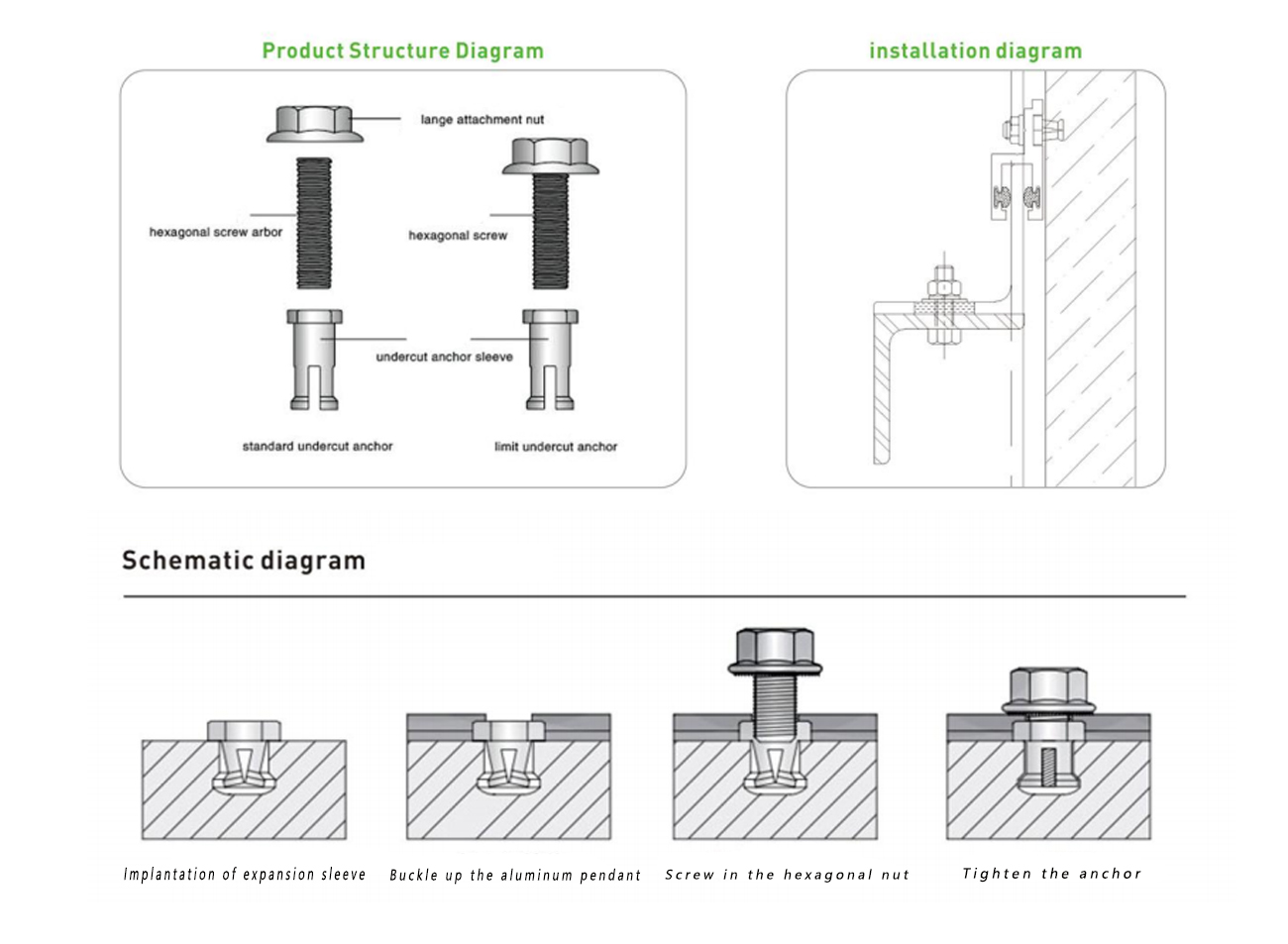

A screw-in undercut anchor is a type of mechanical fastener used to secure objects to concrete, masonry, or other solid materials. It consists of a threaded screw with a sleeve or expansion clip attached to one end. The screw is inserted into a pre-drilled hole in the material, and as it is tightened, the sleeve or clip expands, creating a secure anchoring point.
It's important to note that the specific terminology and product offerings may vary across manufacturers. If you are referring to a different type of "screw-in undercut anchor," I apologize for the confusion, and it would be helpful to provide further details or clarification.
