    Stone Fixing Facade Cladding System For Hook Up And Down
    Stone Fixing Facade Cladding System For Hook Up And Down
    Stone Fixing Facade Cladding System For Hook Up And Down
    Stone Fixing Facade Cladding System For Hook Up And Down
    Stone Fixing Facade Cladding System For Hook Up And Down

    Stone Fixing Facade Cladding System For Hook Up And Down

    Facade System A0Z-v-20FACING MATERIALS:Porcelain stoneware tiles, natural stone slabs, textured glass-fiber reinforced concrete slabs, fiberglass composite panels, artificial stone slabs, natural stone or glass, composite panels, agglomerate granite, and composite slabs.FIXING:Concealed with KEIL anchos, TRAG profile, and hangersMAX FACING SIZES:natural stone slabs:1500x1500mm (20-50mm thick, hard rocks; 30 50MM thick, medium hard rocks)textured glass-fiber reinforced concrete slabs:4500x3500mm (10- 30mm thick)fiberglass composite panels:1200x600mm (30-80mm thick)
    Get A Quote
    PREV：Stone Fixing Facade Cladding System For PinNEXT：No next article
    • Parameter
    • Contact Us

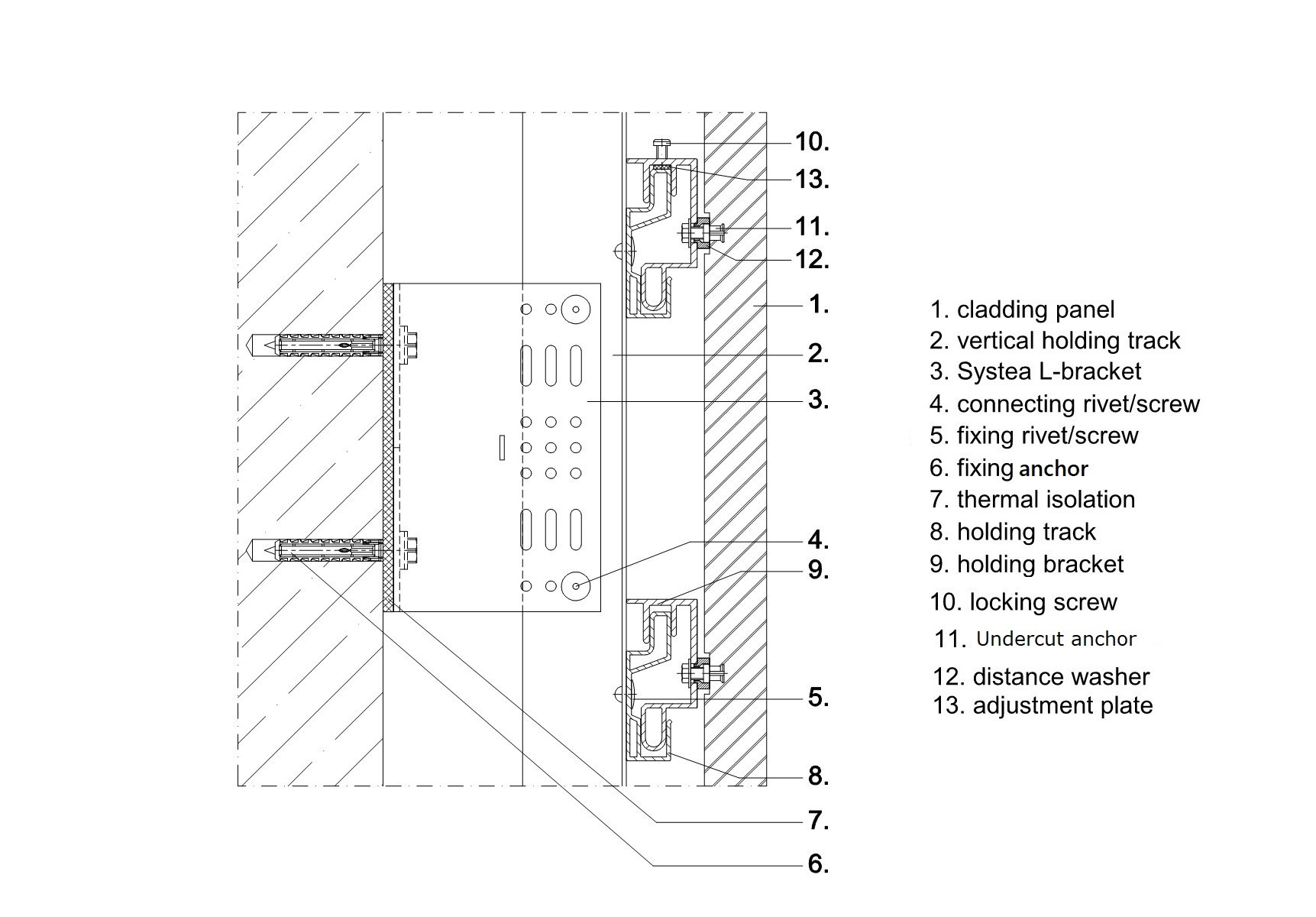

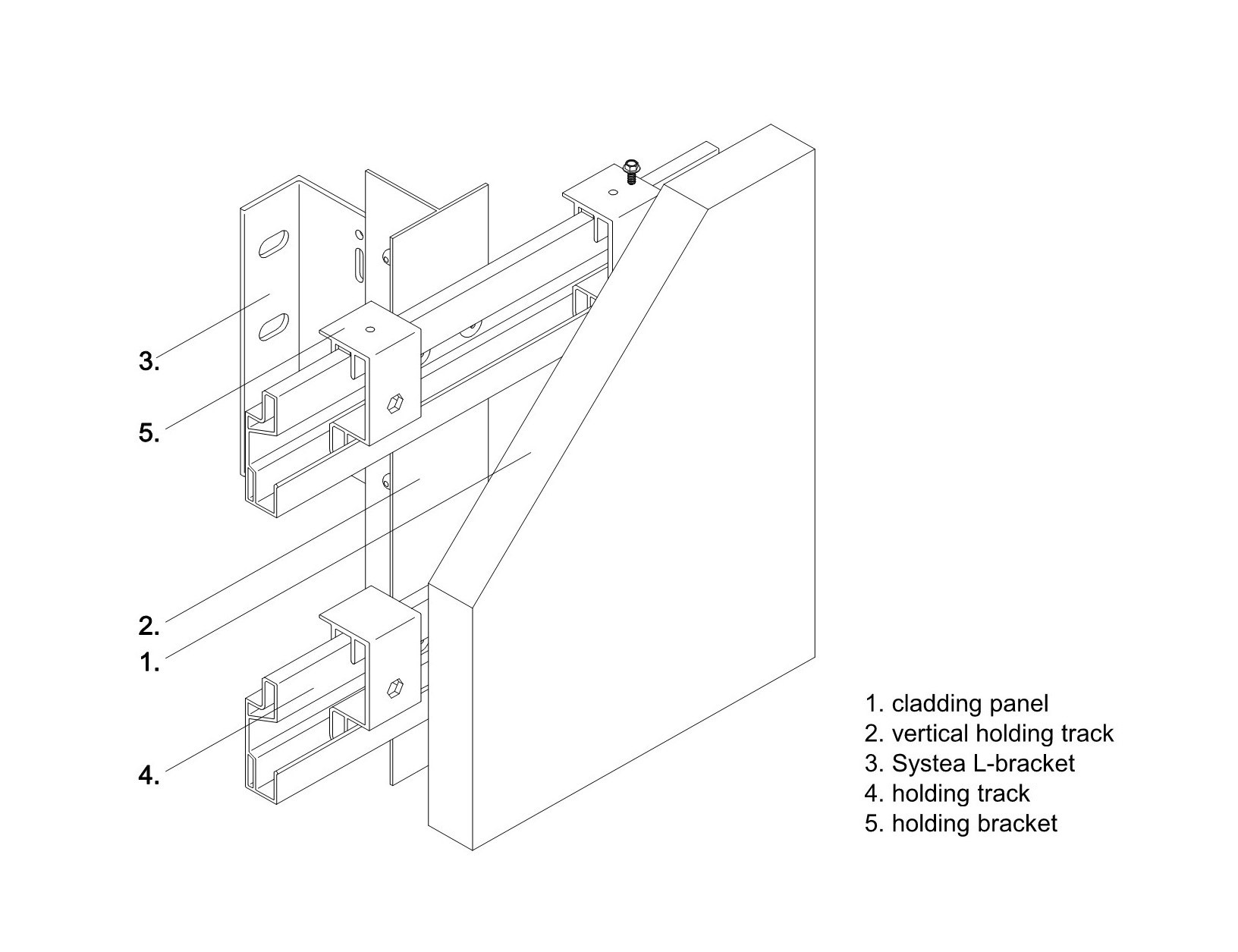

    • Facade System with undercut anchor

      FACING MATERIALS:

      porcelain stoneware tiles, natural stone slabs, textured glass fiber reinforced concrete slabs fiber-glass composite panels, artificial stone slabs, natural stone or glass, composite panels agglomerate granite, composite slabs.

      FIXING:

      concealed with undercut anchors, tracking profile and hangers, bracket

      MAX FACING SIZES :

      natural stone slabs:

      1500x1500mm (20-50mm thick, hard rocks; 30-50mm thick, medium hard rocks)

      textured glass fiber reinforced concrete slabs:

      4500x3500mm(10-30mm thick)

      fiberglass composite panels:

      1200x600mm(30-80mm thick)

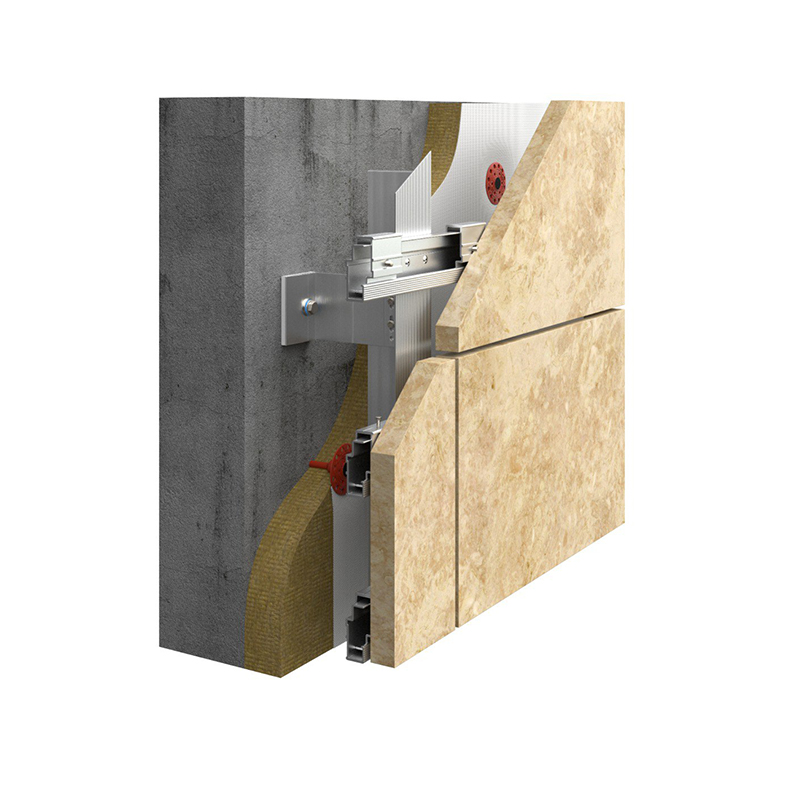

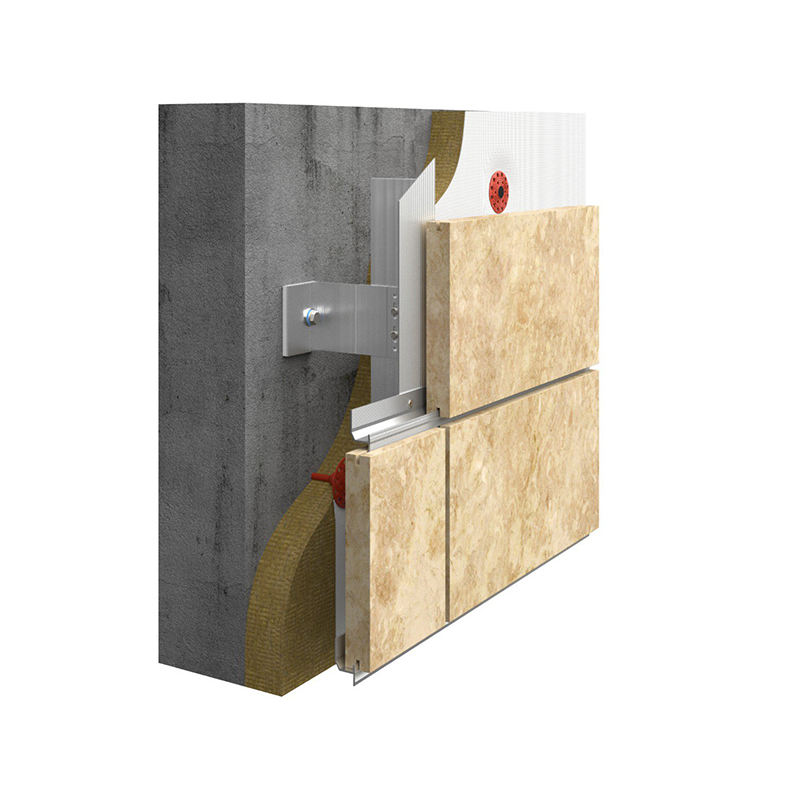

      Substructure for natural stone panels with rear clasps

      Aluminum-stainless steel substructure for the concealed fastening of facade panels, e.g. natural stone or carrier plates with rear clasps with a large travel and adjustment range as well as reinforced horizontal mounting rails. Projections up to 480mm Depending on the wall brackets fire protection requirements can be implemented and the passive house standard is possible.
