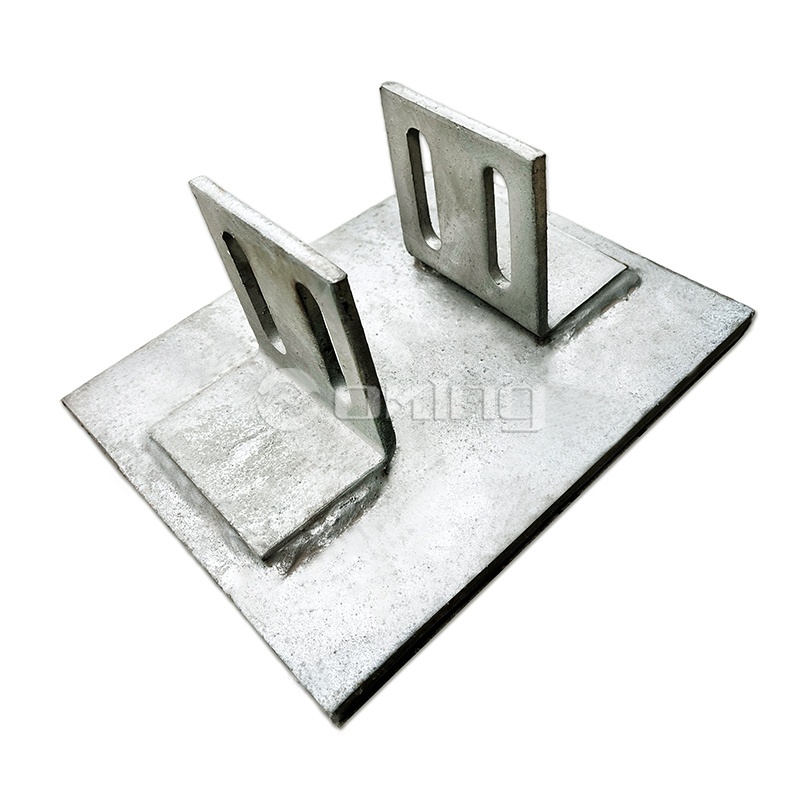

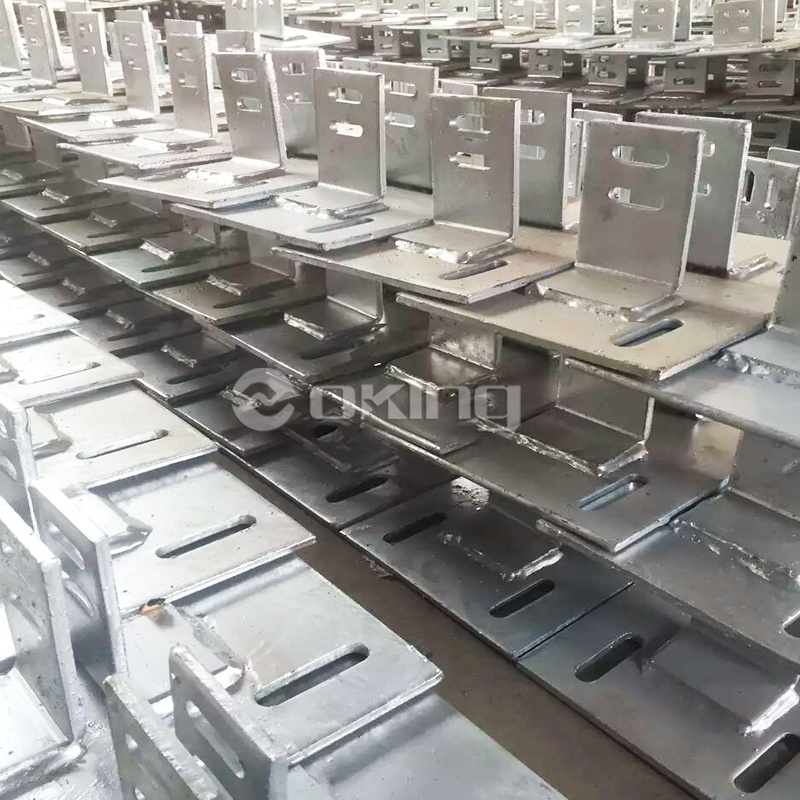

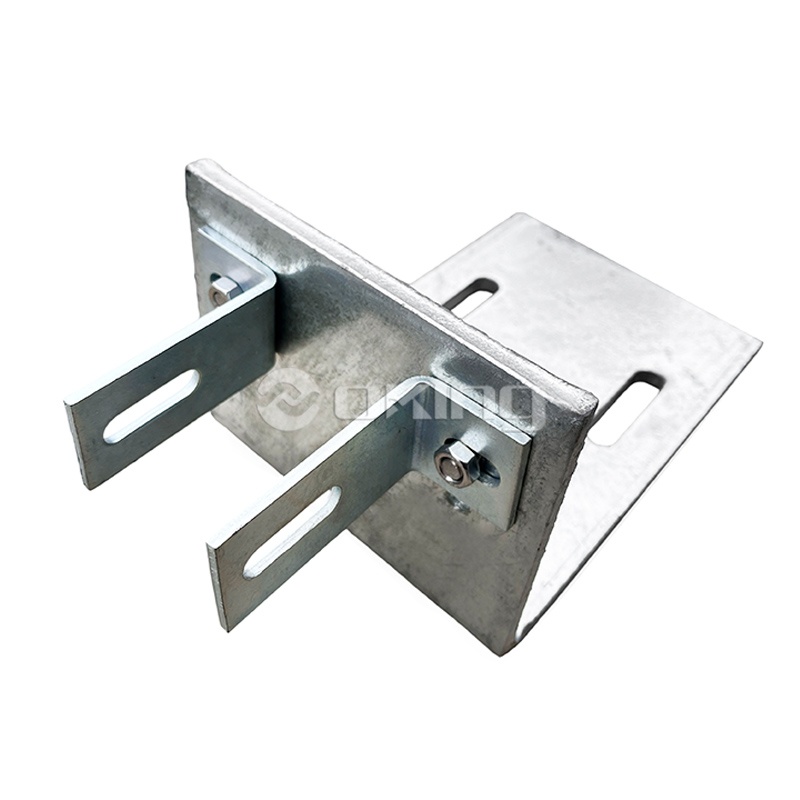

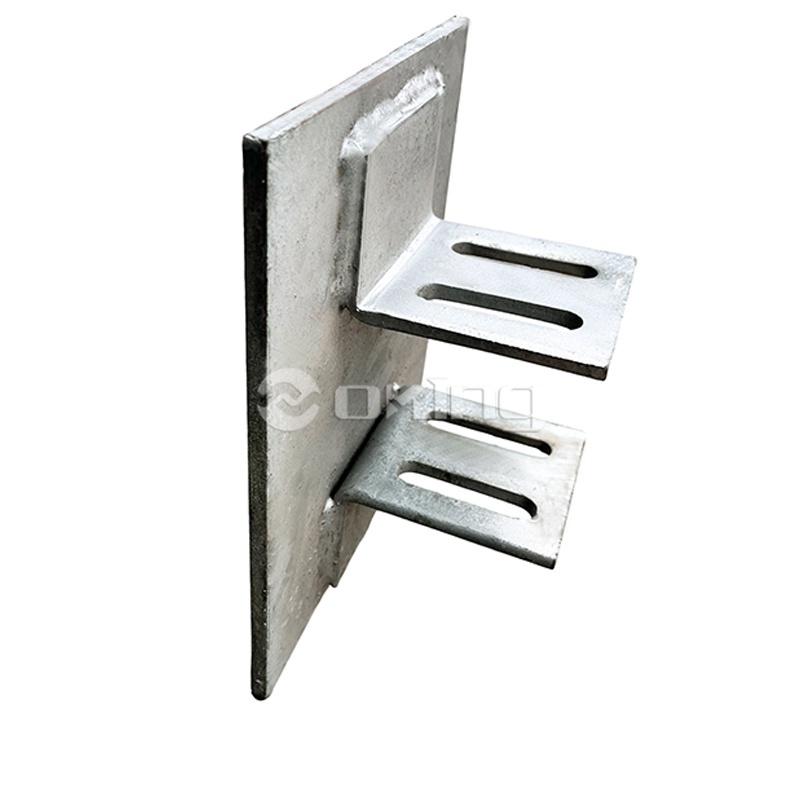

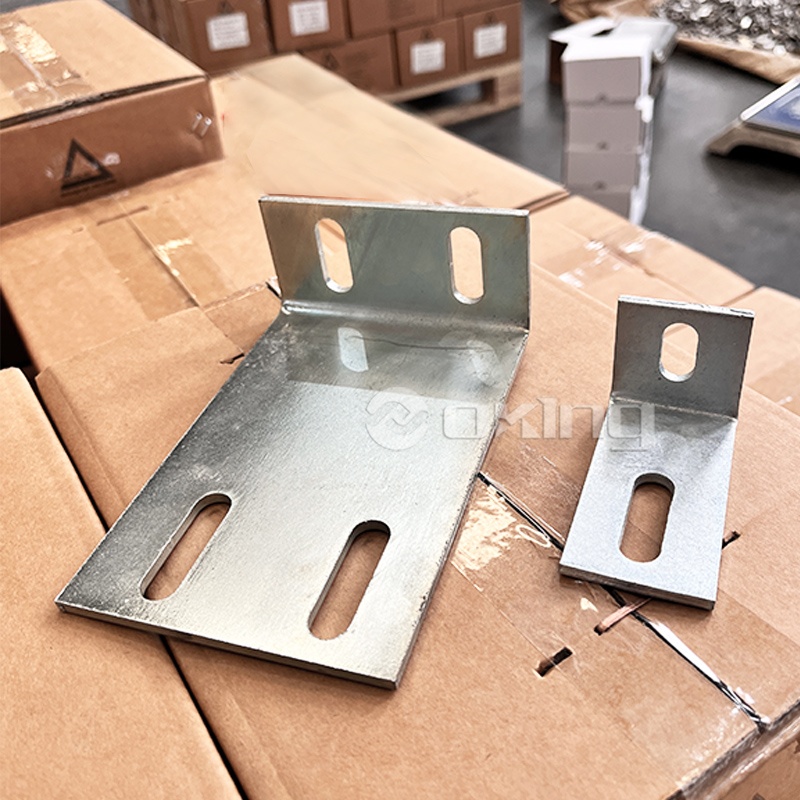

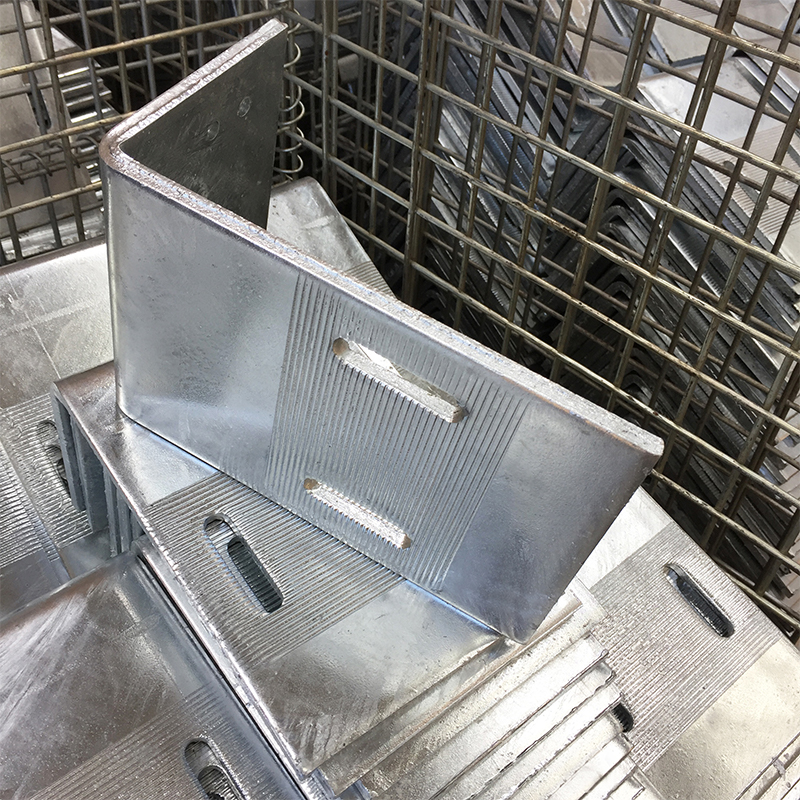

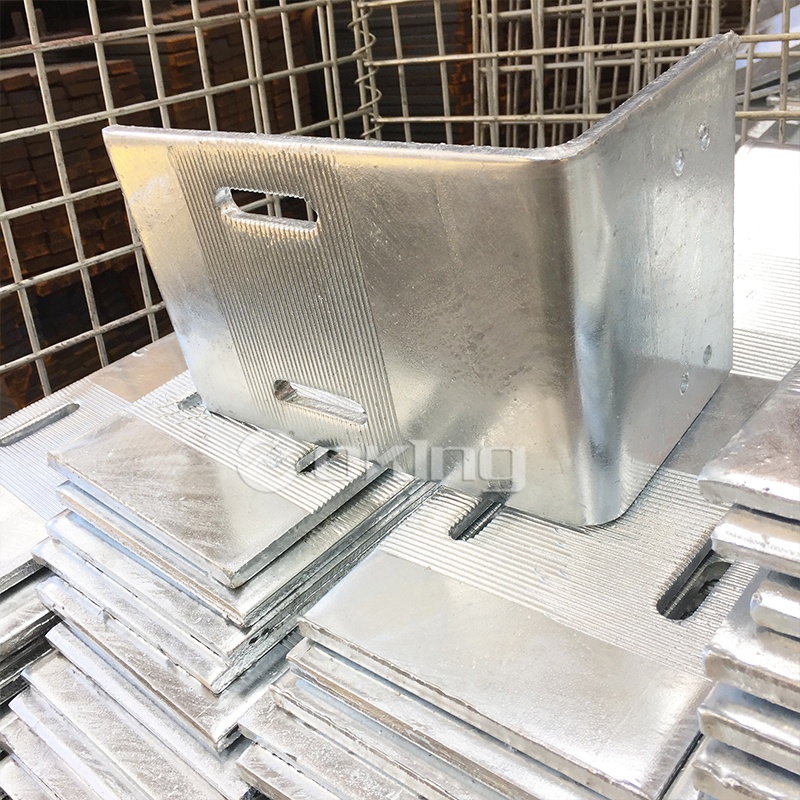

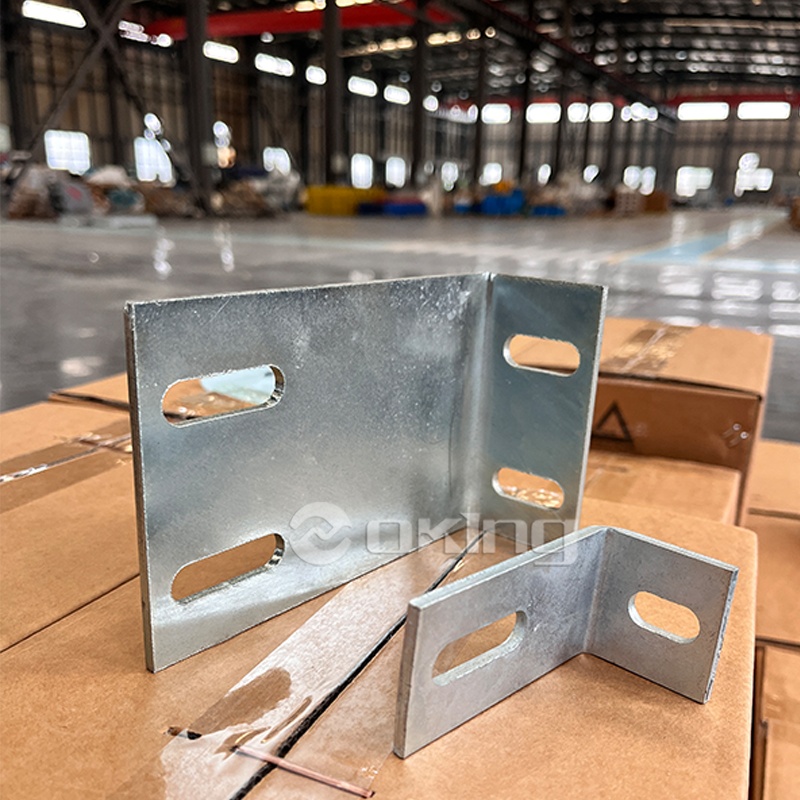

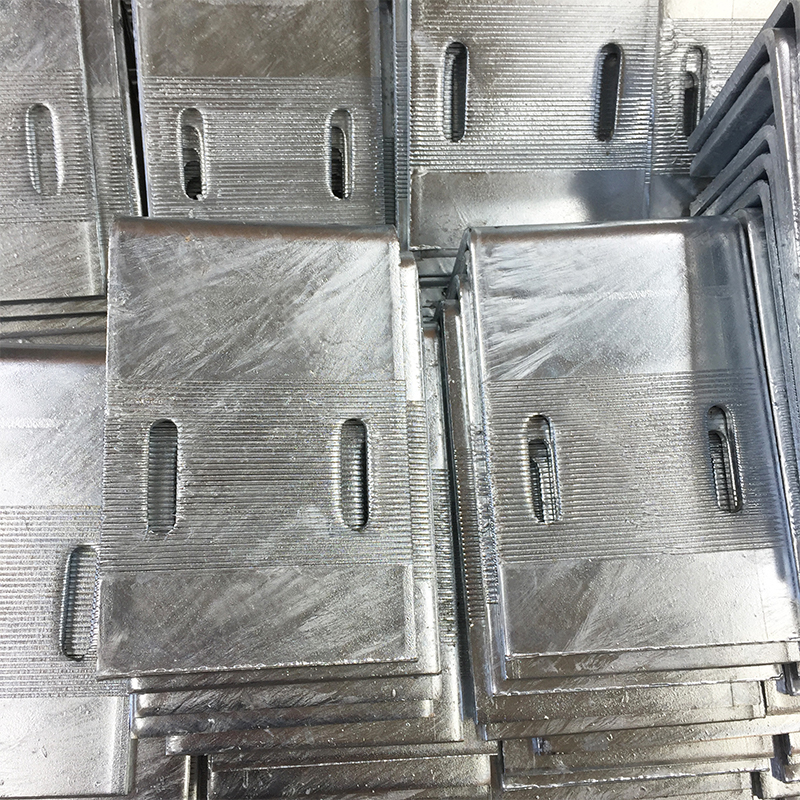

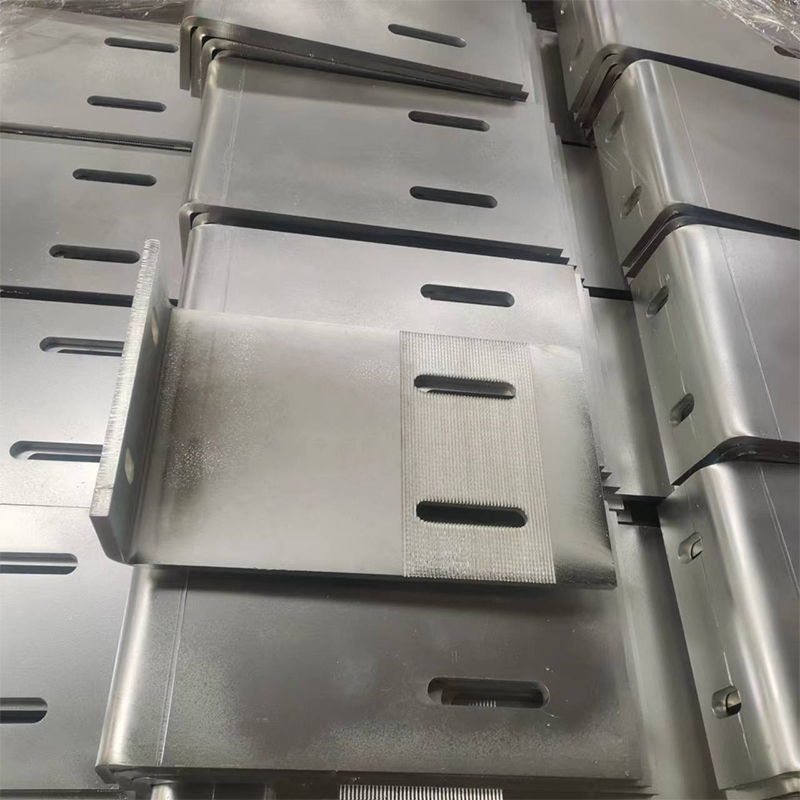

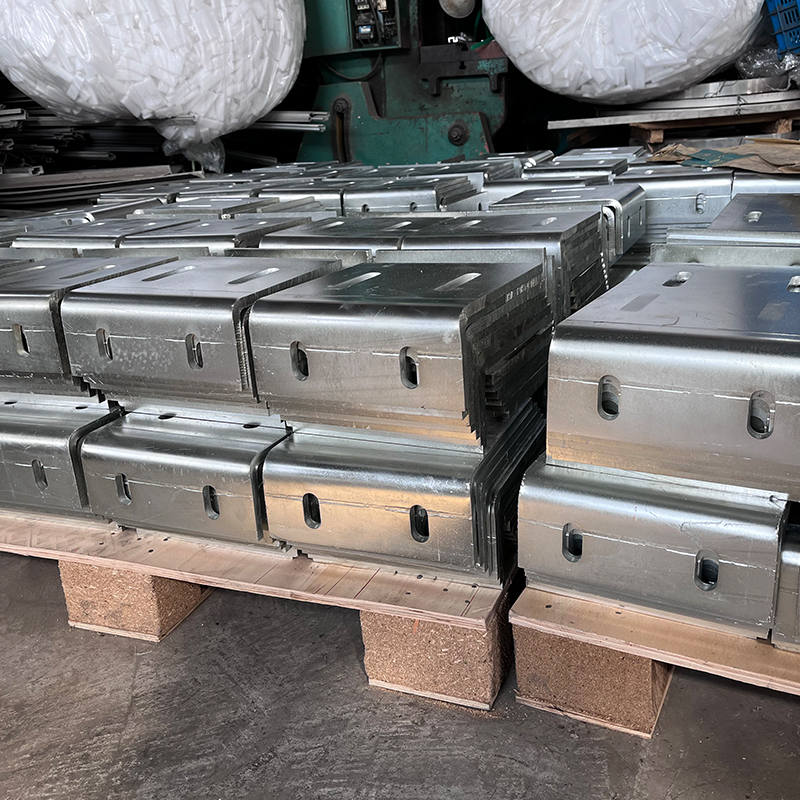

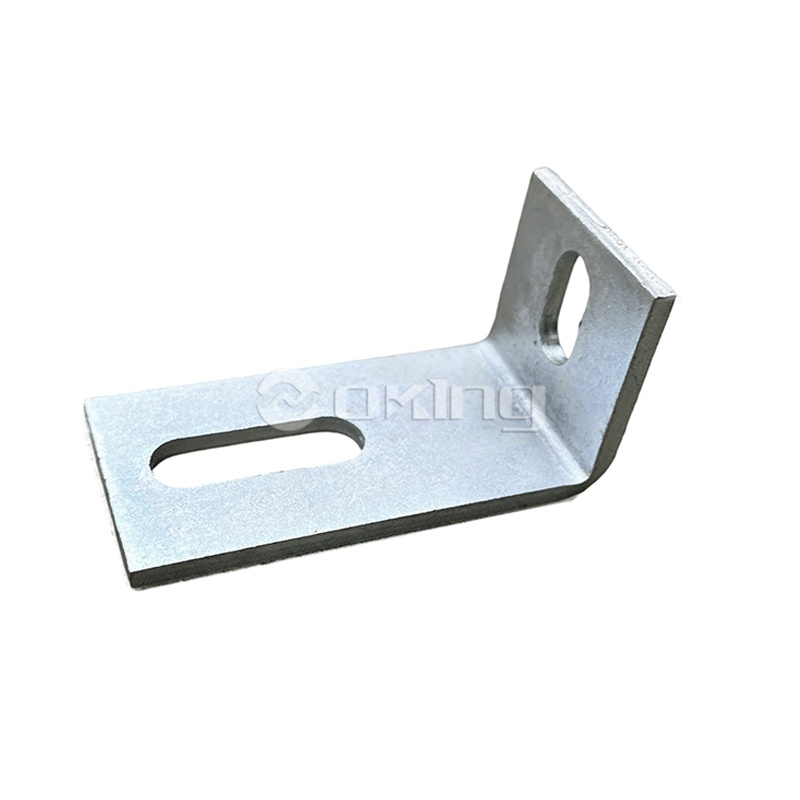

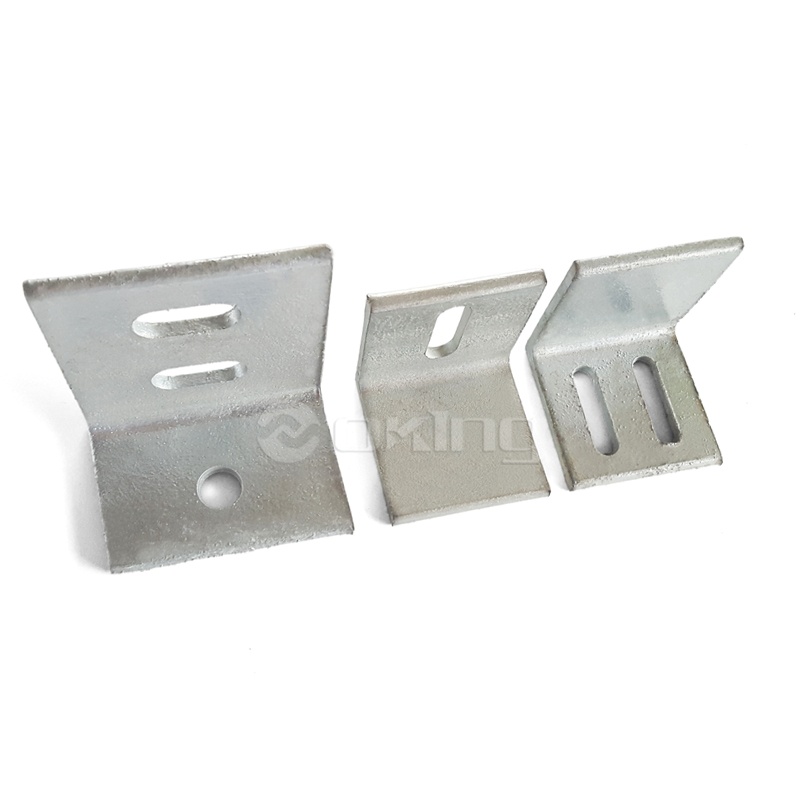

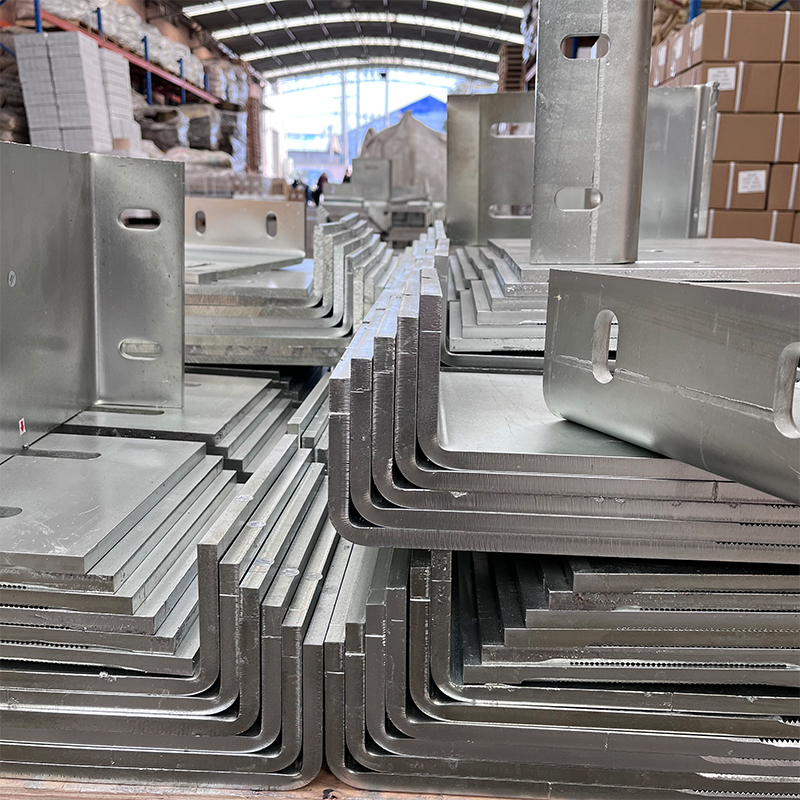

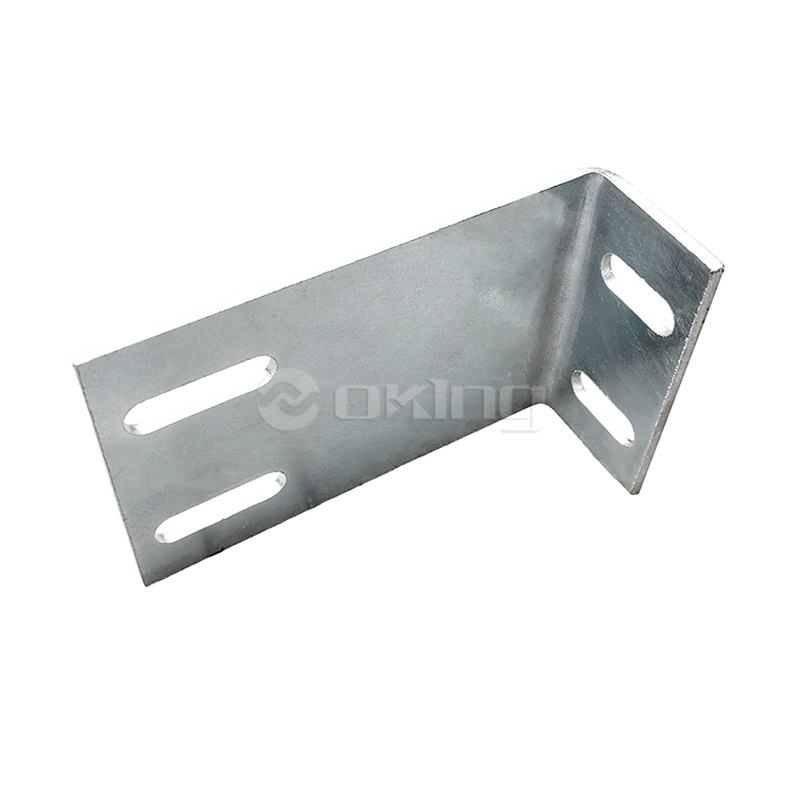

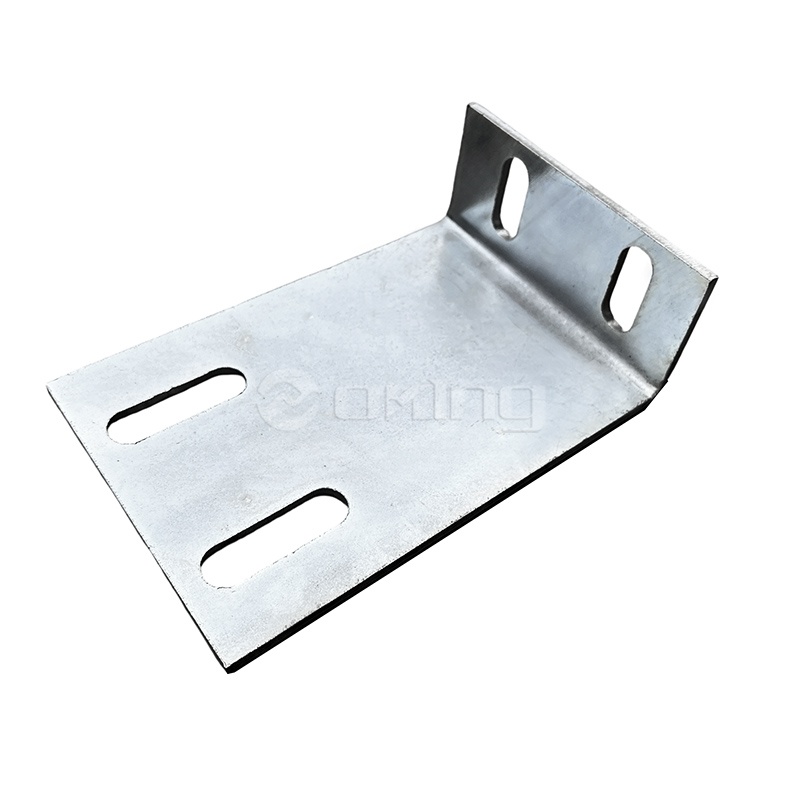

    Today modern buildings require facades of quality that can be installed quickly and safely. This is the reason the Curtain Wall System is chosen more and more frequently by architects and investors.Curtain wall brackets are connected in pairs, one on each side of the mullion, and are available in two types:Type Brackets are designed to support both vertical and horizontal loads. Brackets are designed to support horizontal wind loads only.The brackets guarantee a simple adjustable connection. The Bolts (connection: bracket to Channel) and the standard hexagonal bolts M12 (connection: bracket to façade mullion) must be grade strength 8.8. A round auxiliary hole in the long arm of the brackets can be used for temporary attachments; for example, temporary fixing of brackets to support posts with self-tapping screws until the final connection is made.
    Get A Quote
    PREV：Ｗelding Steel Sub Channel Fixing Systems For Stone Curtain WallNEXT：No next article
    • Parameter
    • Contact Us

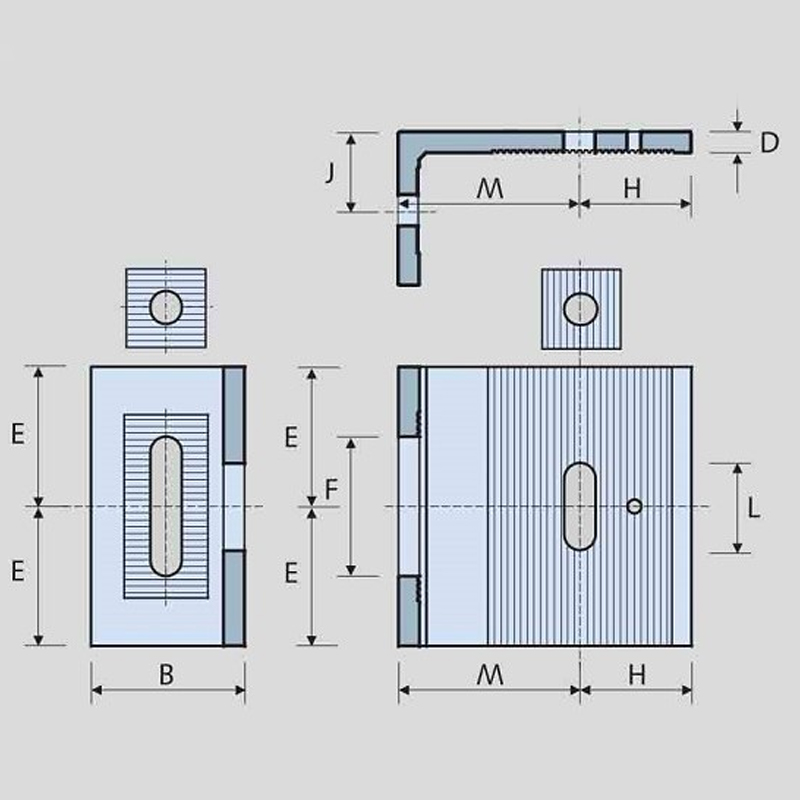

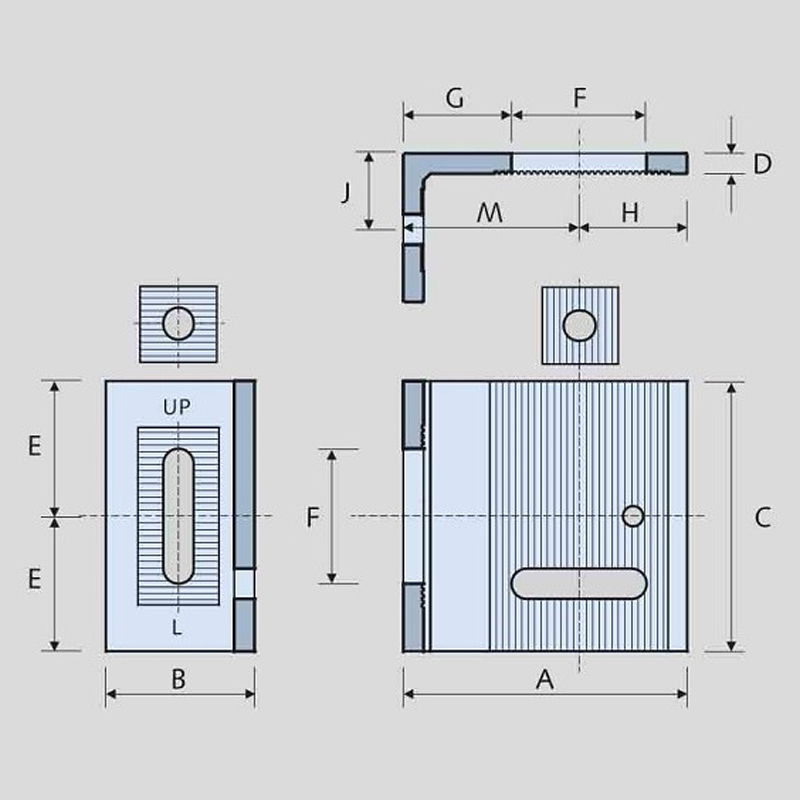

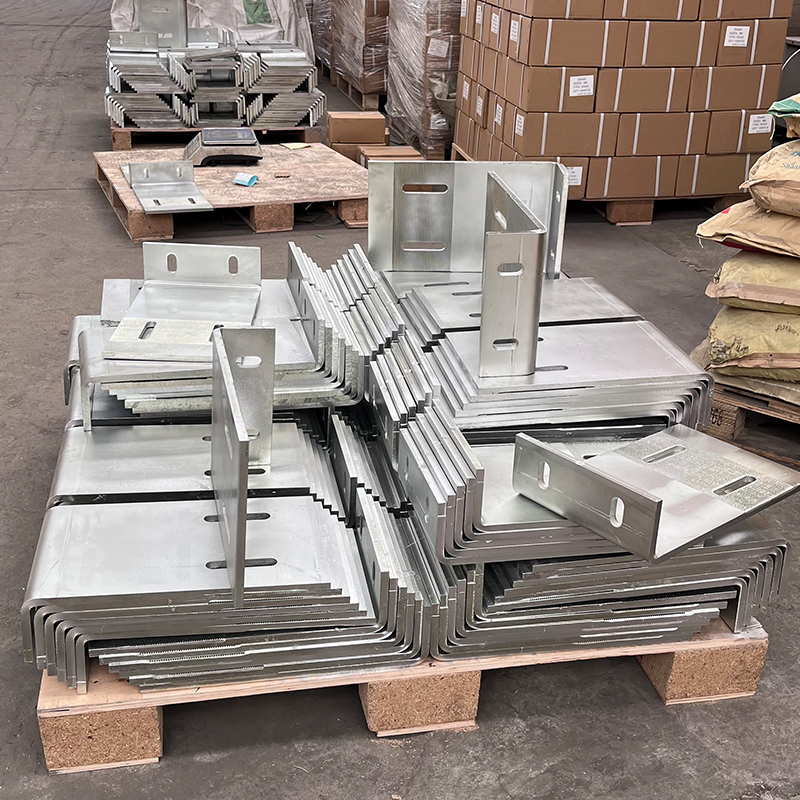

    • Bracket dimensions [mm]
      HCW-ED Brackets HCW-EW Brackets
      for dead loads wind loads only
      and wind loads

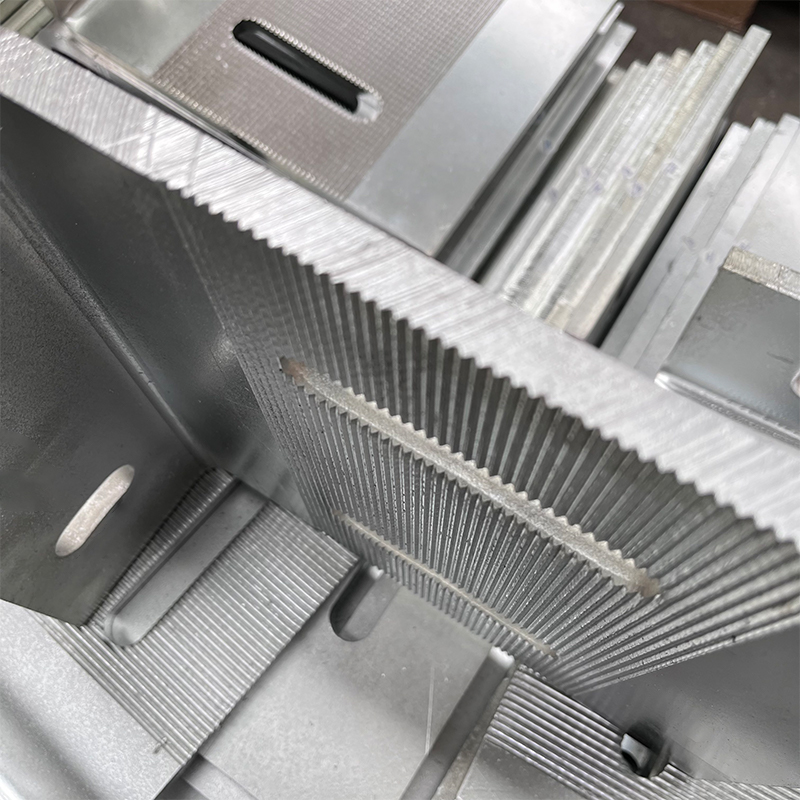

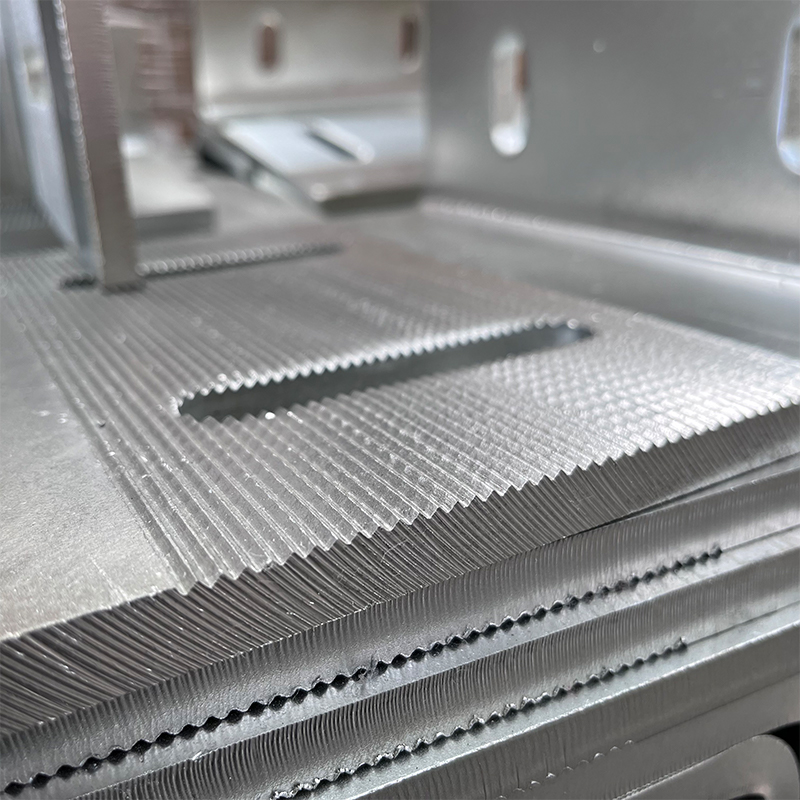

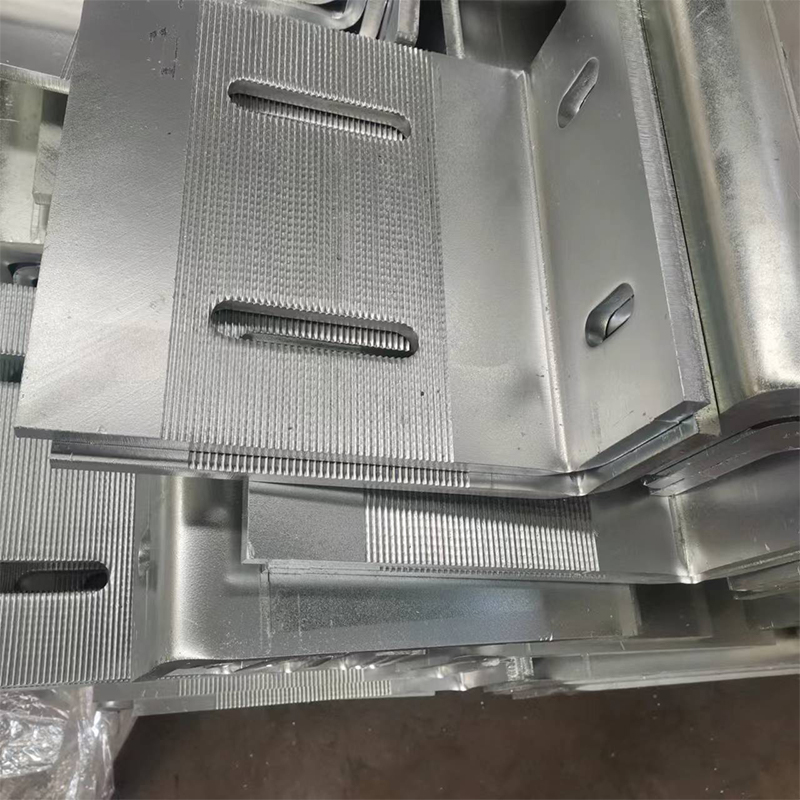

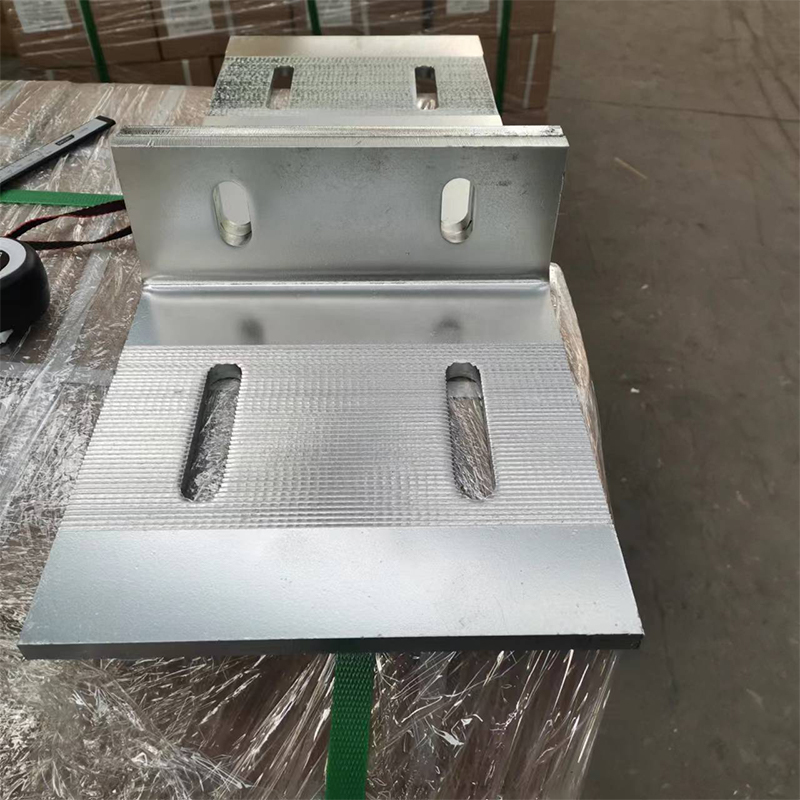

      Serrated washers included in the delivery Serrated washers included in the delivery
      Size Bracket code A B C D E F G H J L M
      Small HCW-ED 1
      HCW-EW 1      		 108 70 114 10 57 64 25 51 36 40 57
      Medium HCW-ED 2
      HCW-EW 2      		 133 70 127 10 64 64 51 51 36 40 82
      Large HCW-ED 3
      HCW-EW 3      		 159 70 140 10 70 64 76 51 36 40 108

      In the context of construction and architecture, curtain wall embedded parts refer to the components that are embedded within the structural framework of a building to support and connect the curtain wall system. Curtain walls are non-structural, lightweight exterior cladding systems commonly used in modern buildings to provide an aesthetically pleasing and energy-efficient envelope. Embedded parts play a critical role in the installation and stability of curtain walls.

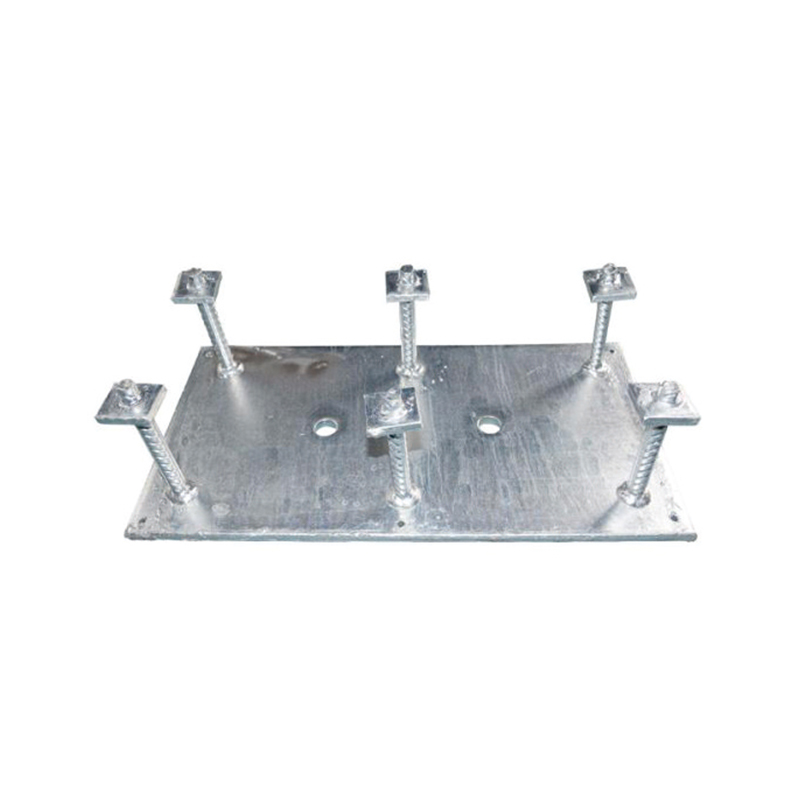

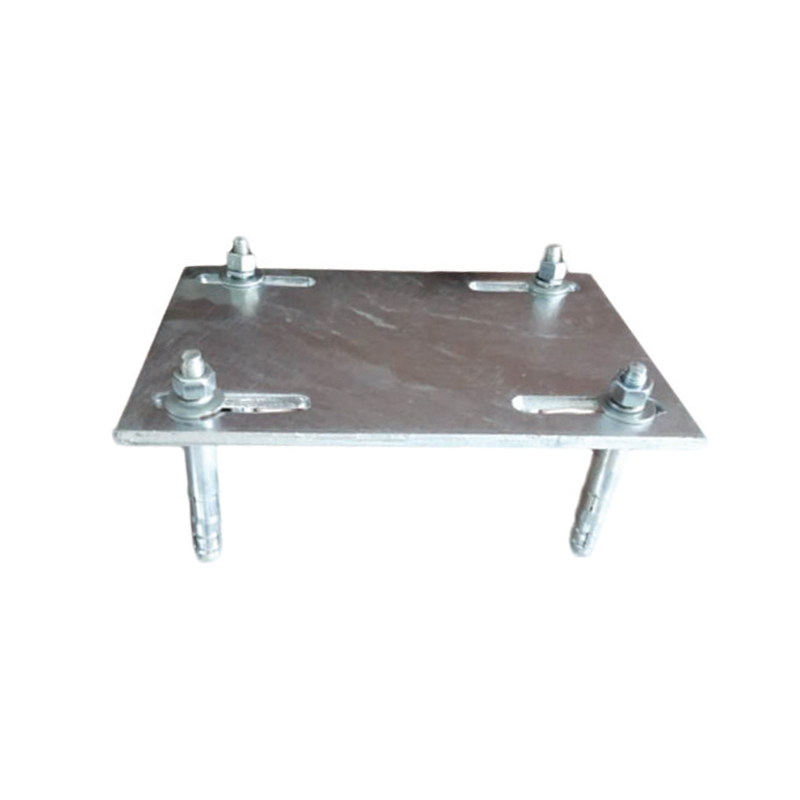

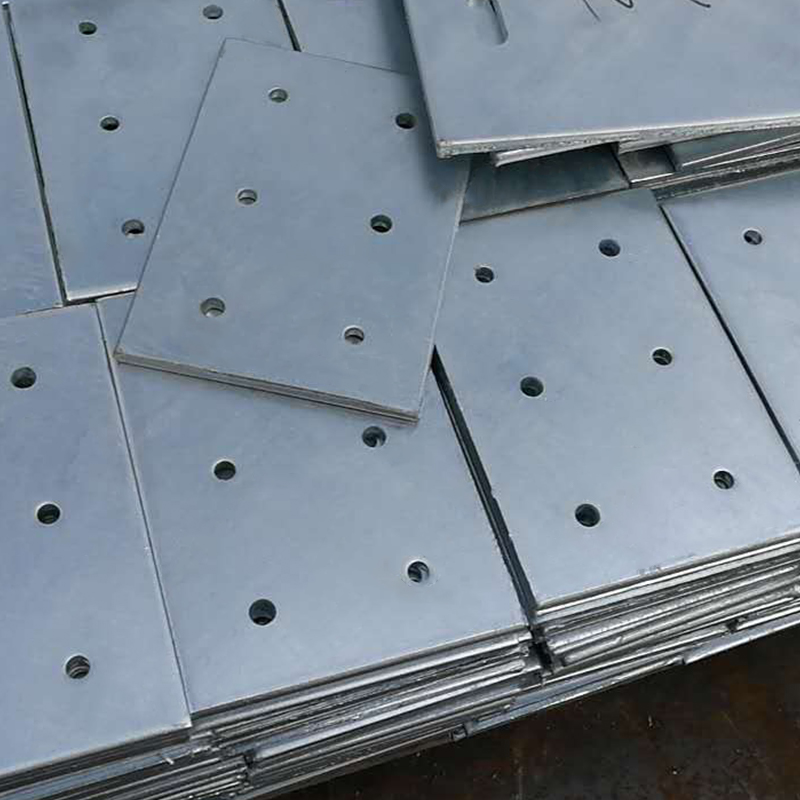

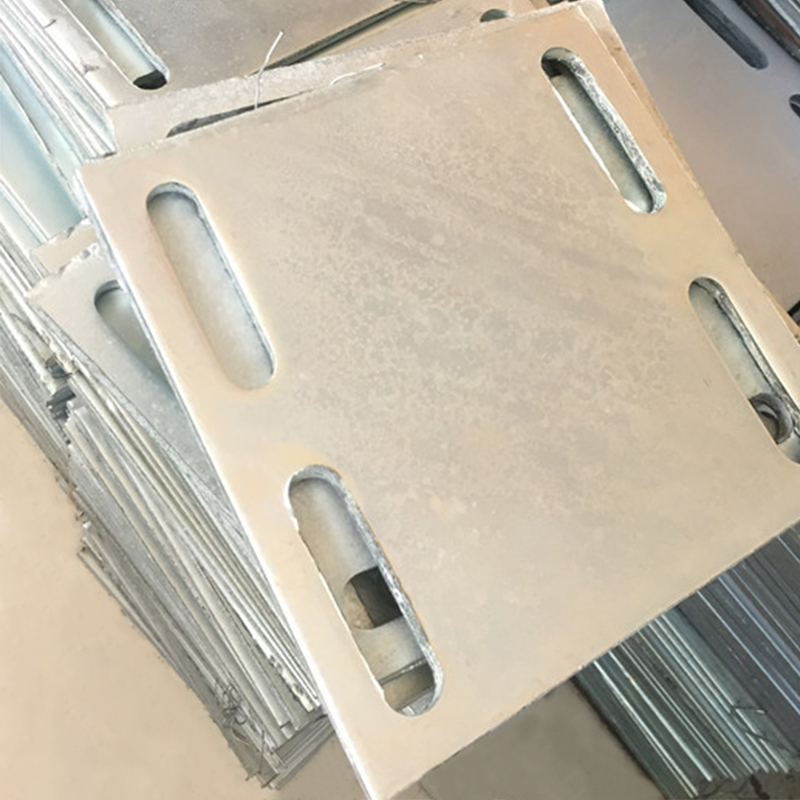

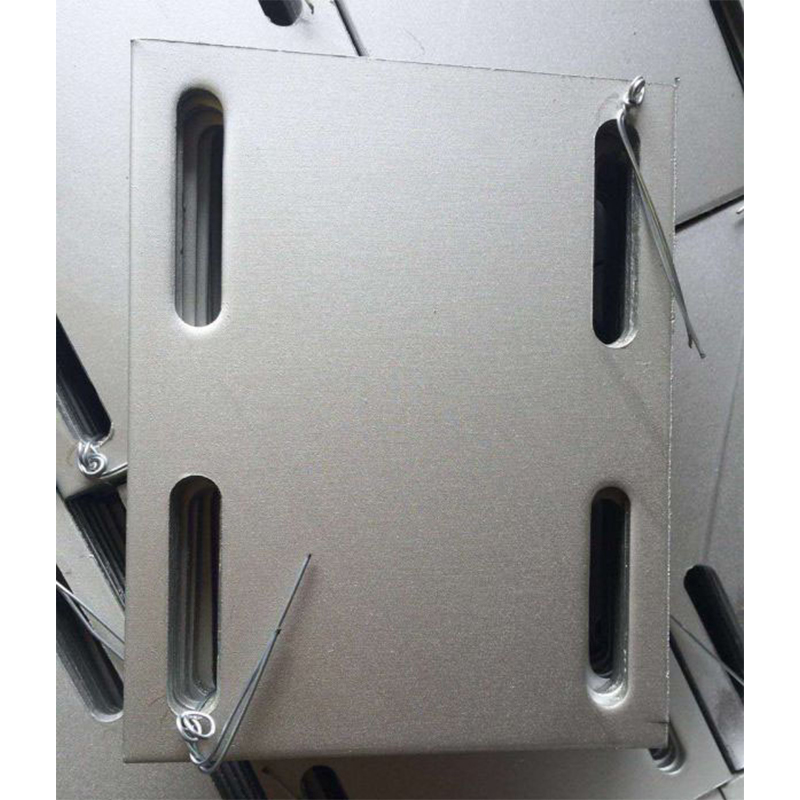

        1. Embed Plates: Embed plates are steel plates or angles that are embedded within the building's structural elements, such as concrete slabs or beams. These plates provide a connection point for the curtain wall system, allowing for the attachment of framing members, mullions, or other components of the curtain wall assembly.

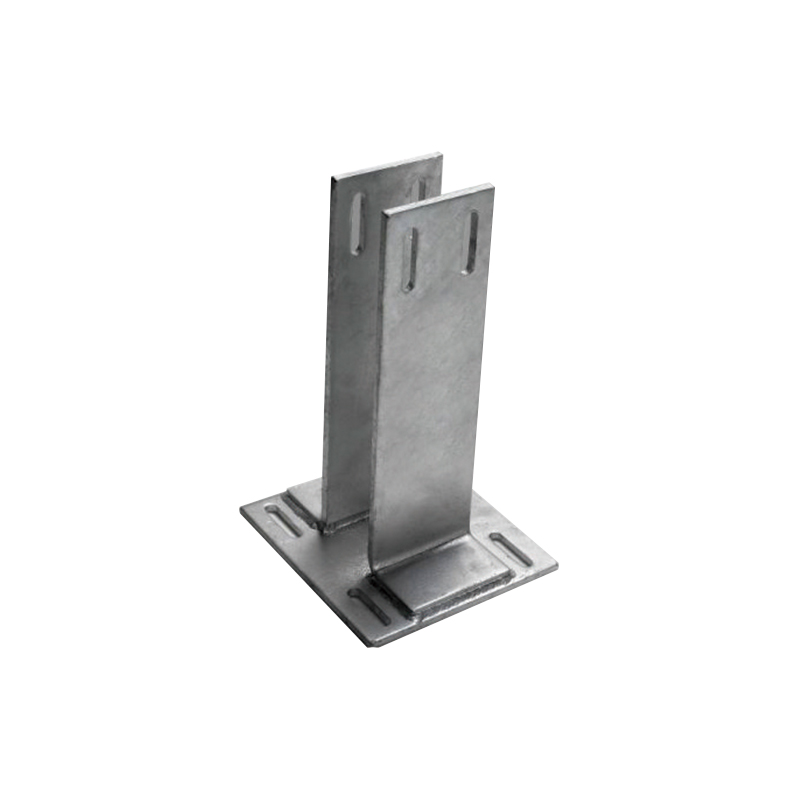

        2. Support Brackets: Support brackets are embedded components used to support and secure individual panels or sections of the curtain wall system. These brackets are embedded within the structural elements and provide a stable attachment point for the curtain wall panels. They are designed to withstand the loads imposed by wind, gravity, and other external forces.

      The specific design and configuration of curtain wall embedded parts can vary depending on the building's structural system, the type of curtain wall system employed, and the project requirements. It is important to consult with architects, structural engineers, and curtain wall specialists to determine the appropriate embedded parts and their locations to ensure a safe and effective installation of the curtain wall system.
