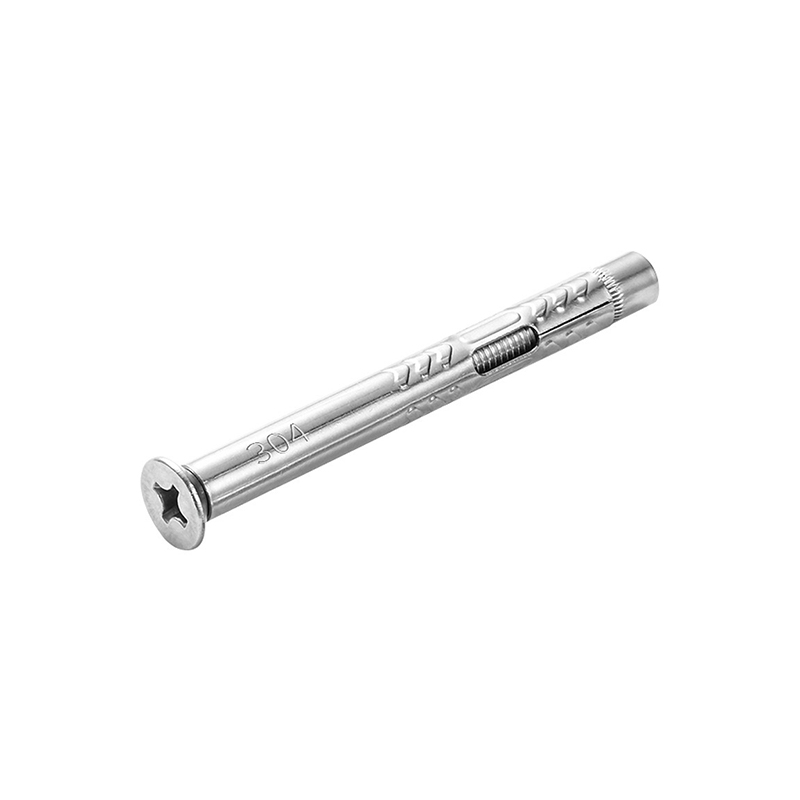

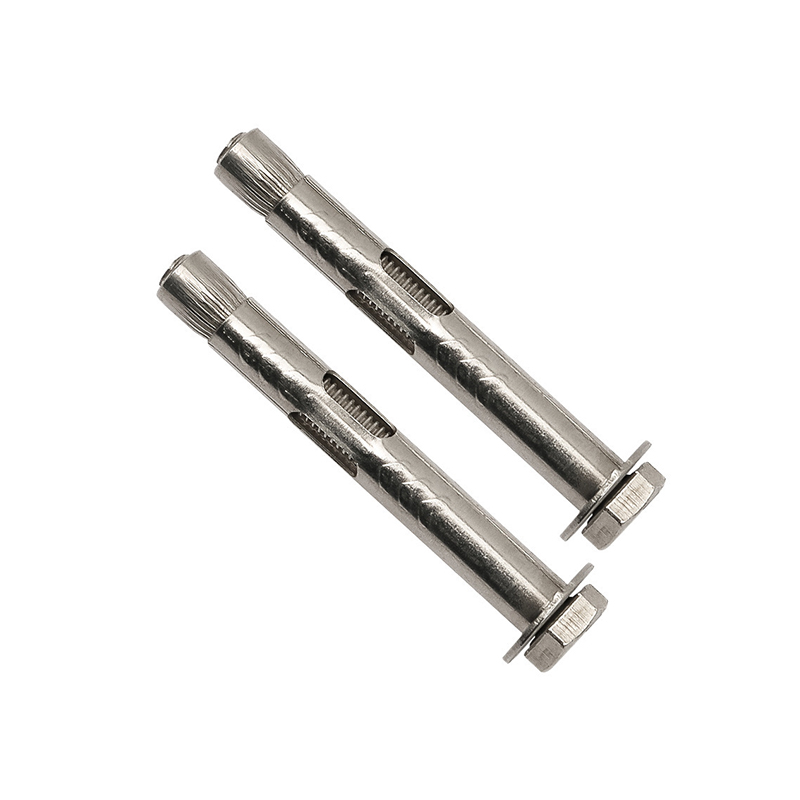

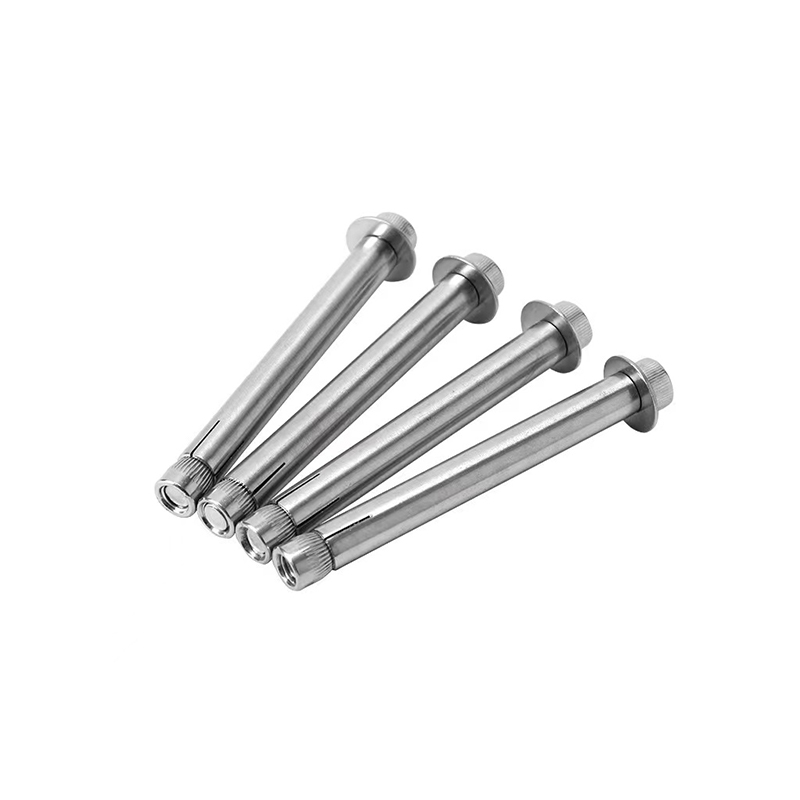

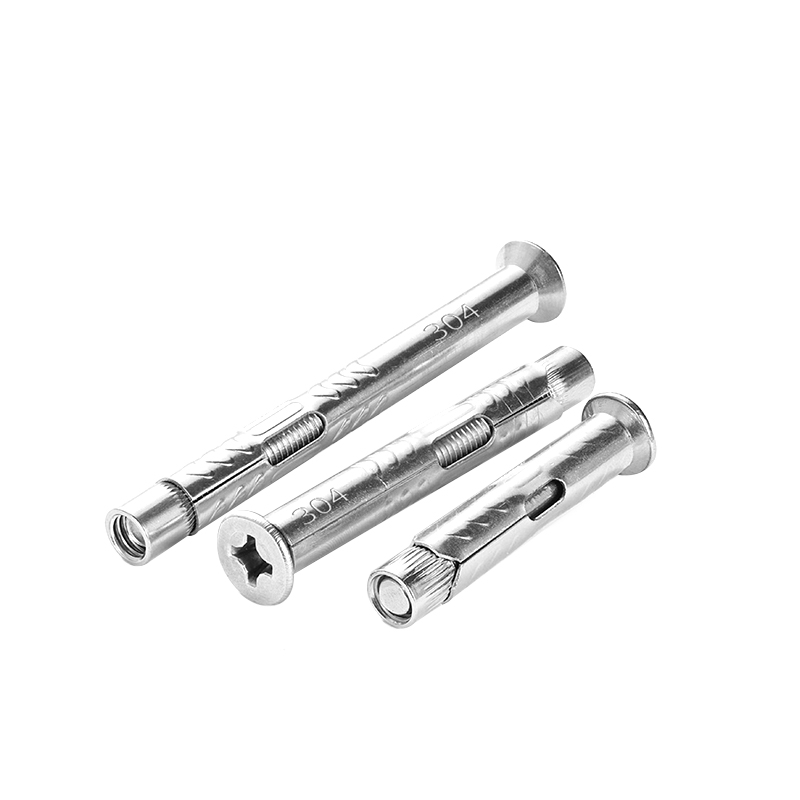

    An Expansion Anchor is a high-strength mechanical fastener designed for structural attachments in solid base materials such as concrete, brick, and natural stone. The mechanism operates through the displacement of an internal cone or the expansion of a sleeve against the walls of a pre-drilled hole. This expansion creates a frictional and mechanical interlock that transfers tensile and shear loads from the fixture to the base material. Engineered from carbon steel or stainless steel with various protective coatings, these anchors provide reliable load-bearing capacity for industrial and commercial construction projects.
    Get A Quote
    PREV：AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall InstallationsNEXT：No next article
    • Parameter
    • Contact Us

    • Core Advantages and Mechanical Performance

      • Torque-Controlled Expansion: Utilizes a specialized wedge or sleeve design that expands proportionally to the applied installation torque, ensuring consistent holding power.
      • Load Distribution: The expanded area creates multi-point contact within the substrate, reducing localized stress concentration in the concrete.
      • Corrosion Resistance: Available in zinc-plated, hot-dip galvanized, and SS304/SS316 grades to meet specific environmental requirements (ISO 9227 salt spray standards).
      • Vibration Resistance: The mechanical interlock remains stable under dynamic loads, maintaining structural integrity in industrial machinery installations.

      Technical Features

      Parameter Technical Specification
      Material Composition Carbon Steel (Q235/Q345), Stainless Steel 304/316
      Surface Treatment Yellow/White Zinc Plating, Hot-Dip Galvanizing (HDG)
      Standard Compliance ASTM F1554, DIN, ISO Grade 8.8/10.9
      Substrate Compatibility Uncracked Concrete, Solid Brick, Dense Natural Stone
      Expansion Type Wedge Anchor, Sleeve Anchor, Drop-In Anchor

      Application Scenarios

      Expansion Anchors are utilized across diverse infrastructure sectors where secure, heavy-duty fastening is required:

      • Structural Steelwork: Securing base plates for steel columns, beams, and support frames to concrete foundations.
      • Industrial Equipment: Permanent mounting of heavy machinery, conveyor systems, and automated robotic cells.
      • Infrastructure Projects: Installation of highway railings, sound barriers, and stadium seating.
      • MEP Installations: Supporting HVAC ductwork, heavy pipe racks, and electrical cable trays in commercial buildings.

      Installation and Safety Guidelines

      Pre-Installation Requirements

      The hole must be drilled using a hammer drill and a carbide-tipped bit matching the specific diameter of the Expansion Anchor. The hole depth must exceed the minimum embedment depth to allow for dust clearance and proper expansion sleeve placement.

      Borehole Cleaning

      Residual dust acts as a lubricant and can reduce friction between the anchor and the base material. Use compressed air or a specialized wire brush to remove all debris from the borehole prior to anchor insertion.

      Torque Regulation

      Final security is achieved by applying the manufacturer-specified installation torque. Under-torquing leads to insufficient expansion, while over-torquing can damage the concrete substrate or snap the anchor bolt, compromising the entire structural connection.

      Storage and Handling

      Store in a controlled, dry environment to prevent surface oxidation. For stainless steel variants, avoid contact with carbon steel tools to prevent cross-contamination and subsequent galvanic corrosion.

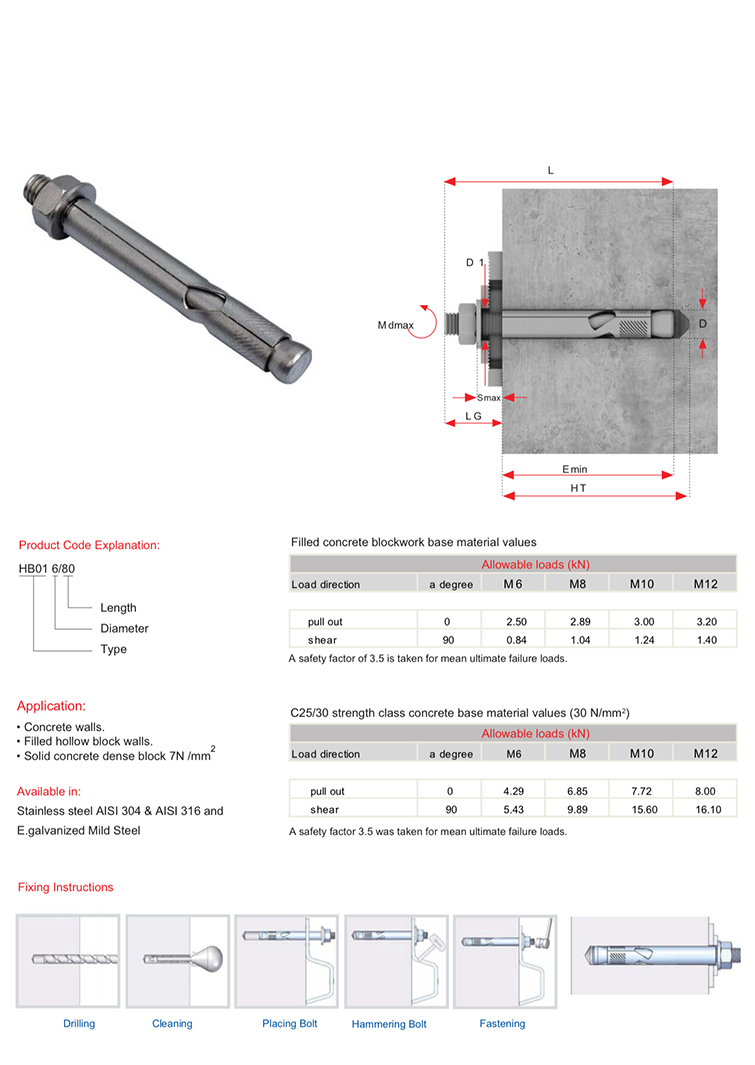

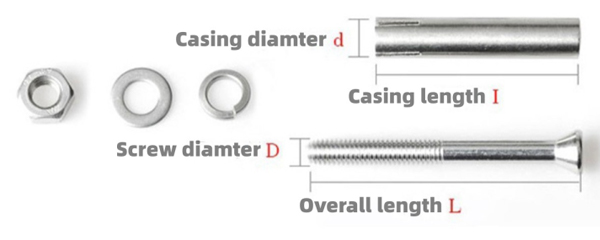

      Size  L(mm) I(mm) D(mm) d(mm) Punch bit
      M6*50 50 35 6 10 10mm Drill bit
      M6*60 60 40 6 10 10mm Drill bit
      M6*70 70 50 6 10 10mm Drill bit
      M6*80 80 55 6 10 10mm Drill bit
      M8*60 60 40 8 12 12mm Drill bit
      M8*70 70 50 8 12 12mm Drill bit
      M8* 80 80 55 8 12 12mm Drill bit
      M8*100 100 70 8 12 12mm Drill bit
      M8*120 120 90 8 12 12mm Drill bit
      M10*60 60 35 10 14 14mm Drill bit
      M10*70 70 45 10 14 14mm Drill bit
      M10*80 80 55 10 14 14mm Drill bit
      M10*100 100 75 10 14 14mm Drill bit
      M10*120 120 90 10 14 14mm Drill bit
      M12*80 50 50 12 16 16mm Drill bit
      M12*100 70 70 12 16 16mm Drill bit
      M12*120 90 90 12 16 16mm Drill bit

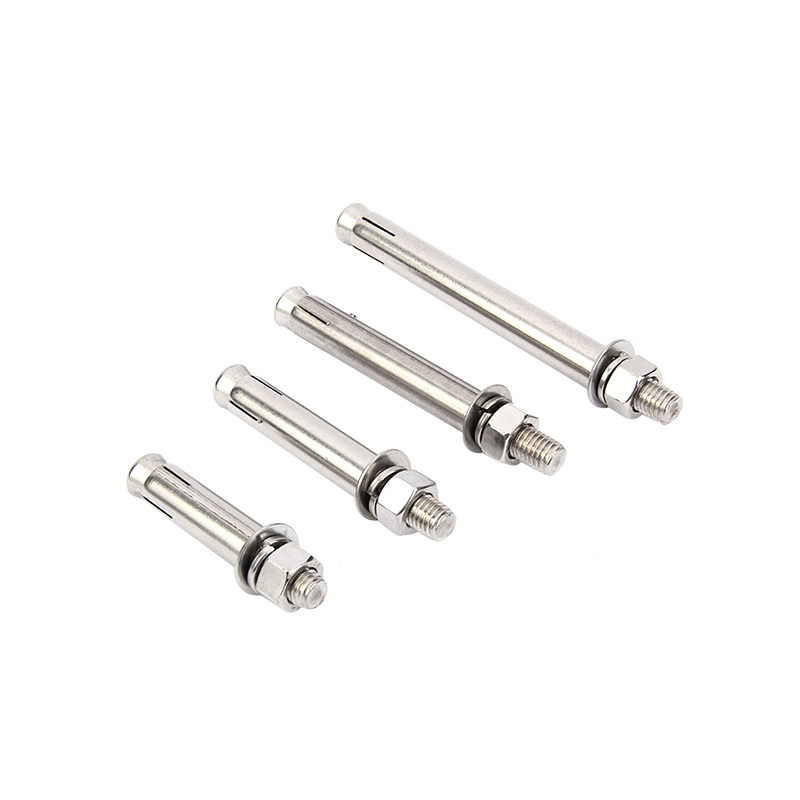

      Anchor Bolts

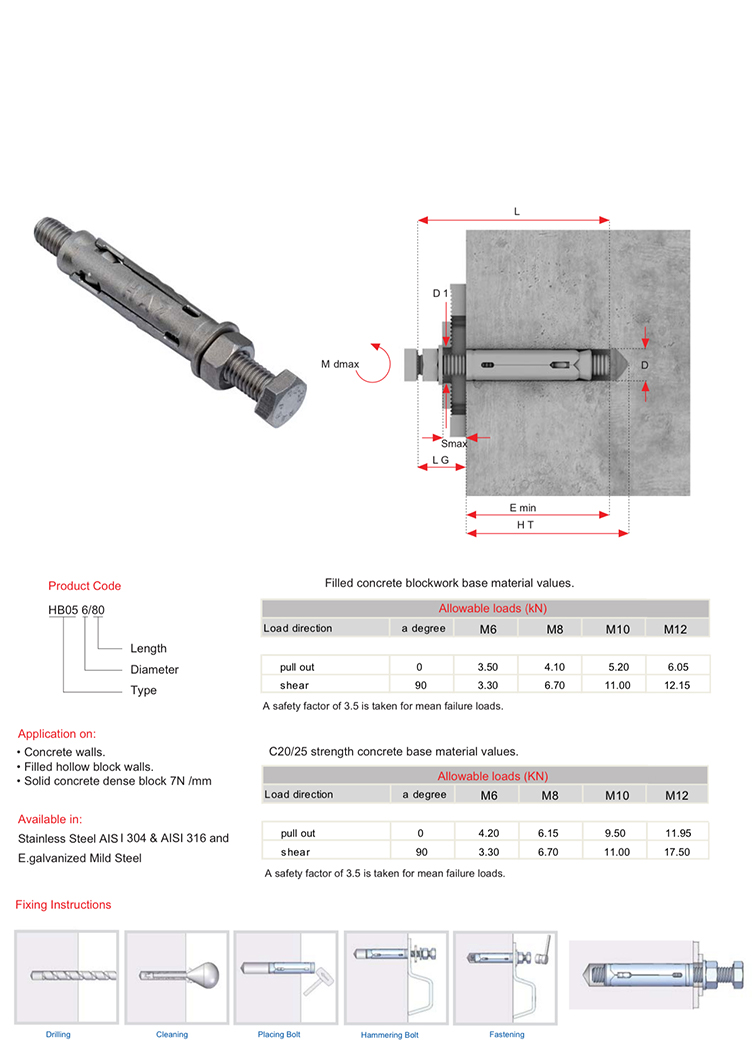

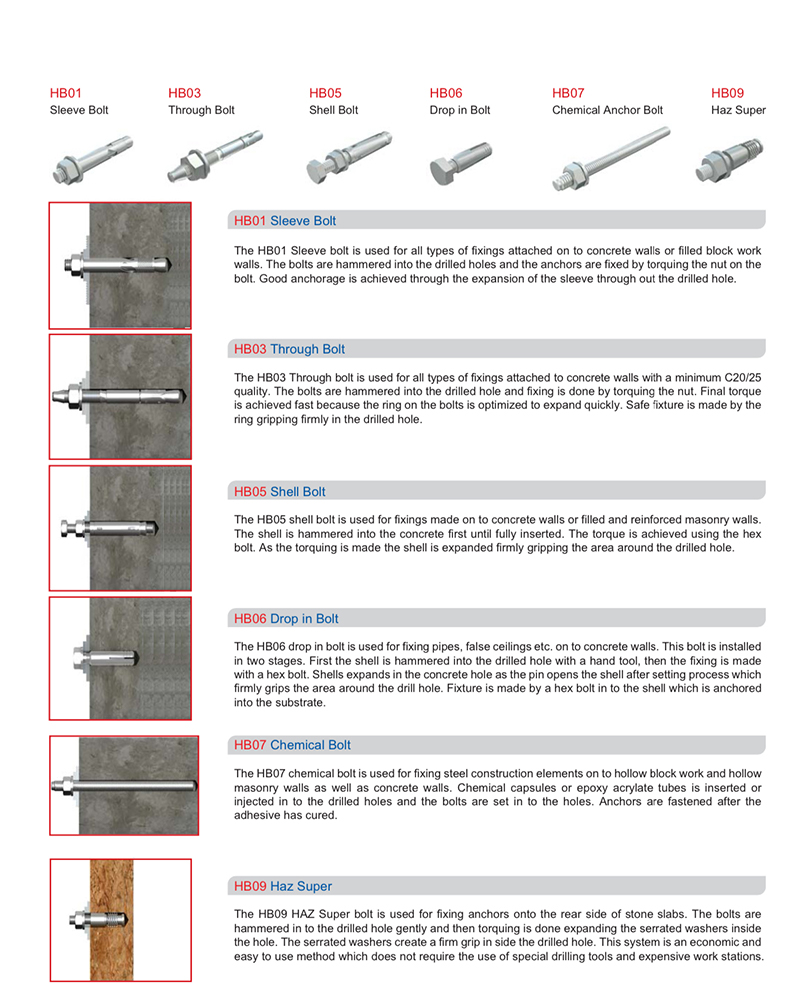

      There are many types of expansion bolts available for use to fix anchors onto different types of walls. Expansion bolts are all tested to meet the pull-out force and shear force performance criteria.
