AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall Installations
AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall Installations
AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall Installations
AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall Installations
AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall Installations
AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall Installations
AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall Installations
AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall Installations
AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall Installations
AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall Installations
AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall Installations
AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall Installations

AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall Installations

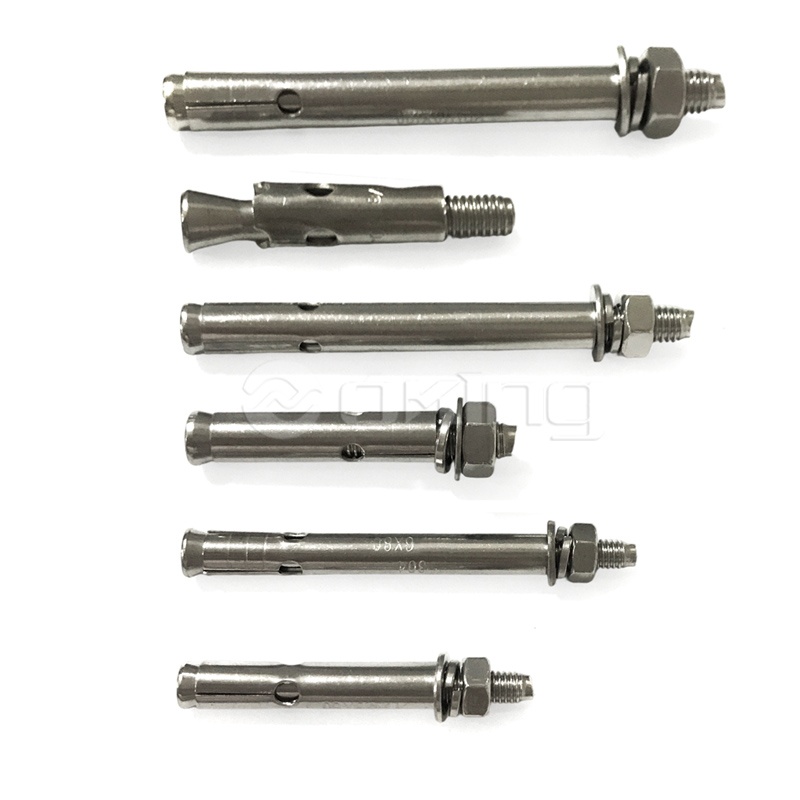

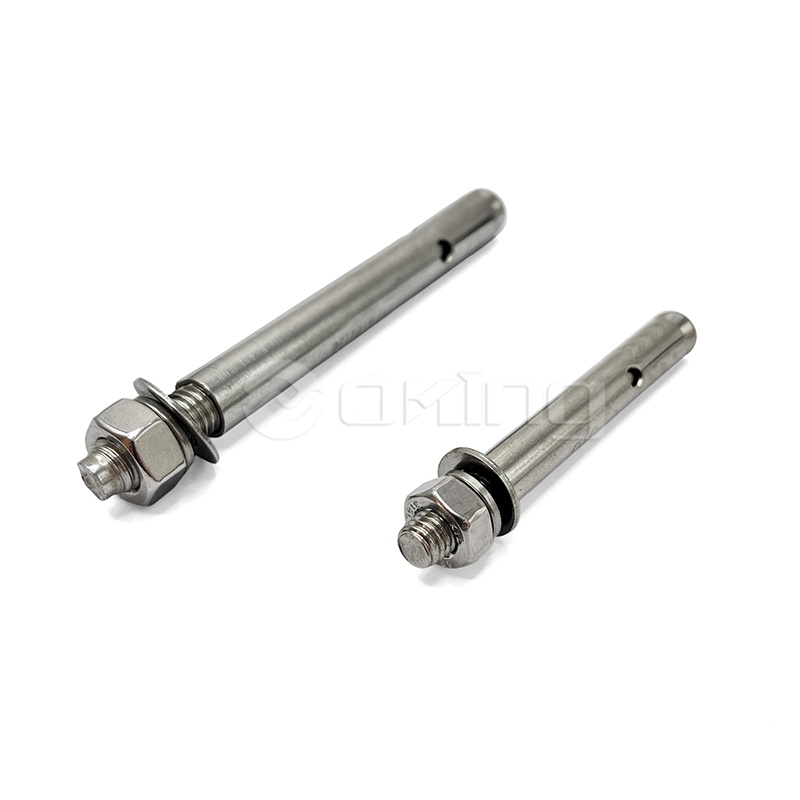

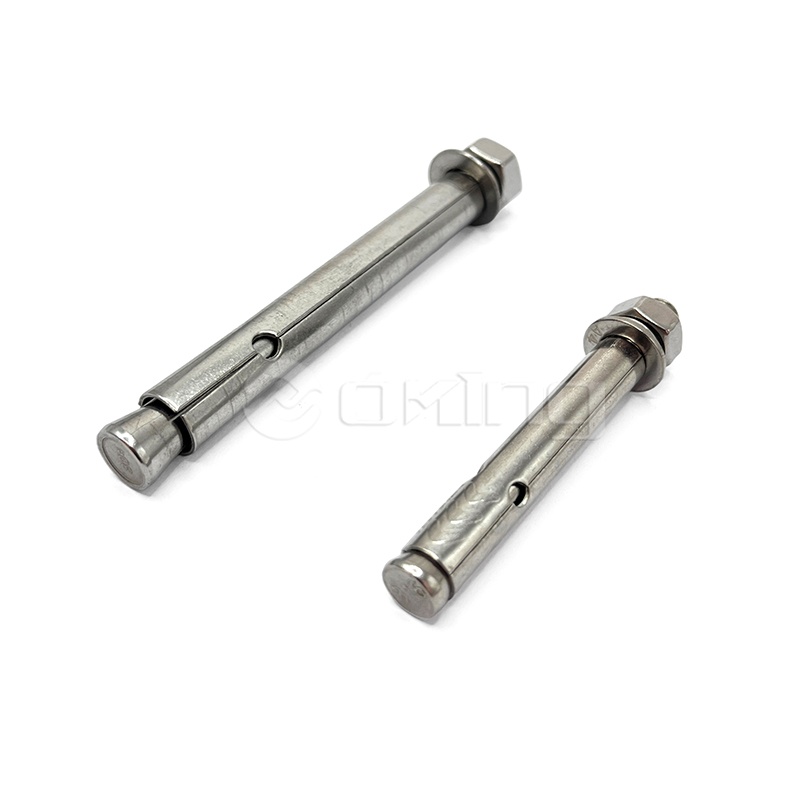

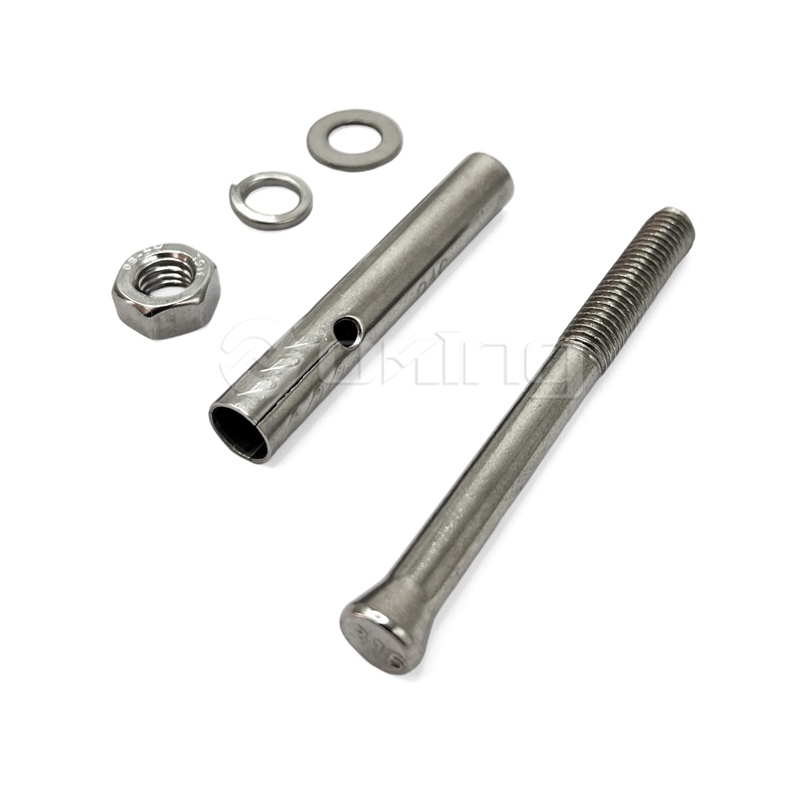

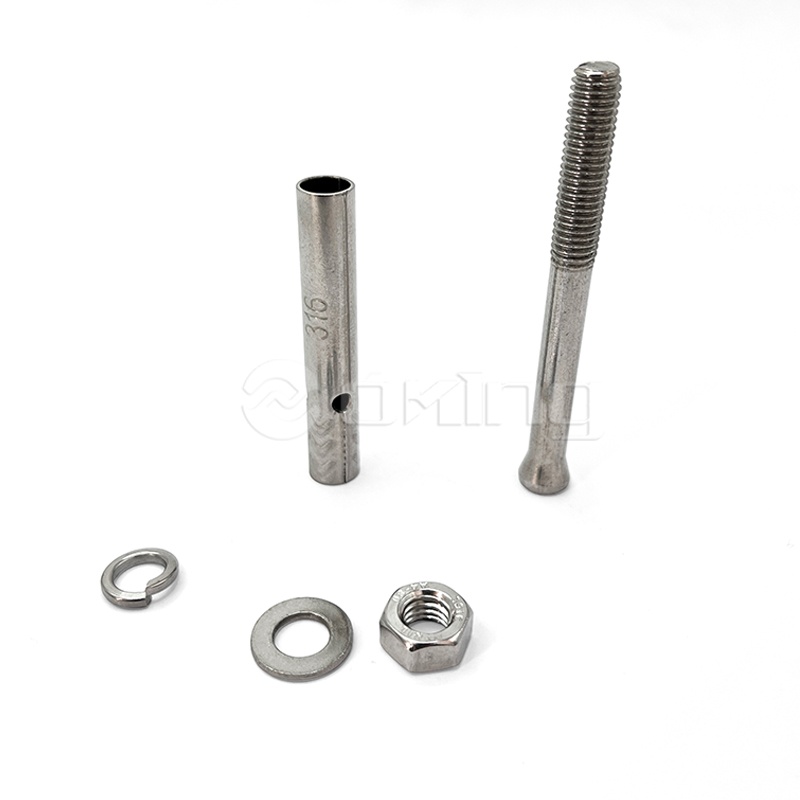

Stainless steel expansion anchor bolts:consists of two pieces permanently preassembled into a single unit. The carbon steel rod is threaded for a portion of its length. The extreme end of the threaded portion is rounded to protect the threads from damage while the anchor is being driven into the hole drilled in the concrete. The other end of the rod has a necked down diameter, which runs for a short distance, at the end of which it tapers outwardly to the full diameter of the rod. A precision formed universal clip made of carbon steel is permanently assembled around the necked down diameter to complete the anchor. Each package contains the correct number of nuts and washers.
Get A Quote
PREV：AZB04 Steel Galvanized Znic Plated Expansion Anchor BoltsNEXT：Expansion Anchor
  • Parameter
  • Contact Us

  • AZB03 Stainless Steel Expansion Bolt  Secure Fixing Solution

    For Concrete Wall Installations

    1. Instant anchoring: Hammer in, torque nut, and achieve full sleeve expansion;

    2. Universal compatibility: Perfect for concrete walls & filled block work applications;

    3. Superior stability: Full-hole sleeve expansion ensures anti-pullout & shear resistance;

    4. Quick installation: No complex tools needed for secure, long-lasting fixings.

    Technical Details

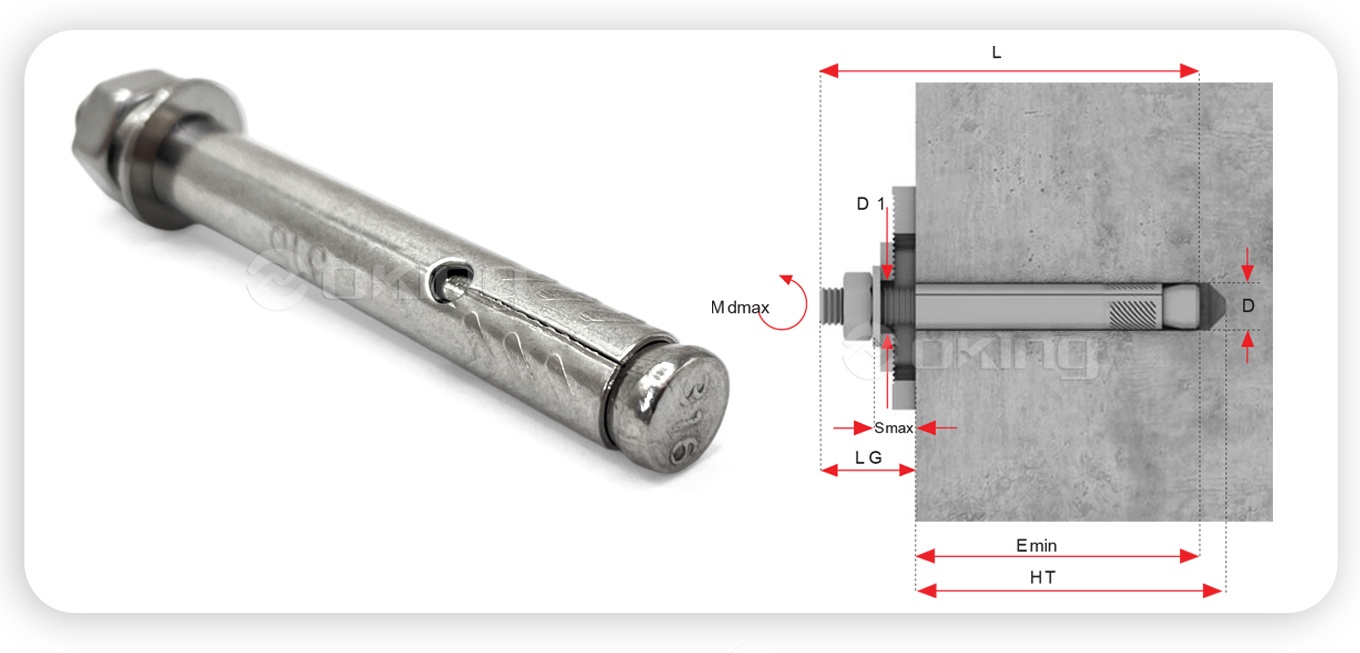

    Bolt Size Sleeve Size Drill Hole Diameter Drill Length Min.
    Embedment    		 Max. Fixture Thickness Fixture Hole Diameter Max.Torque Bolt Length
    (mm) (mm) D(mm) Ht (mm) E min (mm) S max (mm) D1(mm) Mdmax (Nm) (mm)
    M6x80 ф8x60 8 55 45 10 9 7 80
    M8x80 ф10x60 10 55 45 10 11 15 80
    M10x80 ф12x60 12 55 45 10 13 30 80
    M12x100 ф16x78 16 75 65 10 17 45 100

                  Loads are for dense block walls

    Materials：

    Stainless Steel 316 304 201

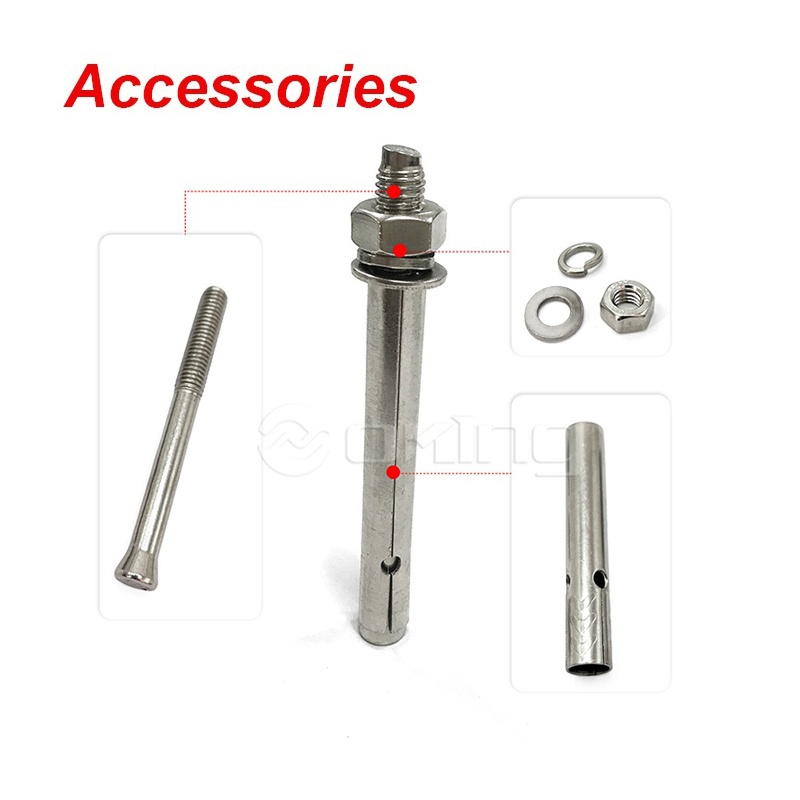

    Accessory products：

    Fixing Instructions:

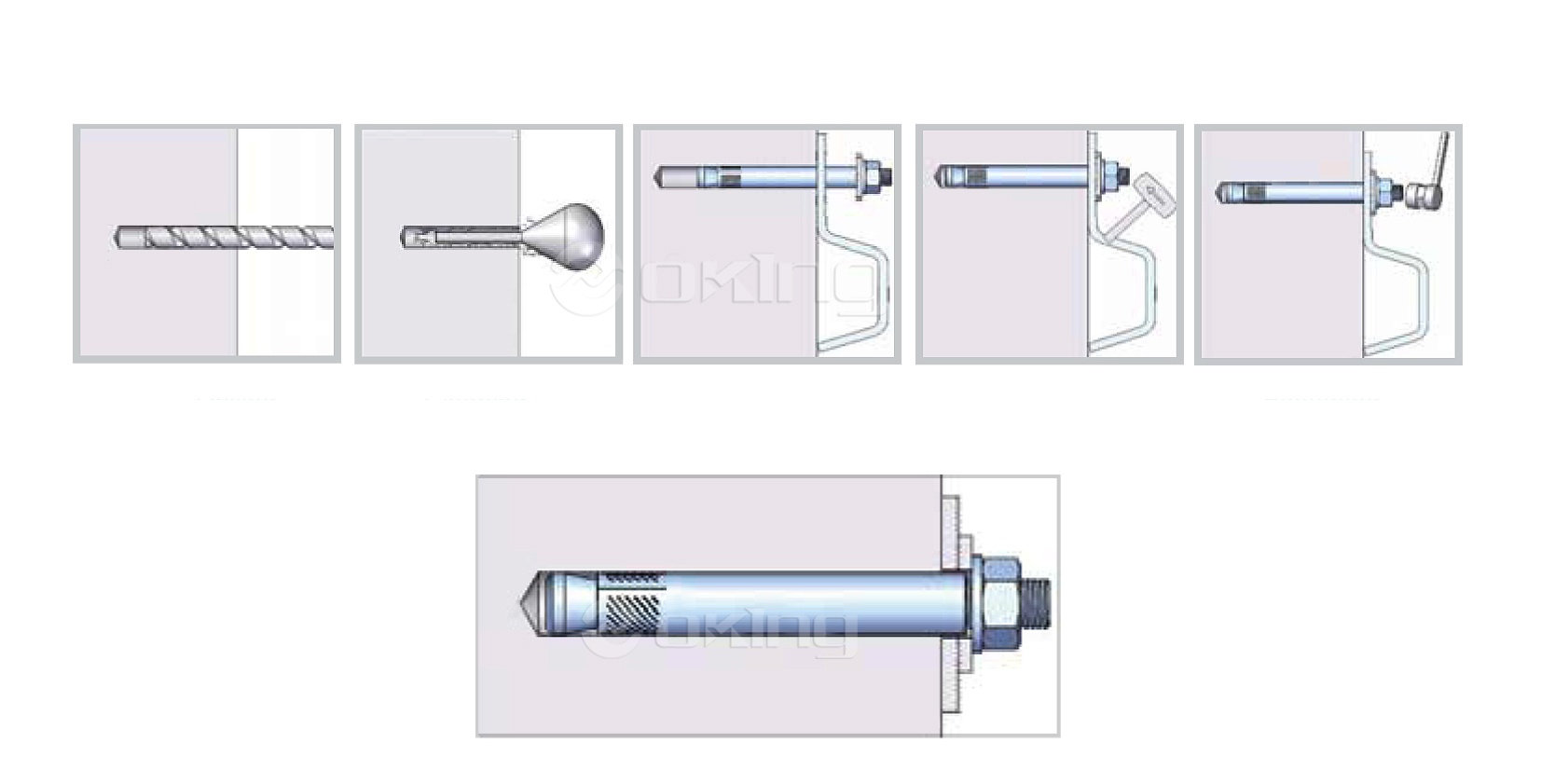

    ●Drill a hole in the concrete using a hammer drill and a carbide tipped masonry drill bit conforming to ANSI B94, 12-77, the same diameter as the wedge anchor. If the fixture being fastened is in place and being used as a template to locate the hole for the anchor, the mounting hole in the fixture should afford clearance for the universal wedge clip on the stud.

    ●Clear the hole of all debris, then place the wedge anchor through the hole in the fixture or directly into the concrete, and hammer it in to the drilled hole, ensuring that they are installed to the desired depth.

    ●Turn the nut by hand until the unit is "snugged up". Tighten the nut with a torque wrench to ensure they are tightened to the required torque value.

    Having been engaged in supplying high quality stainless steel expansion anchor bolts for decade, Aozheng Metal is recognized as one of the leading such manufacturers. Catering to customers' requirement, we also deal with customized business. Equipped with a productive and professional factory, we warmly welcome you to buy discount stainless steel expansion anchor bolts with us.

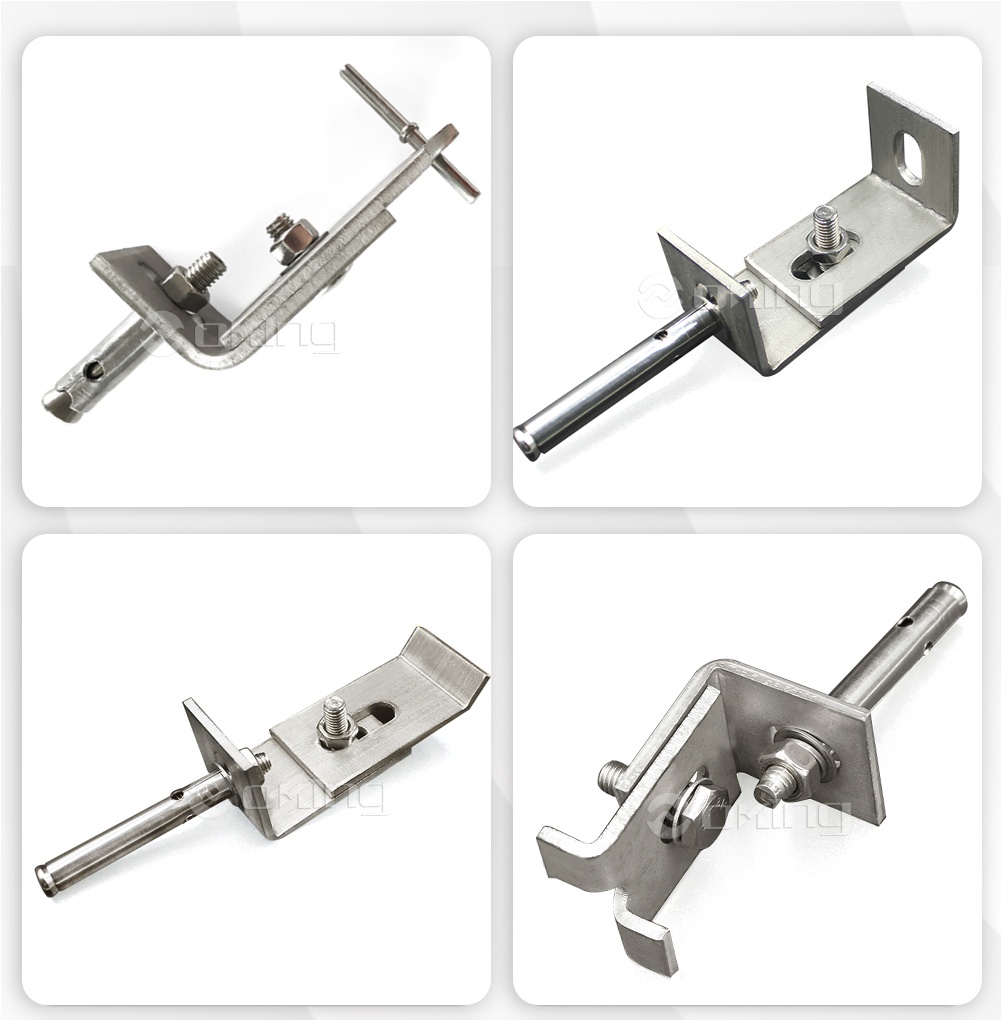

    Application on：

    Concrete walls；Filled hollow block walls；Solid concrete dense block 7N /mm.

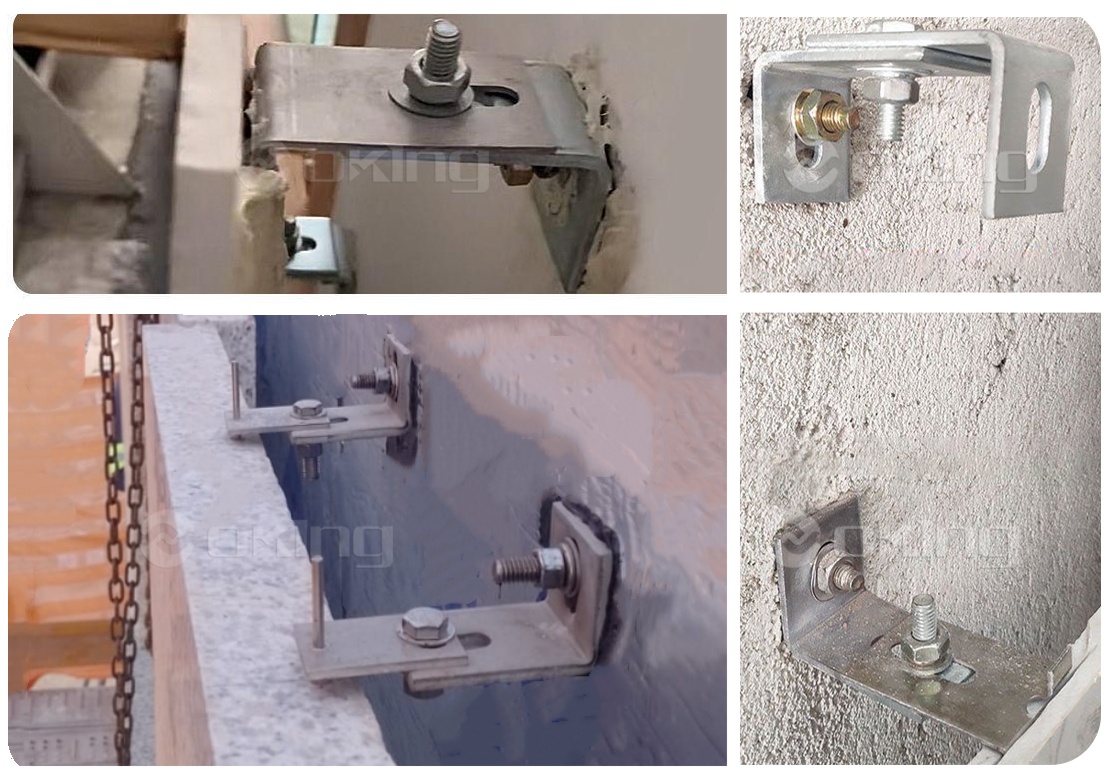

    Fixing of anchors on to filled block work walls using AZB03 Three Anchor Shield  Bolt.
