    AZB04 Steel Galvanized Znic Plated Expansion Anchor Bolts
    AZB04 Steel Galvanized Znic Plated Expansion Anchor Bolts
    AZB04 Steel Galvanized Znic Plated Expansion Anchor Bolts
    AZB04 Steel Galvanized Znic Plated Expansion Anchor Bolts
    AZB04 Steel Galvanized Znic Plated Expansion Anchor Bolts

    AZB04 Steel Galvanized Znic Plated Expansion Anchor Bolts

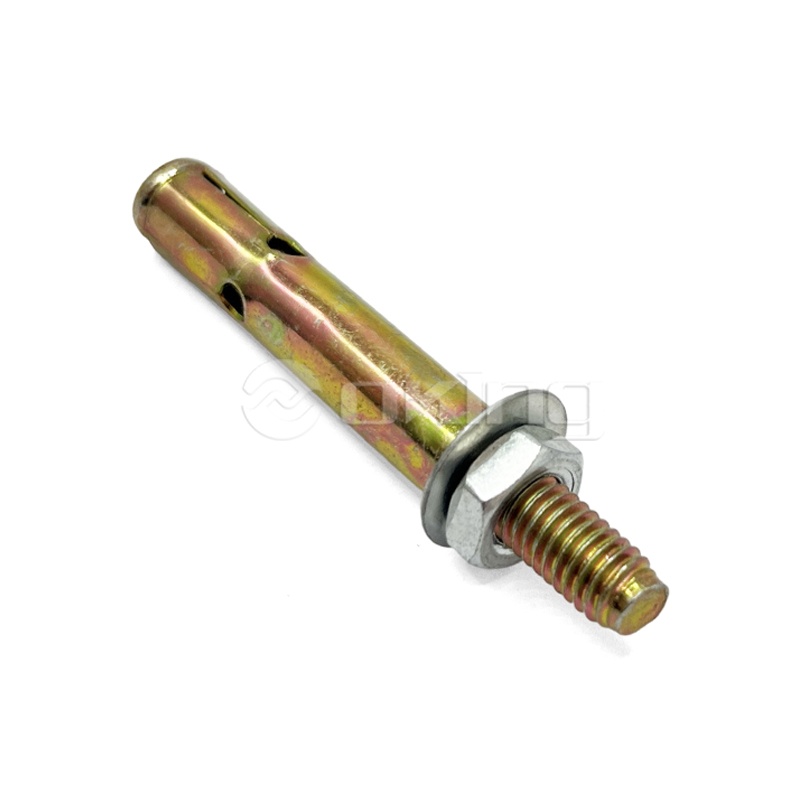

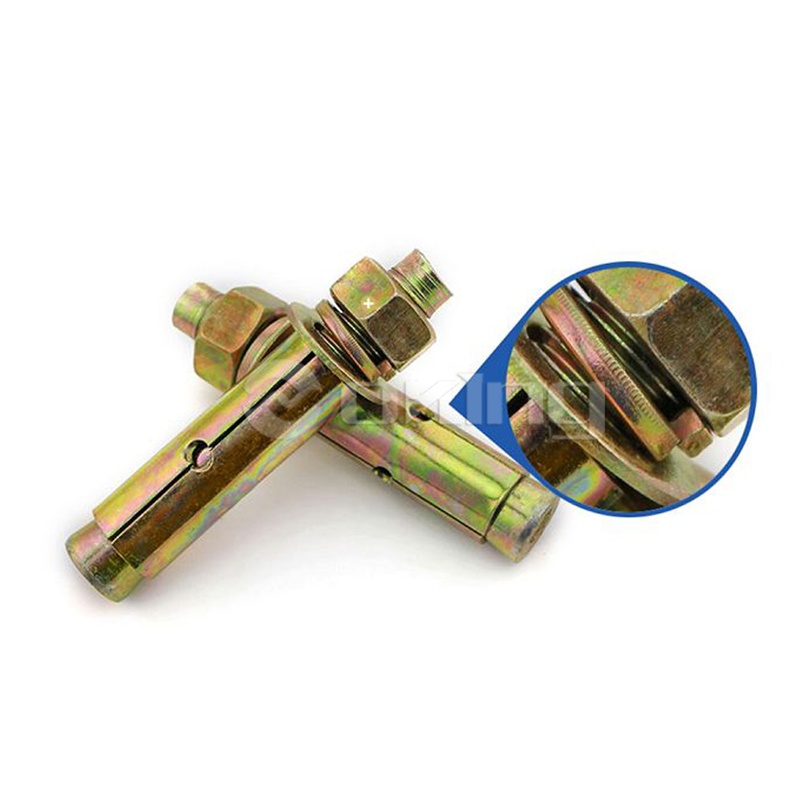

    Steel Galvanized  Zinc plated Expansion Anchor Bolts: Consists of two pieces permanently preassembled into a single unit. The carbon steel rod is threaded for a portion of its length. The extreme end of the threaded portion is rounded to protect the threads from damage while the anchor is being driven into the hole drilled in the concrete. The other end of the rod has a necked down diameter, which runs for a short distance, at the end of which it tapers outwardly to the full diameter of the rod. A precision formed universal clip made of carbon steel is permanently assembled around the necked down diameter to complete the anchor. Each package contains the correct number of nuts and washers.
    Get A Quote
    PREV：AZB05 Stainless Steel Expansion Anchor Bolt NEXT：AZB03 Stainless Steel Expansion Bolt Secure Fixing Solution for Concrete Wall Installations
    • Parameter
    • Contact Us

    • Approvals:

      ●Listed by Underwriters Laboratories (UL) Listed, EX2224(N)

      ●NY Board of Standards and Appeals

      ●Meets or exceeds U.S. Government G.S.A. Specifications FF-S-325 Group 11, Type 4, Class 1

      Applications:
      Light to heavy-duty into solid concrete.
      Installation:

      ●Drill a hole in the concrete using a hammer drill and a carbide tipped masonry drill bit conforming to ANSI B94, 12-77, the same diameter as the wedge anchor. If the fixture being fastened is in place and being used as a template to locate the hole for the anchor, the mounting hole in the fixture should afford clearance for the universal wedge clip on the stud.

      ●Clear the hole of all debris, then place the wedge anchor through the hole in the fixture or directly into the concrete, and hammer it in to the drilled hole, ensuring that they are installed to the desired depth.

      ●Turn the nut by hand until the unit is "snugged up". Tighten the nut with a torque wrench to ensure they are tightened to the required torque value.

      Having been engaged in supplying high quality steel galvanized znic plated expansion anchor bolts for decade, Aozheng Metal is recognized as one of the leading such manufacturers. Catering to customers' requirement, we also deal with customized business. Equipped with a productive and professional factory, we warmly welcome you to buy discount steel galvanized znic plated expansion anchor bolts with us.
