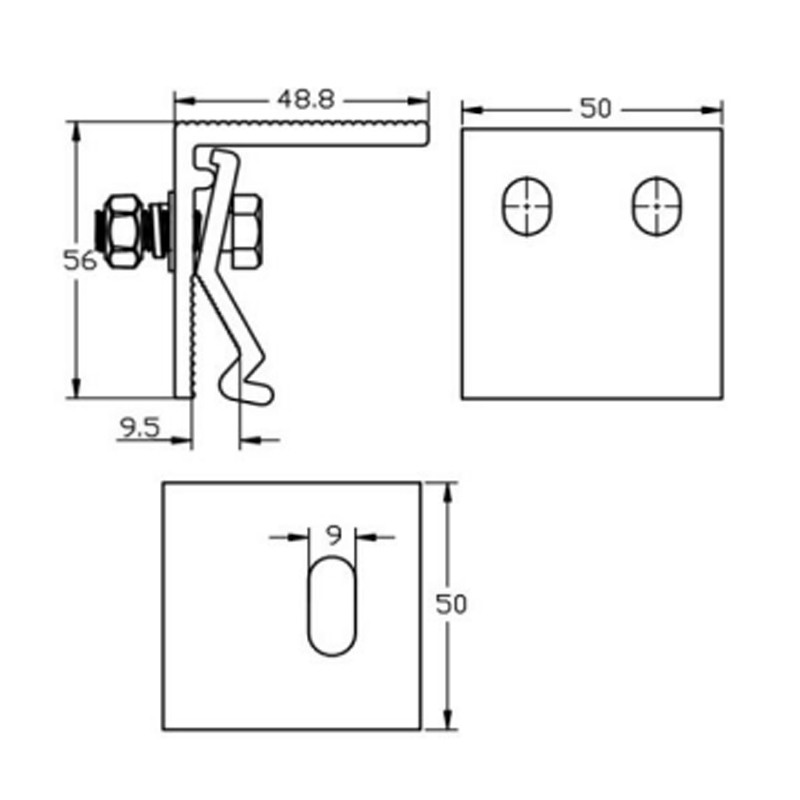

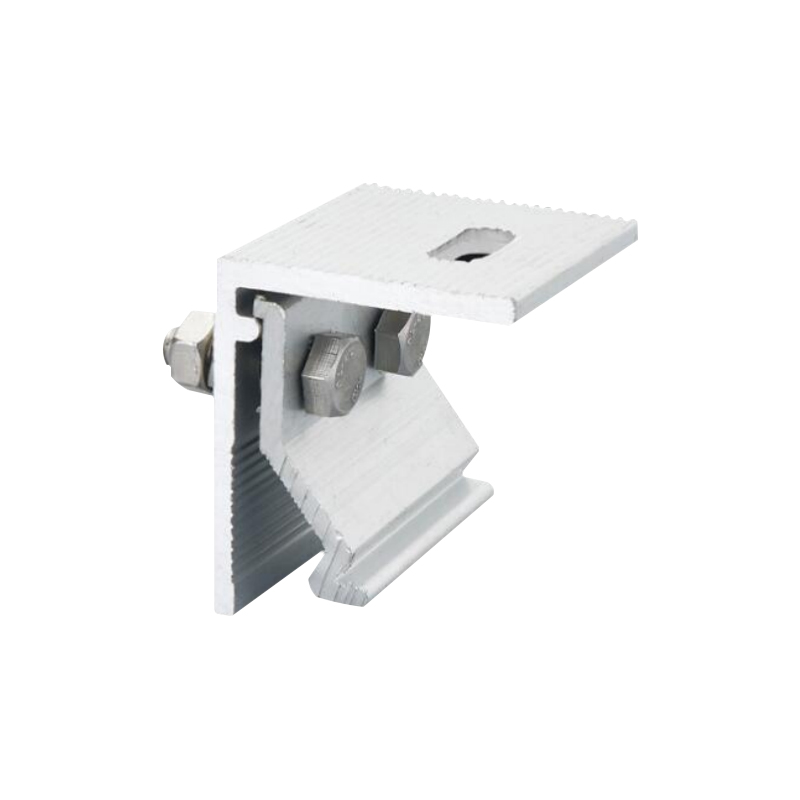

Upright Locking Clamp, Solar Photovoltaic Bracket Accessories
Upright Locking Clamp, Solar Photovoltaic Bracket Accessories

Upright Locking Clamp, Solar Photovoltaic Bracket Accessories

The upright locking clamp is a special clamp that adopts a parallelogram structure and is designed with a locking mechanism and a lifting adjustment mechanism. This design enables the fixture to stably fix the workpiece during processing and is especially suitable for processing workpieces of various shapes. Its materials are mostly anodized aluminum alloy AL6005-T5 or stainless steel SUS304, which ensures the strength and durability of the clamp. Solar photovoltaic bracket accessories are an important part of the solar photovoltaic bracket installation process, including bolts, nuts, steel pipes, counterweights, screws, anti-skid washers, etc. Together, these accessories ensure the stability and firmness of the bracket, allowing the solar panels to be stably fixed on the bracket and effectively resist the effects of strong winds, rain, snow, and other severe weather. Among them, bolts and nuts are used to fix the bracket, the steel pipe serves as the main support, the counterweight improves the stability of the bracket, the screws enhance the firmness of the installation, and the anti-slip gasket can prevent the bracket from sliding or moving.
Get A Quote
PREV：Solar Photovoltaic Brackets And Accessories, Trapezoidal Tile ClampsNEXT：Guide Railless Corner Clamp, Solar Photovoltaic Bracket Accessories
  • Parameter
  • Contact Us

  • Upright Locking Clamp, Solar Photovoltaic Bracket Accessories - Secure & Durable Mounting Solution

    This Upright Locking Clamp is an essential component for secure and stable installation of solar photovoltaic modules on various mounting systems. Engineered for durability and high performance, this accessory ensures the long-term integrity of solar panel arrays, preventing slippage and displacement in diverse environmental conditions.

    Product Features

    • High-Strength Aluminum Alloy: Constructed from corrosion-resistant aluminum alloy, this solar panel clamp offers exceptional strength-to-weight ratio, ensuring robust fixation without adding significant load to the solar racking system. The material is optimized for longevity in outdoor applications.
    • Precision-Engineered Locking Mechanism: The clamp features a meticulously designed locking mechanism that provides a firm and secure grip on solar panels, preventing movement caused by wind uplift, thermal expansion, or mechanical vibrations. This feature is critical for maintaining the structural stability of the entire solar mounting structure.
    • Universal Compatibility: Designed to fit a wide range of solar panel frame thicknesses and mounting rail profiles, this product serves as a versatile solution for diverse solar installation projects. Its universal design reduces the complexity of sourcing specific components for different module types.
    • Streamlined Installation Process: The user-friendly design of the upright locking clamp allows for a quick and efficient installation, reducing labor time and costs. This is particularly beneficial for large-scale solar farm construction and commercial rooftop solar installations.

    Technical Specifications

    Material Finish Application
    Aluminum Alloy Anodized PV module mounting
    Module Thickness Compatibility Dimensions Standard
    30mm, 35mm, 40mm Customizable upon request ISO 9001:2015, TUV certified

    Applications

    This product is an ideal solution for a variety of solar energy systems, including:

    • Residential Solar Panel Installation: Secures solar modules on pitched or flat roofs.
    • Commercial and Industrial Rooftop Solar: Provides reliable mounting for large-scale commercial solar projects.
    • Utility-Scale Solar Farms: Essential for the structural integrity of ground-mounted solar arrays.
    • Specialized Solar Structures: Applicable for solar carports, canopies, and other custom solar installations.

    FAQ

    How do I choose the correct upright locking clamp size for my solar panels?

    The correct clamp size is determined by the thickness of your solar panel frame. Our Upright Locking Clamps are available to fit standard frame thicknesses of 30mm, 35mm, and 40mm. To ensure a secure fit, it is essential to measure the frame thickness of your modules and select the corresponding clamp.

    What is the benefit of using aluminum alloy for solar panel clamps?

    Aluminum alloy is the preferred material for solar mounting accessories due to its excellent properties. It is highly resistant to corrosion, lightweight yet strong, and durable in various environmental conditions. This ensures the long-term reliability and stability of the solar panel installation, which is crucial for maximizing the return on investment for a solar energy system.

    Are these upright locking clamps compatible with all types of solar mounting rails?

    Our upright locking clamps are engineered for a high degree of compatibility with the majority of solar mounting rail systems on the market. The design allows for secure attachment to various rail profiles. For specific compatibility questions, we recommend consulting our technical specifications or contacting our support team with details of your existing rail system.

    Model CMCJ-004 Material AL-6005T5
    Surface Treatment anodizing Weight 122.6g
