U Channel:
|
Finish |
|||
|
Hot dip galvanized |
|||
|
Pre-galvanized |
|||
|
Zinc plated/Electrical galvanized |
|||
|
Stainless Steel 304 |
|||
|
Stainless Steel 316 |
|||
|
Power coating |
|||
|
BUP1000 |
|||
|
Art No. |
Size |
Descr |
Thickness |
|
AG25 |
41X41 |
PLAIN |
2.50 |
|
AG20 |
41X41 |
PLAIN |
2.00 |
|
AG15 |
41X41 |
PLAIN |
1.50 |
|
AB25 |
41X41 |
SLOTTED |
2.50 |
|
AB20 |
41X41 |
SLOTTED |
2.00 |
|
AB15 |
41X41 |
SLOTTED |
1.50 |
|
DG25 |
41X21 |
PLAIN |
2.50 |
|
DG20 |
41X21 |
PLAIN |
2.00 |
|
DG15 |
41X21 |
PLAIN |
1.50 |
|
DB25 |
41X21 |
SLOTTED |
2.50 |
|
DB20 |
41X21 |
SLOTTED |
2.00 |
|
DB15 |
41X21 |
SLOTTED |
1.50 |
|
EG25 |
62X41 |
PLAIN |
2.50 |
|
EB25 |
62X41 |
SLOTTED |
2.50 |
|
FG25 |
82X41 |
BACK TO BACK |
2.50 |
|
GG25 |
41X41 |
CONCRETE INSERT |
2.50 |

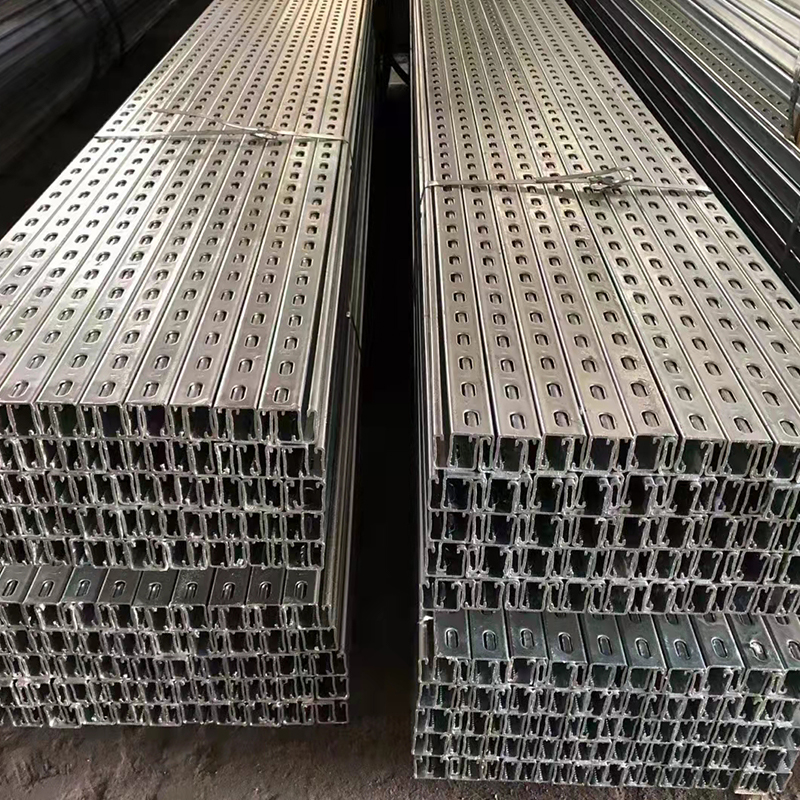

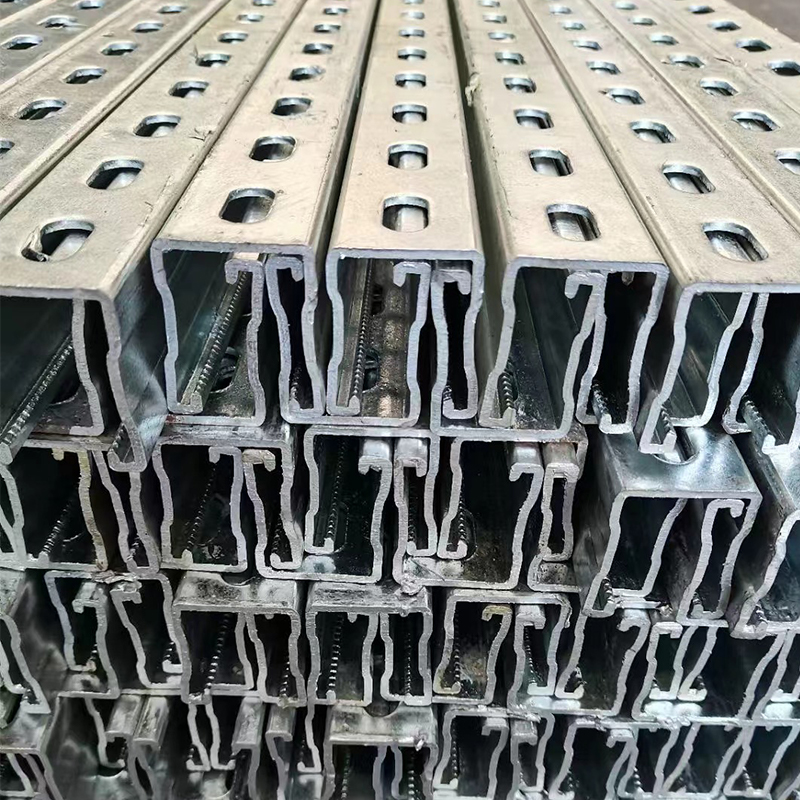

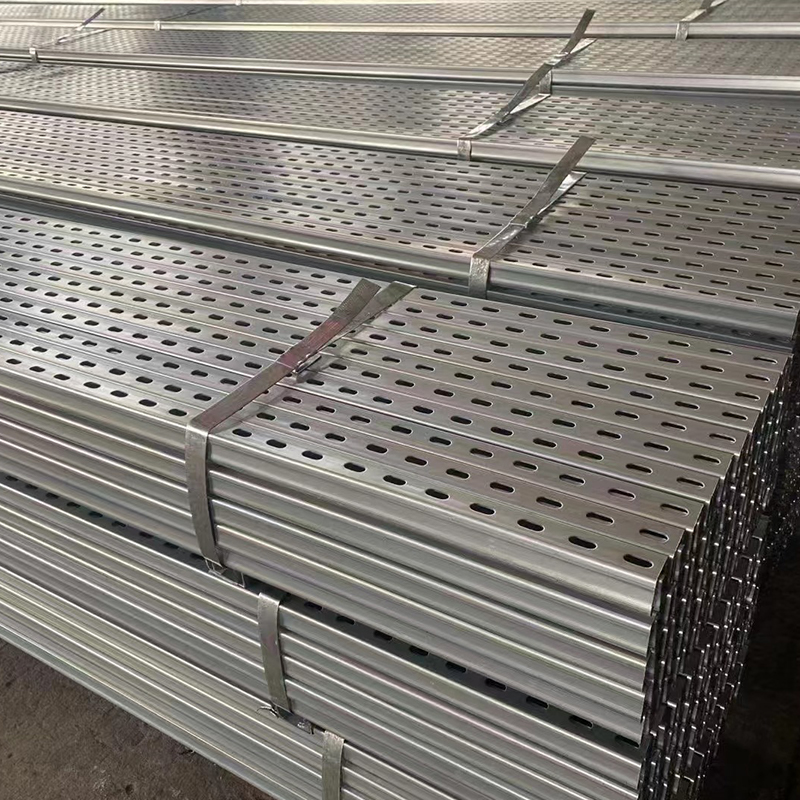

U-channel is a type of metal extrusion that is shaped "U" in cross-section. It is commonly used in various applications: and industries, including construction, manufacturing, and fabrication.
1. Uchannel some with two parallel flanges connected by a vertical web. The flanges are typically equal in length and perpendicular to the web. U-channels are often made from metals such as steel, aluminum, or stainless steel, which provide strength and durability.
2. U-channels are frequently used as structural elements in building and construction projects. They can provide support, reinforcement, and stability to components or structures. U-channels are commonly used as beams, tracks, or framing members to support load-bearing applications.
3. U-channels are utilized as mounting rails or tracks for attaching and securing components. They can serve as a base for mounting equipment, brackets, or other fixtures. U-channels offer versatility in mounting options, as they can be attached using screws, bolts, or welding.
4. U-channels find extensive use in manufacturing processes, such as conveyor systems, material handling equipment, or machinery frames. They offer structural support, guidance, and stability to equipment and facilitate efficient production operations.
5. U-channels are available in various sizes such as 41*41,41*21 and thickness from 1.5 to 3mm, dimensions, and materials to suit different application requirements. The specific choice of U-channel depends on load capacity, environmental conditions, and the intended use.
