    Customized Up Or Down Fixing Bracket

    Customized Up Or Down Fixing Bracket

    The stainless steel dry-hanging upper bracket is a support component specially designed for dry-hanging installation. Its performance and durability make it the preferred accessory in modern architectural decoration. The bracket is made of high-quality stainless steel material, which has extremely high corrosion resistance and strength and can maintain its stability and reliability for a long time in various harsh environments. Its unique design makes installation easy and fast, and can effectively disperse and bear the weight of the wall, ensuring the safety and stability of the dry-hanging installation.
    Get A Quote
    PREV：No previous articleNEXT：Stone Fixing Kerf Anchor System
    • Parameter
    • Contact Us

    • Customized Up Or Down Fixing Bracket - Precision and Versatility for Industrial Applications

      Designed for industrial-grade fastening and support, our Customized Up Or Down Fixing Bracket provides a robust solution for a wide range of mounting challenges. This product is engineered to offer exceptional stability and adaptability, making it an essential component for system integration and machinery installation. We specialize in producing customized up or down fixing brackets tailored to your specific project requirements, ensuring a perfect fit and optimal performance. Our commitment to precision manufacturing and material quality guarantees a long-lasting, reliable product for demanding environments.

      Key Features

      • Adjustable Height and Angle: The innovative design allows for precise vertical and angular adjustments, accommodating diverse installation needs. This feature is crucial for applications requiring exact positioning, such as in automation system brackets or industrial machinery mounting.
      • High-Strength Material Construction: Manufactured from premium-grade alloys, our brackets offer superior load-bearing capacity and corrosion resistance. They are ideal for use as heavy-duty up-down fixing brackets in harsh environments.
      • Customizable Specifications: We offer comprehensive customization for dimensions, material, and surface finish. This flexibility ensures that the product aligns perfectly with your engineering specifications for a range of uses, from CNC machine component brackets to conveyor system support brackets.
      • Quick and Secure Installation: The bracket is designed for efficient setup, reducing installation time and labor costs. Its secure fastening mechanism provides a stable, long-term mount, preventing slippage or misalignment.

      Technical Specifications

      Parameter Standard Value Custom Range
      Material Stainless Steel 304/316 Aluminum Alloy, Carbon Steel
      Surface Finish Brushed, Polished, Zinc Plated Custom Powder Coating, Anodizing
      Maximum Load Capacity Up to 250 kg Custom engineering per application
      Adjustable Range ±15 mm Specified by client
      Mounting Hole Diameter Ø8 mm Custom dimensions available

      Application Areas

      The Customized Up Or Down Fixing Bracket is widely utilized in professional and industrial settings for its reliability and precision. Key application areas include:

      • Automation and Robotics: Providing stable mounts for sensors, actuators, and robotic arms.
      • Material Handling Systems: Supporting components in conveyor systems and sorting machinery.
      • Machine Tooling: Securing jigs, fixtures, and other essential components on CNC machines and presses.
      • Construction and Architecture: Used for structural support and component alignment in commercial builds.
      • HVAC and Electrical Installations: Mounting conduits, pipes, and electrical boxes securely.

      FAQ

      How can I request a customized fixing bracket?

      To request a customized bracket, please provide us with your technical drawings, 3D models, or detailed specifications including material, dimensions, load requirements, and desired surface finish. Our engineering team will review your request and provide a comprehensive proposal. We specialize in custom metal fabrication for industrial brackets, ensuring your unique needs are met with precision and quality.

      What is the typical lead time for a custom order?

      Lead time for a custom order varies based on design complexity, material availability, and order volume. A standard project typically takes 4-6 weeks from final design approval to delivery. For urgent requirements, please contact our sales team to discuss accelerated production options. Our priority is to deliver your industrial mounting bracket solution efficiently without compromising on quality.

      What material is best for high-corrosion environments?

      For high-corrosion environments, we recommend using Stainless Steel 316 due to its superior resistance to chlorides and other harsh chemicals. Alternatively, a carbon steel bracket with a specialized protective coating, such as hot-dip galvanization or a marine-grade powder coat, can also be a cost-effective solution. The ideal choice depends on the specific corrosive agents present in your application.

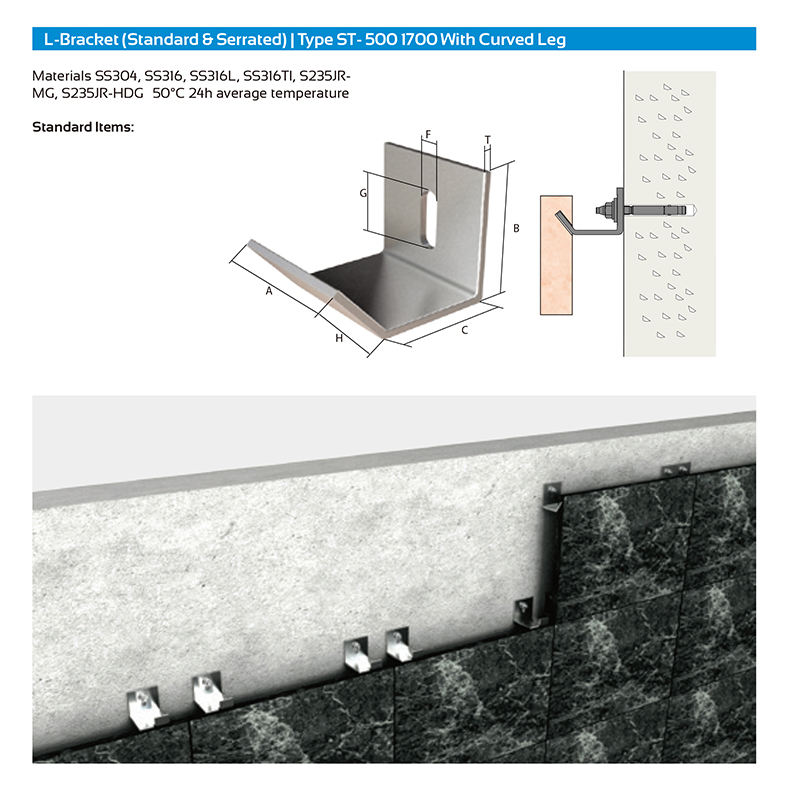

      Item No. T A B C H sl hole
      1700-35.45.30.2 2 35 45 30 20 6,5 x 22
      1700-40.45.35.2 2 40 45 35 20 6,5 x 22
      1700-35.45.30.3 3 35 45 30 20 6,5 x 22
      1700-40.45.30.3 3 40 45 30 20 8,5 x 22
      1700-35.45.35.3 3 35 45 35 20 6,5 x 22
      1700-40.45.35.3 3 40 45 35 20 8,5 x 22
      1700-35.45.40.3 3 35 45 40 20 6,5 x 22
      1700-35.45.30.4 4 35 45 30 20 8,5 x 22
      1700-35.45.35.4 4 35 45 35 20 8,5 x 22
      1700-35.45.40.4 4 35 45 40 20 8,5 x 22
      1700-35.50.45.4 4 35 50 45 20 8,5 x 22
      1700-40.50.45.4 4 40 50 45 20 8,5 x 22

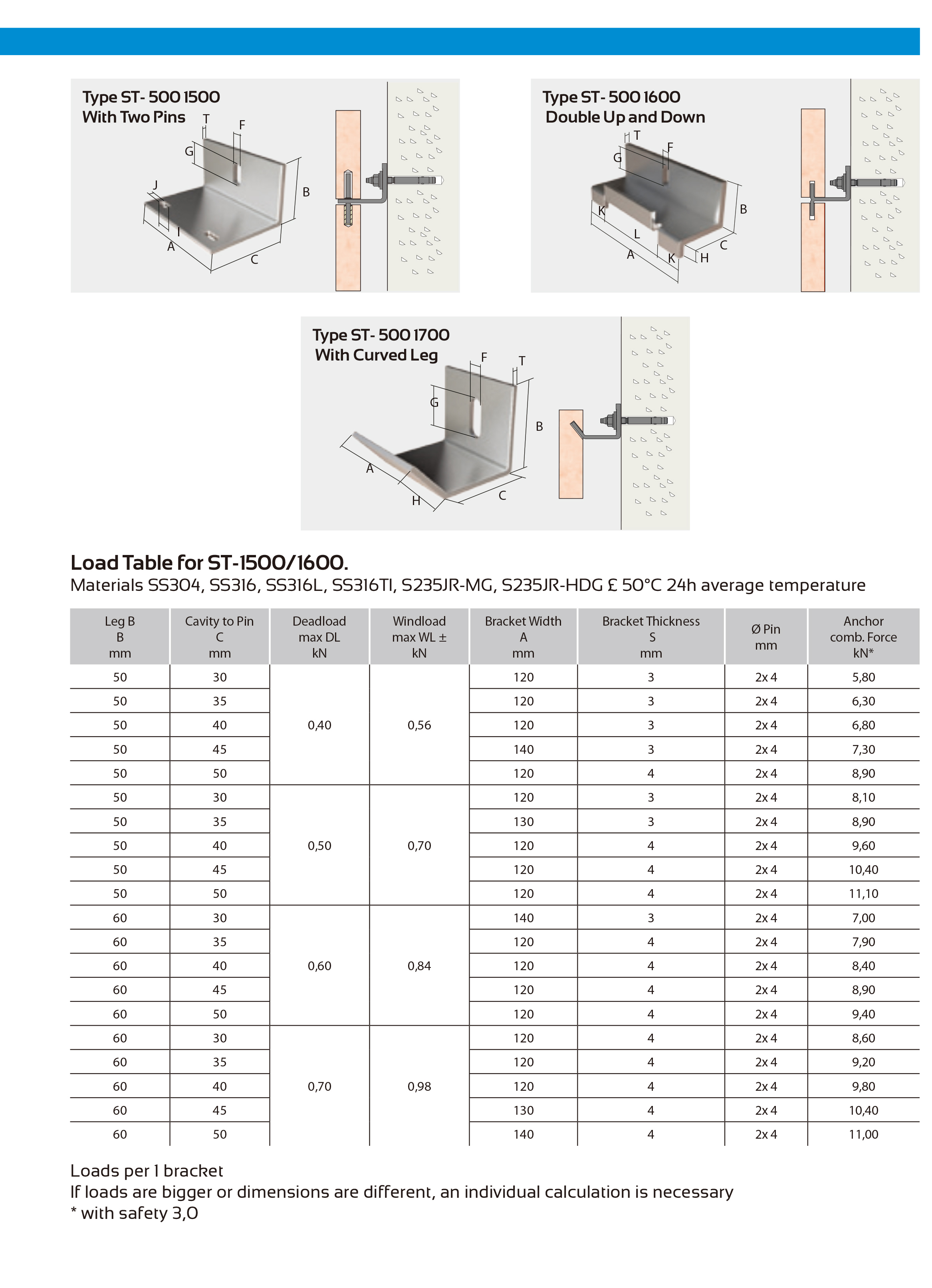

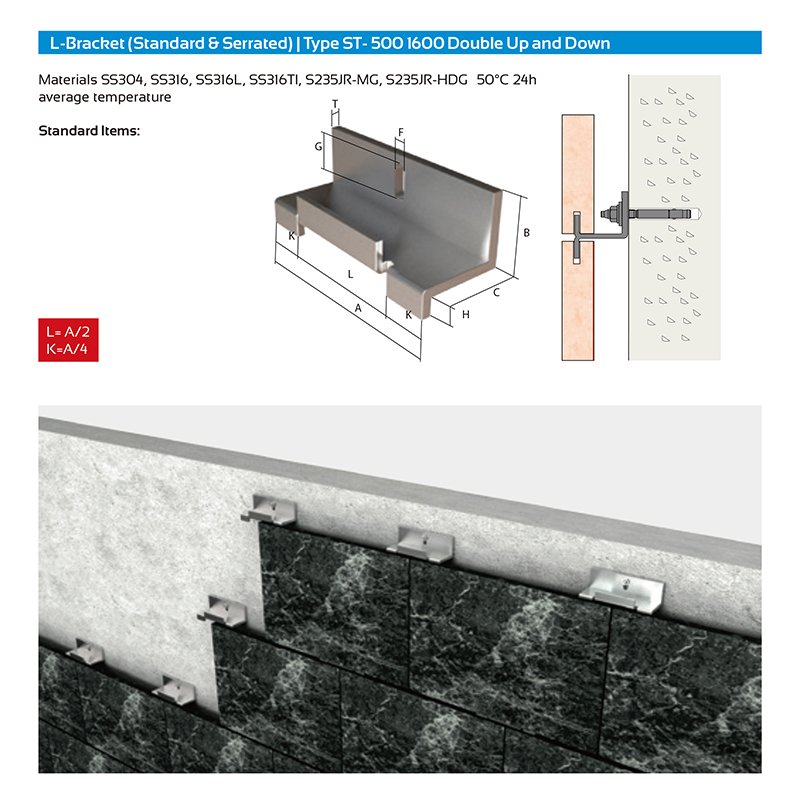

      Item No. T A B C H L K sl hole
      1600-120.50.30.3 3 120 50 30 15 A/2 A/4 8,5 x 22
      1600-120.50.35.3 3 120 50 35 15 A/2 A/4 8,5 x 22
      1600-120.50.40.3 3 120 50 40 15 A/2 A/4 8,5 x 22
      1600-140.60.30.3 3 140 60 30 15 A/2 A/4 8,5 x 22
      1600-140.50.45.3 3 140 50 45 15 A/2 A/4 8,5 x 22
      1600-120.60.30.4 4 120 60 30 15 A/2 A/4 8,5 x 22
      1600-120.60.35.4 4 120 60 35 15 A/2 A/4 8,5 x 22
      1600-120.50.40.4 4 120 50 40 15 A/2 A/4 10,5 x 22
      1600-120.50.45.4 4 120 50 45 15 A/2 A/4 10,5 x 22
      1600-120.50.50.4 4 120 50 50 15 A/2 A/4 8,5 x 22
      1600-120.60.50.4 4 120 60 50 15 A/2  A/4 10,5 x 22
      1600-140.60.50.4 4 140 60 50 15 A/2 A/4 10,5 x 22

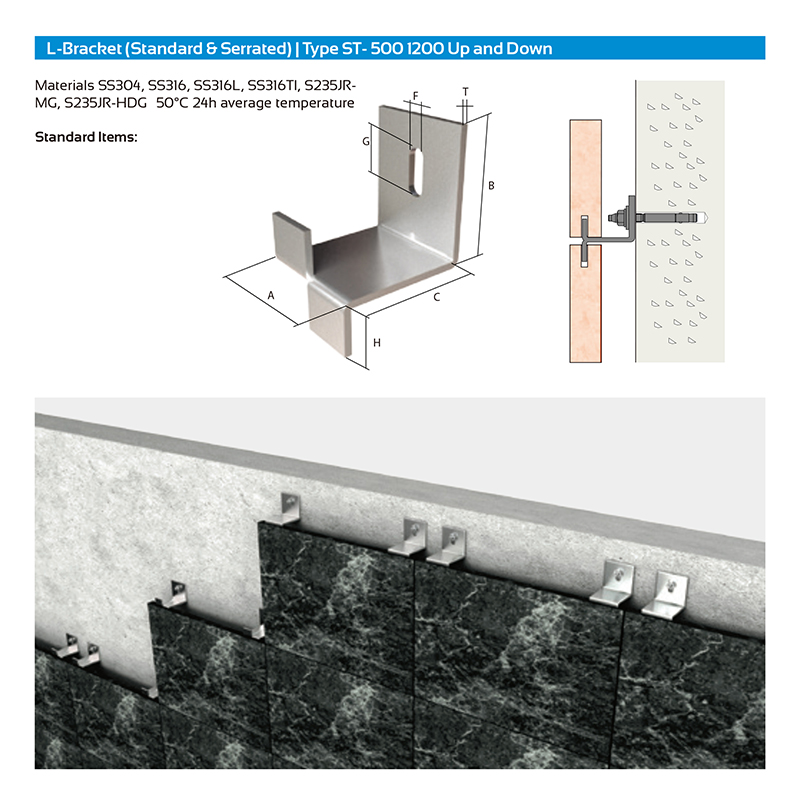

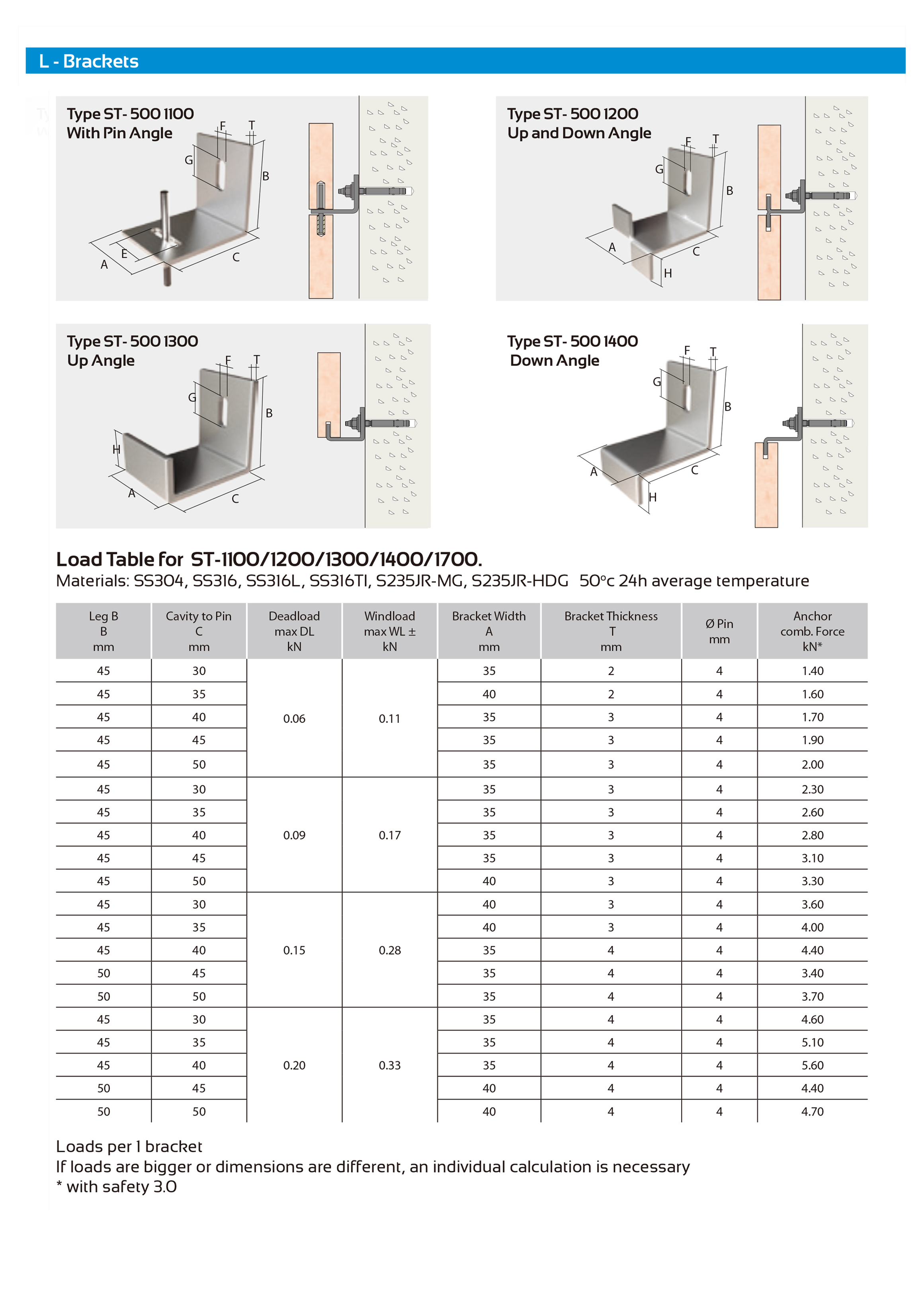

      Item No. T A B C H sl hole
      1200-35.45.30.2 2 35 45 30 15 6,5 x 22
      1200-40.45.35.2 2 10 45 35 15 6,5 x 22
      1200-35.45.30.3 3 35 45 30 15 6,5 x 22
      1200-40.45.30.3 3 40 45 30 15 8,5 x 22
      1200-35.45.35.3 3 35 45 35 15 6,5 x 22
      1200-40.45.35.3 3 40 45 35 15 8,5 x 22
      1200-35.45.40.3 3 35 45 40 15 6,5 x 22
      1200-35.45.30.4 4 35 45 30 15 8,5 x 22
      1200-35.45.35.4 4 35 45 35 15 8,5 x 22
      1200-35 45.40.4. 4 35 45 40 15 8,5 x 22
      1200-35.50.45.4 4 35 50 45 15 8,5 x 22
      1200-40.50.45.4 4 40 50 45 15 8,5 x 22

      Item No. T A B C H sl hole
      1200-35.45.30.2 2 35 45 30 15 6,5 x 22
      1200-40.45.35.2 2 40 45 35 15 6,5 x 22
      1200-35.45.30.3 3 35 45 30 15 6,5 x 22
      1200-40.45.30.3 3 40 45 30 15 8,5 x 22
      1200-35.45.35.3 3 35 45 35 15 6,5 x 22
      1200-40.45.35.3 3 40 45 35 15 8,5 x 22
      1200-35.45.40.3 3 35 45 40 15 6,5 x 22
      1200-35.45.30.4 4 35 45 30 15 8,5 x 22
      1200-35.45.35.4 4 35 45 35 15 8,5 x 22
      1200-35.45.40.4 4 35 45 40 15 8,5 x 22
      1200-35.50.45.4 4 35 50 45 15 8,5 x 22
      1200-40.50.45.4 4 40 50 45 15 8,5 x 22
