Name: Non-Adjustable Medium Voltage Glazed Tile Roof Photovoltaic Bracket Accessories
Rating: 5 (99 reviews)

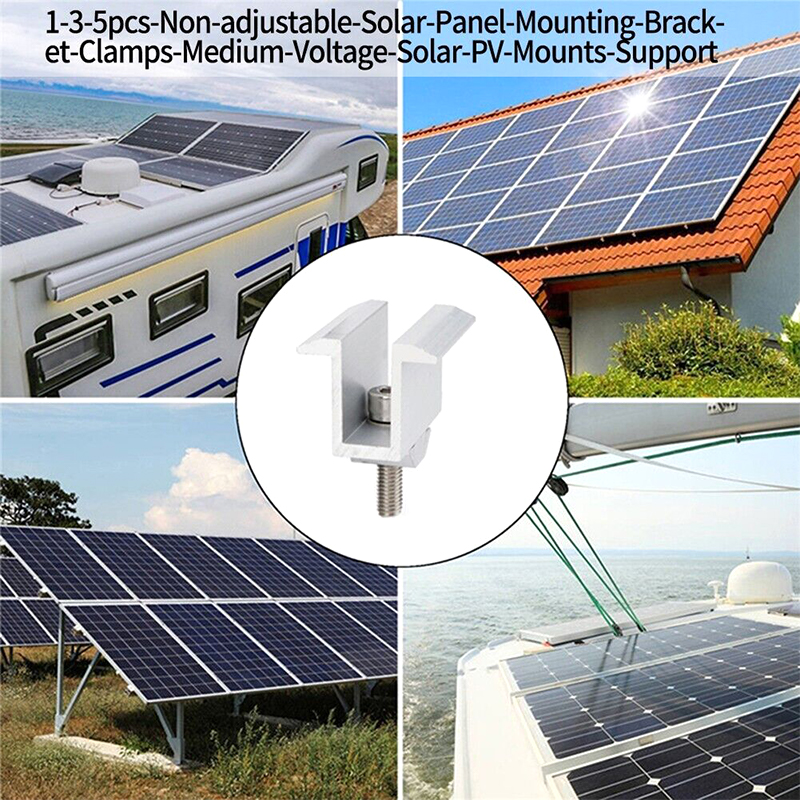

Non-Adjustable Medium Voltage Glazed Tile Roof Photovoltaic Bracket Accessories

Color steel tile angle fixtures and aluminum alloy photovoltaic brackets are important components in solar photovoltaic systems. The color steel tile angle clamp is mainly used to fix the color steel tile roof photovoltaic panels. It is made of high-strength aluminum alloy and has corrosion resistance and strength. This clamp is exquisitely designed and easy to install, and can effectively resist the influence of wind and other external forces, ensuring the stability and safety of photovoltaic panels. Aluminum alloy photovoltaic brackets are equipment used to support and fix solar panels in photovoltaic systems. It is also made of aluminum alloy material and is lightweight, corrosion-resistant, and easy to install. The design of aluminum alloy photovoltaic brackets is flexible and can be adjusted according to different installation environments and needs to maximize the power generation efficiency of solar panels.

Get A Quote

Photovoltaic mounting accessory

Non-Adjustable Medium Voltage Glazed Tile Roof Photovoltaic Bracket Accessories

Fixed-angle glazed tile roof fixing | Custom development from drawings or samples

Custom drawing development In-house laboratory 2000+ tons annual capacity

Product overview

Non-Adjustable Medium Voltage Glazed Tile Roof Photovoltaic Bracket Accessories are fixed-angle mounting components designed for photovoltaic installations on glazed tile roofs. Unlike adjustable variants, these accessories maintain a pre-set angle determined by the roof pitch and project design, delivering consistent positioning across the array without field adjustment. The components interface with tile roof hooks and rails to secure PV modules while preserving roof integrity. The product can be developed and manufactured according to customer drawings or samples, with in-house mold and tooling teams supporting custom shapes, dimensions, and material specifications. All products are self-manufactured, allowing direct pricing and supply. An in-house laboratory with advanced testing equipment verifies dimensional accuracy and mechanical performance, and products comply with international standards. Annual production capacity exceeds 2,000 tons.

Fixed-angle tile roof mounting

Core advantages

Drawing and sample development Custom products developed and produced according to customer drawings or physical samples, covering non-standard dimensions and configurations.

In-house laboratory and testing Advanced testing equipment verifies material properties, dimensional tolerance, and mechanical performance before shipment.

Self-manufactured supply All products are produced in-house, enabling direct pricing without intermediary costs and stable supply scheduling.

Mold and tooling capability Dedicated mold and custom tooling team supports development of various shapes, sizes, and material specifications.

Product characteristics

Angle type Non-adjustable fixed angle

Roof type Glazed tile roof

Voltage class Medium voltage application

Material options Aluminum alloy / stainless steel

Customization Drawings or samples accepted

Standards International standards compliant

Application scenarios

01 Residential glazed tile roof PV

02 Distributed rooftop solar arrays

03 Fixed-angle roof mounting projects

04 Retrofit and expansion installations

05 Custom bracket development projects

06 Medium voltage PV support systems

Manufacturing and quality notes

Drawing review before production Confirm dimensions, material grade, and interface geometry before tooling. Sample approval recommended for first-time orders.

Fixed-angle verification Angle accuracy should be verified against roof pitch at installation. Non-adjustable design requires correct angle specification at order.

Tile roof protection Use tile hooks compatible with glazed tile profiles. Avoid excessive point loading on tile surfaces during installation.

Batch traceability Material certificates and inspection records maintained per batch. Annual capacity over 2,000 tons supports large project scheduling.

Frequently asked questions

Can these accessories be produced from our own drawings or samples?

Yes. Products can be developed and produced according to customer drawings or physical samples. The in-house mold and custom tooling team supports development of various shapes, sizes, and material specifications. Drawing review and sample approval are typically completed before mass production.

What testing is performed before shipment?

The company operates its own laboratory with advanced testing equipment. Testing covers dimensional accuracy, material composition, surface condition, and mechanical performance. All products are self-manufactured, allowing direct control over quality and direct pricing.

What is the difference between non-adjustable and adjustable brackets?

Non-adjustable brackets maintain a fixed angle specified at the time of order, which suits projects with consistent roof pitch and panel orientation. Adjustable brackets allow field angle changes for complex roofs. The non-adjustable design reduces component count and installation steps.

What is the annual production capacity and standard compliance?

Annual production capacity exceeds 2,000 tons. Products are manufactured to comply with international standards, with material and performance documentation available for project review.

Custom development | In-house laboratory | Self-manufactured supply | 2000+ tons annual capacity

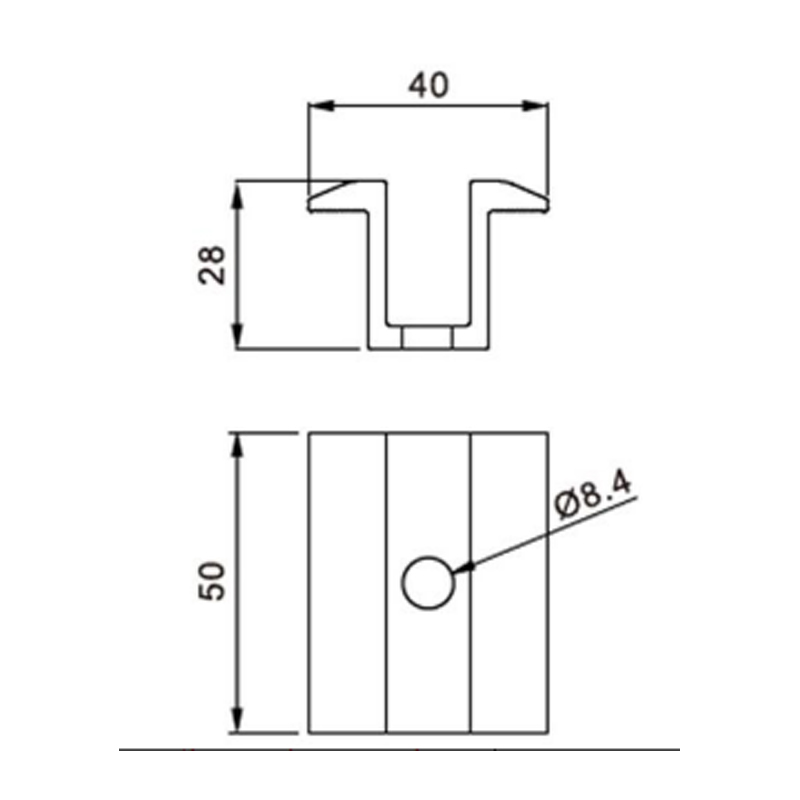

Model	CMIC-35/40	Material	AL-6005T5
Surface Treatment	anodizing	Weight	64g

Also known as a solar panel roof mount or PV roof bracket, is a component used to secure solar panels to the roof structure. It is specifically designed to provide a stable and secure attachment point for solar panels on various types of roofs.

The installation of roof brackets for solar panels typically involves the following steps:

· Site Assessment: Begin by assessing the roof to determine the location and orientation of the solar panels. Consider factors such as sunlight exposure, shading, roof pitch, and structural integrity.

· Mounting Structure Selection: Select the appropriate roof bracket system based on the roof type and design. Different roof types, such as asphalt shingle, tile, or metal, may require specific brackets or mounting methods.

· Preparing the Roof: Ensure the roof is clean and free from debris. Repair any damaged areas or leaks before proceeding with the installation. It is recommended to consult a professional roofer if repairs are needed.

· Positioning and Marking: Determine the layout and positioning of the solar panels on the roof. Use measuring tools and guidelines to mark the locations where the roof brackets will be installed.

· Flashing Installation: Install flashing around the marked locations to ensure a watertight seal and prevent water leakage. Follow the manufacturer's instructions for proper flashing installation based on the roof type.

· Bracket Installation: Attach the roof brackets to the roof structure at the marked locations. This typically involves using appropriate fasteners such as screws or bolts. Ensure the brackets are securely anchored to the roof structure.

· Rail Installation: Install the mounting rails onto the roof brackets. These rails provide the framework for attaching the solar panels. Secure the rails to the brackets using the provided hardware.

· Panel Mounting: Once the rails are in place, mount the solar panels onto the rails. This may involve sliding the panels into the rail channels or using additional hardware provided by the manufacturer.

· Secure Connections: Double-check all connections, ensuring that the roof brackets, rails, and solar panels are securely fastened.

· System Testing: Conduct a thorough system test to verify the proper functioning of the solar panel installation. This includes checking electrical connections, monitoring power output, and ensuring all safety measures are in place.

It is crucial to follow the manufacturer's instructions and guidelines for the specific roof brackets and mounting system being used. Additionally, it is recommended to consult a professional solar installer or roofing contractor for the installation process to ensure compliance with local building codes and to ensure the integrity of the roof.
