    An end clamp is an important fixing device, mainly used to fix wires or cables and bear their tension. It plays an integral role in power transmission, communications, and other related fields. The structure of the end clamp is exquisitely designed and can be customized according to specific needs to accommodate different specifications and types of wires or cables. It is usually made of high-strength materials, such as metals or alloys, to ensure it has sufficient strength and durability. The end clamp securely holds wires or cables during installation. The end clamp also has electrical conductivity, which can achieve smooth transmission of current while ensuring the fixation effect.
    Get A Quote
    PREV：Non-Adjustable Medium Voltage Glazed Tile Roof Photovoltaic Bracket AccessoriesNEXT：Solar Photovoltaic Module Bracket With Adjustable Side Pressure 35-50mm
    • Parameter
    • Contact Us

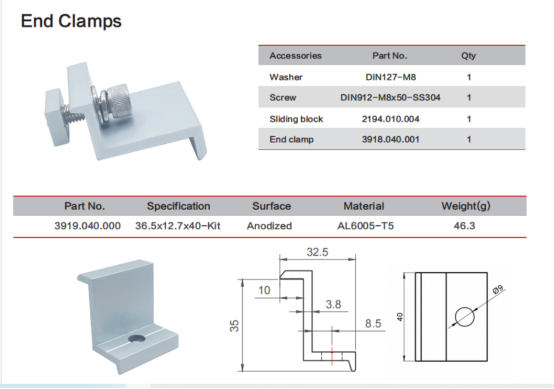

    • Accessories Part No. Qty
      Washer DIN127-M8 1
      Screw DIN912-M8x50-SS304 1
      Sliding block 2194.010.004 1
      End clamp 3918.040.001 1



      Part No. Specification Surface Material Weight(g)
      3919.040.000 36.5x12.7x40-Kit Anodized AL6005-T5 46.3

      · Package Content: You will receive 12 pcs solar panel brackets. Sufficient quantity to meet your daily use and replacement, bringing you great convenience.

      · Premium Material: The solar panel mounting brackets are made of highly strong aluminum alloy, durable, rust, corrosion, and weather resistant, expanding its lifespan.

      · Easy to Install: The solar end clamps are in Z shaped design, paired with clamps, screws, and reinforcement washers. Just need a proper hexagonal wrench (not included) for easy installation to fix the solar panel onto the surface of the bracket, easy and convenient.

      · Considerate Design: The solar panel clamps are slim but sturdy, and well polished. The groove strip makes it firmly and tightly connected with the solar panels.· Wide Application: Suitable for the solar panel installation and fixation on the flat roofs, like the RV, house boat, etc. Perfect for small solar panels installation.

      Panel termination hardware
      End Clamp
      Terminal fixing for facade panels | Edge securement | Concealed or visible options
      AISI 304 / 316L Panel thickness 6-25 mm Load up to 8 kN End of run
      ◈

      The End Clamp is a specialized terminal fixing component used to secure the final panel at the end of a cladding run. Designed for facade systems where termination points require robust edge retention, the end clamp provides a secure grip on the last panel in a row, preventing lateral displacement and maintaining alignment integrity. The clamp features a clamping mechanism that engages the panel edge, distributing load evenly across the contact surface to prevent stress concentrations or edge damage. Manufactured from stainless steel, the end clamp offers corrosion resistance suitable for both interior and exterior applications. The design incorporates slotted holes for adjustment and a positive locking feature that prevents loosening under vibration or thermal cycling. End clamps are essential components in ventilated facade systems, rainscreen cladding, and stone panel installations where panel ends must be securely terminated without visible fasteners on the face.

      ✦
      End Clamp Assembly
      Panel termination fixing
      Core advantages
      Terminal edge securement Specifically designed for end-of-run panels where standard mid-panel clamps cannot be used. Provides robust edge retention at termination points.
      Load distribution Clamping mechanism distributes force evenly across panel edge, preventing point loading that could cause edge delamination or cracking.
      Adjustable positioning Slotted holes and adjustable jaw allow precise positioning to accommodate different panel thicknesses and edge conditions.
      Visual finish options Available in polished, satin, or powder-coated finishes for visible applications where aesthetic appearance is critical.
      Product specifications
      ◈ Panel thickness 6 · 8 · 10 · 12 · 16 · 20 · 25 mm Custom sizes available
      ◈ Material grade AISI 304 · AISI 316L EN 10088 compliant
      ◈ Clamping force 2 · 4 · 6 · 8 kN Adjustable via torque
      ◈ Fixing type Bolted · Clamp-on · Spring-loaded Site selectable
      ◈ Surface finish Satin · Polished · Powder coated RAL colours available
      ◈ Compatibility ACM · HPL · Stone · Composite Multi-material
      Load capacity reference
      M6 clamp (6 mm panel)
      2.8 kN
      M8 clamp (10 mm panel)
      4.5 kN
      M10 clamp (16 mm panel)
      8.0 kN
      M10 clamp (316L, 20 mm panel)
      7.5 kN
      Application scenarios
      ▸ Termination of facade panels at building corners, edges, and openings
      ▸ End-of-run securement for ACM and composite panel cladding systems
      ▸ Stone and terracotta tile termination points requiring edge retention
      ▸ Architectural feature panels where end fixing must be concealed
      ▸ Retrofit applications where existing panel ends require securement
      ◊
      Panel termination
      End clamp application
      Installation and engineering notes
      Panel edge preparation Panel edge must be clean, square, and free of burrs. Edge radius maximum 1 mm for proper clamp engagement. Seal edge if exposed to moisture.
      Torque specification M6: 8-12 Nm, M8: 18-25 Nm, M10: 30-40 Nm. Use torque wrench. Do not over-tighten to avoid panel edge deformation.
      Thermal movement Allow 2-3 mm gap at panel ends for thermal expansion. End clamp accommodates ±3 mm movement in panel plane.
      Corrosion compatibility Use nylon or EPDM isolator between clamp and aluminum panels. For stainless panels, direct contact is acceptable with matching grade.
      Frequently asked questions
      ◈ What is the difference between an end clamp and a mid-panel clamp?
      An end clamp is specifically designed for terminating panels at the end of a row or at building corners. It provides edge retention without requiring adjacent panels for support. Mid-panel clamps are used for intermediate panels where both sides are supported. End clamps typically have a different geometry with a shorter clamping jaw and additional fixing points to handle the loads at termination points where wind pressure and panel weight concentrate.
      ◈ How does the end clamp accommodate different panel thicknesses?
      The end clamp features an adjustable jaw mechanism with a threaded or spring-loaded adjustment that allows the clamp to adapt to panel thicknesses from 6 mm to 25 mm. A thickness setting gauge is provided for accurate adjustment. For panels outside this range, custom end clamps can be fabricated. Jiangsu Aozheng Metal Products Co., Ltd. provides thickness-specific clamps for projects with non-standard panel dimensions.
      ◈ What load capacity does the end clamp provide at panel terminations?
      The end clamp provides clamping forces from 2 kN to 8 kN depending on size and material. For typical facade panel terminations, M8 clamps with 4-6 kN capacity are sufficient for wind loads up to 2.5 kPa. Jiangsu Aozheng Metal Products Co., Ltd. provides project-specific load calculations based on panel size, building height, and local wind speed data. The company has supplied end clamps for projects across the United States, Germany, Australia, Canada, and the Middle East.
      ◈ Can the end clamp be used with both solid and hollow panels?
      Yes. The clamp is compatible with solid panels (stone, HPL) and hollow panels (ACM, honeycomb). For hollow panels, the clamp jaw is designed to grip the solid edge frame or thick face sheets without crushing the core. For panels with thin face sheets, a reinforced jaw option is available. Jiangsu Aozheng Metal Products Co., Ltd. provides material-specific guidance for optimal clamp selection.
      EN 1993-1-8 Compliant ◈ ISO 9001:2015 ◈ Panel termination specialist ◈ 2,000+ tons annual ◈ Exported to 40+ countries
