Solar Photovoltaic Module Bracket With Adjustable Side Pressure 35-50mm

Solar Photovoltaic Module Bracket With Adjustable Side Pressure 35-50mm

Core Advantages

• Universal Frame Compatibility: The adjustable range of 35mm to 50mm eliminates the requirement for stock-keeping multiple clamp sizes, facilitating streamlined inventory management for large-scale solar projects.
• Mechanical Load Distribution: The bracket design ensures even pressure application across the frame surface, preventing localized stress that could lead to micro-cracking of the photovoltaic cells.
• Simplified Installation: Integrated sliding tracks allow for rapid positioning and tightening, which reduces the labor hours required for mounting array sections.
• Corrosion Resistance: Fabricated from materials capable of withstanding prolonged UV exposure and varying humidity levels, maintaining structural integrity over the 25-year lifespan of a solar system.

Product Characteristics

Application Scenarios

• Residential Rooftop Arrays: Suitable for pitched or flat roofs where module frame heights may vary between different panel brands.
• Commercial Ground Mounts: Utilized in utility-scale solar farms to secure modules to aluminum or galvanized steel longitudinal rails.
• Carport Solar Structures: Provides secure fastening in elevated structures exposed to higher wind speeds.
• Retrofit Projects: Useful when replacing older panels with modern frames of different thicknesses without replacing the existing rail infrastructure.

Installation and Maintenance Guidelines

Torque Requirements

To ensure mechanical stability, bolts should be tightened using a calibrated torque wrench. Over-tightening can deform the aluminum frame, while under-tightening may lead to module displacement during thermal expansion or wind events.

Storage Conditions

• Store in a dry, ventilated environment to prevent the accumulation of moisture between stacked components.
• Avoid contact with corrosive chemical substances or high-salinity environments during long-term storage to preserve the anodic coating.

Regular Inspection

Periodic physical checks are recommended to verify the tightness of the adjustable side pressure bolts. Environmental factors such as extreme temperature fluctuations can lead to minor thermal contraction or expansion, requiring torque verification every 24 months.

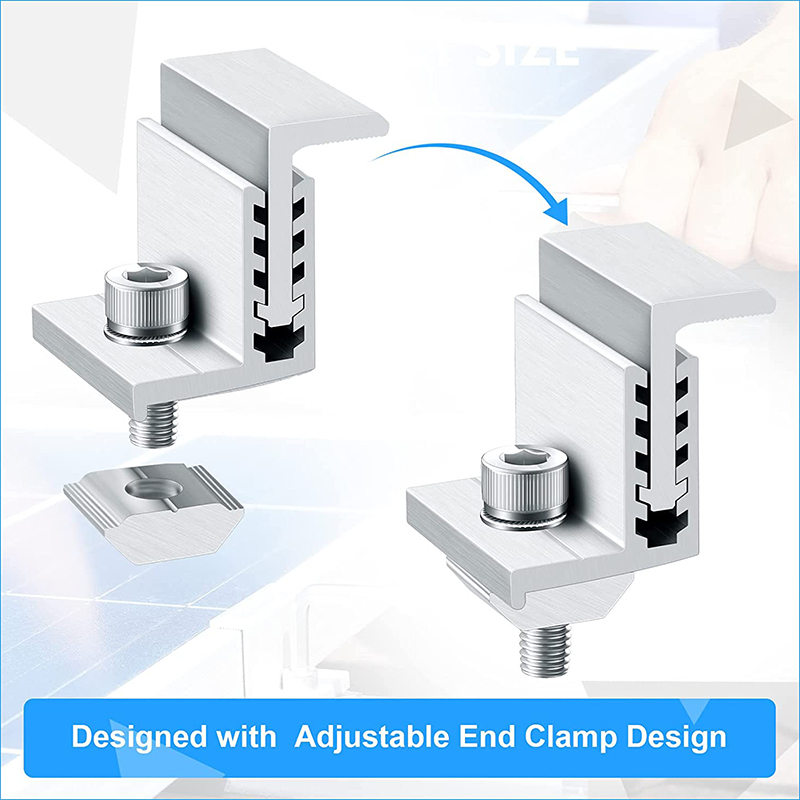

· A solar panel adjustable end clamp is a component used in photovoltaic (PV) systems to secure the ends of solar panels to mounting rails or frames. It is designed to provide a secure grip on the edges of the solar panels while allowing for adjustability and flexibility in panel positioning.

· The adjustable end clamp typically consists of a clamp body, a tightening mechanism, and fastening hardware. The clamp body is designed to fit over the edge of the solar panel, while the tightening mechanism allows for adjustment and secure fastening. Fastening hardware, such as bolts or screws, is used to attach the clamp to the mounting rails or frames.

· The main purpose of the adjustable end clamp is to hold the solar panel in place and prevent movement or slippage, particularly in windy or dynamic conditions. By securely gripping the panel edges, it helps maintain the desired position and alignment of the panels within the PV array.

· The adjustability feature of the end clamp allows for fine-tuning the panel's position and angle to optimize solar exposure and maximize energy generation. This is particularly important in installations where the tilt or orientation of the solar panels needs to be adjusted to accommodate varying sun angles or specific installation requirements.

· When selecting adjustable end clamps for solar panels, it is essential to consider factors such as the panel thickness, the mounting rail or frame specifications, and the load capacity requirements. Compatibility with the specific solar panel and mounting system should be verified to ensure a proper fit and secure attachment.

· It's worth noting that the exact design and features of adjustable end clamps can vary between manufacturers and PV system configurations. Consulting the manufacturer's documentation and guidelines is recommended to ensure proper selection, installation, and usage of adjustable end clamps in your solar panel installation.
