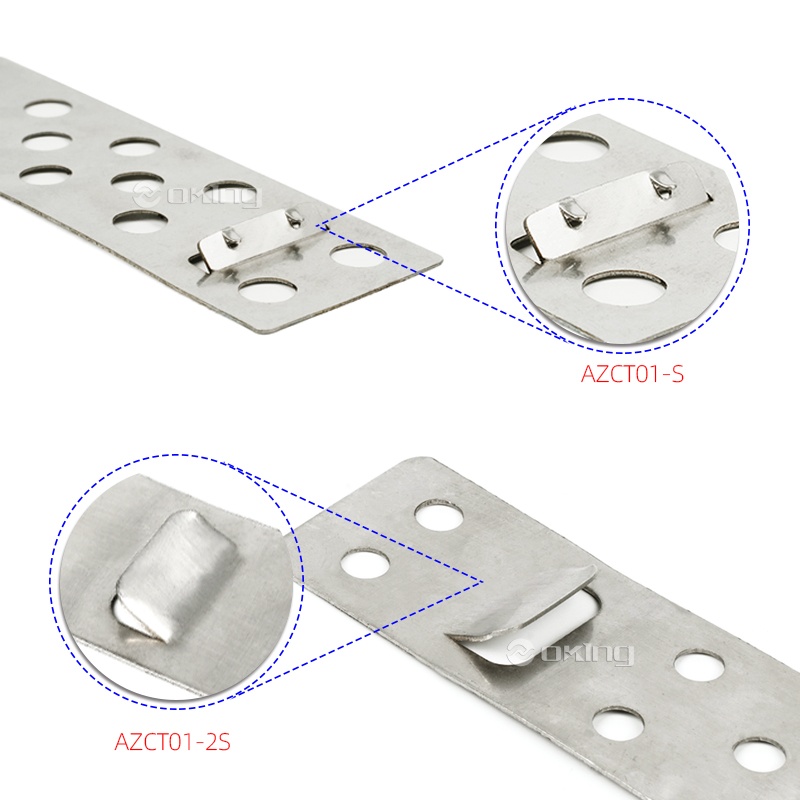

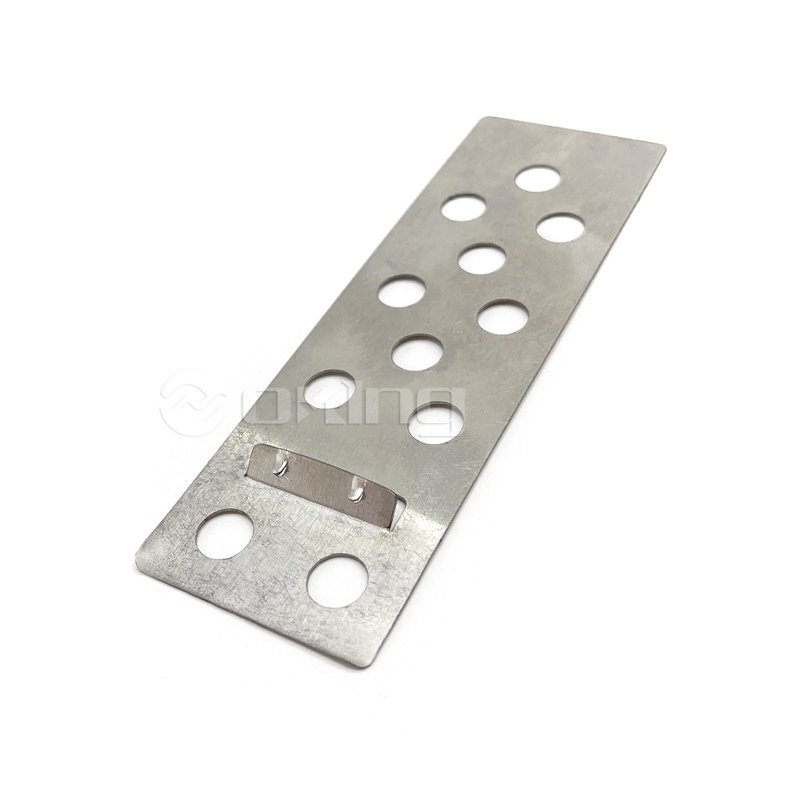

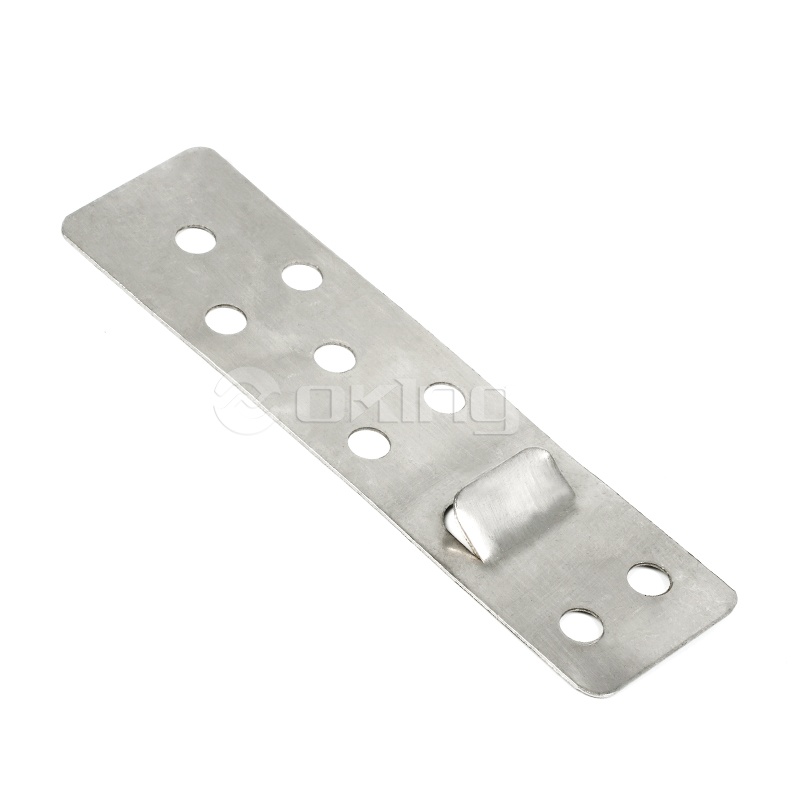

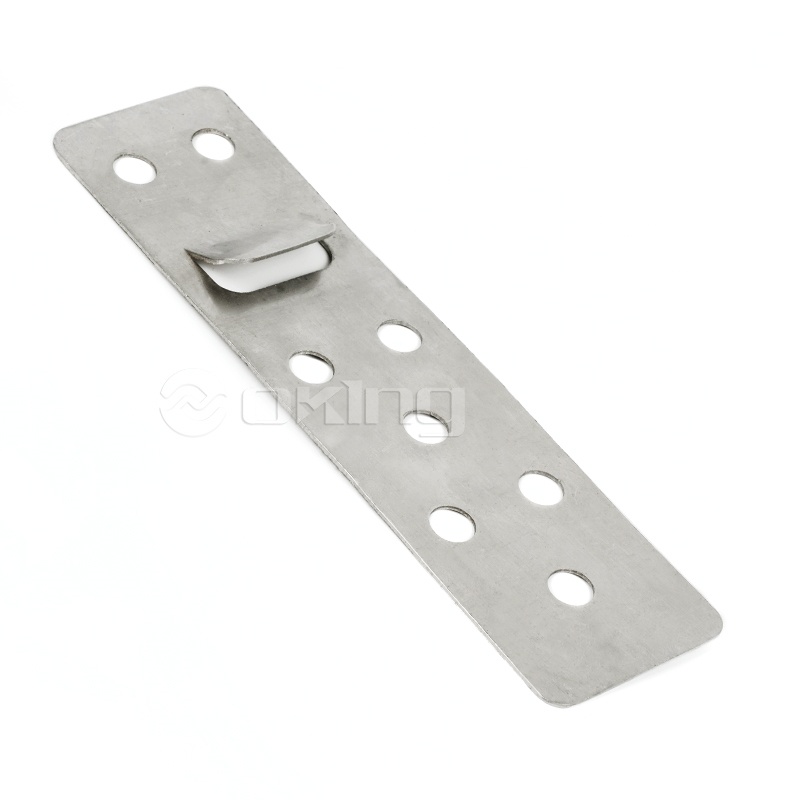

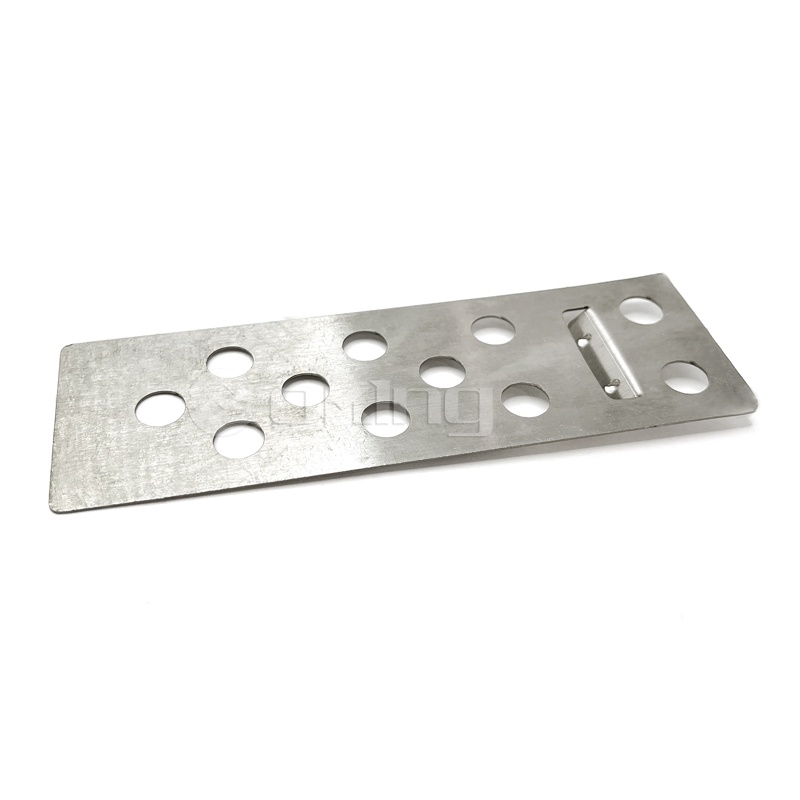

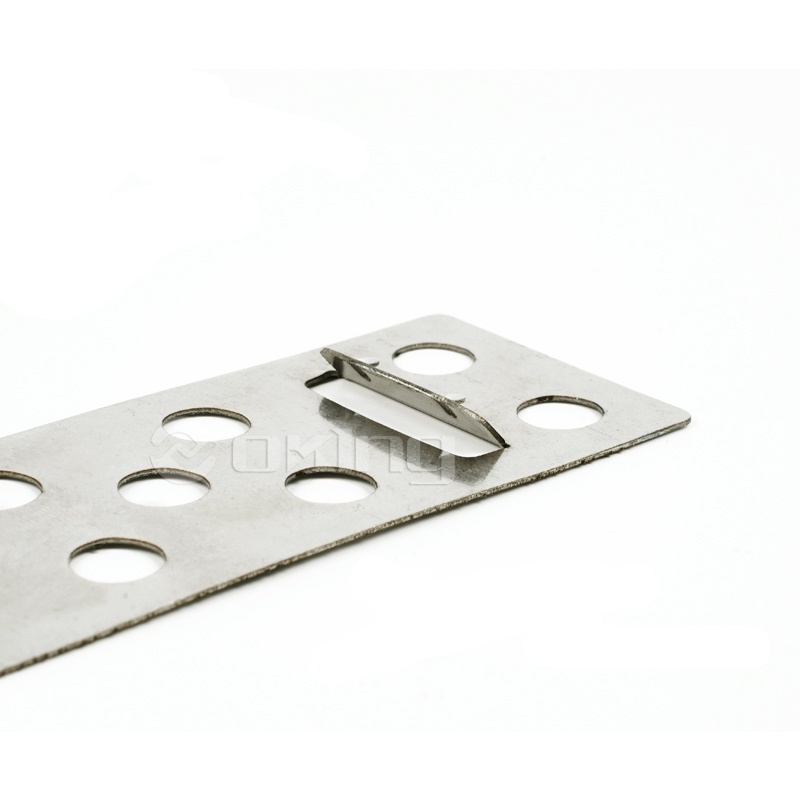

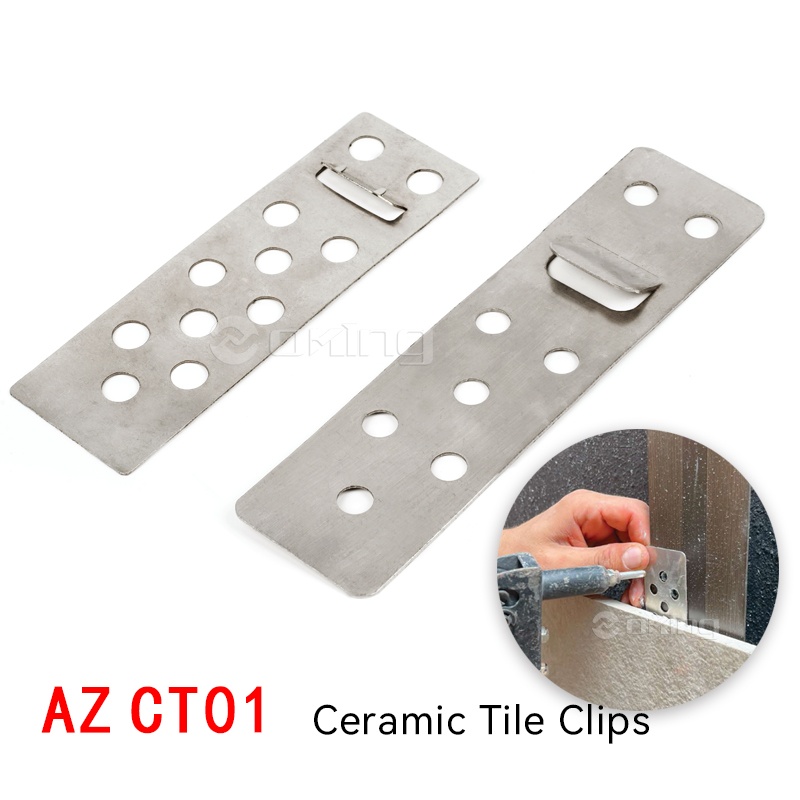

AZCT01 Stainless Steel Ceramic Tiles Clips Cladding Brackets

AZCT01 Stainless Steel Ceramic Tiles Clips Selecting the right curtain wall panel materials for use with stainless steel cladding brackets is crucial for creating durable, safe, and visually striking building envelopes. The compatibility between panel and bracket affects everything from structural performance and thermal movement to long-term maintenance costs. Stainless steel brackets offer exceptional strength and corrosion resistance, making them suitable for a wide range of panel types, but understanding the specific interface requirements is key to a successful project. This guide explores the most common and suitable curtain wall materials, detailing how they interact with stainless steel support systems to help architects and engineers make informed decisions. Clips For Ceramic Facade System Fundamental Considerations for Material Compatibility Before selecting a specific panel material, it's essential to understand the core engineering and design principles that govern a successful partnership with a stainless steel bracket system. These considerations ensure the assembled facade performs as a cohesive unit under various environmental loads. Thermal Expansion and Movement: Different materials expand and contract at different rates when subjected to temperature changes. The bracket and panel connection must accommodate this movement without inducing stress. Galvanic Corrosion Risk: When two dissimilar metals are in contact in the presence of an electrolyte (like water), a corrosive reaction can occur. The bracket-panel interface must be designed to mitigate this. Load Transfer and Structural Integrity: The panel material must have sufficient strength and stiffness to transfer wind, seismic, and dead loads into the brackets without deforming or failing. Durability and Maintenance Alignment: The service life and maintenance needs of the panel should be compatible with the long-life expectancy of the stainless steel brackets. Managing Thermal Movement and Structural Loads A primary function of the stainless steel cladding bracket is to safely manage forces. This involves both supporting the panel's weight and allowing for its natural dynamic behavior, which is a critical aspect of curtain wall bracket material compatibility. Slotted Hole Design: Connection points on brackets often include slotted or oversized holes to allow the panel to expand and contract freely relative to the building structure. Load Distribution: The bracket must be designed to distribute concentrated loads from the panel across a larger area of the primary structure, preventing localized stress concentrations. Differential Movement Analysis: Engineers must calculate the expected movement of both the panel and the building frame to ensure the gap designed between panels is sufficient. Suitable Metal Panel Materials for Stainless Steel Brackets Metal panels are a natural partner for stainless steel brackets due to their high strength-to-weight ratio and modern aesthetic. The key to a successful installation lies in managing the metal-to-metal interface, particularly concerning galvanic corrosion. Aluminum Composite Panels (ACP): Extremely popular for their lightness, flatness, and variety of finishes. A non-conductive isolating material is mandatory between the aluminum panel and the stainless steel bracket to prevent galvanic corrosion. Terra Cotta Rainscreens: While not a metal, terra cotta panels are frequently supported by metal brackets. Stainless steel is an excellent choice due to its durability and the need for a strong, long-lasting support for the heavy clay units. Zinc and Copper Panels: These metals develop a protective patina over time and are often used in more architectural applications. Compatibility with stainless steel is generally good, but isolation is still recommended to preserve the appearance and integrity of both metals. Aluminum Composite Panels (ACP) and Corrosion Prevention When using stainless steel brackets for ACP systems, the prevention of galvanic corrosion is the single most important design detail. Without proper isolation, the aluminum will corrode rapidly, compromising the panel's attachment. Isolation Pads and Gaskets: Use non-conductive plastic or rubber pads (often made from PVC, neoprene, or EPDM) between the bracket and the aluminum panel. Stainless Steel Fasteners: Always use stainless steel screws and bolts to connect the panel to the bracket. Using aluminum fasteners is not recommended as they lack the necessary strength. Anodized or Painted Surfaces: While the factory finish on ACP provides some protection, it is not sufficient to prevent corrosion at cut edges or drilled holes where bare aluminum is exposed. The following table outlines key considerations for metal panel compatibility: Panel Material Primary Consideration with SS Brackets Required Interface Component Aluminum Composite Panel (ACP) High risk of galvanic corrosion Non-conductive isolation pad (e.g., PVC, EPDM) Terra Cotta High dead load, moisture exposure Robust, corrosion-resistant bracket; often with adjustable shims Zinc/Copper Moderate galvanic risk, aesthetic protection Isolation pad recommended to prevent staining and corrosion Natural Stone and Glass Panel Applications Heavy and prestigious materials like natural stone and large-format glass require robust and reliable support systems. Stainless steel cladding brackets are often the preferred choice for these applications due to their high strength and proven performance. Granite and Marble Panels: These materials are very heavy and require high-strength brackets. Stainless steel provides the necessary load capacity, and since stone is non-metallic, there is no risk of galvanic corrosion. Glass Fiber Reinforced Concrete (GFRC):A lighter alternative to natural stone, GFRC still requires sturdy support. Stainless steel brackets are compatible, but the connection detail must account for the material's tolerance and potential for creep. Unitized Glass Curtain Walls:While primarily supported by aluminum frames, the structural silicone or pressure caps that hold large glass lites may be backed by stainless steel brackets in point-supported or special structural glazing applications. Supporting Heavy Stone Panels with Stainless Steel Systems The use of stainless steel brackets for stone cladding is a standard in the industry for high-rise and significant buildings. The design focuses on creating a fail-safe connection for the substantial weight involved. Kerb-Type Brackets: A common design where the stone panel sits on a horizontal "kerb" or ledge of the bracket, carrying the dead load vertically in compression, which is the most efficient load path. Undercut Anchors: For a more discreet connection, stainless steel anchors are epoxied into a hole drilled into the back of the stone, which then engages with the bracket. This requires precise engineering and installation. Load and Stress Analysis: Due to the brittleness of stone, a detailed finite element analysis (FEA) is often performed to ensure stress concentrations around the bracket connections do not exceed the stone's capacity. Composite and Specialty Panel Materials Modern architecture often utilizes innovative composite and engineered materials that offer unique benefits. Integrating these with a stainless steel bracket system requires an understanding of their specific properties and attachment methods. Fiber Reinforced Polymer (FRP) Panels: These lightweight, moldable panels are highly corrosion-resistant. They can be directly attached to stainless steel brackets using standard fasteners, often with a large washer to distribute the load. High-Pressure Laminate (HPL) Panels: While the core material is composite, the attachment is typically through an aluminum carrier frame. The stainless steel brackets support the frame, and the same galvanic isolation principles for ACP panels apply. Photovoltaic (PV) Panels: Building-integrated photovoltaics (BIPV) can be incorporated into the rainscreen. Stainless steel brackets provide a durable and non-corrosive framework for supporting these valuable and heavy functional panels. Integrating Innovative Materials with Traditional Supports The versatility of stainless steel cladding brackets makes them suitable for even the most modern panel systems. Success hinges on customizing the connection detail to the panel's unique characteristics. Custom Fabrication: For non-standard panel thicknesses or profiles, brackets can be custom-fabricated by specialized manufacturers to create a perfect interface. Testing and Mock-ups: Before full-scale installation, it is critical to build a mock-up panel and test the bracket connection for load capacity, water penetration, and long-term durability. Thermal Breaks: For high-performance buildings, thermal break pads can be incorporated into the bracket design to minimize thermal bridging between the cold exterior and the warm interior, improving energy efficiency. Comparison of composite material requirements: Panel Material Weight Consideration Bracket Interface Detail Fiber Reinforced Polymer (FRP) Lightweight Direct fastener with load-spreading washer High-Pressure Laminate (HPL) Light to Medium Connection via aluminum carrier frame Photovoltaic (BIPV) Panels Medium to Heavy Robust, non-corrosive support frame with electrical isolation FAQ What is the main advantage of using stainless steel brackets over carbon steel? The primary advantage is superior corrosion resistance. While carbon steel brackets are often galvanized, this coating can be scratched or damaged during installation or over time, leading to rust that can compromise structural integrity and stain the facade. Stainless steel cladding brackets, particularly grades 304 and 316, form a passive oxide layer that self-heals, providing maintenance-free durability for the life of the building. This is especially critical in coastal, industrial, or high-pollution environments where corrosion is a major concern, ensuring the long-term reliability of the stainless steel facade system. Do I always need an isolation pad between an aluminum panel and a stainless steel bracket? Yes, it is a non-negotiable best practice. Aluminum is anodic to stainless steel in the galvanic series. When moisture is present, this creates a battery-like effect where the aluminum (the anode) corrodes sacrificially to protect the stainless steel (the cathode). This corrosion can be rapid and severe, leading to pitting and failure of the aluminum panel at the connection point. Therefore, using a non-conductive isolation pad for cladding brackets is essential for any permanent installation to break the electrical circuit and prevent this destructive electrochemical process. Can stainless steel brackets be used for both vented and drained rainscreens? Absolutely. Stainless steel brackets are highly versatile and form the primary structural support for both system types. The fundamental design of the bracket itself is often similar. The key differences lie in the overall wall assembly behind the panels—specifically, the presence and design of the air and moisture barriers. The bracket must be compatible with the sealing details of the chosen system. For example, in a pressure-equalized rainscreen, the bracket's penetration through the air barrier must be meticulously sealed to maintain the chamber's performance. How does the weight of the panel material affect the bracket specification? Panel weight directly dictates the required load-bearing capacity of the stainless steel cladding bracket. Heavier materials like thick granite or GFRC require brackets with a larger cross-section, greater thickness, and more robust fasteners. The structural engineer must calculate the dead load (the panel's weight) and live loads (wind, seismic) to specify a bracket with an appropriate factor of safety. Using an undersized bracket for a heavy panel is a critical safety error. This is why manufacturers like Jiangsu Aozheng Metal Products Co., Ltd. often provide a range of bracket sizes and capacities to suit everything from lightweight ACP to heavy stone cladding. What is the typical lifespan of a stainless steel bracket system? When properly specified and installed, a stainless steel bracket system can last for the entire design life of the building, often considered to be 50 years or more. The actual lifespan depends on the stainless steel grade (with 316 lasting longer in harsh environments), the local atmospheric conditions, and the quality of installation. Unlike other materials, stainless steel does not require periodic painting or coating maintenance to retain its corrosion resistance, making it a low-maintenance, life-cycle cost-effective solution for permanent building structures.
