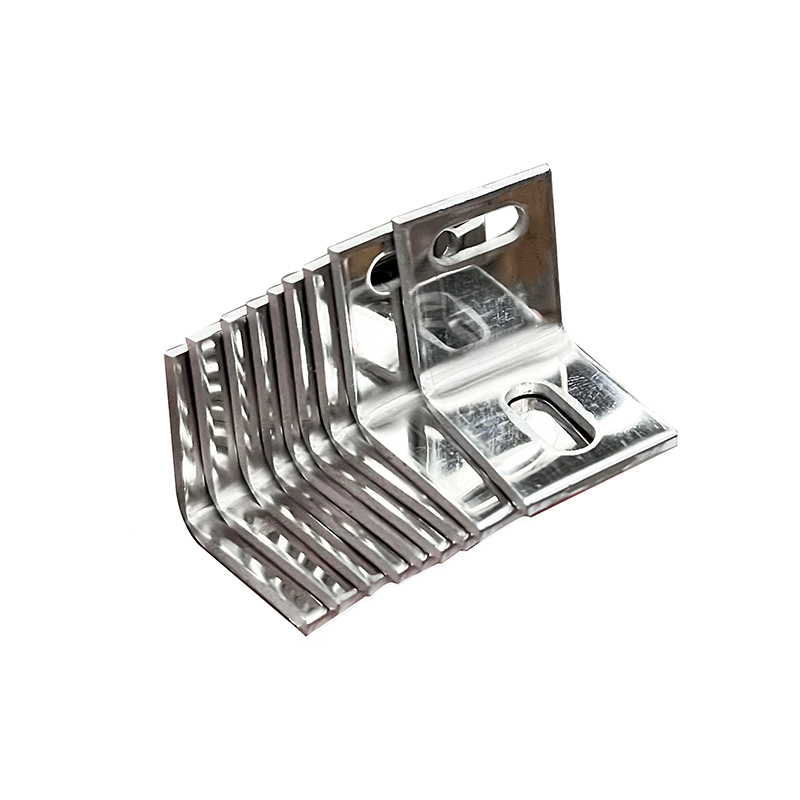

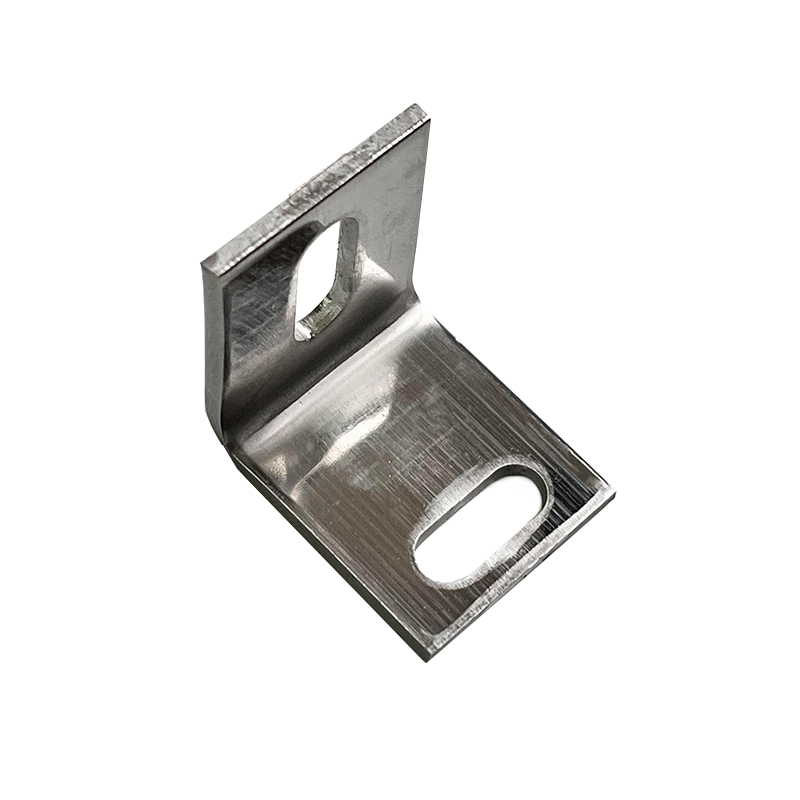

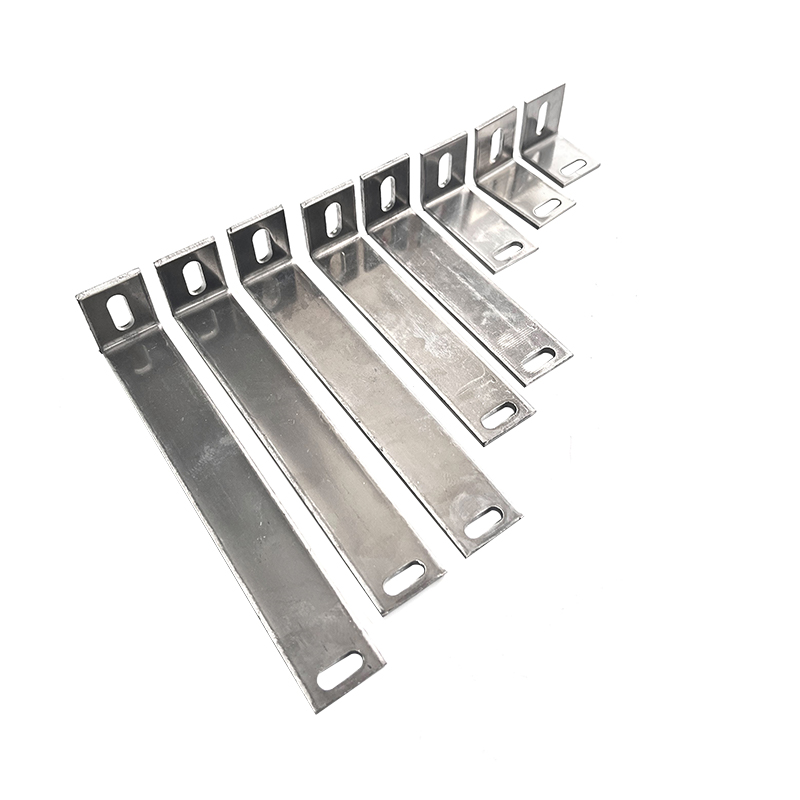

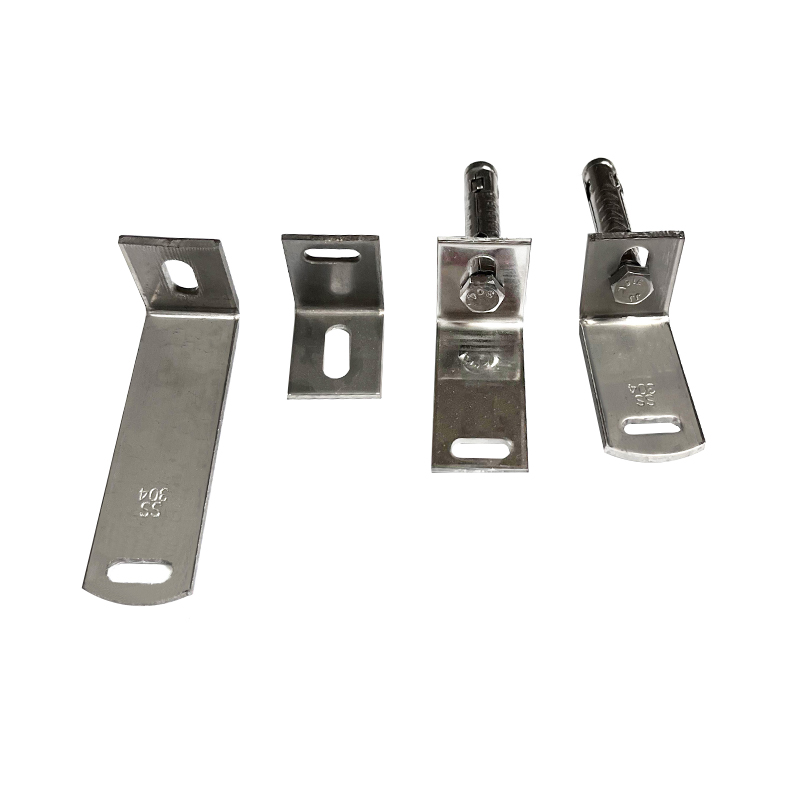

Stainless Steel Marble Angle Bracket With Shine Surface
Stainless Steel Marble Angle Bracket With Shine Surface
Stainless Steel Marble Angle Bracket With Shine Surface
Stainless Steel Marble Angle Bracket With Shine Surface
Stainless Steel Marble Angle Bracket With Shine Surface
Stainless Steel Marble Angle Bracket With Shine Surface
Stainless Steel Marble Angle Bracket With Shine Surface
Stainless Steel Marble Angle Bracket With Shine Surface
Stainless Steel Marble Angle Bracket With Shine Surface
Stainless Steel Marble Angle Bracket With Shine Surface

Stainless Steel Marble Angle Bracket With Shine Surface

L Angle Bracket in the Cladding System is an important connecting element used to support and fix the boards or panels of building exterior walls. With its unique L-shaped design, it provides solid support and stable connection for exterior wall decoration materials.L Angle Bracket is usually made of durable metal materials such as stainless steel or galvanized steel to ensure it has good corrosion resistance and long service life. Its design not only takes into account the structural strength but also fully considers the convenience of installation.In building exterior wall decoration, the L Angle Bracket has a wide range of applications, whether it is panels of stone, metal, or other materials. The standardized design allows it to be used with a variety of different boards and panels.
Get A Quote
PREV：No previous articleNEXT：L Cladding System Marble Clamp
  • Parameter
  • Contact Us
  • Item No. T A B C Pin sl hole
    1500-120.50.30.3 3 120 50 30 2x4 8,5 x 22
    1500-120.50.35.3 3 120 50 35 2x4 8,5 x 22
    1500-120.50.40.3 3 120 50 40 2x4 8,5 x 22
    1500-140.60.30.3 3 140 60 30 2x4 8,5 x 22
    1500-140.50.45.3 3 140 50 45 2x4 8,5 x 22
    1500-120.60.30.4 4 120 60 30 2x4. 8,5 x 22
    1500-120.60.35.4 4 120 60 35 2x4 8,5 x 22
    1500-120.50.40.4 4 120 50 40 2x4. 10,5 x 22
    1500-120.50.45.4 4 120 50 45 2x4. 10,5 x 22
    1500-120.50.50.4 4 120 50 50 2x4. 8,5 x 22
    1500-120.60.50.4 4 120 60 50 2x4 10,5 x 22
    1500-140.60.50.4 4 140 60 50 2x4 10,5 x 22

    Premium facade hardware
    Stainless Steel Marble Angle Bracket With Shine Surface For Facade Systems
    Polished finish | Heavy-duty stone support | Corrosion-resistant grade
    AISI 304 / 316L Mirror or satin shine Load up to 15 kN Marble · Granite · Stone
    ◫
    Marble Angle Bracket
    Shine surface · Polished finish
    ◇

    The Stainless Steel Marble Angle Bracket with Shine Surface is a premium support component engineered specifically for heavy natural stone cladding systems. Fabricated from stainless steel plate with a distinctive polished or satin-finish surface treatment, the bracket combines structural strength with aesthetic refinement for visible applications. The L-shaped geometry features a reinforcing gusset at the corner to resist bending moments from heavy marble or granite panels. The shine surface is achieved through progressive mechanical polishing and electrochemical passivation, resulting in a reflective finish that resists finger marking and is easily cleanable. The bracket includes slotted mounting holes with concealed fixing points, allowing adjustment during installation while maintaining a clean appearance. The polished surface not only enhances visual appeal but also improves corrosion resistance by eliminating surface roughness that can trap moisture. This bracket is suitable for both new construction and renovation projects where stone cladding requires robust, corrosion-resistant support with an architectural-grade finish.

    Core advantages
    Aesthetic shine finish
    Mirror or satin-polished surface provides architectural-grade appearance for visible bracket applications. Resists tarnishing and maintains luster in indoor environments.
    Heavy stone load capacity
    Reinforced gusset design supports marble and granite panels up to 15 kN per bracket. Safety factor 3.0 applied to characteristic values.
    Corrosion protection
    Polished surface reduces crevice corrosion risk. 316L grade available for coastal environments. Passivated finish restores chromium oxide layer.
    Adjustable installation

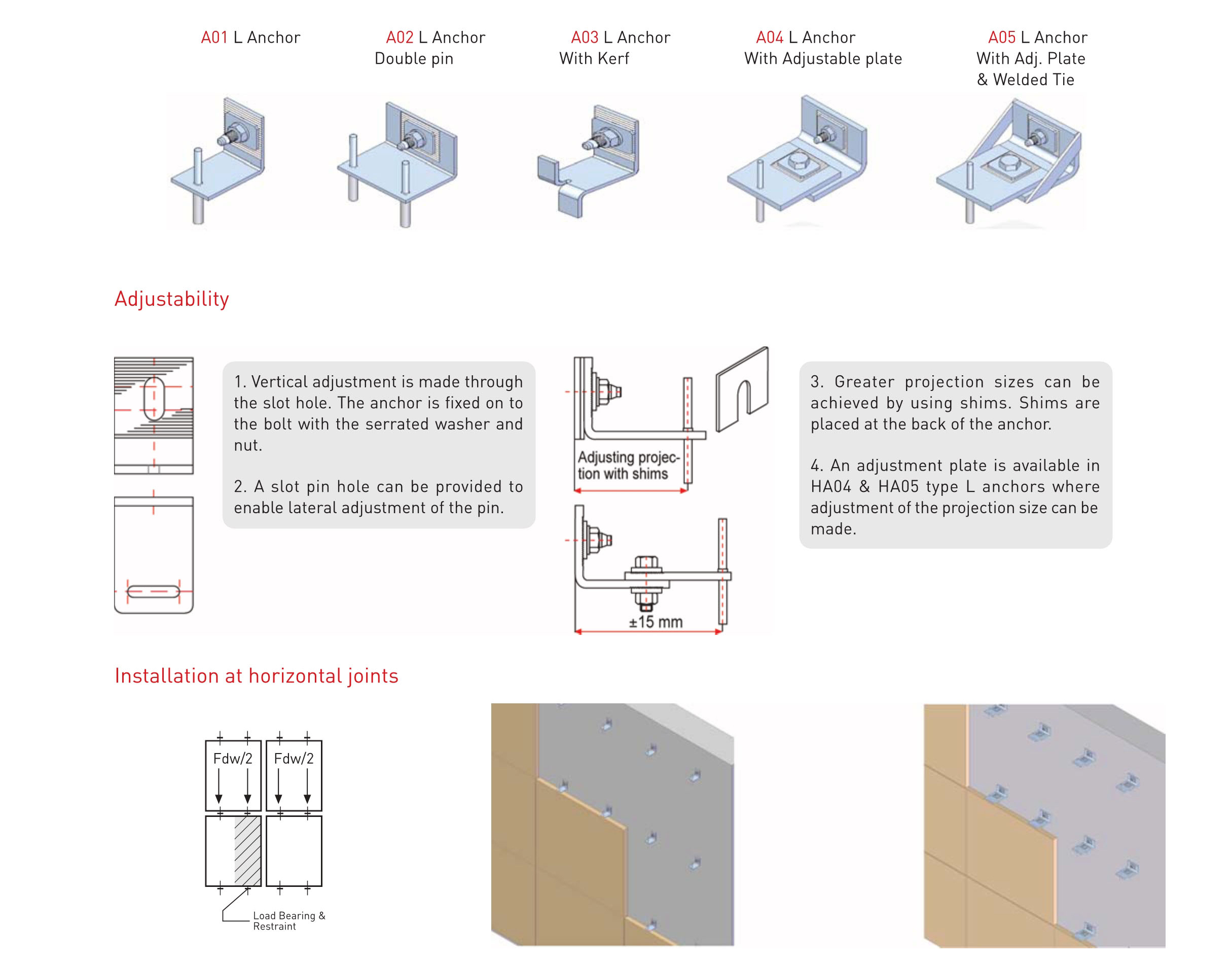

    Slotted mounting holes provide ±10 mm horizontal and vertical adjustment. Concealed fixing points maintain clean aesthetic after installation.
    Product specifications
    Material grade AISI 304 (1.4301) / AISI 316L (1.4404) ASTM A240
    Surface finish Mirror polish (Ra ≤ 0.1 µm) or Satin (Ra ≤ 0.5 µm) Electrochemically passivated
    Thickness range 4.0 mm · 5.0 mm · 6.0 mm · 8.0 mm Custom thickness available
    Leg length 80 x 80 mm · 100 x 100 mm · 120 x 120 mm · 150 x 150 mm Unequal legs available
    Fixings Slotted holes for M8-M12 anchors · Concealed option Stainless steel bolts included
    Load capacity Vertical: 15 kN · Shear: 10 kN EN 1993-1-8 verified
    Application scenarios
    ◈ High-end commercial building facades with marble or granite cladding requiring visible, aesthetically finished brackets
    ◈ Lobby and atrium interior stone walls where bracket visibility demands polished architectural finish
    ◈ Renovation projects where original stone supports require replacement with corrosion-resistant alternatives
    ◈ Coastal architecture where 316L stainless steel and polished surface provide maximum corrosion protection
    ◈ Monumental buildings and cultural venues requiring durable, long-span stone panel support systems
    ◊
    Facade application
    Marble · Granite · Natural stone
    Installation and maintenance notes
    ◆
    Surface protection during installation Apply protective film to polished surfaces before handling. Remove film after all adjacent work is complete. Use clean gloves to prevent fingerprint etching on mirror finishes.
    ◆
    Cleaning and maintenance Clean shine surface with mild detergent and soft cloth. Avoid abrasive cleaners or steel wool that can scratch polished finish. Rinse thoroughly with deionized water to prevent water spotting.
    ◆
    Load testing requirement Field testing recommended for brackets installed in seismic zones or high wind regions. Pull-out testing per ASTM E488 on a representative sample before full installation.
    ◆
    Substrate compatibility Suitable for concrete (minimum C25/30), steel framing, and masonry with proper anchor selection. Use nylon isolators when fixing to aluminum substrates.
    Frequently asked questions
    ◆ How does the shine surface differ from standard stainless steel finish?
    The shine surface is achieved through progressive mechanical polishing using progressively finer abrasives (from 120 grit to 600 grit or higher), followed by electrochemical passivation. This process eliminates surface roughness, creating a reflective, smooth surface that resists dirt adhesion and is easily cleaned. Standard mill finish or 2B finish has a matte appearance with visible rolling marks. The shine finish provides aesthetic enhancement for visible applications while also improving corrosion resistance by eliminating crevices where moisture can accumulate.
    ◆ What load capacity does this bracket provide for marble panels?
    The bracket has a characteristic vertical dead load capacity of 15 kN and shear capacity of 10 kN, with a safety factor of 3.0 applied. Actual capacity depends on leg length, thickness, and anchor selection. For a typical 120 x 120 x 6 mm bracket with M12 anchors, the working load limit is 5 kN per bracket. Jiangsu Aozheng Metal Products Co., Ltd. provides load test documentation and structural calculation reports to verify capacities for specific project configurations.
    ◆ How is the shine surface maintained over time in outdoor applications?
    The shine surface is self-maintaining in most environments due to the passive chromium oxide layer that regenerates when exposed to air. In coastal or industrial areas, periodic cleaning with mild detergent and water is recommended. Stainless steel 316L is recommended for aggressive environments to prevent pitting. The polished surface actually performs better in corrosion resistance than rough finishes because it has fewer sites for chloride ion concentration. Jiangsu Aozheng Metal Products Co., Ltd. offers both 304 and 316L grade options to match environmental exposure conditions.
    ◆ Can the bracket be customized for non-standard panel thicknesses?
    Yes. Leg length, thickness, and fixing hole positions can be adjusted to accommodate specific stone panel dimensions and substrate conditions. Jiangsu Aozheng Metal Products Co., Ltd. operates CNC machining and polishing facilities to produce custom brackets per project drawings. The company has supplied customized marble brackets for projects across the United States, Germany, Australia, Canada, South Korea, and the Middle East, with annual production exceeding 2,000 tons of building materials.
    EN 1090-1 Execution Class 3 ◆ ISO 9001:2015 Certified ◆ Polishing to Ra ≤ 0.1 µm ◆ Exported to 40+ countries
