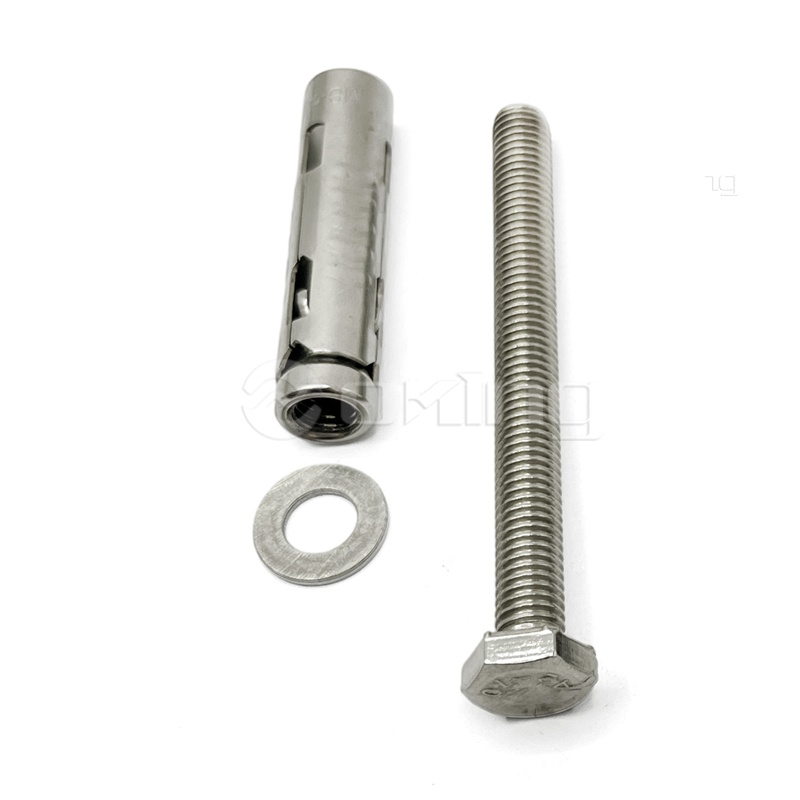

    Shield anchor bolts consist of a threaded bolt, a metal sleeve (shield), and a cone-shaped expansion nut. The shield is typically made of steel and has grooves or ridges along its length. The expansion nut is placed over the threaded end of the bolt and is tapered to fit into the shield. Installation: To install a shield anchor bolt, a hole is drilled into the concrete or masonry using an appropriate-sized drill bit. The shield anchor is then inserted into the hole. When the expansion nut is tightened, it pulls the bolt upward, causing the shield to expand and grip the surrounding material, providing a secure hold. Load Capacity: Shield anchor bolts are capable of supporting significant loads, making them suitable for applications where strong and reliable connections are required. The load capacity depends on factors such as the size and type of anchor, the quality of the base material, and the proper installation technique. Versatility: Shield anchor bolts are commonly used in a wide range of applications, including construction, carpentry, metal fabrication, and more. They can be used to anchor structural elements, such as steel beams or columns, as well as fixtures like handrails, machinery, shelving, and signage. Materials: Shield anchor bolts are typically made of steel, which provides strength and durability. They are often zinc-plated or coated with other corrosion-resistant materials to enhance their longevity and protect against rust and corrosion. Sizes and Variations: Shield anchor bolts are available in various sizes and lengths to accommodate different applications and load requirements. They may also come in different designs, such as single-expansion or double-expansion anchors, to suit specific installation needs.
    Get A Quote
    PREV：AZB02 Steel Galvanized Znic Plated Heavy-type Threer Shield AnchorNEXT：No next article
    • Parameter
    • Contact Us

    • AZB01 Stainless Steel Three Anchor Shield  Bolt

      For Concrete Wall Fixing

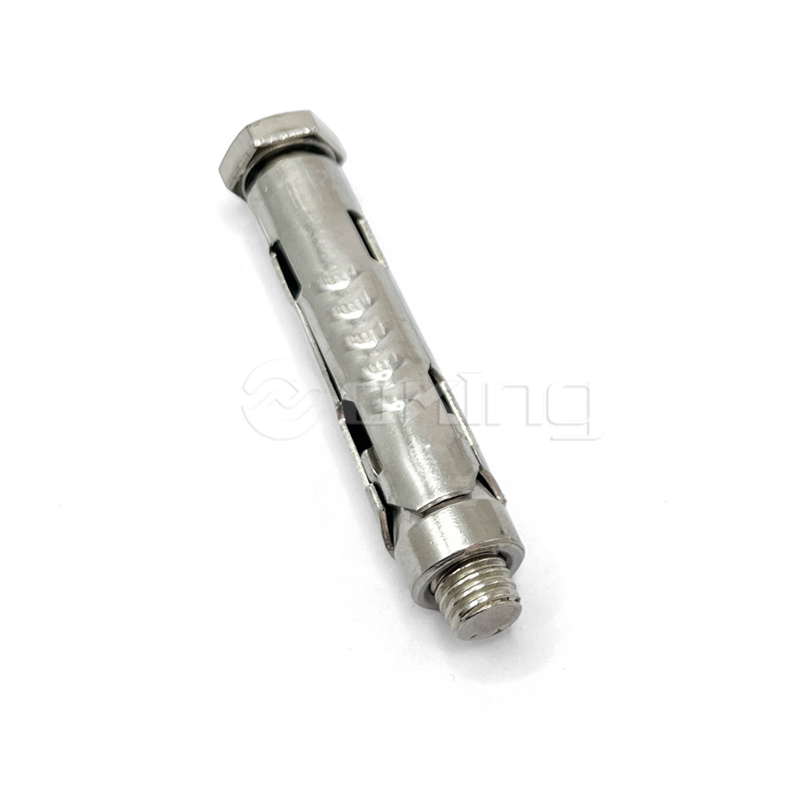

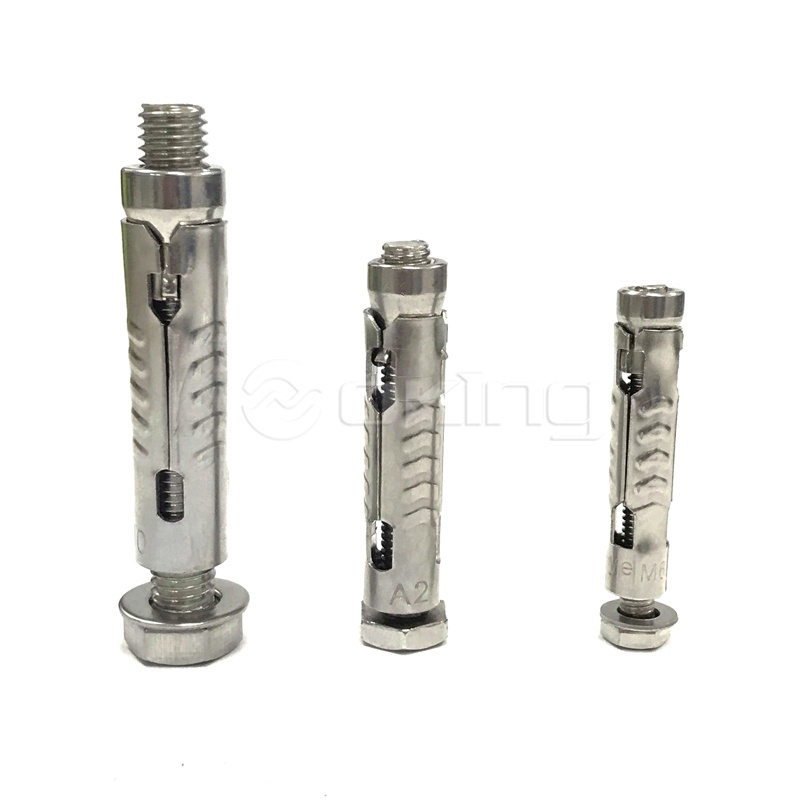

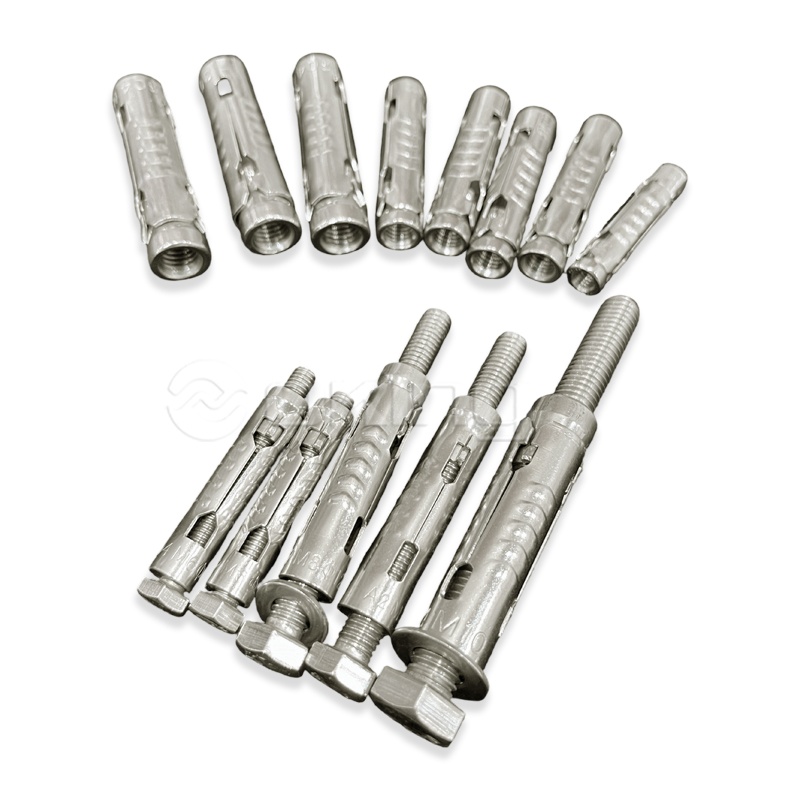

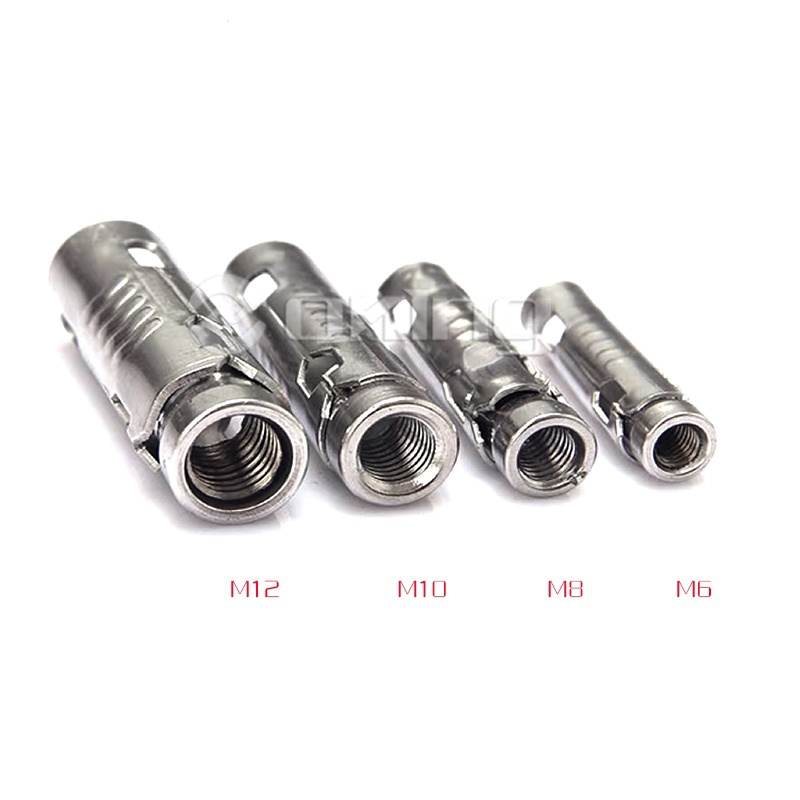

      A high-performance hex bolt torque expansion shell fixing bolt designed for concrete walls and filled reinforced masonry walls. Fully hammer the shell into concrete, apply torque via the hex bolt, and the shell expands to firmly grip the drilled hole surroundings.

      Technical Details

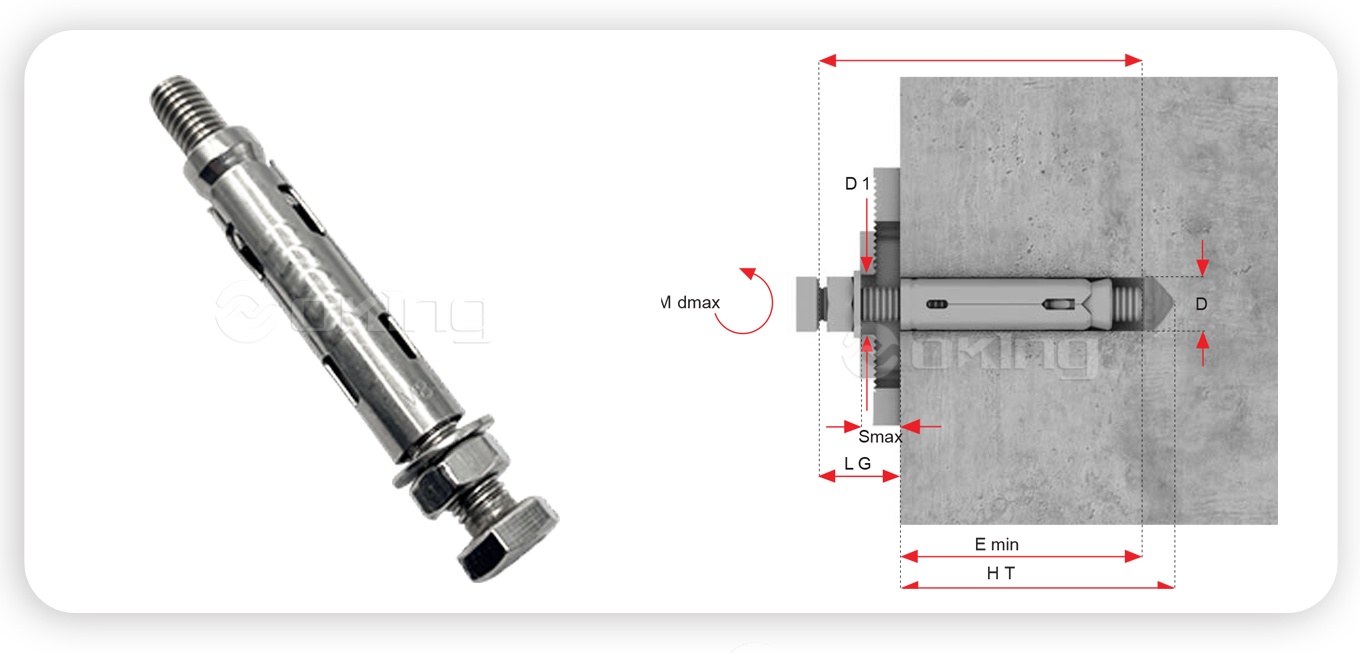

      Bolt Size Shell Size Drill Hole Diameter Drill Length Min.
      Embedment      		 Max. Fixture Thickness Fixture Hole Diameter Max.Torque Bolt Length
      (mm) (mm) D(mm) Ht (mm) E min (mm) S max (mm) D1(mm) Mdmax (Nm) (mm)
      M6x60 ф10x39 10 65 40 5 7 10 60
      M6x80 ф10x59 10 65 40 15 7 10 80
      M8x80 ф12x44 12 80 45 20 9 20 80
      M8x100 ф12x44 12 80 45 30 9 20 100
      M10x100 ф15x50 15 90 55 30 11 40 100
      M12x120 ф18x65 18 105 65 30 13 75 120

                    Loads are for dense block walls

      Materials：

      Stainless Steel 316 304 201

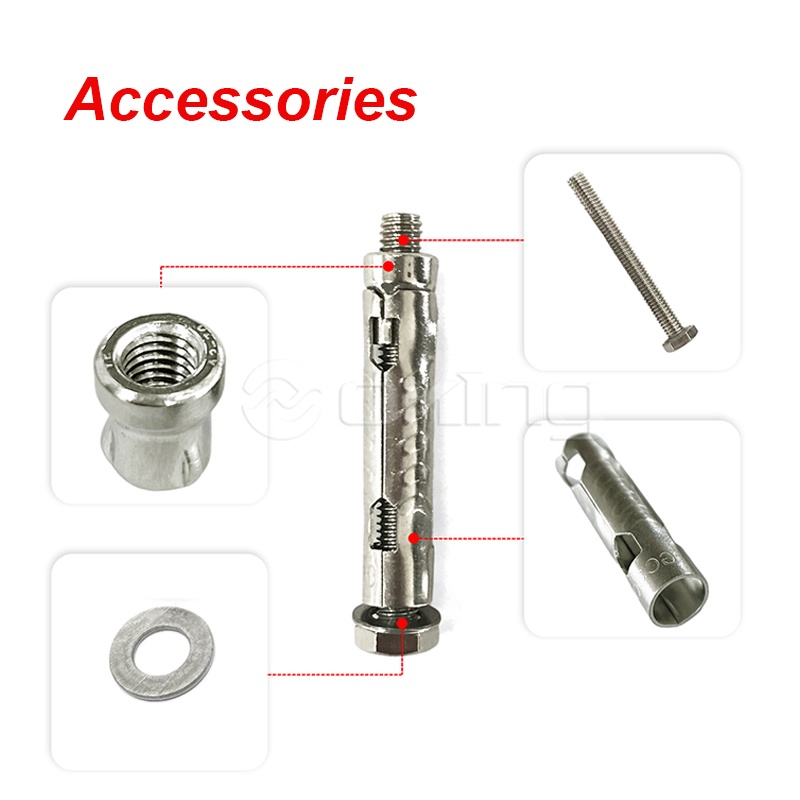

      Accessory products：

      Fixing Instructions:

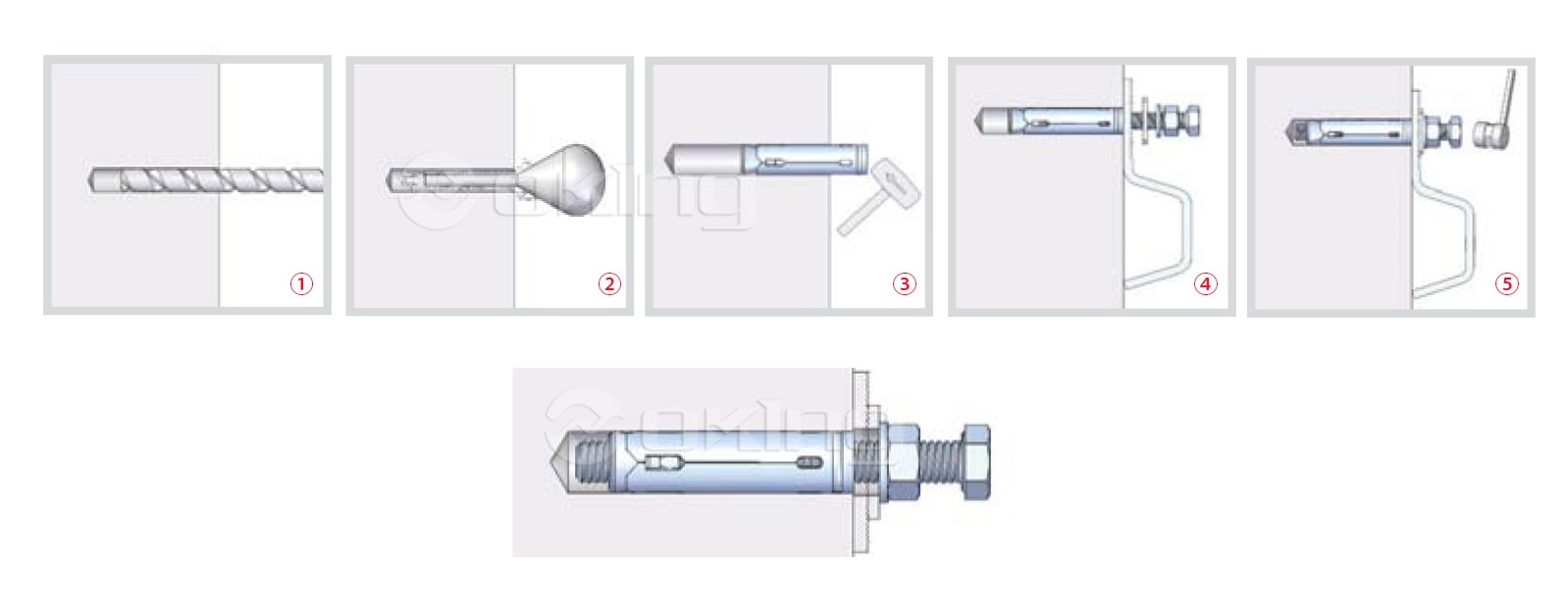

      ①Drilling; ②Cleaning; ③Placing Bolt;  ④Hammering Bolt; ⑤Fastening.

      Application on：

      Concrete walls；Filled hollow block walls；Solid concrete dense block 7N /mm.

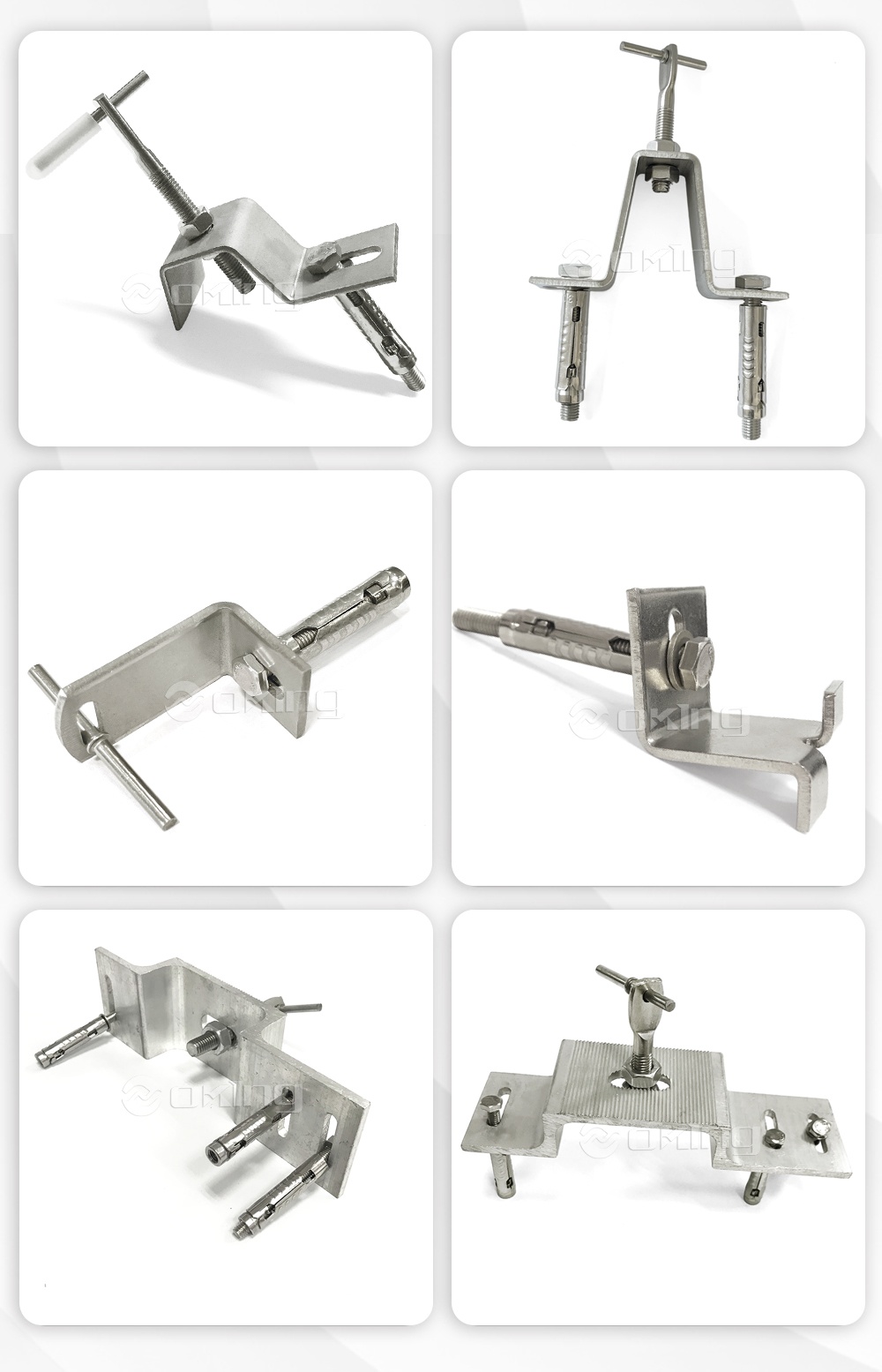

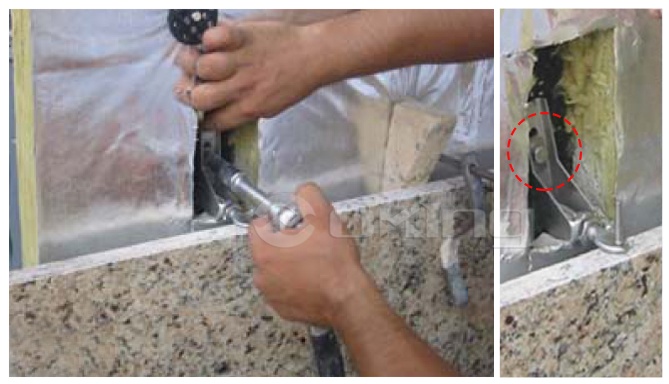

      Fixing of anchors on to filled block work walls using AZB01 Three Anchor Shield  Bolt.
