U Channel System Vertical Fixing
U Channel System Vertical Fixing
U Channel System Vertical Fixing
U Channel System Vertical Fixing
U Channel System Vertical Fixing
U Channel System Vertical Fixing
U Channel System Vertical Fixing
U Channel System Vertical Fixing
U Channel System Vertical Fixing
U Channel System Vertical Fixing
U Channel System Vertical Fixing
U Channel System Vertical Fixing

U Channel System Vertical Fixing

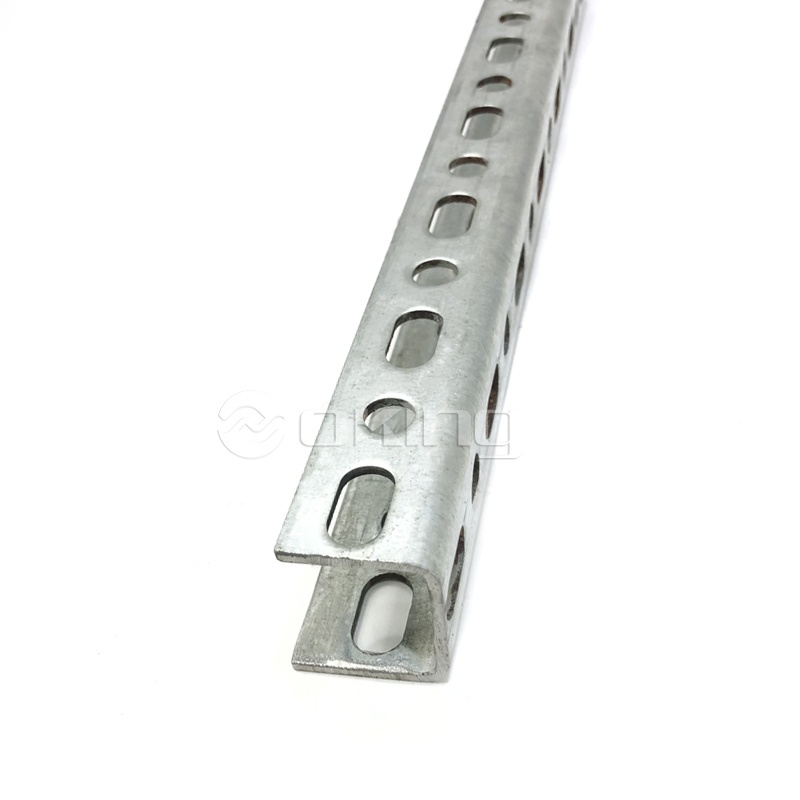

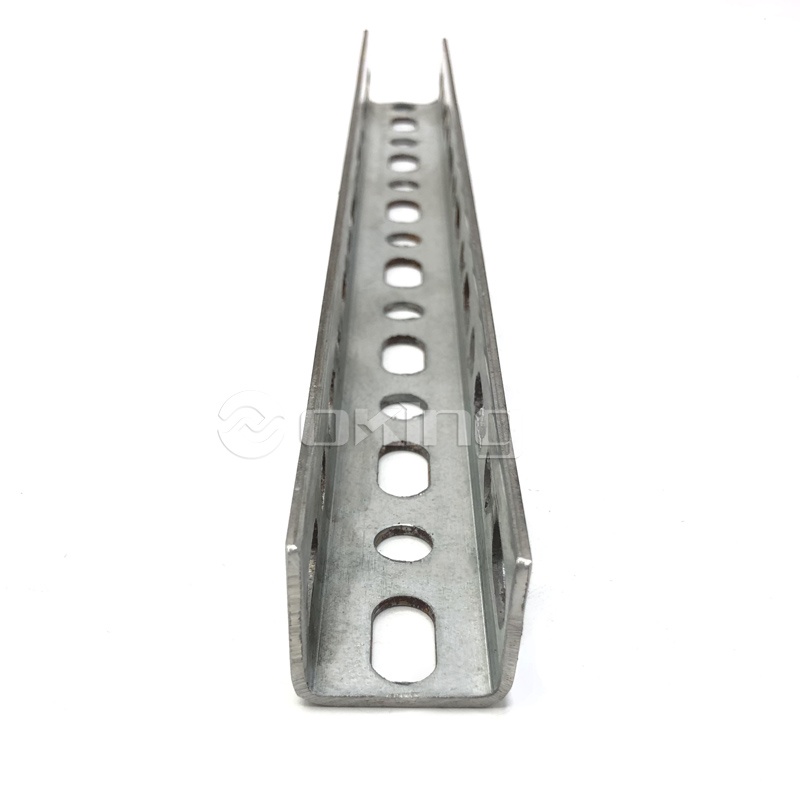

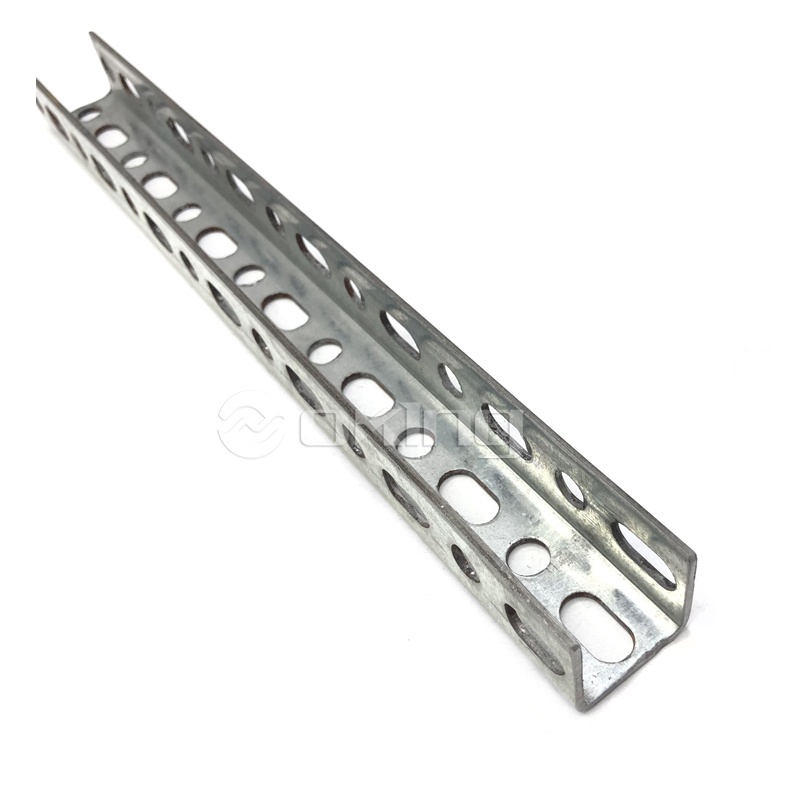

The Galvanized U channel is a long strip of steel with a unique U-shaped cross-section shape. This kind of steel is widely used in many fields such as construction, bridges, machinery manufacturing, and shipbuilding due to its corrosion resistance, high strength, and good plasticity. The cross-section design of stainless steel U-shaped channel steel makes it have stability when bearing pressure, can effectively distribute the load, and improves the overall safety of the structure. Stainless steel U-shaped channel steel also has good processability and can be easily processed by cutting, welding, bending, and other processing operations to meet the needs of different projects.  U-channel is a type of metal extrusion that is shaped "U" in cross-section. It is commonly used in various applications: and industries, including construction, manufacturing, and fabrication. 1. Uchannel some with two parallel flanges connected by a vertical web. The flanges are typically equal in length and perpendicular to the web. U-channels are often made from metals such as steel, aluminum, or stainless steel, which provide strength and durability. 2. U-channels are frequently used as structural elements in building and construction projects. They can provide support, reinforcement, and stability to components or structures. U-channels are commonly used as beams, tracks, or framing members to support load-bearing applications. 3. U-channels are utilized as mounting rails or tracks for attaching and securing components. They can serve as a base for mounting equipment, brackets, or other fixtures. U-channels offer versatility in mounting options, as they can be attached using screws, bolts, or welding. 4. U-channels find extensive use in manufacturing processes, such as conveyor systems, material handling equipment, or machinery frames. They offer structural support, guidance, and stability to equipment and facilitate efficient production operations. 5. U-channels are available in various sizes such as 41*41,41*21 and thickness from 1.5 to 3mm, dimensions, and materials to suit different application requirements. The specific choice of U-channel depends on load capacity, environmental conditions, and the intended use.
Get A Quote
PREV：L Channel System Fixing NEXT：Stainless Steel C Channel Steel 41x41 41x21 Unit Strut Channel With Three-side Holes
  • Parameter
  • Contact Us

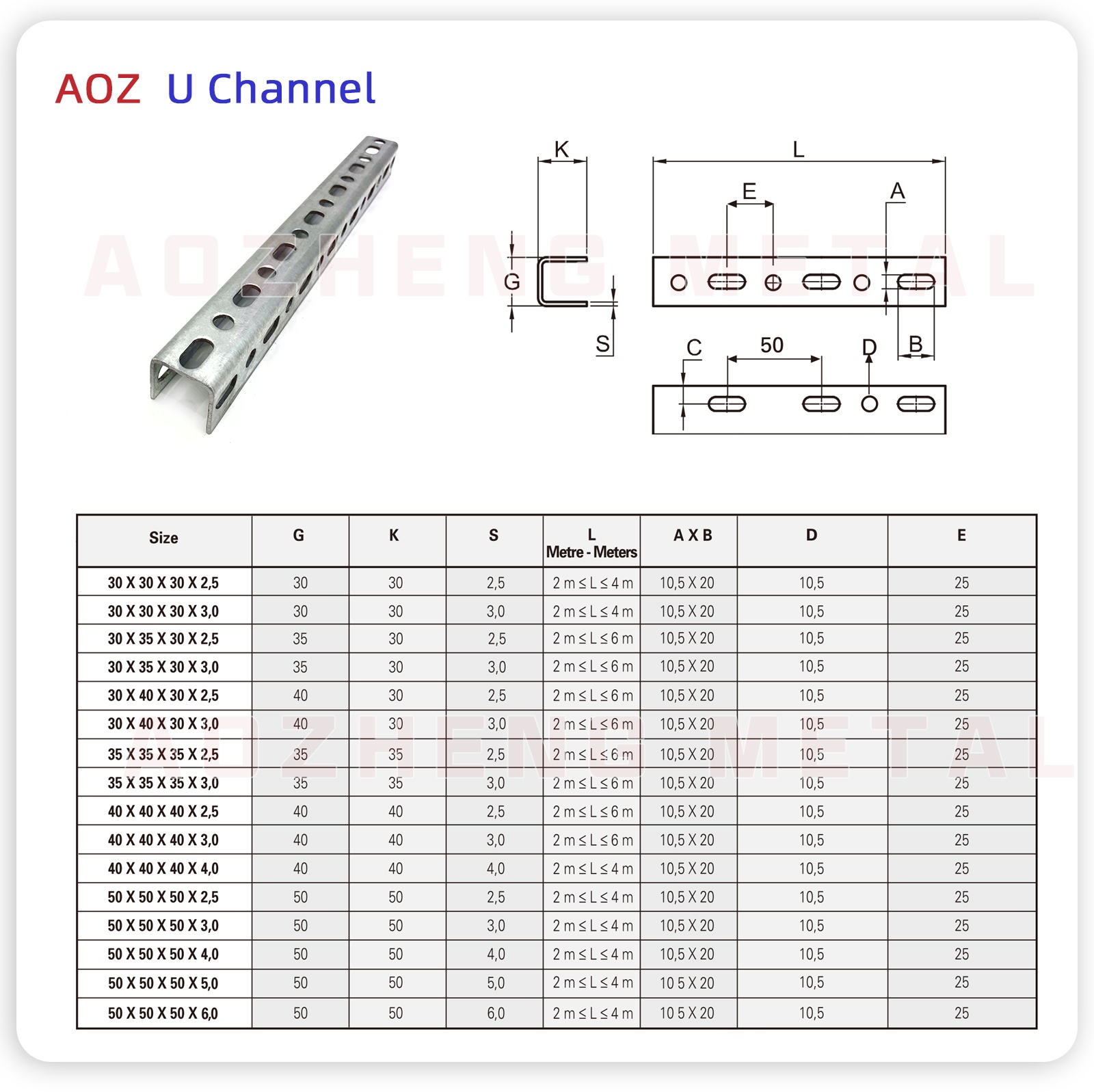

  • U Channels - Technical details

    ●Especially preferred in exterior mounting of the buildings, natural stone, marble and granite assemblies. Provides easy and safe assembly.

    ●Can be produced from 2 Meters up to 6 Meters long as well as required special sizes according to the project.
    ●Produced from Zinc Plated (Electro Galvanized), 430, 304 (A2), 316 (A4) Quality Stainless Steel (INOX).

    ●Upon request, can also be produced in “Hot Dip Galvanized".

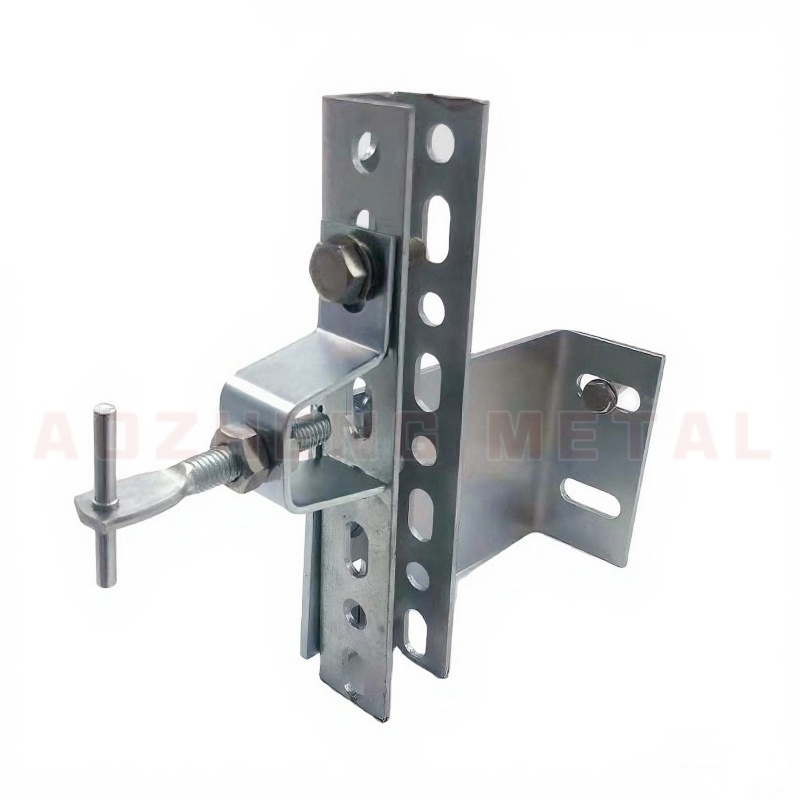

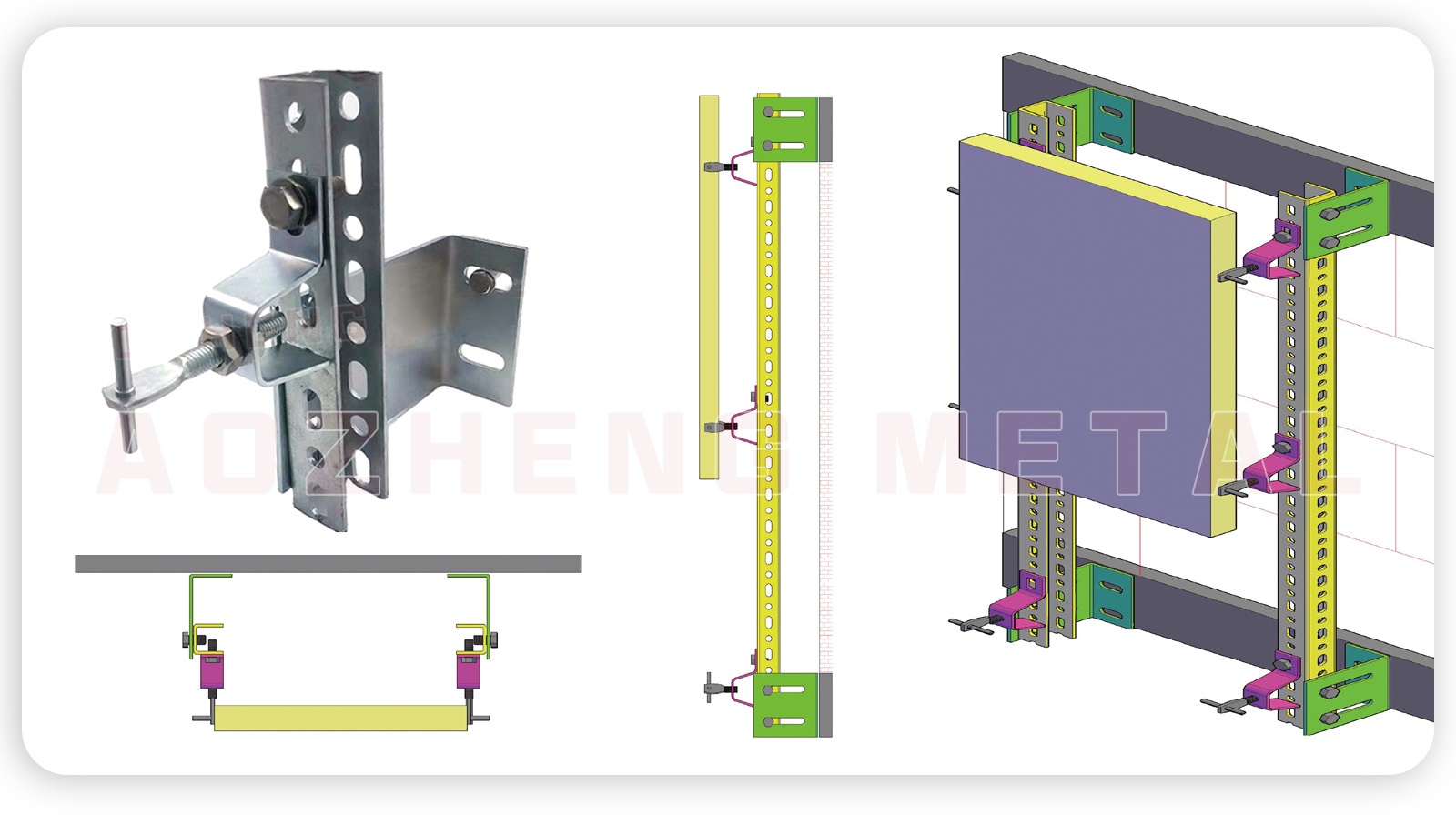

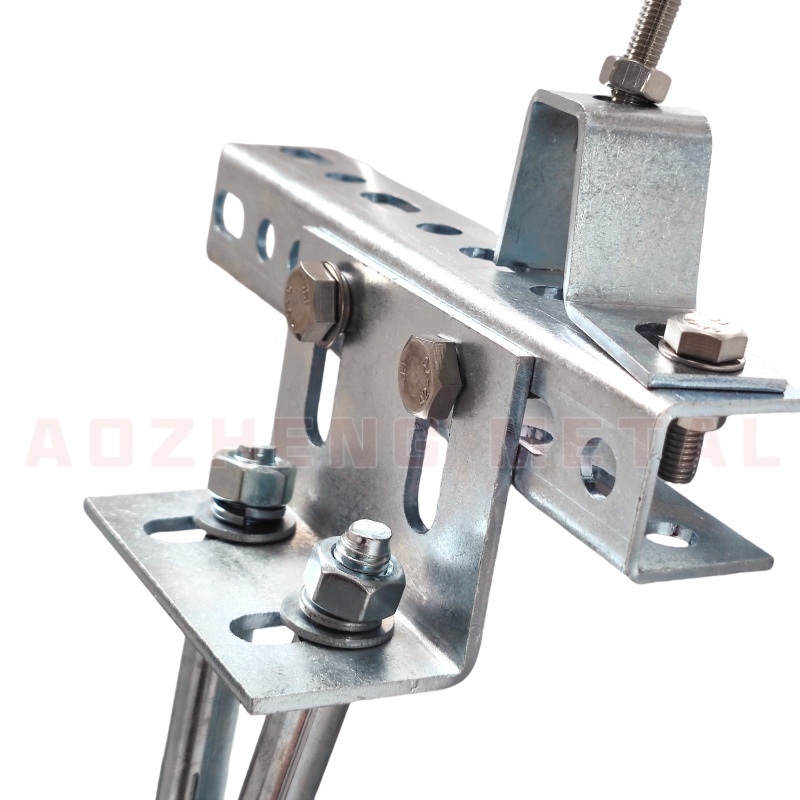

    Installation Details
