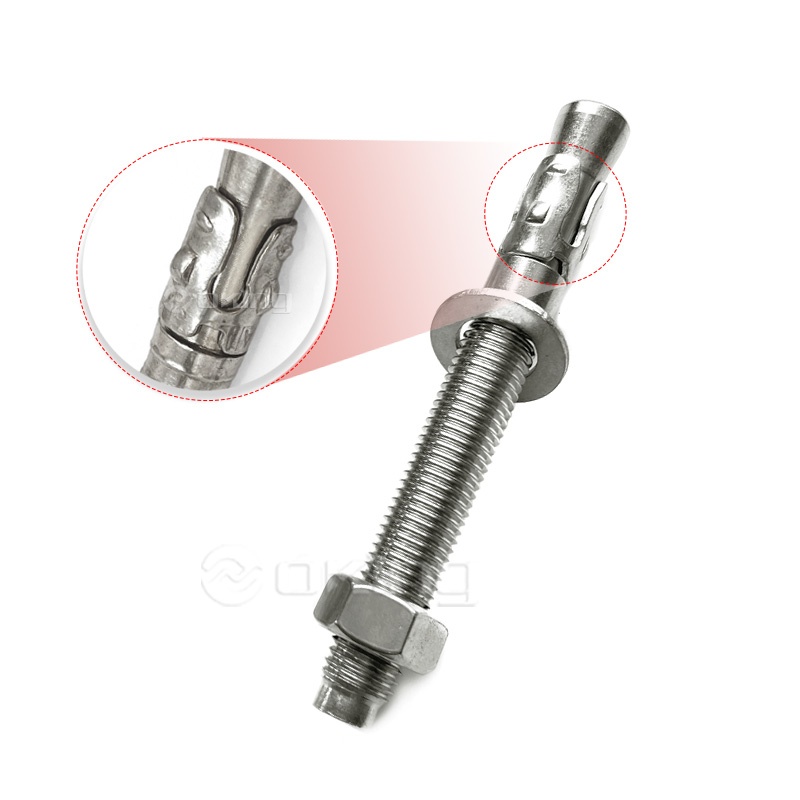

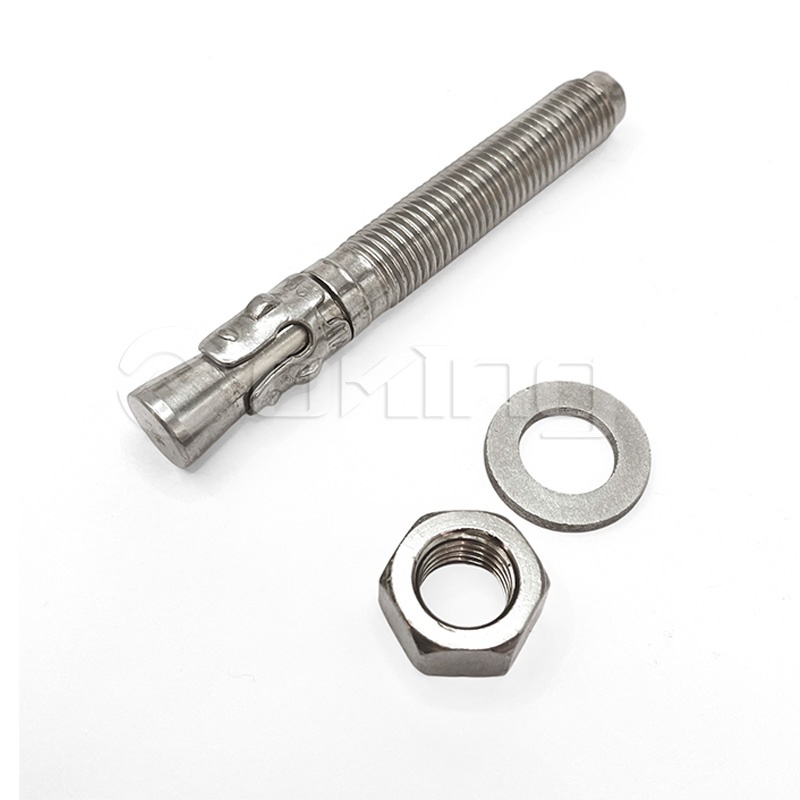

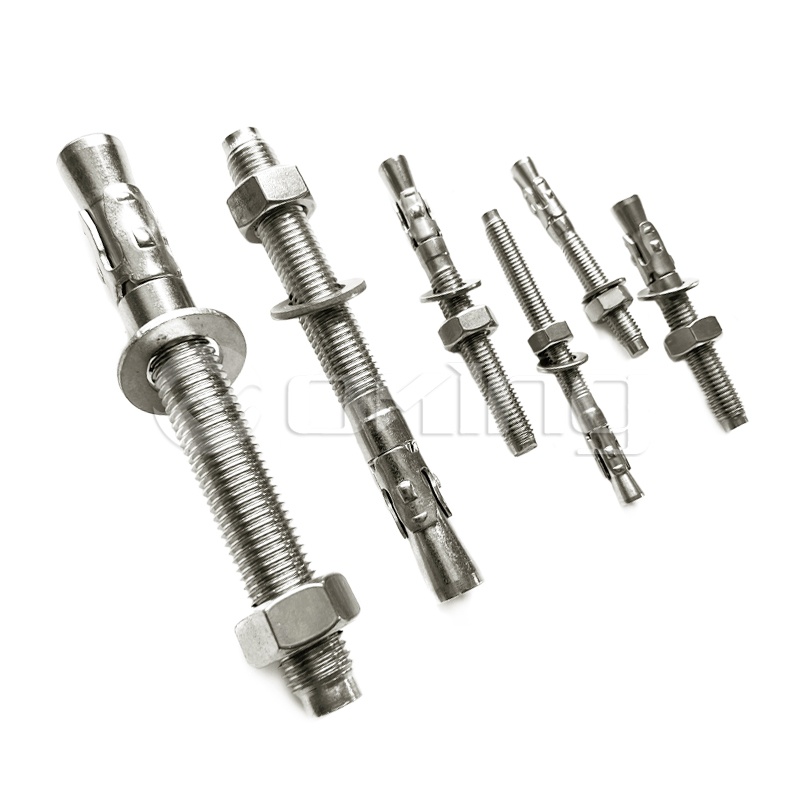

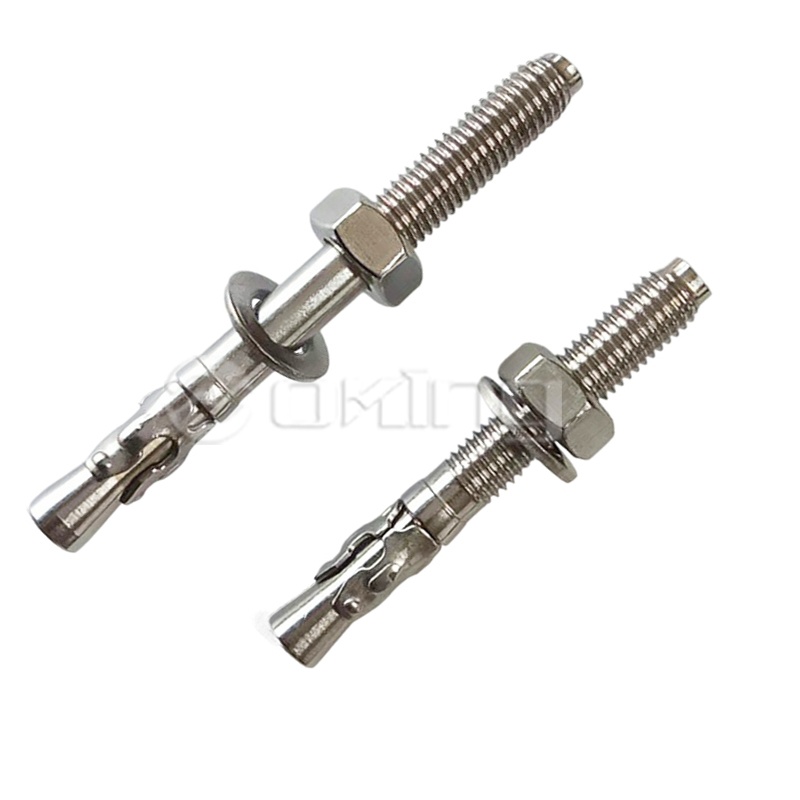

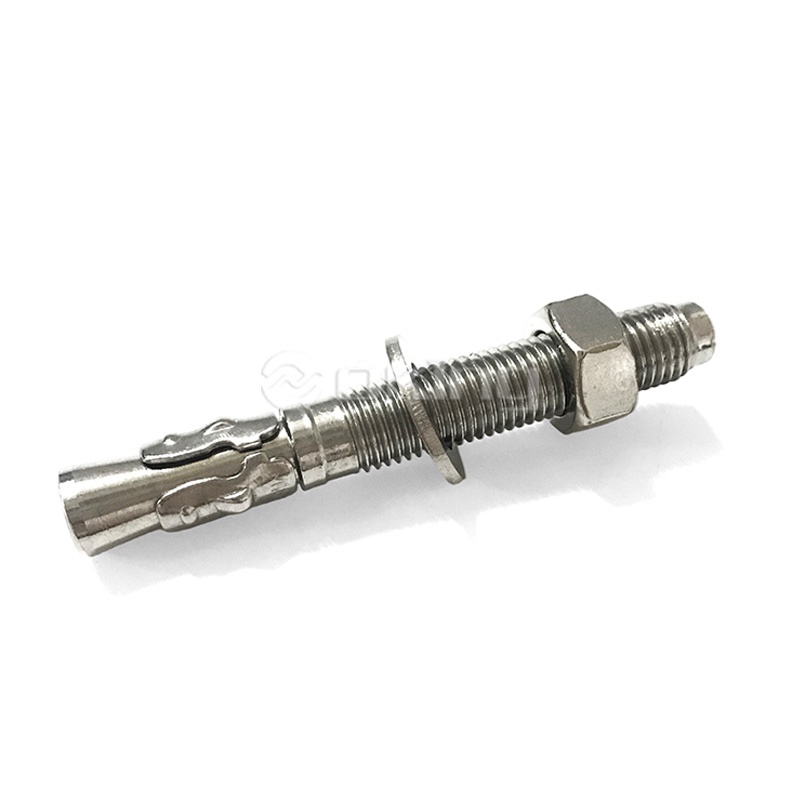

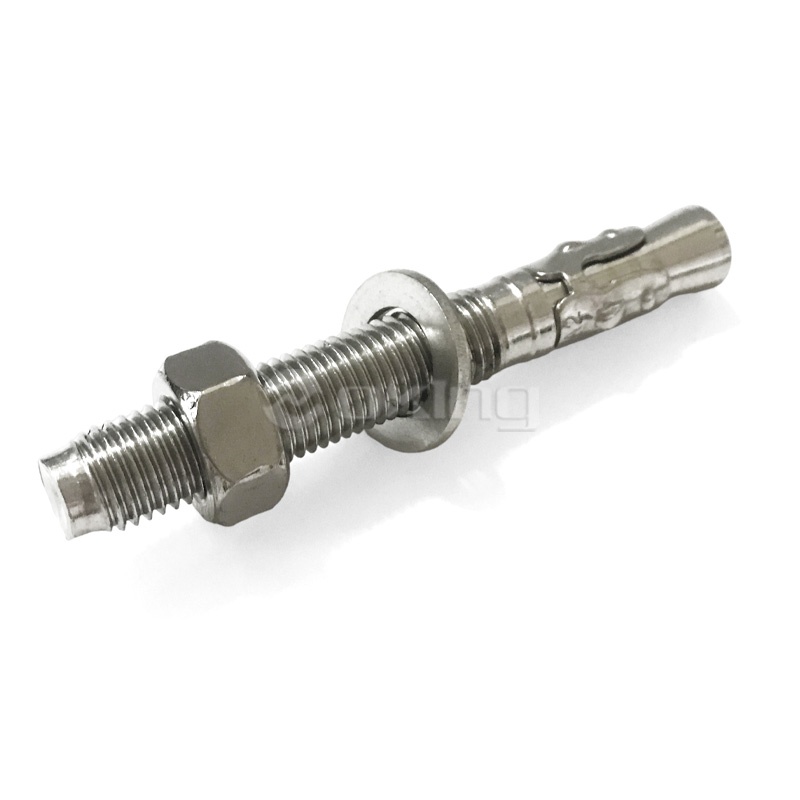

AZB07 Stainless Steel Wedge Anchor Bolt
Wedge Anchor Bolt for C20/25+ Concrete Walls | Fast Expansion, Secure Fixing
| Technical Details | |||||

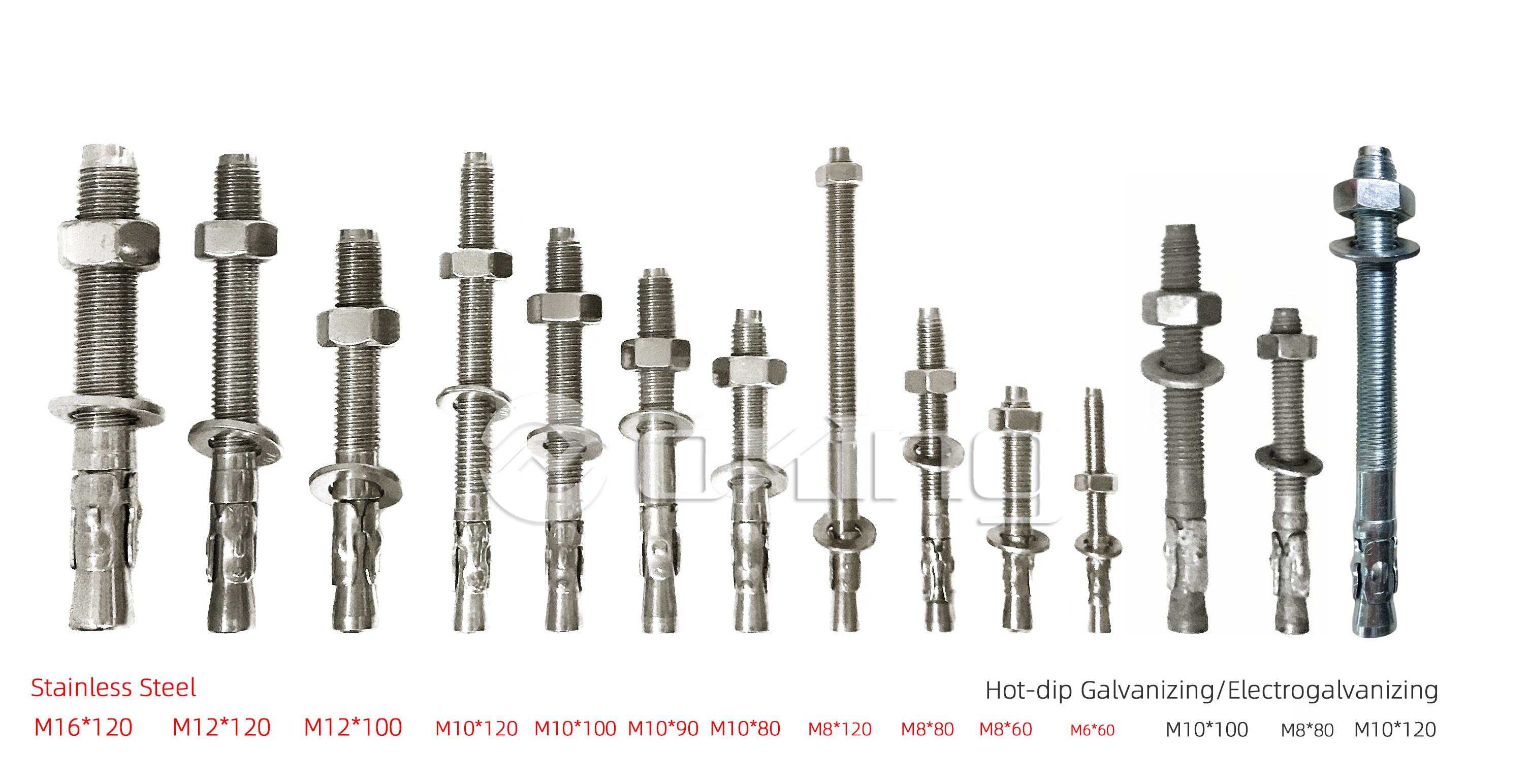

| Size | L(mm) | D(mm) | S(mm) | M(mm) | Punch bit |
| M6*50 | 50 | 6 | M6*12*1.6 | 10 | 6 |
| M6*60 | 60 | 6 | M6*12*1.6 | 10 | 6 |
| M6*75 | 75 | 6 | M6*12*1.6 | 10 | 6 |
| M6*100 | 100 | 6 | M6*12*1.6 | 10 | 6 |
| M8*60 | 60 | 8 | M8*16*1.6 | 13 | 8 |
| M8*70 | 70 | 8 | M8*16*1.6 | 13 | 8 |
| M8*75 | 75 | 8 | M8*16*1.6 | 13 | 8 |
| M8*80 | 80 | 8 | M8*16*1.6 | 13 | 8 |
| M8*90 | 90 | 8 | M8*16*1.6 | 13 | 8 |
| M8*100 | 100 | 8 | M8*16*1.6 | 13 | 8 |
| M8*115 | 115 | 8 | M8*16*1.6 | 13 | 8 |
| M10*70 | 70 | 10 | M10*20*2 | 17 | 10 |
| M10*75 | 75 | 10 | M10*20*2 | 17 | 10 |
| M10*80 | 80 | 10 | M10*20*2 | 17 | 10 |
| M10*90 | 90 | 10 | M10*20*2 | 17 | 10 |
| M10*100 | 100 | 10 | M10*20*2 | 17 | 10 |
| M10*120 | 120 | 10 | M10*20*2 | 17 | 10 |
| M12*75 | 75 | 12 | M12*24*2.5 | 19 | 12 |
| M12*100 | 100 | 12 | M12*24*2.5 | 19 | 12 |
| M12*110 | 110 | 12 | M12*24*2.5 | 19 | 12 |
| M12*115 | 115 | 12 | M12*24*2.5 | 19 | 12 |
| M12*120 | 120 | 12 | M12*24*2.5 | 19 | 12 |
| M12*140 | 140 | 12 | M12*24*2.5 | 19 | 12 |
| M12*150 | 150 | 12 | M12*24*2.5 | 19 | 12 |
| M16*100 | 100 | 16 | M16*30*3 | 24 | 16 |
| M16*120 | 120 | 16 | M16*30*3 | 24 | 16 |
| M16*140 | 140 | 16 | M16*30*3 | 24 | 16 |
| M16*150 | 150 | 16 | M16*30*3 | 24 | 16 |

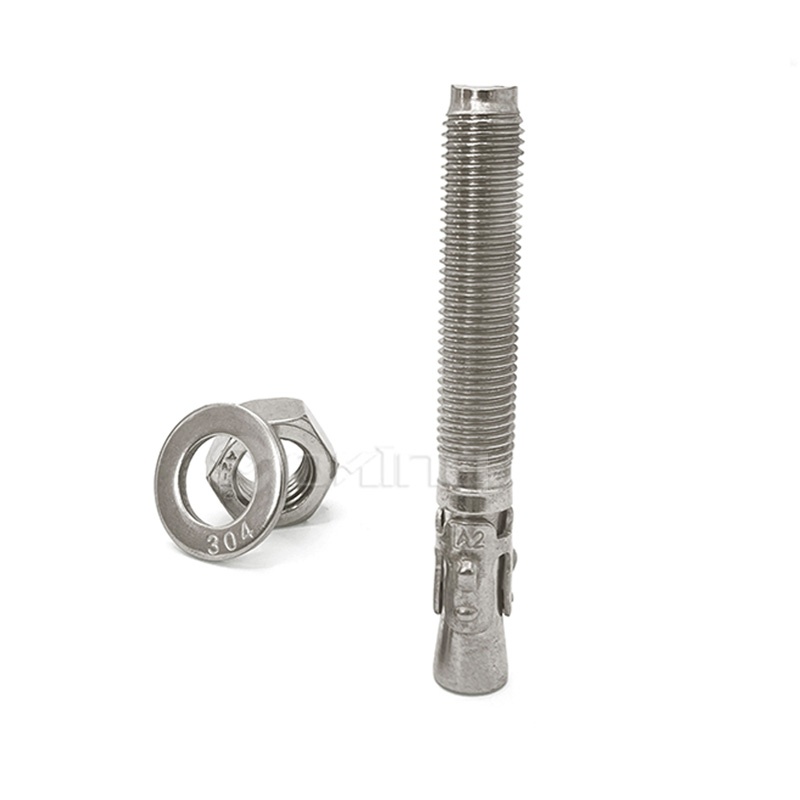

Materials：
Stainless Steel 316 304 201

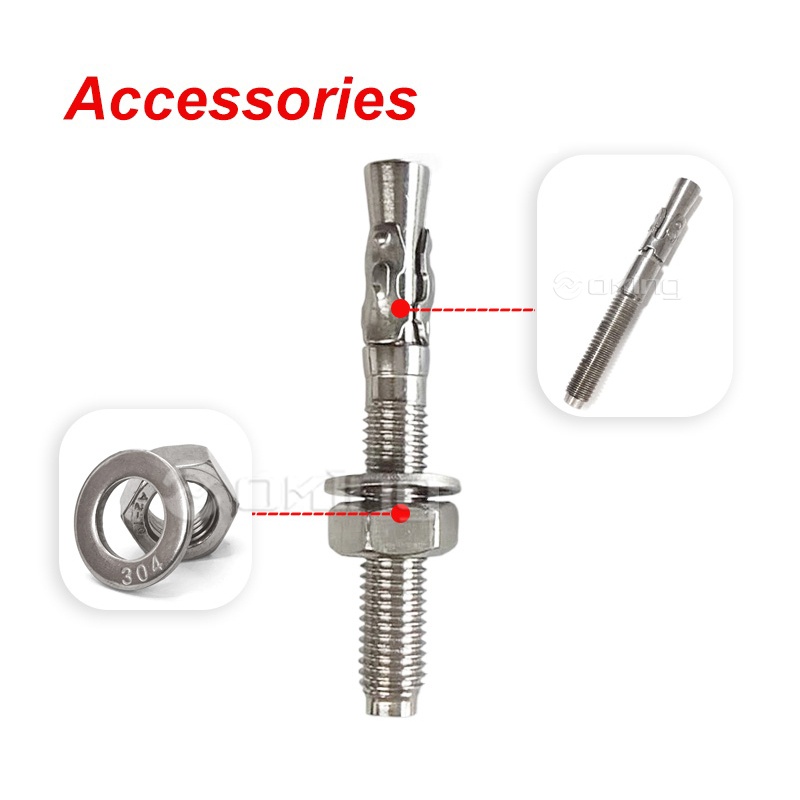

Accessory products：

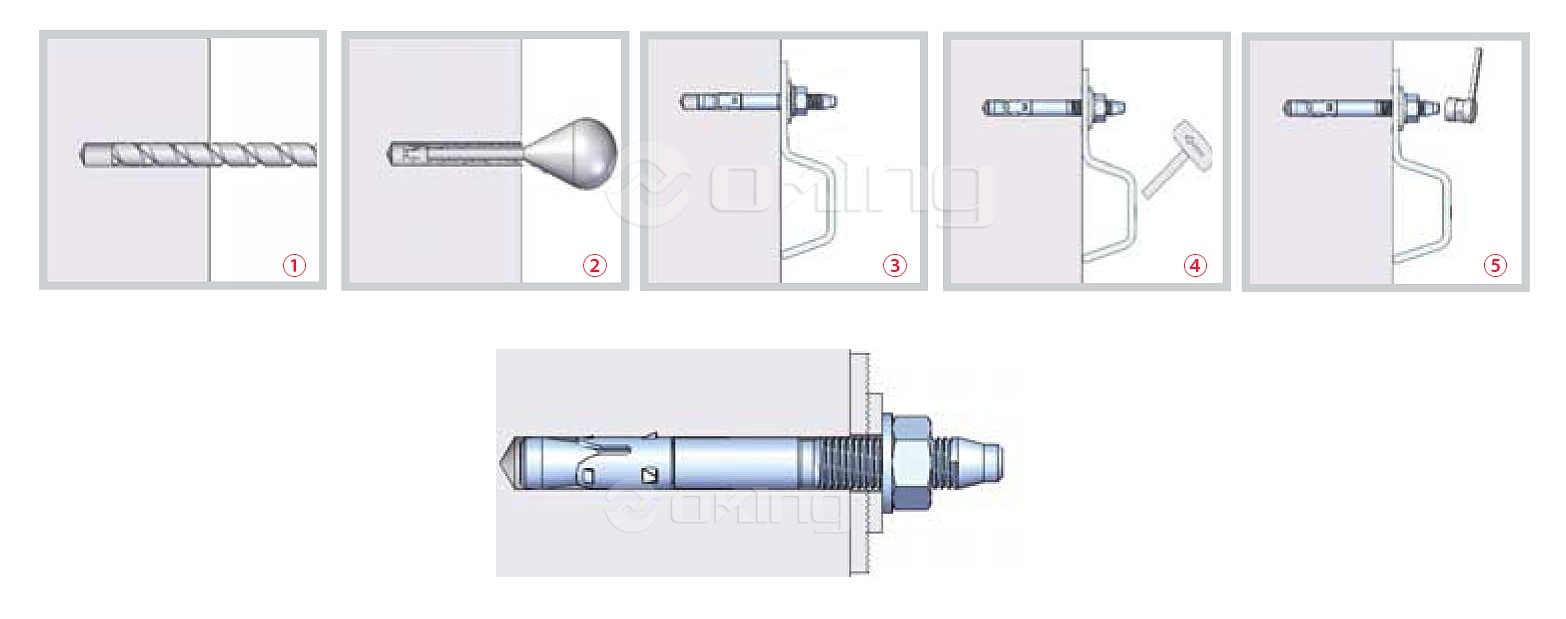

Fixing Instructions:
①Drilling; ②Cleaning; ③Placing Bolt; ④Hammering Bolt; ⑤Fastening.

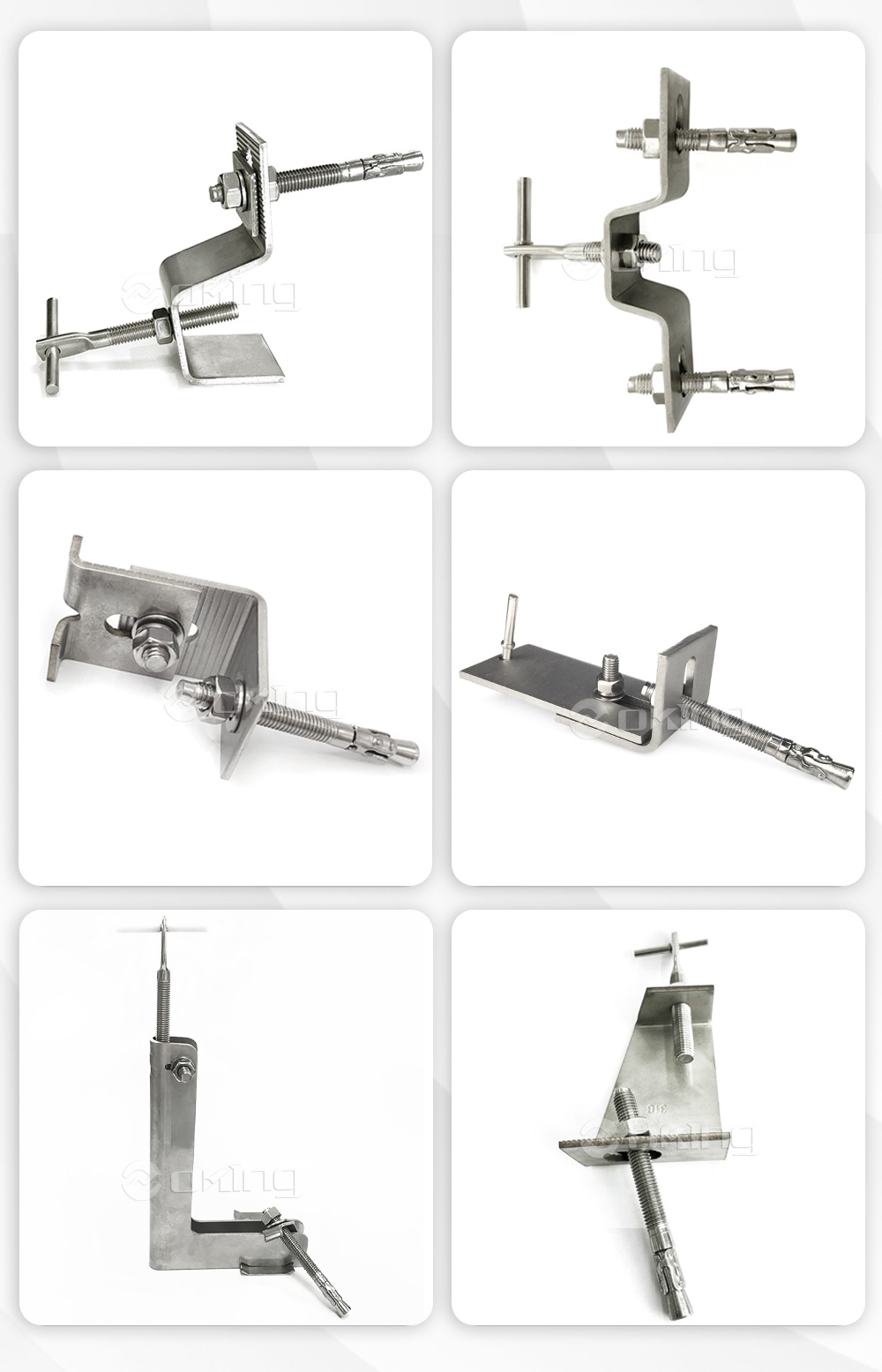

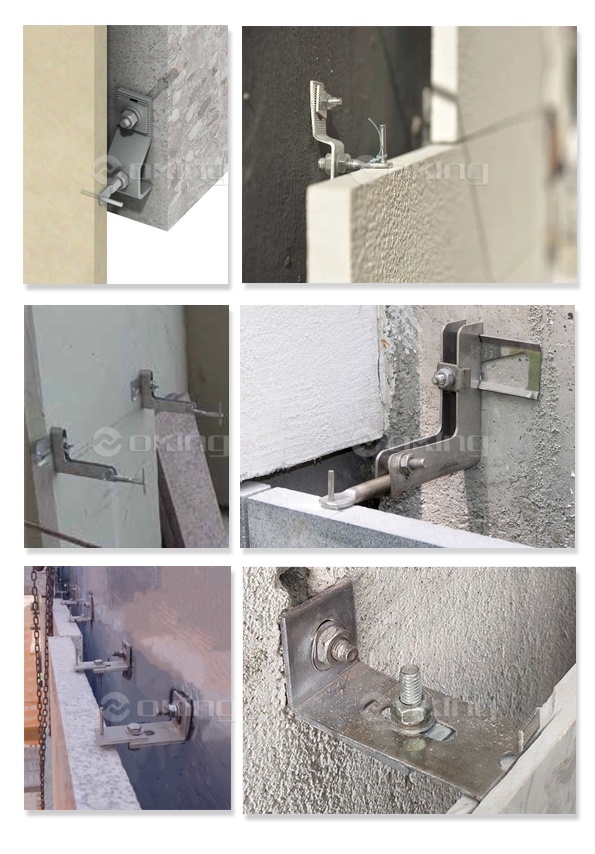

Application on：
