AZZ01 Easy Install Stainless Steel Z Stone Cladding Bracket
AZZ01 Easy Install Stainless Steel Z Stone Cladding Bracket
AZZ01 Easy Install Stainless Steel Z Stone Cladding Bracket
AZZ01 Easy Install Stainless Steel Z Stone Cladding Bracket
AZZ01 Easy Install Stainless Steel Z Stone Cladding Bracket
AZZ01 Easy Install Stainless Steel Z Stone Cladding Bracket
AZZ01 Easy Install Stainless Steel Z Stone Cladding Bracket
AZZ01 Easy Install Stainless Steel Z Stone Cladding Bracket

AZZ01 Easy Install Stainless Steel Z Stone Cladding Bracket

● Material : Stainless Steel 1.4301 [A2) & 1.4401 [A4]● The table above is prepared according to LGA test results● Loads stated are characteristic resistance loads● Bolts are provided separately● Max Wind pressure: 350 N● Test results are available upon order
Get A Quote
PREV：AZZ05 Specialized Cladding Tiles Service And Design Z Anchor - for large projection sizesNEXT：Customized Stainless Steel Z Anchor
  • Parameter
  • Contact Us

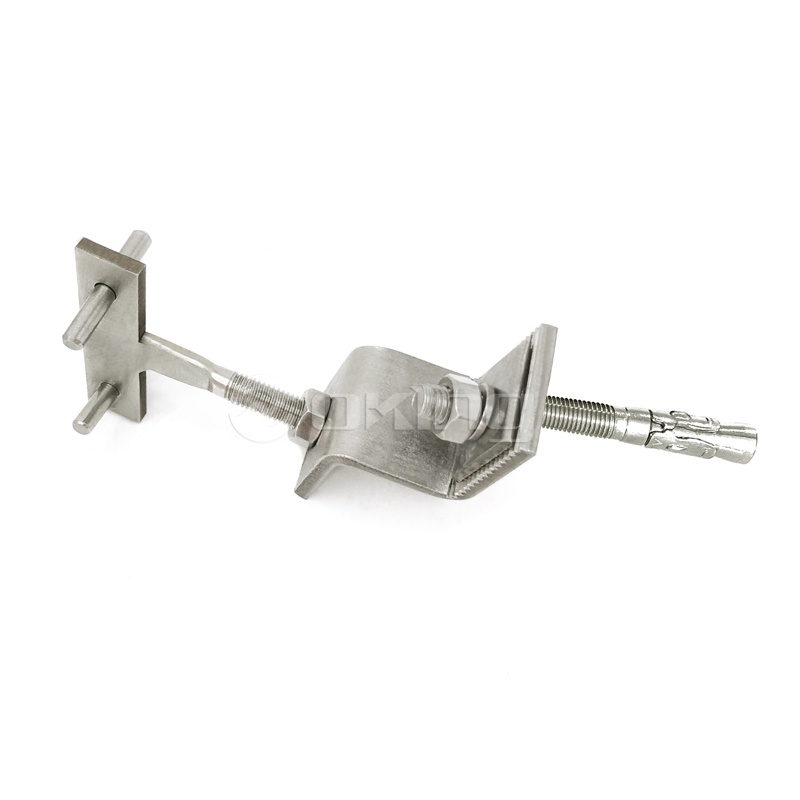

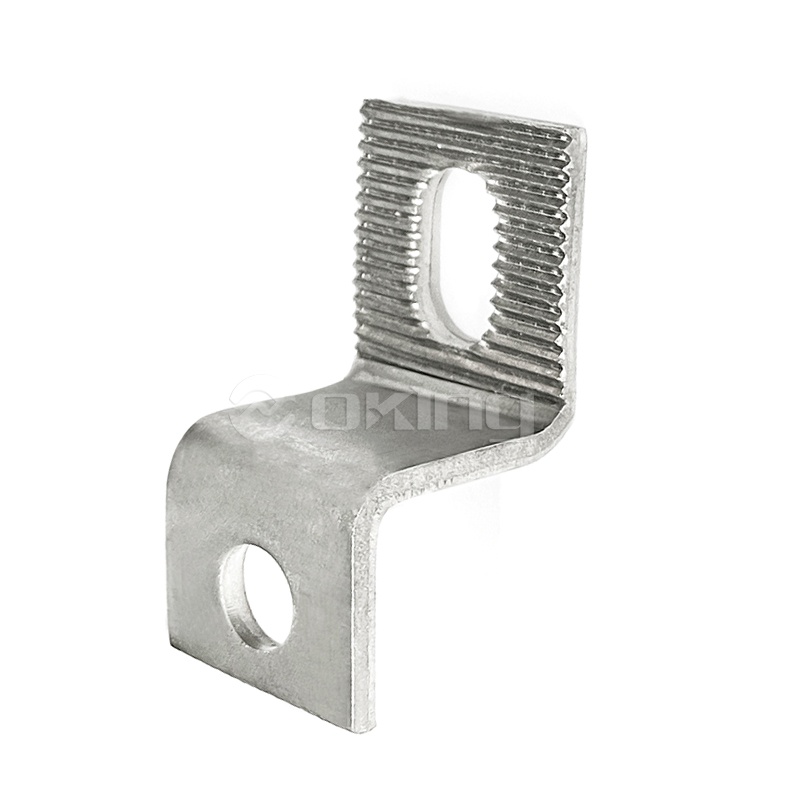

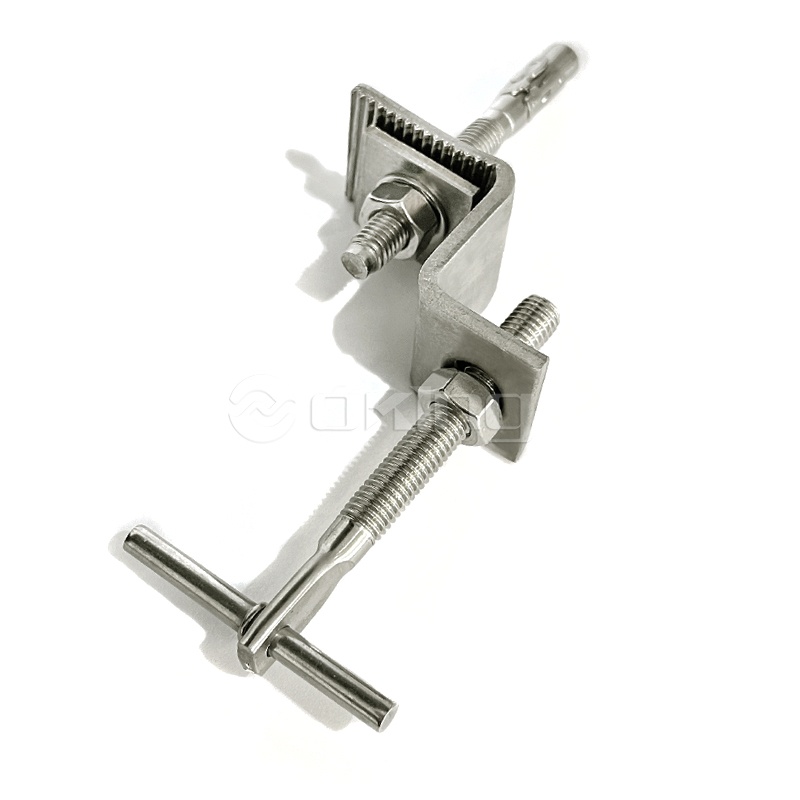

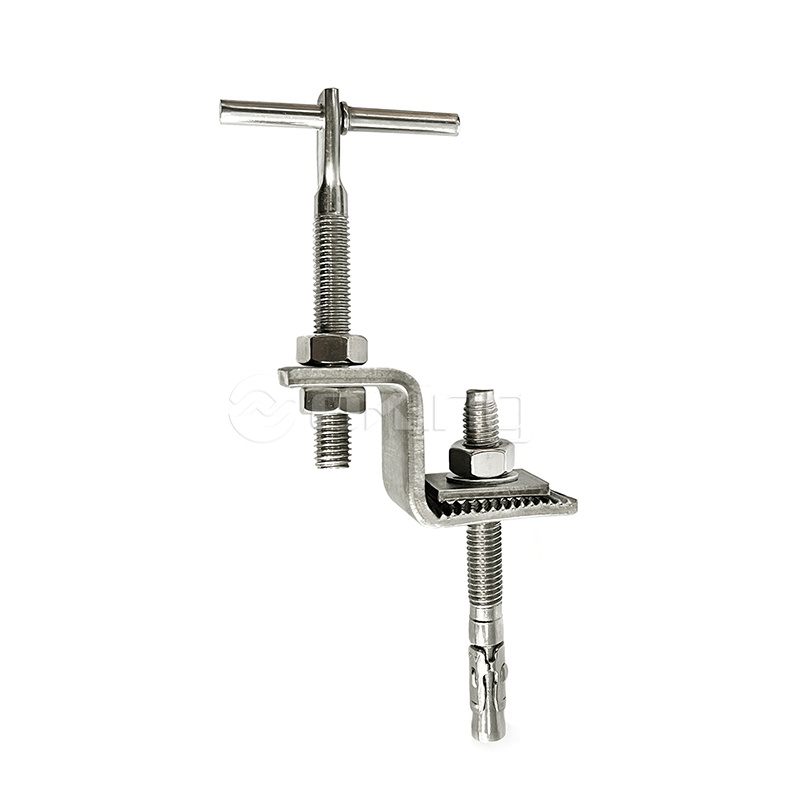

  • AZZ01 Z Bracket With Riveted Nut For Stone Fixing System

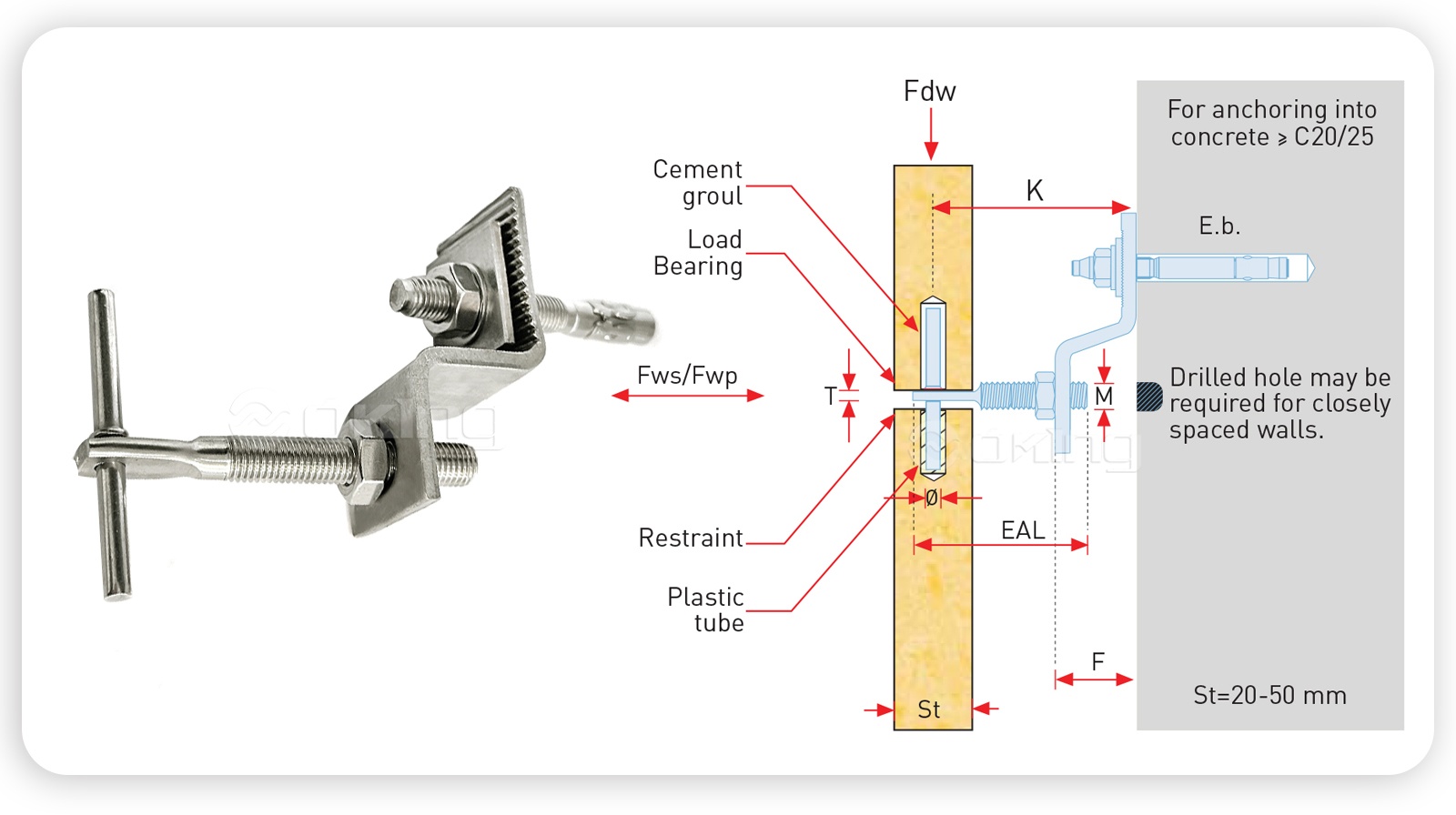

    ●Technical Details

    Product Code Projection

    Min.

    Projection

    Max.

    Projection

    Dead

    Load

    Foriming

    Size

    Wind-

    Pressure

    Wind-

    Suction

    Expansion

    Bolt Size

    Pin

    Diameter

    Adj. Arm

    Metric Size

    Adj. Arm

    Flat Thickness

    Adj. Arm

    Length
    K (mm) K - (mm) K + (mm) Fdw (N) F (mm) Fwp (N) Fws (N) E.b.(mm) ф (mm) M (mm) T (mm) EAL(mm)
    AZZ01-452 45 40 60 200 10 312 219 M8x80 5 M10 3.5 60
    AZZ01-552 55 50 70 20 60
    AZZ01-752 75 60 90 40 70
    AZZ01-952 95 80 110 60 70
    AZZ01-553 55 45 70 300 20 468 328 M8x80 5 M10 3.5 60
    AZZ01-753 75 60 90 40 60
    AZZ01-953 85 70 100 60 60
    AZZ01-1153 95 80 110 80 60
    AZZ01-554 55 45 70 400 10 624 437 M8x80 5 M12 4.5 70
    AZ0Z1-754 75 60 90 20 80
    AZZ01-954 95 80 110 40 80
    AZZ01-1154 115 100 130 60 80
    AZZ01-755 75 60 90 500 20 780 546 M8x80 5 M12 4.5 80
    AZZ01-955 95 80 110 40 80
    AZZ01-1155 115 100 130 60 80
    AZZ01-1355 135 120 150 80 80



    Stainless steel 201 304 316 angle for marble cladding fixing
    Projections between 45 and 135 mm
    Loads up to 800N

    Suitable for horizontal & vertical joints

    Stone thicknesses 20-50 mm

    Fastened on to load bearing walls with expansion bolts and on to channels with set screws
    Material: 1.4571/1.4404/1.4401 (A4/AISI 316) or 1.4301 (A2/AISI 304)



    ●Product code description
    AZZ01 - 45  2   A
            AZZ01:Type

            45:     Projection (mm)

            2:       Dead Load (x10 Kg)

            A:      Shape

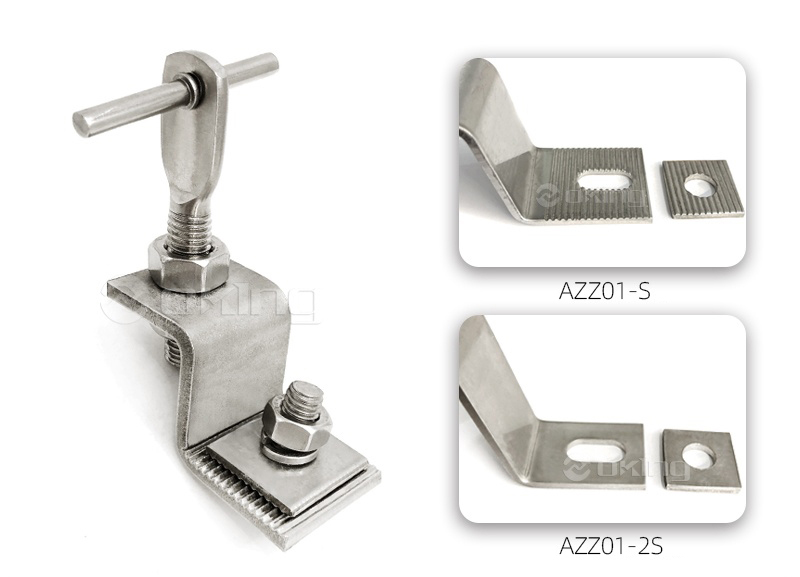

    AZZ01-S
    Type with Serrated and serrated washer.
    AZZ01-2S
    Type without serration and with plain washer.

    ●Installation

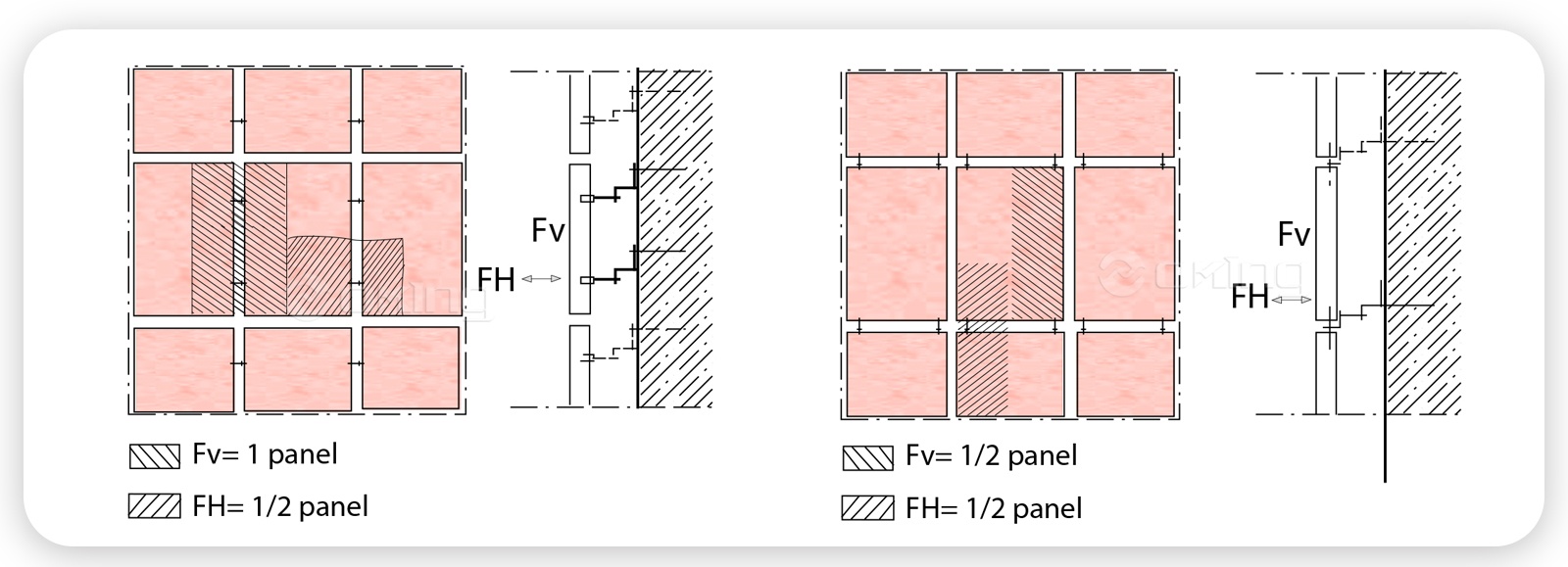

                                                      Installation at horizontal joints                                                                                                          Installation at vertical joints

    ●Application

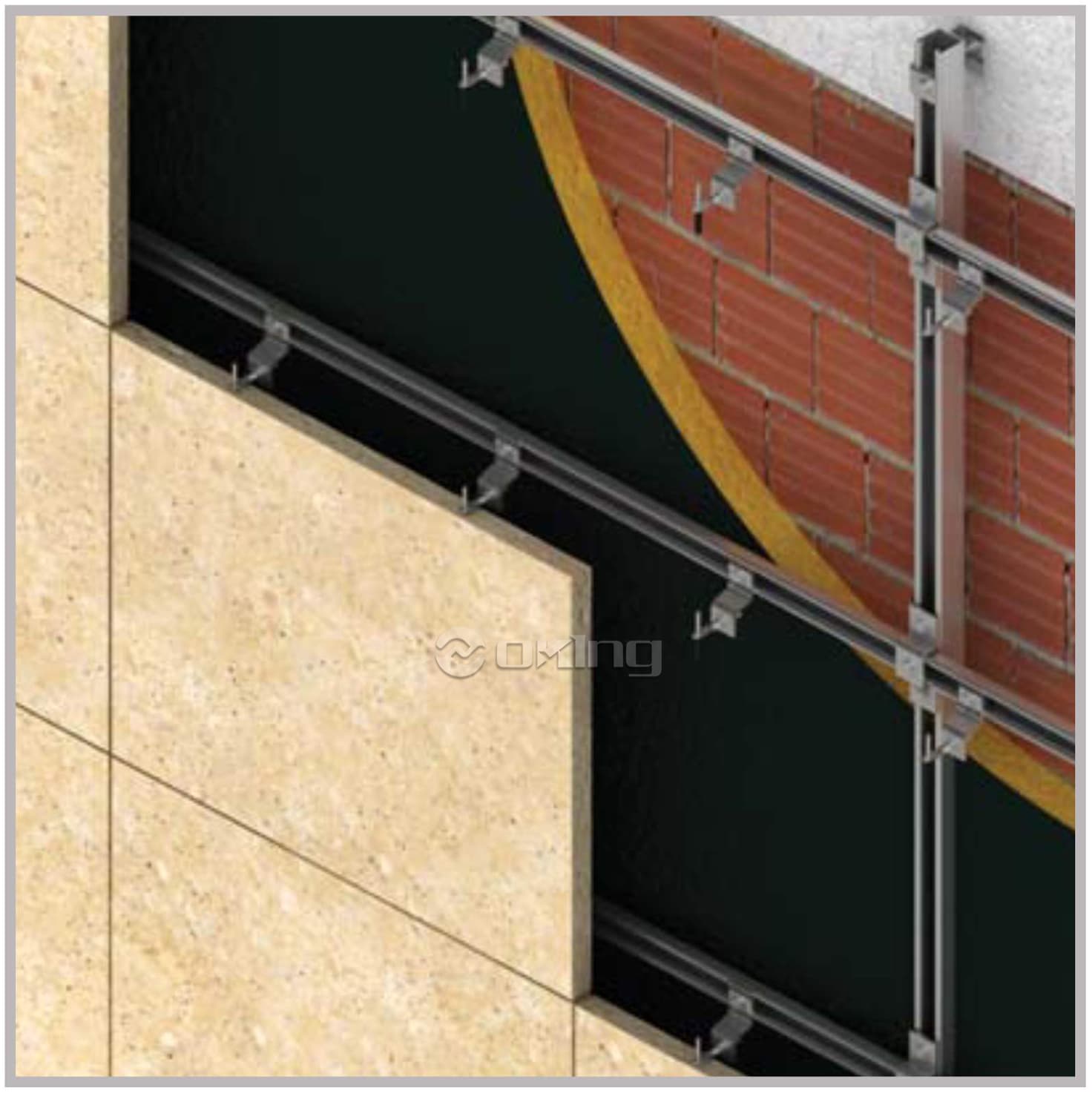

    Application examples for bolt anchorsAnchors are fixed on to load bearing wallswith expansion bolts.

    To fasten anchors on to isolated walls, theisolation must be cut first. After fastening, thecut out isolation piece must be inserted back,and the isolation parts must be sealed in orderto reduce cold bridging.

    Z Anchor Fixing Systems,  are a type of mechanical anchoring system used to secure objects to a wall or other structures. They are commonly used in construction, particularly in the installation of curtain walls, cladding systems, and other facade elements.

    The Z Anchor Fixing System consists of a series of anchors, brackets, and connectors that work together to provide a secure attachment point for the object being installed. The system typically includes vertical and horizontal Z-shaped brackets that interlock with each other, creating a stable connection.

    The installation process involves attaching the vertical brackets to the wall or structure using appropriate fasteners such as screws or bolts. The horizontal brackets, such as a panel or cladding system, are then attached to the object being installed. The horizontal brackets are designed to interlock with the vertical brackets, creating a secure and reliable connection.

    Z Anchor Fixing Systems offer several advantages in construction applications. They provide a strong and durable attachment method that can withstand wind loads, seismic forces, and other external forces. The interlocking design of the brackets ensures stability and prevents the object from dislodging or detaching from the wall.
